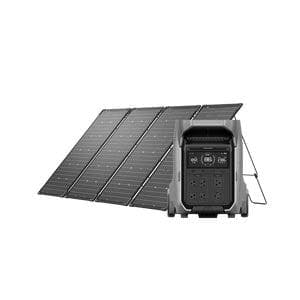

EcoFlow|DELTA Pro Ultra+500W (4*125W) Bifacial Modular Solar panels kit X2

EcoFlow|DELTA Pro Ultra+500W (4*125W) Bifacial Modular Solar panels kit X2

$6,299.00 USD
$7,896.00 USD $6,299.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

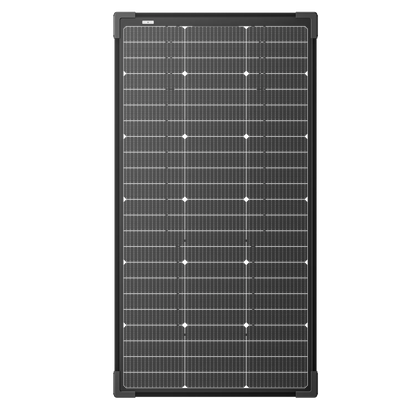

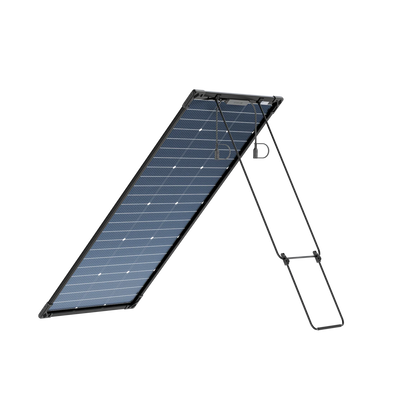

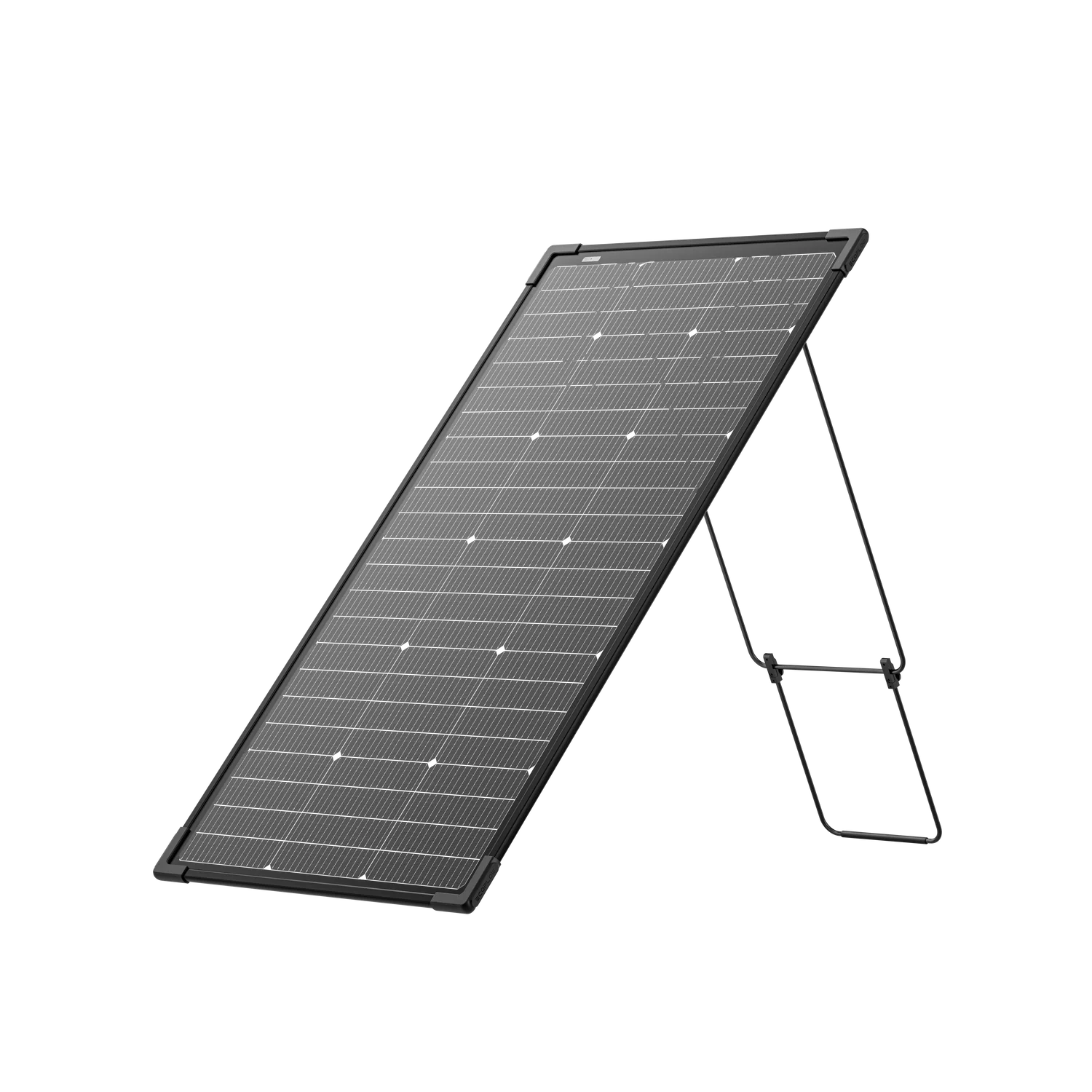

The EcoFlow 125W bifacial modular solar panel offers 25% efficiency, plug-and-play expansion, and reliable performance in various weather conditions, making it ideal for long-term home and outdoor use.

Perfectly Tailored for Home Use

Long-Lasting Solar Solution for Your Home

With a 30-year lifespan, this durable, low-maintenance solar panel is ideal for home use.

Home Backyard

Fully charge EcoFlow DELTA Pro 3(4kWh) in as fast as 3-4 hours with 3 sets of 500W (125W × 4) panels.

RV

Fully charge EcoFlow DELTA 3(1kWh) in as fast as 2-3 hours with 1 set of 500W (125W × 4) panels.

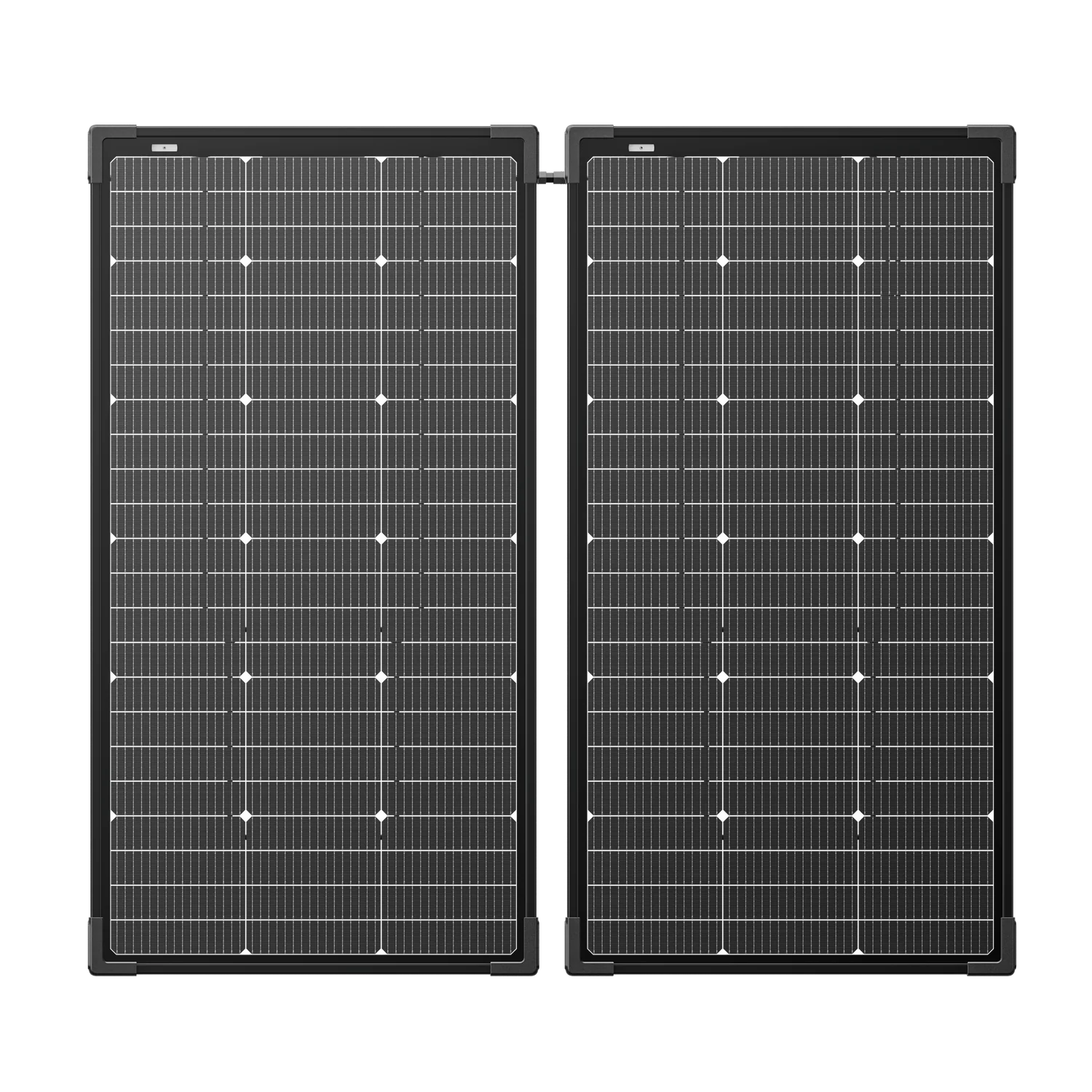

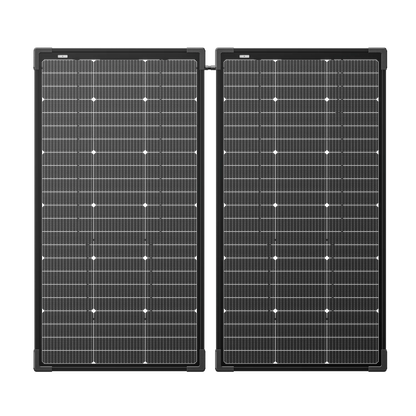

Modular Design

Seamless Expansion and Broad Compatibility

The EcoFlow 125W Bifacial Solar Panel features an innovative modular design, delivering 125W power, 50V, and 3A current output, designed for seamless expansion within its safe range, it offers exceptional adaptability with various EcoFlow portable power stations.

50V Design For Parallelling

50V high-voltage, low-current design: Tailored for 60V and 150V energy storage systems, enabling flexible compatibility and easy parallel connection. Unlike traditional systems that increase power via series connections, the 60V voltage limit naturally restricts series options, making the 50V parallel setup more suitable for achieving high power output. Meanwhile, it also supports series connections to achieve 150V output.

Shading Resistance: The 125W bifacial solar panel supports multiple parallel connections, reducing efficiency loss due to shading. In series connections, partial shading on one panel restricts the entire circuit's current, significantly impacting performance.

Upgraded XT-60 Ports

The XT-60 port integrates both positive and negative terminals, simplifying connections, preventing miswiring, and supporting direct panel connections. It’s waterproof, providing an excellent outdoor experience. Its 30A current limit covers EcoFlow power stations’ maximum 25A current input.

Simple Connections, High Expandability

Plug-and-Play Connections: Traditional series setups require extensive wiring for multiple panels, making installation complex. The 125W panel’s innovative design enables easy parallel or simple series connections, achieving true plug-and-play functionality.

Enhanced Expandability: Compatible with multiple EcoFlow portable power stations, this solar panel can easily scale power levels by adjusting the number of panels used, and adapting to various EcoFlow models. Mixing old and new panels won’t impact overall output, maximizing efficiency.

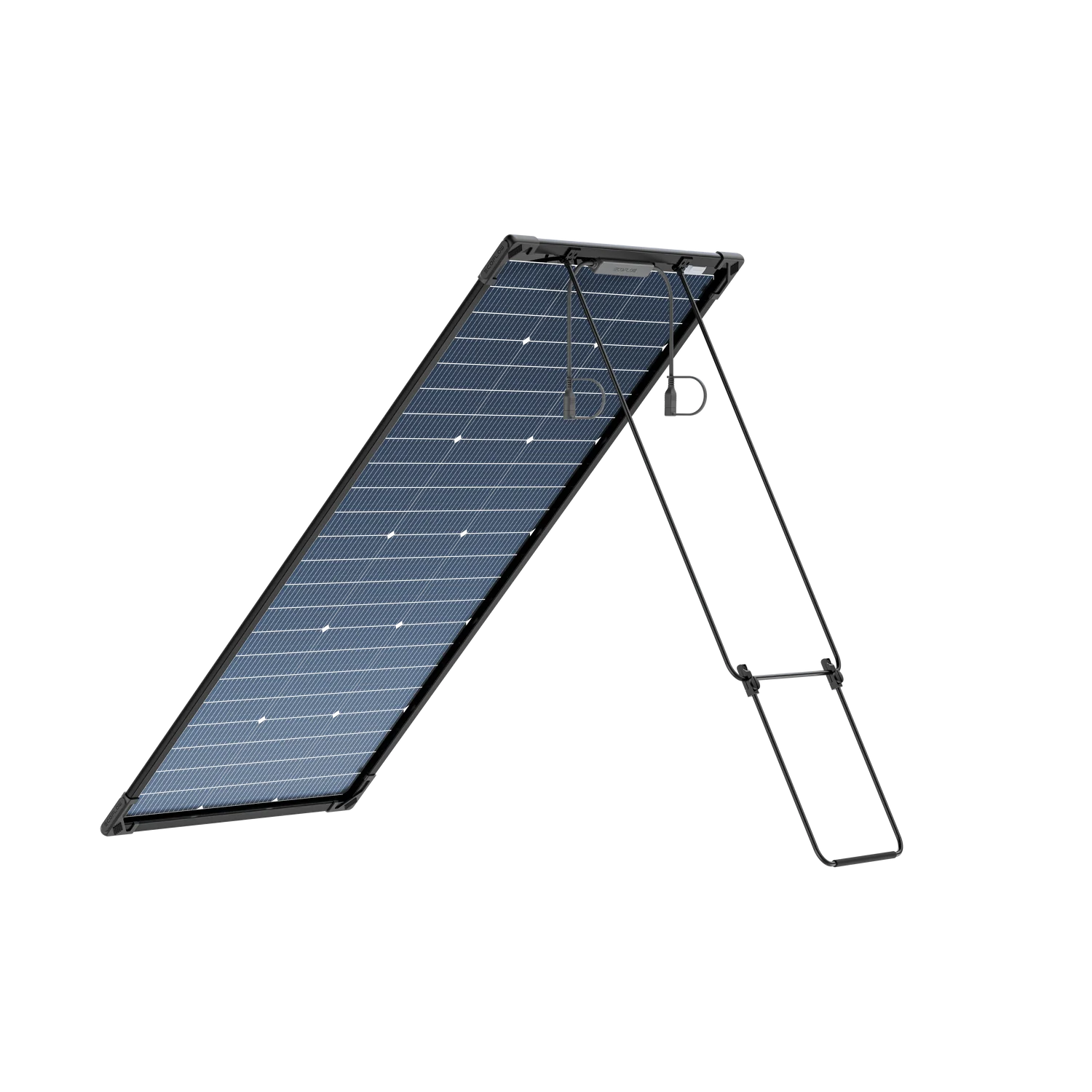

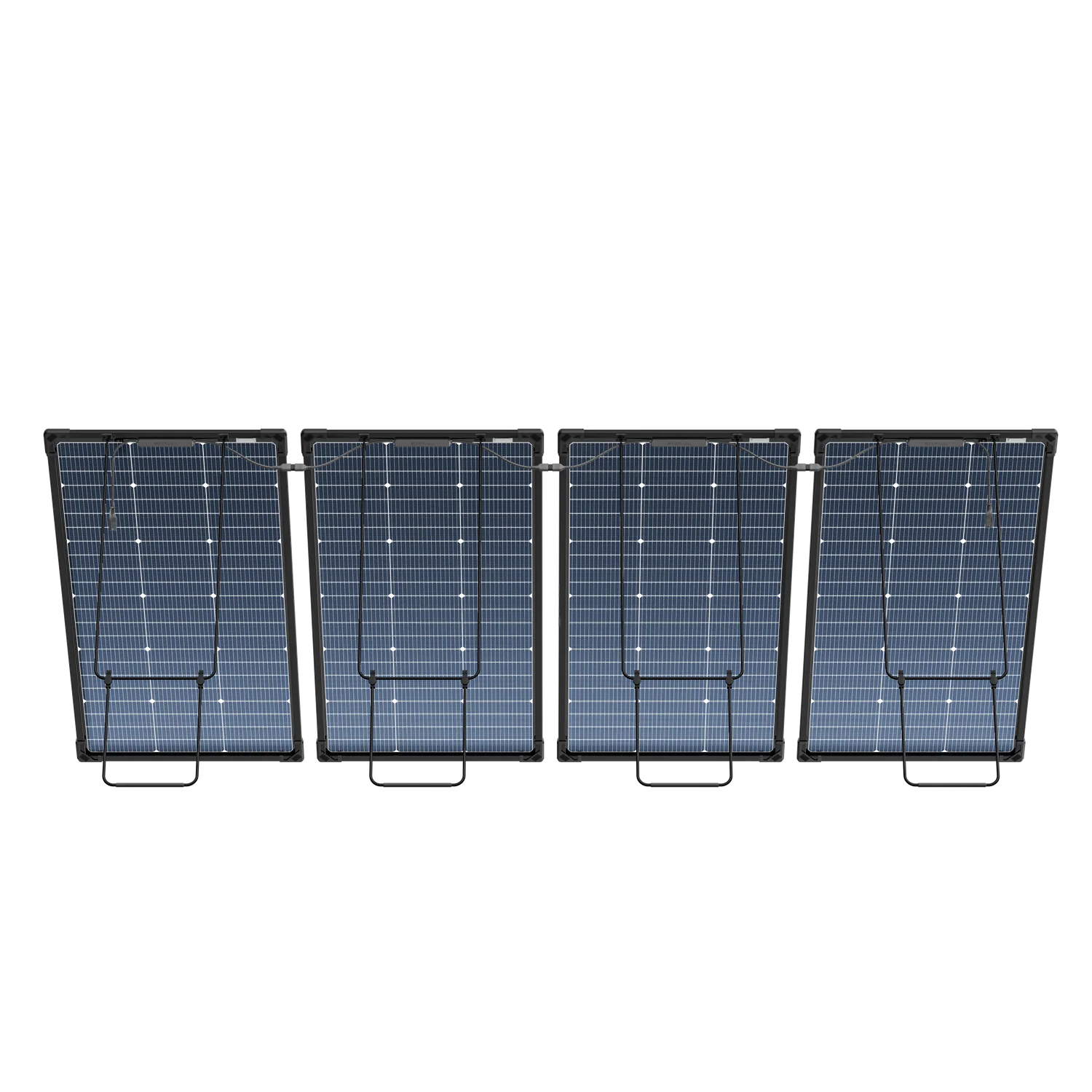

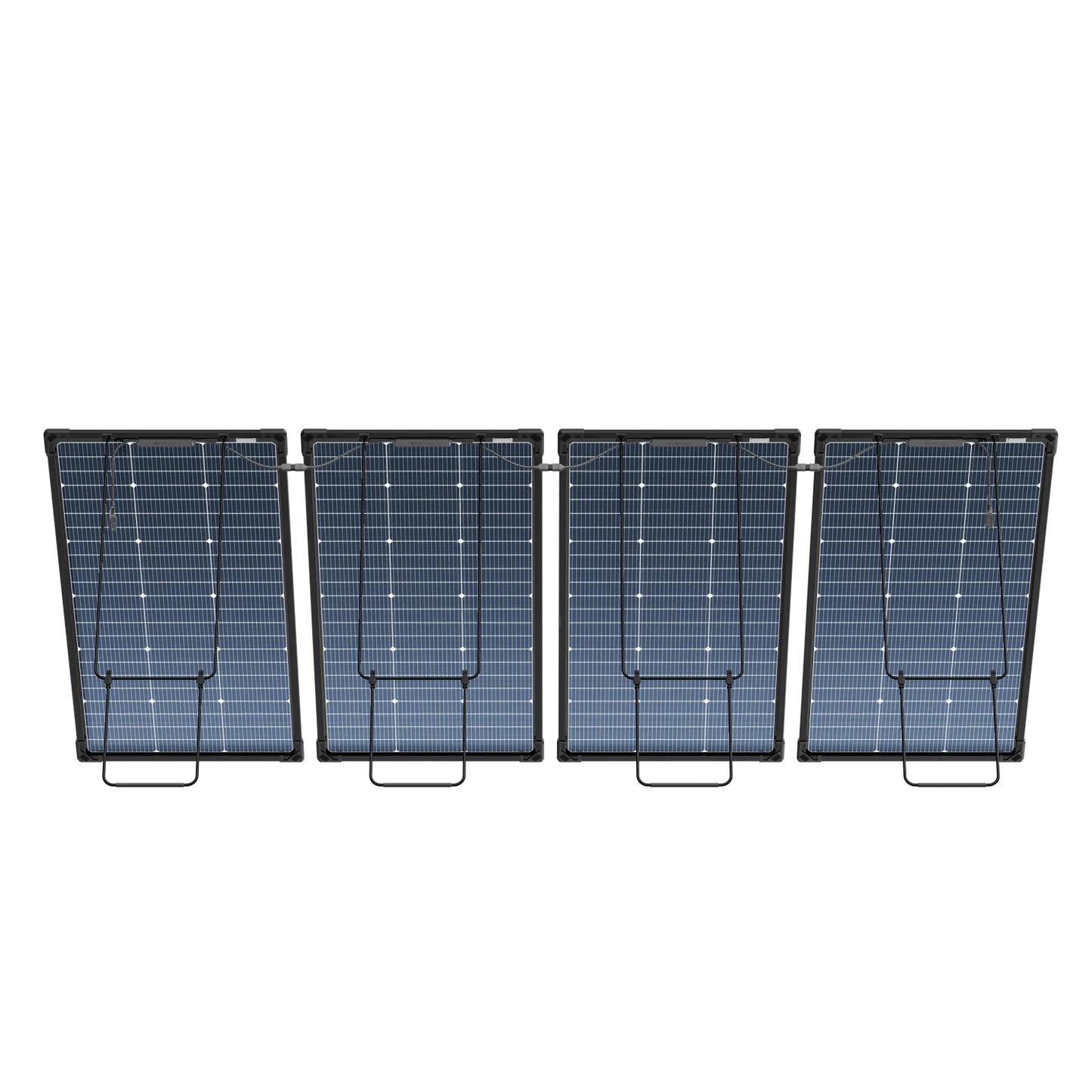

Revolutionary N-Type TOPCon Solar Cells & Dual-Sided Design

Maximize Energy Generation

With N-Type TOPCon technology, achieve up to 25% conversion efficiency. The dual-sided design generates Max. 138W[2] bifacial output, capturing more solar energy.


Coated with Protective Lamination & Tempered Glass

Durable, All-Weather Design

Built with robust anti-corrosive aluminum frame, TOPCon cells feature 1.1mm ultra-thin tempered glass for excellent light transmission, POE films for UV and moisture resistance, PET backsheets for durability. The panel is IP68-rated with waterproof XT60-W connector, ensuring robust, weather-resistant performance.

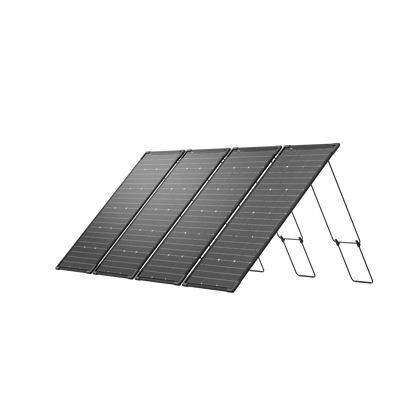

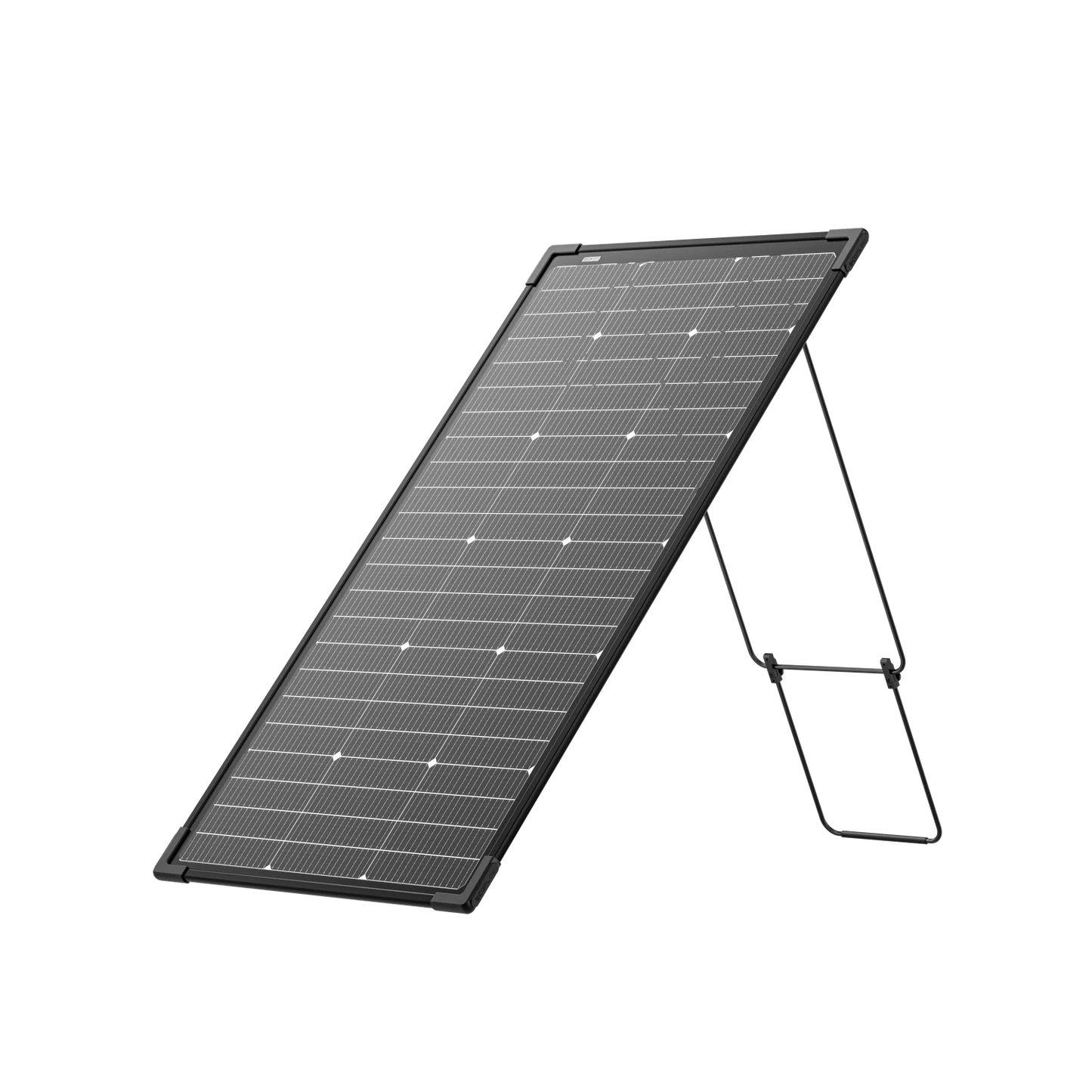

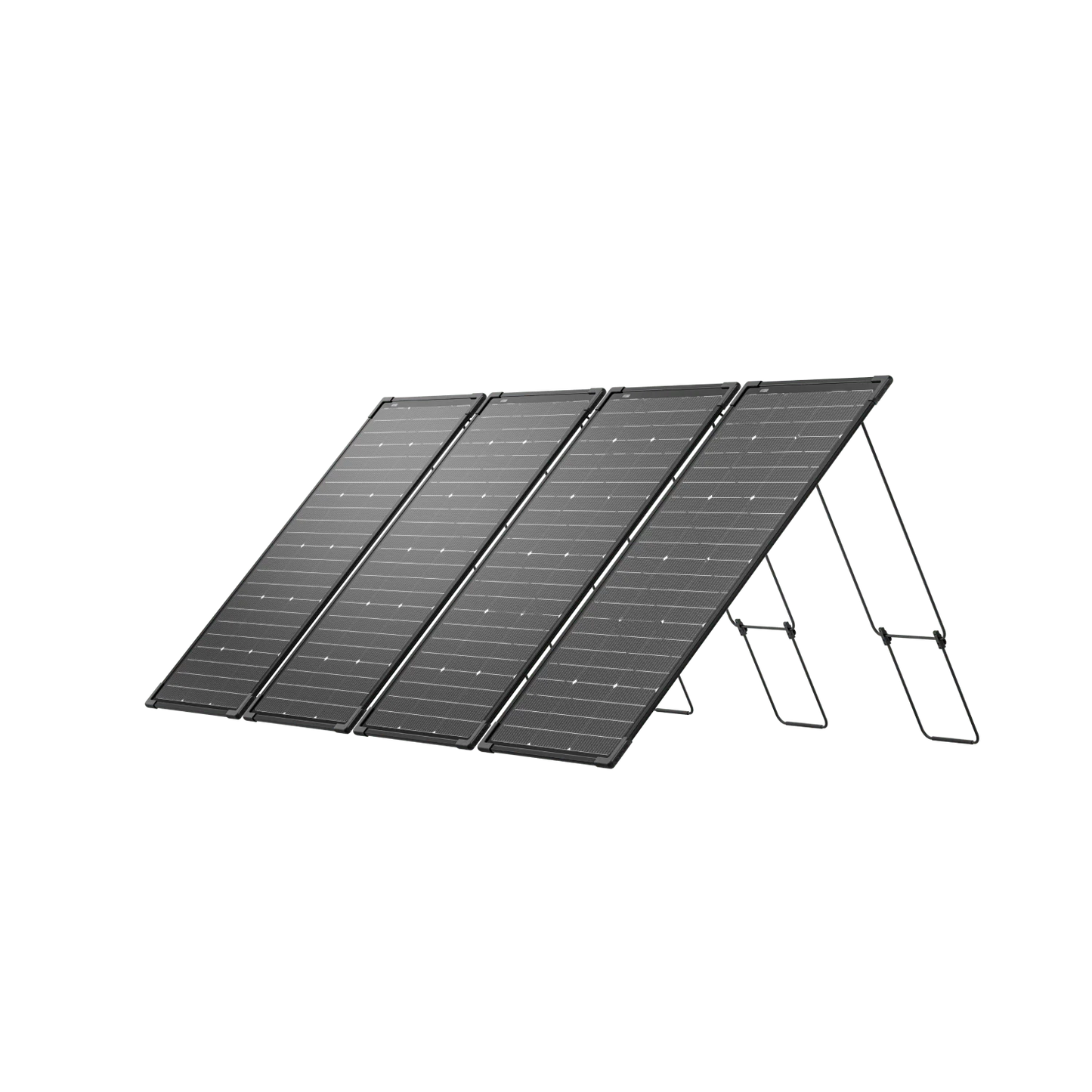

Flexible, Lightweight Design for Adjustable Power Needs

The 500W setup weighs only 37 lbs (16.8 kg) . The modular design enables flexible power configuration. For situations requiring less than 500W or a lighter setup, the system can be split into individual panels, offering both flexibility and reduced weight. Featuring 3M™ Dual Lock™ Reclosable Fasteners[3], ensures quick and steady assembly, and the protective bag makes transport and storage effortless.

Flexible, Lightweight Design for Adjustable Power Needs

Universally Compatible Solar Cable

Plug and Play with Your Power System

Easily connect to third-party solar systems using the included photovoltaic connector (MC4 compatible）[4]. Safely charge your power systems and portable power stations with XT60 connectors, featuring waterproof, touch-safe, anti-leak technology for reliable performance.


 EcoFlow XT60W to Solar Connector Extension Cable (MC4 Compatible), connects solar panels in series.
EcoFlow Solar Extension Cable(2M), provides a longer extension range for series connection of solar panels.
EcoFlow Solar Connector to XT60i Extension Cable (MC4 Compatible）, connects solar panels with your power stations.

EcoFlow 125W Bifacial Modular Solar Panel Charging Times

EcoFlow 125W Bifacial Modular Solar Panel Charging Times

What‘s In The Box

Tech Specs
Rated Power  STC 125W (±3W) BNPI 138W (±3W)
Open Circuit Voltage 50V
Short Circuit Current STC 3.2A BNPI 3.4A
Optimal Operating Voltage 43V
Optimal Operating Current STC 3ABNPI 3.2A
Recommended Ambient Temperature -40°C to 85°C (-24°F to 185°F)
Efficiency 25%
Bifaciality Coefficients 80%±5%
Weight Approx. 4.2 kg (9.26 lbs)

Dimensions (L×W×H)

 612×1154×22 mm (24.1×45.4×0.87 in)
Maximum System Voltage 600V DC (IEC/UL)
Cell Type TOPCon monocrystalline silicon
Connector Type XT60
Waterproof & Dustproof Rating Solar Panel IP68 XT-60 Connector IP68
Warranty (US) Warranty (US)
Lifespan 30 years, 90%


Footnotes:

[1] Tested under optimal conditions.
[2] The maximum combined power output of the 125W bifacial panel is 138W. Under the same lighting conditions, the bifacial panel can generate up to 10% more power on the rear side compared to a single-sided panel, calculated as (138-125)/125 * 100% = 10.4%.
[3]The term "3M" and "dual lock" are both trademarks belonging to the 3M Company, also known as the Minnesota Mining and Manufacturing Company.
[4] Included with the 500W (125W × 4) bifacial modular solar panel set.

View full details

EcoFlow DELTA Pro Ultra

The most powerful whole-home backup solution.

Month-long power security.

6-90kWh Capacity

Take home power dependability to another level with up to 90kWh battery capacity. For a standard household, that's over 30 days of essential backup power to keep appliances like lights and refrigerators running strong (time may vary). Stackable and space-saving, it packs comfortably into a garage or utility closet.

One unit covers every appliance.

7.2kW-21.6kW, 120V & 240V Output

With a 7.2kW output, EcoFlow DELTA Pro Ultra effortlessly runs even energy-hungry household items, like a 3-ton central air conditioner*. For more power, pair 3 inverters with the EcoFlow Smart Home Panel 2 to unlock a 21.6kW AC output. Plus, with X-Fusion you'll get a constant 7200W output no matter what.*

One hour of solar for one day of power.

5.6kW-16.8kW Solar Input

By leveraging High and Low-PV technologies, a single inverter sets new portable solar input standards with a 5.6kW input*. Connect three inverters for a monumental 16.8kW, gaining a full day's home energy in 60 minutes. Whether you prefer a portable setup or a rooftop solar system, you can achieve true energy independence.

1 2

Always in charge

With a Generator or EV pile

You're spoilt for choice with EcoFlow DELTA Pro Ultra's charging options. As well as all our usual methods, like solar and the grid, you can now power up using a gas generator or even your EV charging pile. With the industry's fastest charging speeds of 8800W, top up two batteries in only 2 hours.

You won't even notice the grid was down.

0-ms Downtime, 0 dB Silent Backup

Imagine a world where power outages go unnoticed. With EcoFlow DELTA Pro Ultra's online UPS, you'll get just that. With uninterrupted power flow, EcoFlow DELTA Pro Ultra safeguards your vulnerable electronic equipment round-the-clock. For extended outages, you don't want to hear your backup in the background, so for low draws under 2000W*, it's completely silent. With a whisper-quiet 0 dB, your nights remain undisturbed as it powers your devices.*For a maximum of 30 minutes.

Peace Of Mind With An Advanced Design.

EcoFlow X-Cooling

With its flexible plug-and-play design and unrivaled solar input, EcoFlow DELTA Pro Ultra empowers you to tailor your solution to fit your energy needs. EcoFlow DELTA Pro Ultra includes a PV locking feature, assuring safety and a solid energy connection.

Boost Performance with BMS

Our state-of-the-art LFP tech and advanced battery management system (BMS) regulates vital data, ensuring the safety, longevity, and high performance of EcoFlow DELTA Pro Ultra.With each battery offering a cycle life of 3500+, you'll get years of use before capacity drops to 80%. Even then, it keeps powering on.

Powers through the most challenging situations.

EcoFlow DELTA Pro Ultra tackles even the most grueling conditions. Whether it's extreme weather or freezing winters, this giant safeguards your power security, just like usual.

Operating temperatures: -4℉ to 113℉

290V high voltage tolerance

IP54 dustproof and splashproof

EcoFlow User Manuals

EcoFlow DELTA Pro Ultra User Manual

EcoFlow Smart Home Panel2 User Manual

How to Choose your EcoFlow DELTA Portable Power Station

FAQ| DELTA Pro Ultra

Can the EcoFlow DELTA Pro Ultra connect to the EcoFlow Smart Home Panel?

No. However you can use Ecoflow Power input/output Cable to connect DPU with EcoFlow Smart Home Panel 2.

Can the EcoFlow DELTA Pro Ultra charge using existing rooftop solar?

Yes, it’s compatible with existing solar systems, including rooftop solar*. For each EcoFlow DELTA Pro Ultra Inverter, solar input can reach a maximum of 5600W (16.8kW with 3 inverters) with the following:High voltage PV: 80-450V, 15A, 4000W MaxLow voltage PV: 30-150V, 15A, 1600W Max

*If you connect the EcoFlow DELTA Pro Ultra to PV system circuits installed on or in buildings, according to NEC regulations, the system shall include a rapid shutdown function to ensure operation safety and reduce shock hazards for emergency responders. If you wish to connect the EcoFlow DELTA Pro Ultra to PV system circuits, a pre-purchase consultation must be completed by a qualified electrician or installer.

Can EcoFlow DELTA Pro Ultra be charged using an EcoFlow Smart Generator?

EcoFlow Smart Generator can charge EcoFlow DELTA Pro Ultra using an EcoFlow AC Charging Cable (NEMA 5-15P to C19).

EcoFlow DELTA Pro Ultra can not be charged using DC through an XT150 cable.

Third-party generators can charge EcoFlow DELTA Pro Ultra using the EcoFlow AC Generator Charging Adapter.

The EcoFlow Smart Generator can be auto-switched on or off through the EcoFlow app.

Does EcoFlow DELTA Pro Ultra work with an existing grid-tied system that does not have a backup feature?

Unfortunately, EcoFlow DELTA Pro Ultra cannot connect and feedback to the grid.

Can I connect EcoFlow power stations to my house electric panel directly?

Yes, but the transfer switch should be connected to the power station's AC output port. You should disconnect the circuits from the grid before the power station supports them. The total power consumption of the circuits should not exceed the output power rating. The output will not be grounded if the power station is not connected to the grid.

What are EcoFlow DELTA Pro Ultra's solar charging priorities?

Charging priority: low voltage photovoltaic > high voltage photovoltaic > 5 + 8 interfaces (including Smart Home Panel 2) > mains

Can an EcoFlow DELTA Pro Ultra Battery charge without the EcoFlow DELTA Pro Ultra Inverter?

No. The EcoFlow DELTA Pro Ultra Battery needs to be connected to an EcoFlow DELTA Pro Ultra Inverter to charge. EcoFlow DELTA Pro Ultra is not compatible with third-party inverters.

How long is the EcoFlow DELTA Pro Ultra warranty?

EcoFlow DELTA Pro Ultra Inverter Warranty: 5 Years

EcoFlow DELTA Pro Ultra Battery Warranty: 5 Years

Even then, each LFP battery's lifespan lasts for as long as 10 years with up to 3500 cycles.

What is the EcoFlow DELTA Pro Ultra weather-protection level?

The EcoFlow DELTA Pro Ultra weather-protection level is IP54. An IP54 rating means that your product will be protected against dust and other particles and water spray from all directions.

Can X-Fusion charge EcoFlow DELTA Pro Ultra from an AC outlet while it's also plugged into the Smart Home Panel 2?

X-Fusion technology ensures that all AC output sockets provide optimal output in terms of wattage and amp. In fast charging mode, the output will always be 7.2kW, no matter how much the input is.

When EcoFlow DELTA Pro Ultra is connected to Smart Home Panel 2, AC charging is disabled. 5 + 8 ports and C20 charging port mutual exclusion.

Can EcoFlow DELTA Pro Ultra charge from a 15A AC outlet while delivering 240V?

When charging EcoFlow DELTA Pro Ultra with 120V, it can output 240V normally. When charging EcoFlow DELTA Pro Ultra with 240V, it cannot output 240V. When charging at 240V using X-Stream charging via an AC inlet, AC output is not available. That is to say, when charging with high voltage 240V input voltage, all AC output is disabled.

Can EcoFlow DELTA Pro Ultra power a several-ton air conditioner?

One EcoFlow DELTA Pro Ultra can power a 3-ton central air conditioning unit. 2 × DELTA Pro Ultra can power a 4-ton central air conditioning units, while the LRA rating must be within 120A

What is the charging power and time of a single battery?

With only one battery pack, the fastest charging input is 6200W, taking about 92 minutes to charge from 0% to 100%.

When there are two battery packs, the fastest charging input is 8800W, and it takes about 1 hour and 56 minutes to charge from 0% to 100%.

Can an electrical appliance plug directly into EcoFlow DELTA Pro Ultra?

Yes. EcoFlow DELTA Pro Ultra (Inverter + Battery) works as a standalone unit powering electrical appliances of up to 7200W. There are 11 outlets on the inverter, including NEMA 5-20, TT30, L14-30 supporting 30A, USB-C, and USB-A.

What is the EcoFlow DELTA Pro Ultra Inverter's surge rating, and how long does it last?

LRA 120A; 10.8kW peak watts for 10 seconds.

Is AC passthrough possible with a 120V input?

Use the C20 outlet for a bypass mode with a 120V input. There is no bypass mode for 240V input.

What is the maximum input wattage for AC charging using a 240V load?

When using the C20 outlet and charging at 240V, the maximum charging input is 3000W. AC output is turned off at this time.

Can EcoFlow DELTA Pro Ultra/EcoFlow Smart Home Panel 2 run without the EcoFlow app?

EcoFlow Smart Home Panel 2 requires the EcoFlow app to run. EcoFlow DELTA Pro Ultra works without the EcoFlow app, but it is recommended for convenience.

What is the Bluetooth version?

EcoFlow DELTA Pro Ultra's Bluetooth version supports 4.2 and 5.0.

Can I program EcoFlow DELTA Pro Ultra to run at certain times, like during peak rate hours?

Yes, charging times can be set.

Is EcoFlow DELTA Pro Ultra compatible with third-party inverters.

EcoFlow DELTA Pro Ultra is not compatible with third-party inverters.

How long does it take to fully charge a battery?

The fastest charging power for one battery is 6200W. It takes about 92 minutes to charge one battery from 0% to 100%, but if stacked on two or more batteries, the maximum charging power can reach 8800W. It takes about 1 hour and 56 minutes to charge two batteries from 0% to 100%.

Can an EcoFlow DELTA Pro Ultra Battery charge without the EcoFlow DELTA Pro Ultra Inverter?

No. The EcoFlow DELTA Pro Ultra Battery needs to be connected to an EcoFlow DELTA Pro Ultra Inverter to charge. EcoFlow DELTA Pro Ultra is not compatible with third-party inverters.

After plugging in a smartphone, the USB symbol on the EcoFlow DELTA Pro Ultra flashes.

It probably means there is poor contact between the charger and the phone. Try plugging it in again, changing the input port, changing the charging cable, or trying a different phone.

Batteries cannot be charged in low temperatures.

The battery has a self-heating function. At sub-zero temperatures, the battery pack will heat up to above-zero temperatures. However, for improved charging and discharging performance, place the battery indoors.

After enabling the battery's self-heating function, the temperature will rise to the optimal level, and each discharge cycle will consume 10% of the electricity.

Incessant battery overheating

The battery cell will show overheating at 60 degrees. It must be stationary in a cool place for at least 2-3 hours before returning to a safe working temperature.

The EcoFlow DELTA Pro Ultra app interface does not have independent AC and DC output data.

Switch to the app's standard mode to see an EcoFlow DELTA Pro Ultra single-unit interface.

There is a 274 fault code when using a 780W/5700W dryer and charging at 1800W/120V.

A 274 fault is caused by a C20 outlet overcurrent. After a C20 overcurrent, it will switch to INV and discharge normally, as long as you have a split load. At this time, the maximum power should be 7200W. The custom charging mode does not support X-Boost. Once the output load exceeds the set charging power, it will cause the 274 fault. If the user needs to charge and discharge a dryer simultaneously, the C20 must be set to fast charging mode.

FAQ| Smart Home Panel 2

How long is the EcoFlow Smart Home Panel 2 warranty?

EcoFlow Smart Home Panel 2 has a 10-year of quality assurance warranty.

What is the Smart Home Panel 2 weather-protection level?

Distribution panel: NEMA 3R standards can be installed indoors and out (equivalent to IP14).

Battery connection box: NEMA Type 1 electrical enclosure; safe for indoor installation (equivalent to IP10).

Can I install the EcoFlow Smart Home Panel 2 by myself?

EcoFlow Smart Home Panel 2 must be installed by certified installers and electricians who have completed EcoFlow Smart Home Panel 2 product training. We also offer an installation consultation for EcoFlow Smart Home Panel 2. See here for details.

How long does it take to install EcoFlow Smart Home Panel 2?

EcoFlow Smart Home Panel 2's installation time may vary depending on the scope of work required and the current configuration of the circuits in your home. For most homes, EcoFlow Smart Home Panel 2 installs in 3-8 hours, which is similar to replacing a standard distribution box.

Will installing EcoFlow Smart Home Panel 2 and EcoFlow DELTA Pro Ultra affect NEM 2.0?

No. Since EcoFlow DELTA Pro Ultra it won't affect NEM 2.0. It cannot be connected to NEM 2.0 rooftop photovoltaic systems, so a new system would need to be installed.

Is Smart Home Panel 2 repairable? How can it be repaired?

Any Smart Home Panel 2 needs to be repaired by a professional electrician. Although the panel does not need to be removed from the wall, Smart Home Panel 2 certified technicians must repair the internal assembly and reconfigure the internet connection. If you need this service, please contact the Smart Home Panel 2 technical support team for troubleshooting and determine whether to return to the factory for repair.

How many circuits can Smart Home Panel 2 manage?

Smart Home Panel 2 can manage up to 12 × 120V circuits or 6 × 240V circuits and can be selected according to different needs.

How to connect EcoFlow DELTA Pro Ultra with Smart Home Panel 2?

EcoFlow DELTA Pro Ultra connects with Smart Home Panel 2 using an EcoFlow Power Input/Output Cable (5 + 8). If additional cables are needed, they can be purchased on the official online store.

Why doesn't Smart Home Panel 2 have the same automation features as Smart Home Panel? Why can't we take one circuit on grid while taking another off the grid?

The Smart Home Panel automated timing feature is still available. Smart Home Panel 2 can only achieve a full mains or energy storage power supply for a circuit, and this is based on North American distribution panels.

How many EcoFlow DELTA Pro/EcoFlow DELTA Pro Ultra units are supported by EcoFlow Smart Home Panel 2?

EcoFlow Smart Home Panel 2 can connect to EcoFlow DELTA Pro and EcoFlow DELTA Pro Ultra. Up to 3 EcoFlow DELTA Pro Ultra Inverters can connect to EcoFlow Smart Home Panel 2, each inverter allowing for 5 batteries. A total of 2 EcoFlow DELTA Pro, with 2 Smart Extra Batteries per unit, can connect to the EcoFlow Smart Home Panel 2 using the EcoFlow Double Voltage Hub.

How does Smart Home Panel 2 differ from Smart Home Panel 1 and the transfer switch?

Smart Home Panel 2 is equipped with 12 circuits and can be expanded to a capacity of up to 90kWh with a 21.6kW output, and it can receive a maximum solar input of 16.8kW. Additionally, it includes enhanced features on the EcoFlow APP, such as storm guarding and Time of Use (TOU) functionalities. These features can help save money by automatically switching from grid to backup power during high rate periods and in the event of an impending natural calamity.

Does EcoFlow DELTA Pro Ultra work with an existing grid tied system that does not have a backup feature?

Unfortunately, EcoFlow DELTA Pro Ultra cannot connect and feedback to the grid.

Does the Smart Home Panel 2 offer three-phase electrical power like the German electrical grid?

Smart Home Panel 2 can support two-phase electrical output but cannot achieve three-phase.

Why can't the smart home panel be connected to a rooftop solar system using AC coupling?

• Smart Home Panel 2 is designed for managing and distributing AC (Alternating Current) power within a traditional electrical system. Rooftop solar panels, on the other hand, generate DC (Direct Current) power. This fundamental difference in current type means direct connection without proper conversion and control mechanisms (like an inverter) is not feasible. • In a rooftop solar system, the DC power generated by the panels must be converted to AC power to be compatible with home appliances and the grid. This conversion is done by an inverter. A direct connection without this conversion process would not only be inefficient but could also damage the electrical grid or the solar panels. • The Smart Home Panel 2 must be connected to the main house panel, which is part of the grid. Connecting the rooftop solar system directly to the Smart Home Panel 2 could lead to unstable power supply. This instability might result in insufficient power delivery to appliances connected to the panel, causing them to malfunction. Moreover, local regulations stipulate that integrating the rooftop solar system in this manner would necessitate a shift to the current Net Energy Metering (NEM) policy, requiring users to reapply for permits. This process could take several months for approval. Additionally, the new NEM 3.0 policy offers less favorable credit terms compared to the NEM 2.0. Therefore, both from a power usage and economic standpoint, it is not advisable to wire a rooftop solar system directly to Smart Home Panel 2.

What if my house panel is already connected to a rooftop solar system?

If your house panel is already connected to a rooftop solar system (AC Coupling) through an inverter that links to a dedicated breaker, it is compatible with our Smart Home Panel 2. Please be aware that in the event the grid fails, the AC coupling system will also cease to function because it relies on detecting the electrical signal from the grid. When the grid is operational, the solar system can supply power to the Delta Pro Ultra, treating it as a load.

Which EcoFlow products are compatible with Smart Home Panel 2?

The EcoFlow Smart Home Panel 2 is compatible with the Delta Pro Ultra and Delta Pro models. By connecting the Delta Pro Ultra, you can ac hi eve a power capacity of 90kWh and an output of 21.6kW, with a maximum charging speed of 7200W. When connecting Delta Pros to the panel, it's important to note that with only one Delta Pro connected, it can only be charged through the panel. To enable both charge and discharge functionalities, you need two Delta Pros connected via a specialized double voltage hub, which allows for a 7200W output. Each Delta Pro has a power capacity of 3600Wh, and you can expand this capacity by linking up additional batteries, allowing for a maximum power capacity of 25kWh.
