EcoFlow

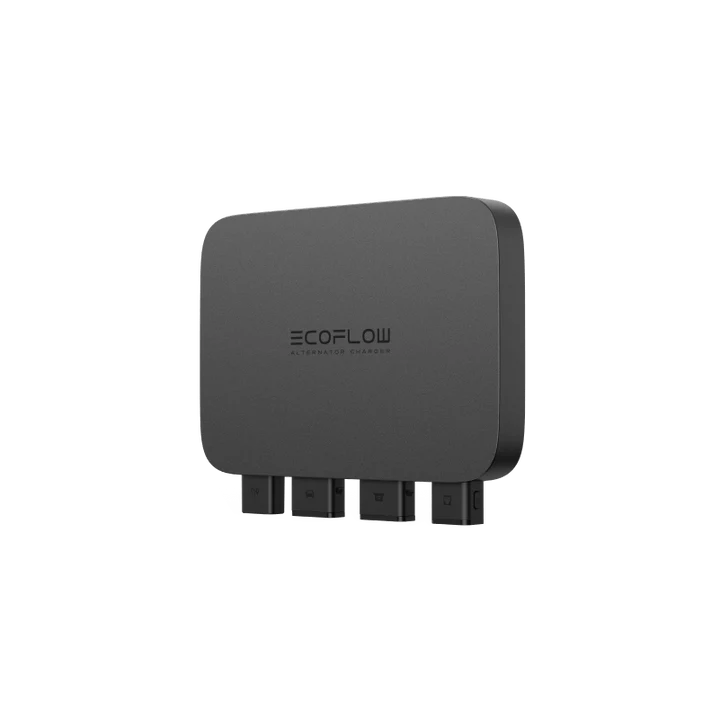

EcoFlow| 800W Alternator Charger

EcoFlow| 800W Alternator Charger

Regular price $399.00 USD
Regular price $599.00 USD Sale price $399.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

·      Charge while you drive, and stay powered up on the road.

·      800W turbo alternator, 8× faster than traditional in-vehicle auxiliary power outlets. Top up 1kWh in only 1.3 hours.

·      A 3-in-1 fast charger, maintainer, and jump starter keeps your battery in mint condition.

·      Easy installation

·      Suitable for a variety of vehicles, including SUVs, pickups, and RVs.

·      Expands existing RV house battery capacity.

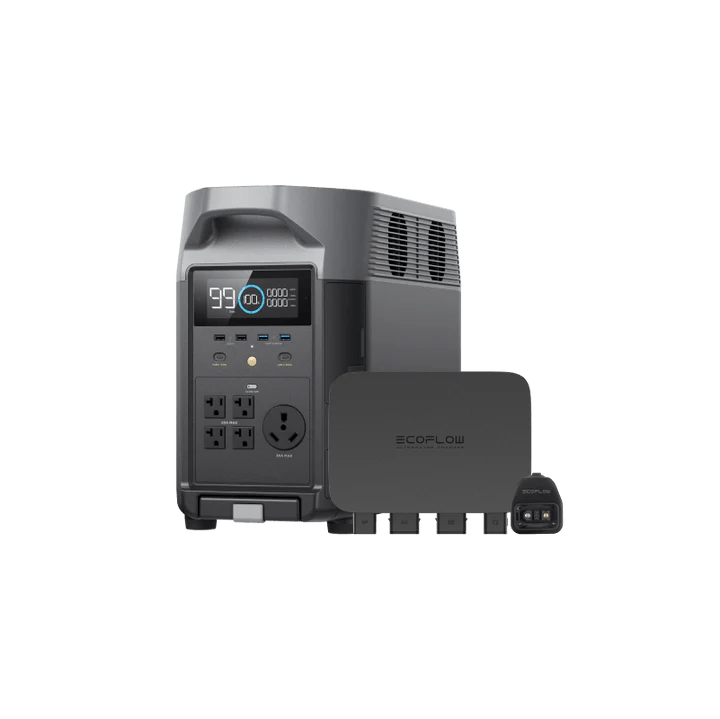

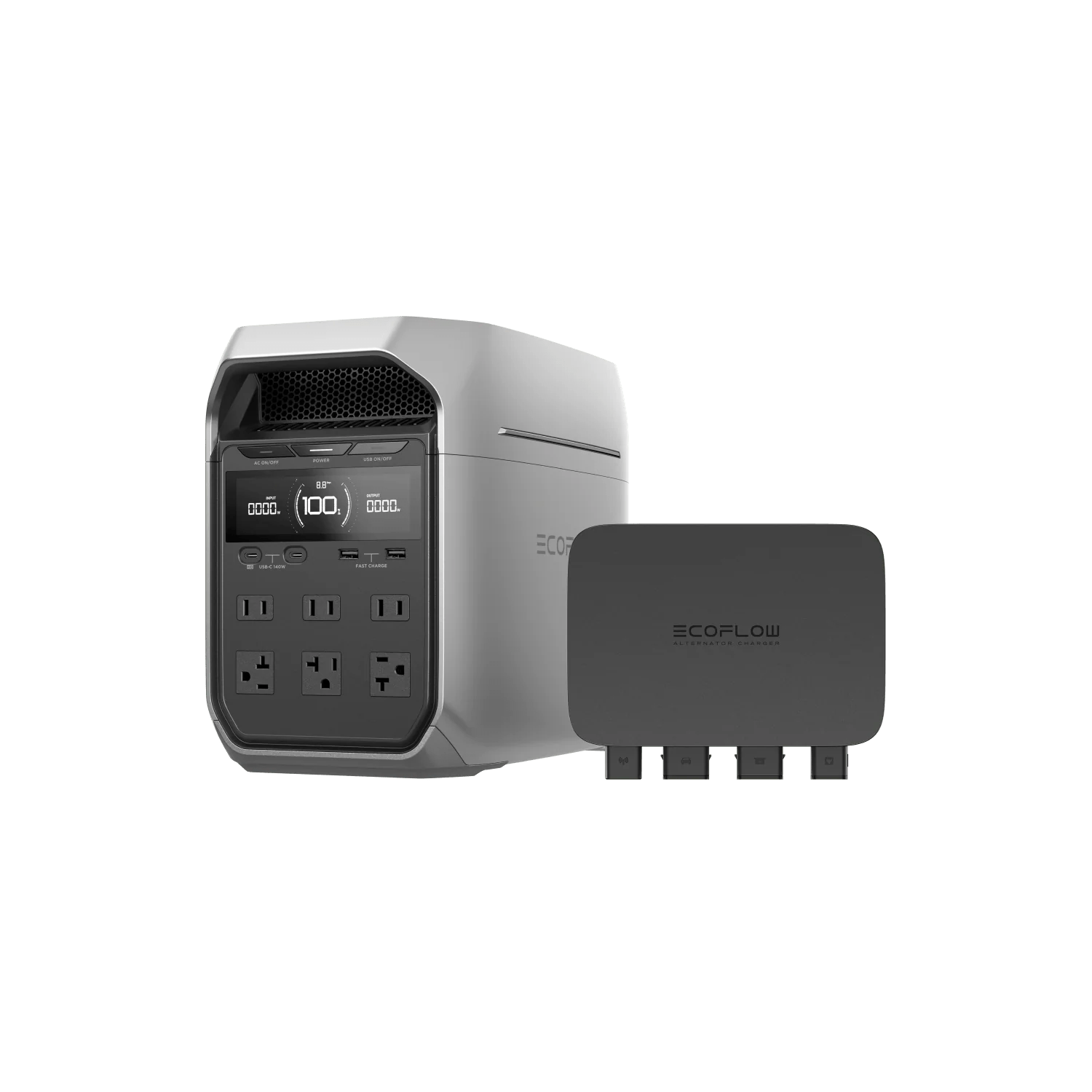

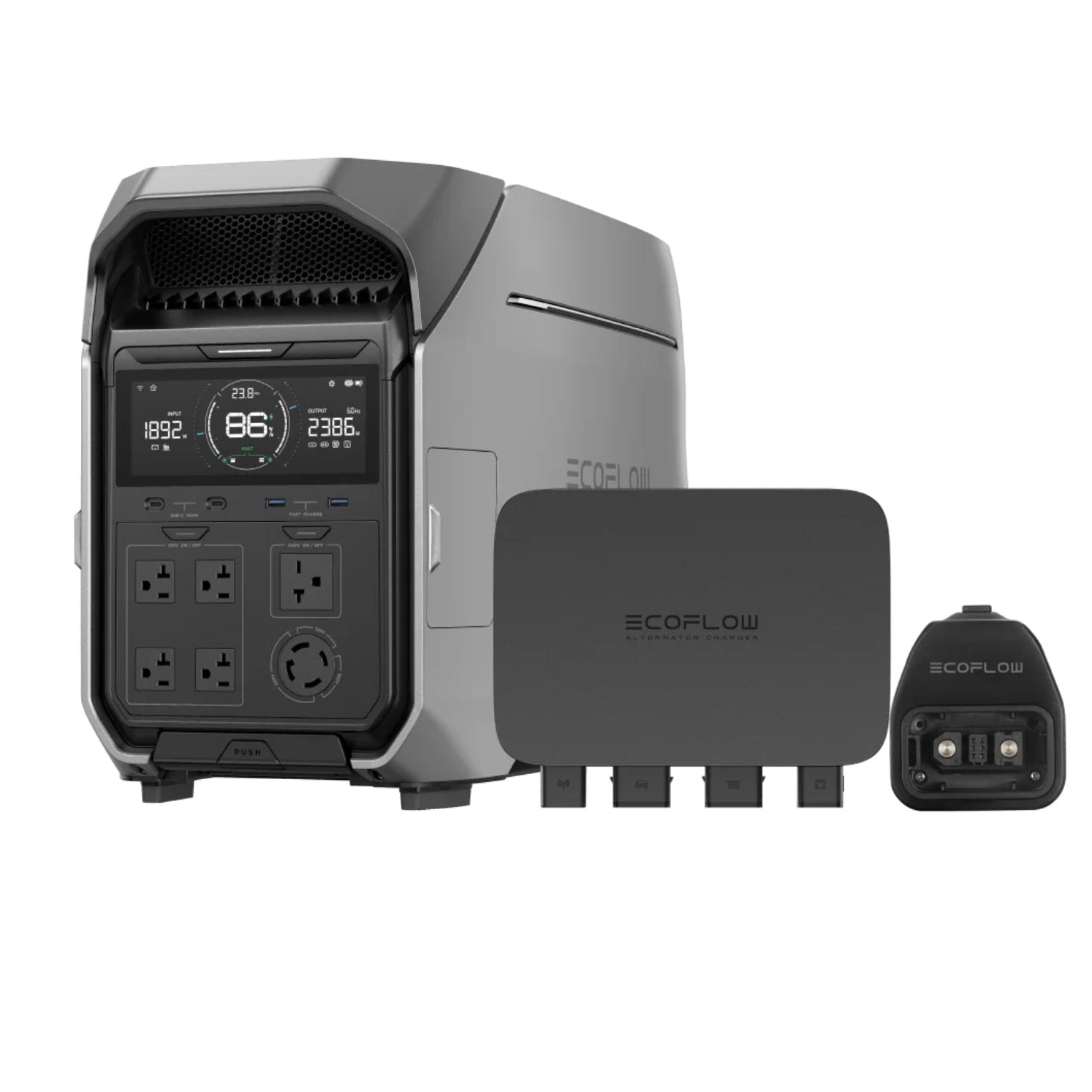

A DELTA Pro to Smart Generator Adapter is required to connect the Alternator Charger with DELTA Pro and DELTA Pro 3.

Top up 1kWh in only 1.3 hours

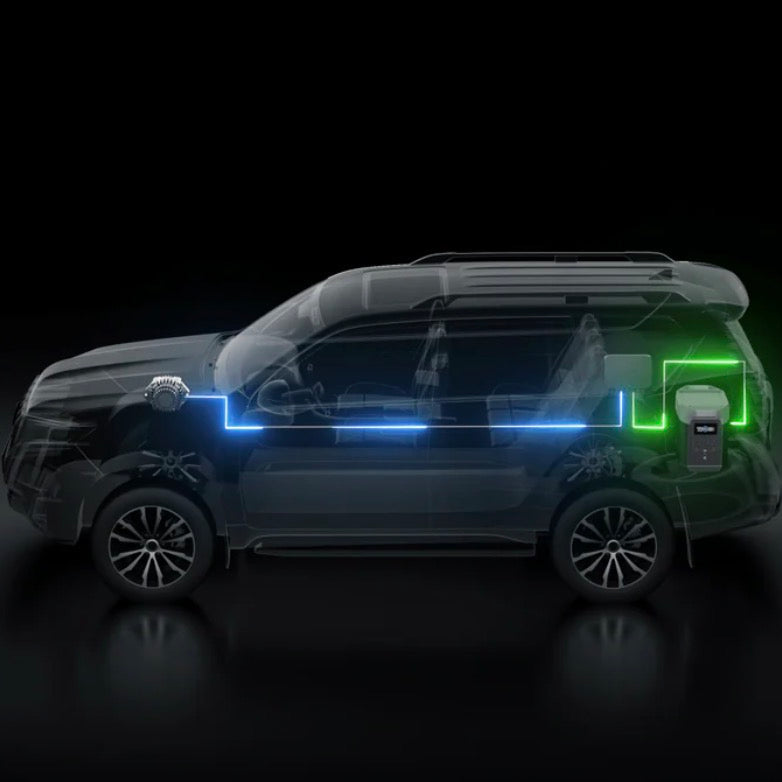

Charge 8× faster while you drive with our EcoFlow 800W Alternator Charger and recharge your power station in only 1.3 hours.
With the EcoFlow 800W Alternator Charger, charge 8 times faster than with traditional vehicle auxiliary power outlets simply by using excess energy generated by your vehicle. The charger uses its onboard DC-DC converter to restore your EcoFlow power station's energy while you drive.

Triple the value with a 3-in-1 functional design

The 3-in-1 charger, maintainer, and jump starter saves time, money, and precious in-vehicle space.
With its smart and efficient fast charging capabilities, you'll stay powered no matter how long you're on the road.

*The reverse charging and battery maintenance functions require the XT150 cable and must be used with EcoFlow DELTA Series products.

Charging Mode

Use your car's alternator to refuel your portable power station.

Triple the value with a 3-in-1 functional design

Reverse Charging Mode

Recharge your vehicle starter battery or RV house battery using your portable power station.Triple the value with a 3-in-1 functional design

Battery Maintenance Mode

Extends your vehicle starter battery or RV house battery life by using a lower electrical current.Triple the value with a 3-in-1 functional design

Extend your RV house battery runtime

Conveniently adapts to 12V/24V RV house batteries.Connects to EcoFlow portable power stations and protects RV house batteries while expanding energy storage capacity by up to 7.2kWh*.

*With EcoFlow DELTA Pro and DELTA Pro Extra Battery


Compatible with all EcoFlow and most third-party power stations

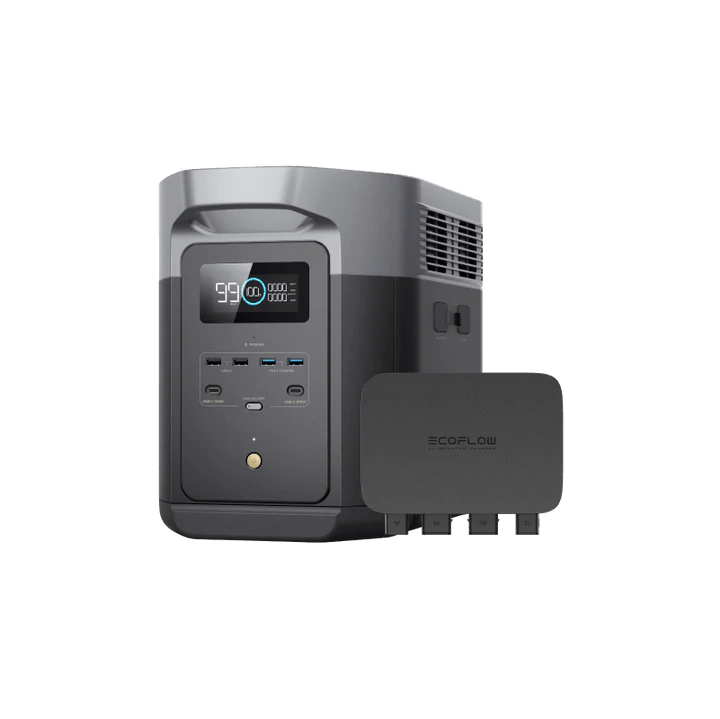

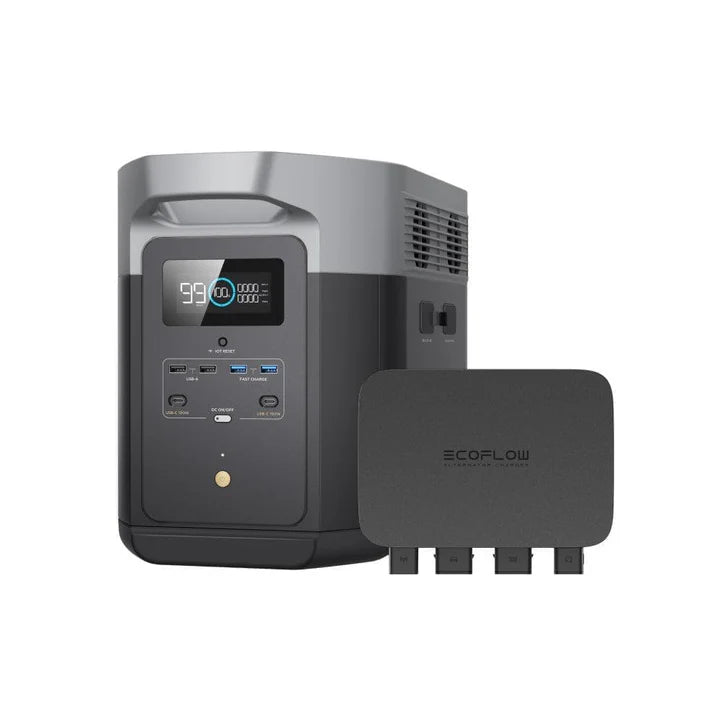

Compatible with an XT60 connection, designed to charge EcoFlow RIVER, DELTA Series, and most third-party power stations. The charger's 800W fast-charging is compatible with most SUV, Pickup, and RV alternators, meeting diverse short-trip car camping power needs.
*The 800W Alternator Charger comes with an XT150 cable to pair with EcoFlow DELTA Series products. An additional purchase of XT60 cable is required for wider compatibility.

Safety-assured for any journey

With a high thermal resistance, Gallium Nitride (GaN) technology ensures safe charging every single time.The 800W Alternator Charger offers multiple safety features, including undervoltage protection that prevents excessive energy use and damage to the starting battery. A 2-year warranty ensures your experience and peace of mind.


Clean, easy install without leaving a mark

Connect your 800W Alternator Charger to your vehicle's starter battery or RV's house battery to enjoy a worry-free power experience during your journey.

Connect the Fuse Cable

  1. Connect the fuse cable to the input cable on one end.
  2. Connect the fuse cable to the vehicle battery on the other end. Clean, easy install without leaving a mark

Connect the Input Cable

1. Connect the black cable to the chassis terminal.
2. Thread the other end of the input cable through the car body towards the charger. If the input cable is bulky or difficult to pull through, disconnect the cable ends before threading.
3. Plug the other side of the input cable into the EcoFlow 500W Alternator Charger. Clean, easy install without leaving a mark

Start Charging

Plug in the output cable from the EcoFlow 500W Alternator Charger to the portable power station.

Clean, easy install without leaving a mark

How to Choose Your EcoFlow Alternator Charger

What's in the box

Tech Specs
Model  EF-FC-301-1
Net Weight 5.1 lb (2.3 kg)
Dimensions (W × D × H)

9.5×7.6×1.4 in

(242×194×35 mm)

Wi-Fi

Frequency: 2412MHz-2472MHz

Maximum output power: <20dBm

Bluetooth

Frequency: 2402MHz-2480MHz

Maximum output power: <10dBm

Charging Mode

Input: 11V-31V, 76A Max.

Output: 40V-60V, 800W Max.

Battery Maintenance Mode

Input: 40V-60V, 3A Max.

Output: 13.8V/27.6V, 100W Max.

Reverse Charging Mode

Input: 40V-60V, 21A Max.

Output: 13.8V/27.6V, 800W Max.

Fuse's Rated Current 125A
Protection Type

Reverse polarity protection

Overcurrent protection

Short circuit protection

Overvoltage protection

Undervoltage protection

Operating Temperature –4℉ to 140℉ (–20℃ to 60℃)
Storage Temperature –22℉ to 158℉ (–30℃ to 70℃)
Operating Humidity ≤95%
Storage Humidity ≤95%

View full details
