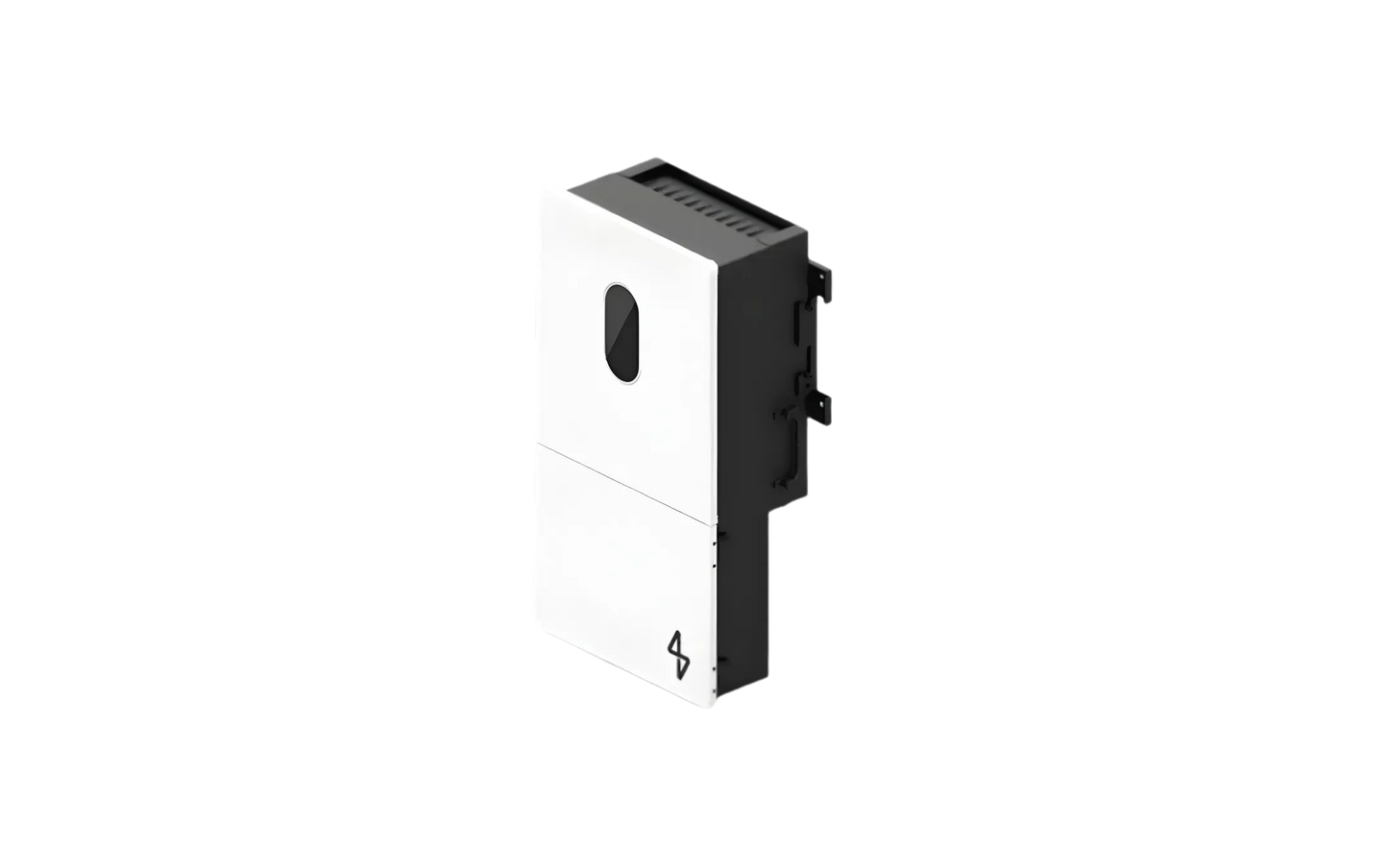

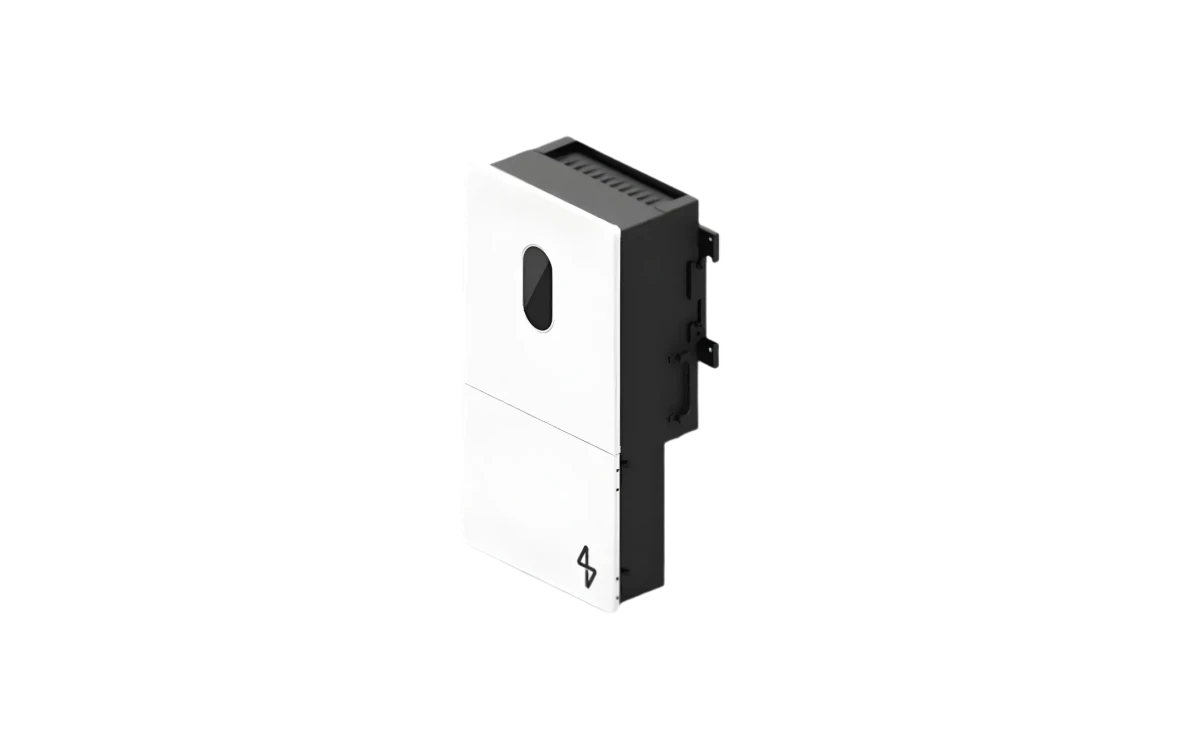

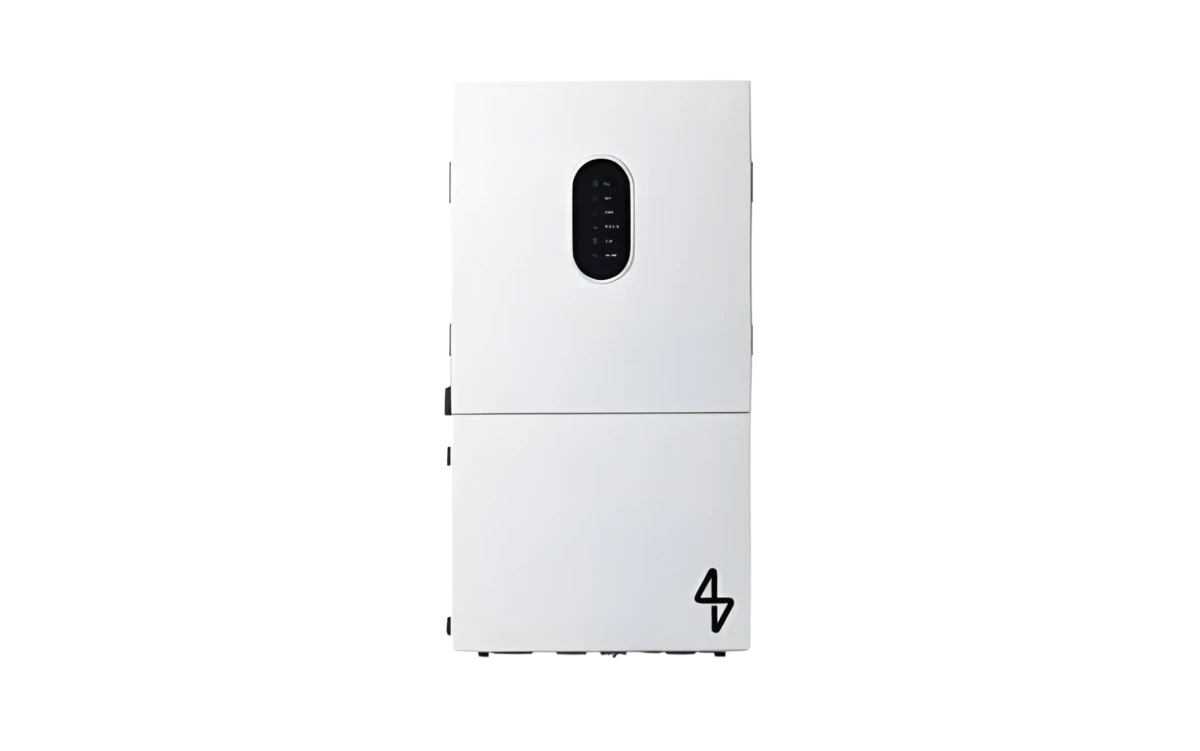

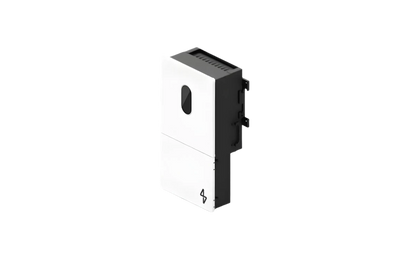

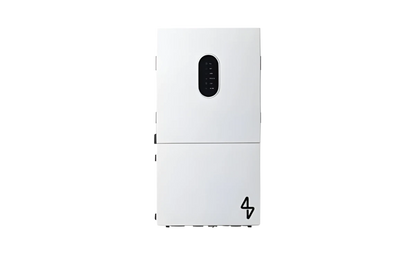

BigBattery MeterHome 10kW All-In-One Hybrid Inverter

The MeterHome hybrid inverter delivers smart energy management and seamless transfer between grid, solar, and generator. Achieve peak shaving with no solar, enable self-consumption with solar, and get real-time weather outage protection – plus 24/7 US-based monitoring, remote maintenance, and a 10-year warranty.

Note: This product is compatible only with MeterHome systems and cannot be used with non-MeterHome inverters or batteries.

Downloads & Specifications

Weight Approximation: 88 lbs. (40 kg)

Dimension (W x D x H): 16.5″ x 9.4″ x 31.5″ (420mm x 240mm x 800mm)

Mounting: Wall bracket

Cooling Method: Fan Cooling

Ingress Protection Degree: NEMA 3R

Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)

Maximum Operation Altitude: max 6,562ft (2000m)

Relative Humidity: 0~100%

Nominal AC Output (W): 10,000

Maximum PV Input Power (W): 15,000

Maximum Input Current per MPPT (A): 30/22/22

Nominal Grid Voltage (Vac): 120/240V (Split phase) / 208V (2/3 phase)

Nominal Grid Frequency (Hz): 50/60

Rated PV Input Voltage (Vdc): 600

Start Up DC Voltage (Vdc): 90

MPPT Voltage Range (Vdc): 70-540

Maximum PV Circuit Current (A): 44+44

Number of MPPT: 3

String per MPPT: 2/2/2

PV Connection Way: Terminals

Peak Power (off grid): 2 times of rated power, 10s

Power Factor: 0.8 leading to 0.8 lagging

DC Injection Current (mA): THD <3% (Linear load <1.5%)

Maximum Efficiency (PV to AC): 98.0%

Maximum Efficiency (BAT to AC): 94.5%

CEC. Efficiency: 96.5%

Communication Interface: CAN(for BMS), DRM/RS485 (for meter), RS485

Safety Certification: UL1741, CSA C22.2, UL1699B

Grid Regulation: 2018, HECO SRD 2.0

EMC: FCC Part 15 Class B

Protection Category: Class I

Connects up to: 9 Inverters

Inverter Downloads

SKU#:MHOME-INV010

Spec Sheet:DOWNLOAD

User Manual:DOWNLOAD

Install Guide:DOWNLOAD
