BigBattery|48V ETHOS 5.12kWh Stackable Battery Module

BigBattery|48V ETHOS 5.12kWh Stackable Battery Module

Regular price $1,290.00 USD
Regular price $1,480.00 USD Sale price $1,290.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

The BigBattery 48V ETHOS systems are here, and this 5.12kWh battery module is the building block for these stackable, scalable power systems. Our ETHOS systems are designed for every grid-tied home, solar setup, off-grid homestead, and commercial office in America. Each battery module is equipped with Tier 1 LiFePO4 cells, the safest chemistry on the market today, and has a capacity of 100Ah, with each ETHOS System being expandable up to 80kWh per Control Box simply by adding additional battery modules.

Each module is also equipped with an advanced Battery Management System (BMS) that continuously monitors and records cell voltage, along with real-time data on current, voltage, and temperature for the module. The BMS features a passive cell balancing function and an advanced battery control method, which collectively enhance battery pack performance. Furthermore, the battery includes a built-in fire-extinguishing module for unmatched peace of mind. These modules utilize standardized UL-certified ESS connectors, which safely and reliably secure power to and from the battery. Designed to endure the test of time, the ETHOS has a lifespan of over 10 years and is engineered to withstand more than 4000 – 8000 cycles at 80% Depth of Discharge (DOD) at a rate of 0.5C.

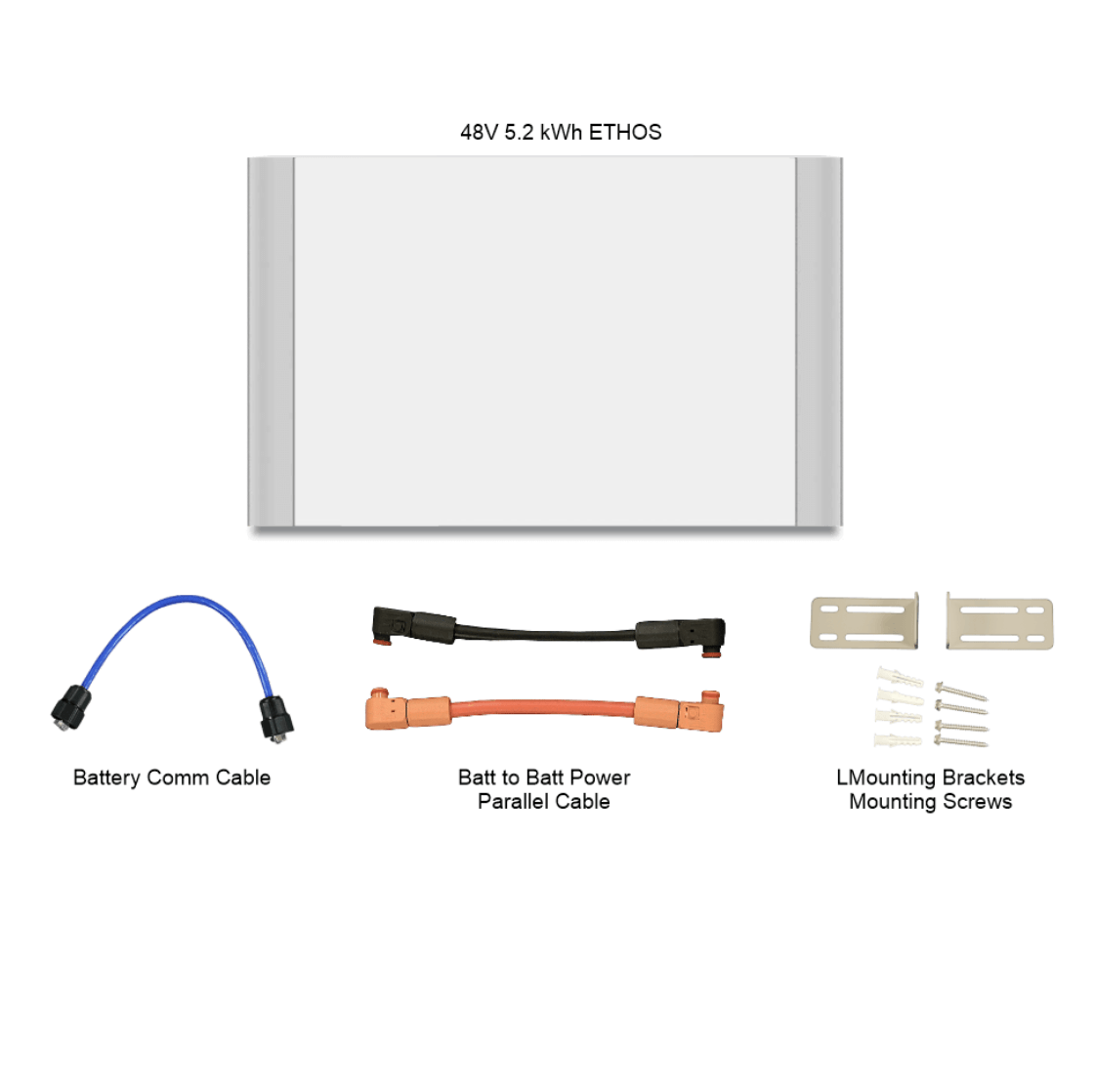

Our ETHOS Systems were built to be versatile on or off-grid power solutions, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS to your wall with an effortless installation. Plus, the ETHOS comes equipped with an IP65-rated casing, to ensure long-lasting reliability and protection.

Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your family home, cabin, or homestead with a powerful solar system, the ETHOS ensures reliable, efficient power delivery day in and day out. Take control of your home’s power and shop the 48V ETHOS today, or get in touch with us to get a quote on a custom-built ETHOS system to precisely meet your power needs.

Designed For 48V Applications

Tech Specs

Single Module Tech Specs

System Voltage:   48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
kWh Capacity: 5.12kWh
Ah Capacity: 100Ah
Charging Voltage Range: 55.6 – 57V
Max Charge Voltage: 57V
Operating Voltage Range: 48 – 57V
Suggested Low Voltage Cutoff: 48 – 50.8V
Cell Configuration: 16S
Max Continuous Discharge Current: 100A
Max Continuous Power: 5120W
Max Discharge Peak Current: 150A (Max 5 seconds)
Max Charge Current: 100A
Charge Temperature Range: 32°F – 113°F (0°C – 45°C)
Discharge Temperature Range: -4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range: 59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%): -4°F – 113°F (-20°C – 45°C) (Max 6 months)
Depth: 6.7 in (170 mm)
Width: 26.5 in (674 mm)
Height: 16.5 in (419 mm)
Max Connections: Up to (16) parallel connections per control box
Protection Rating: IP65
Communications: CANBus / RS485
Certifications: UL9540a, UL1973, & UN38.3
View full details

Introducing the 48V ETHOS

The next generation of residential ESS is here! The 48V LiFePO4 ETHOS is a UL-certified, CEC-listed solution designed to provide reliable power storage for every home in America. Boasting a stackable, modular design, with all cables and components included, the ETHOS is easily installed to your wall & affords the ability to expand upon your system later on. We pair the ETHOS with a cutting-edge, UL1741-certified LUXPower inverter capable of supporting 18kW PV arrays, but the ETHOS is compatible with dozens of 48V inverters in case you already have one setup at home. Be sure to check in with your local AHJ to confirm your desired system is compliant with all state and regional regulations.
With preconfigured systems for indoor & outdoor installations, you can shop confidently knowing that BigBattery has a power system to support your energy needs. Plus, for solar installers, flexible system configurations & special installer financing options make the ETHOS the ideal battery solution for your installs. Check out our all-new 48V ETHOS Systems below!

BigBattery ETHOS - The Future of UL-Certified Energy Storage Systems

ETHOS Expansion Kit | Integrate Seamless Power & Modular Versatility

BigBattery's 48V ETHOS - UL-Certified Lithium Energy Storage System

How to Size a Home Solar Power System

UL-Certified 48V ETHOS - Product Unboxing

FAQ

How do I connect this battery into my existing system?

These batteries use a standard
amphenol ESS connector. Each
module can be connected using the included cables. You
may also purchase additional
cables from BigBattery.

How many times can I putthis battery in parallel/series?

These batteries are not series
capable but can be connected
in parallel up to 16 times. Make
sure that the total amount of
these batteries in your configuration never exceeds sixteen total batteries. When connecting
batteries in parallel, ensure all
batteries are within 0.3 volts of
one another.

How long will my battery last,and what do I do at the end ofits life?

Lithium iron phosphate (LiFePO4) batteries can be cycled
from 3500 - 5000 times (80%
DoD, 0.5C). If you cycle the battery daily, you can get over 10
years of use from your battery.
When your battery is at the end
of its lifespan, contact us & we’ll
recycle it for you, free of charge!
