BigBattery| 4*24V EAGLE 2 Kit
BigBattery| 4*24V EAGLE 2 Kit
Couldn't load pickup availability
24V EAGLE 1.6kWh LiFePO4 Battery with Heater Kit
Introducing BigBattery’s all-new 24V 3.26 kWh LiFePO4 2x EAGLE 2 Kit. The EAGLE 2 embodies the reliability and durability you’ve come to expect from BigBattery solutions, packing Tier 1 LFP cells in a compact, GC2 form factor. This energy-dense design allows for effortless installations in your RVs, camper vans, scissor lifts, or other industrial equipment, and the EAGLE 2 serves as a mirror-image replacement for any stock T-105 lead-acid battery.
But the 24V EAGLE 2 provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the EAGLE 2 come equipped with a durable, vibration-resistant casing and an LED capacity meter on the top of the unit, but also supports CANBus communication protocols, so you can always monitor the status and performance of your battery system. Plus, the EAGLE 2 is IP67-rated for comprehensive protection against dust, water, and other contaminants while you’re cruising around the campsite or warehouse.
But that’s not all. The EAGLE 2 was designed to support your applications through every season. Whether you’re going boondocking in the heat of summer, or working at the warehouse or job site in the dead of winter, the EAGLE 2’s advanced BMS supports a wide temperature operating range, and a self-heating function ensures that you never have to put your vacation or work day on pause due to unreliable power. Quit worrying about your power and get back to working hard and playing harder when you equip your vehicle with the all-new 24V EAGLE 2 from BigBattery. Shop 24V EAGLE 2 Kits today and get free shipping when you order 4 or more EAGLE 2 batteries.

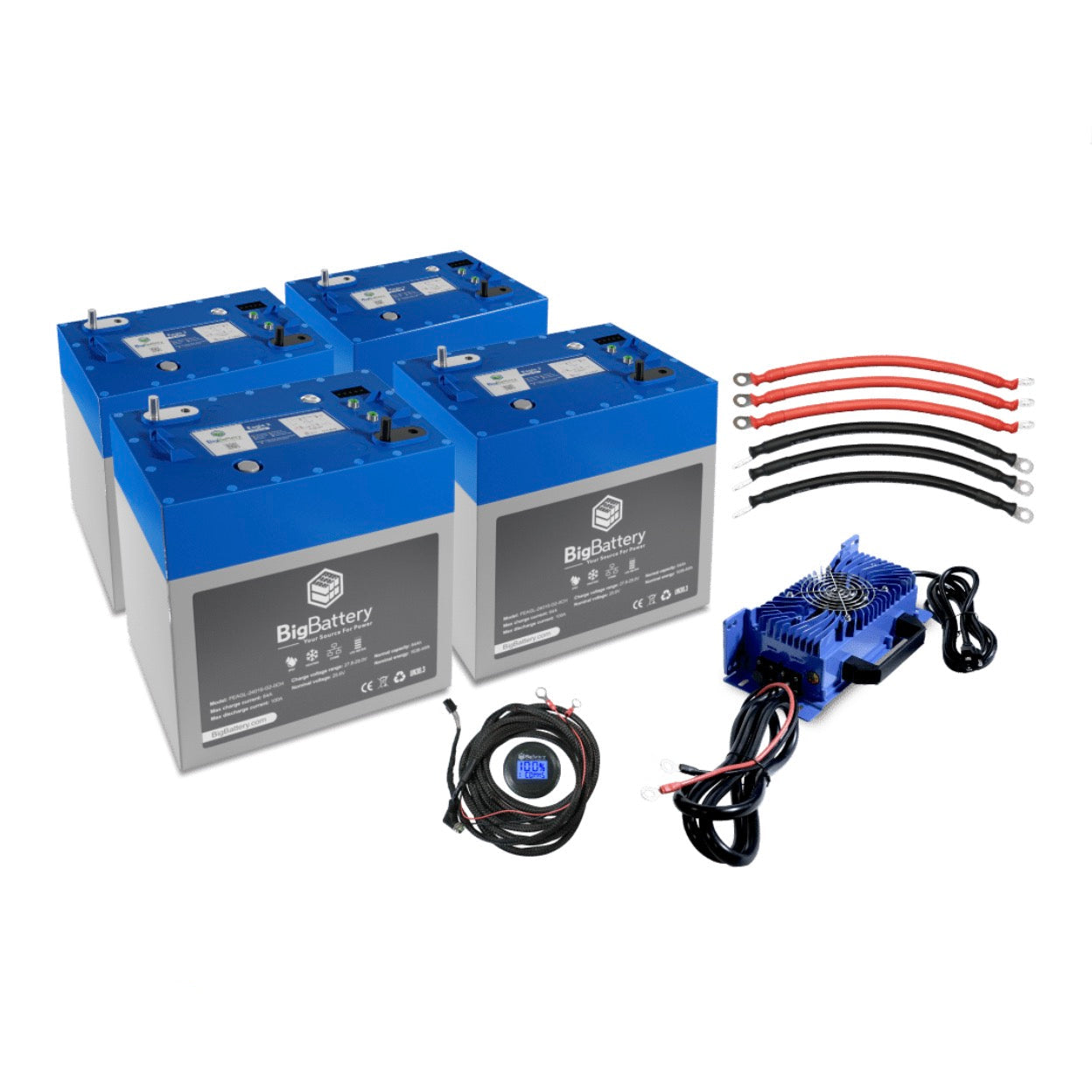

Kit Includes
4 × 24V EAGLE 2 - LiFePO4 - 64Ah - 1.63kWh
1 × EAGLE 2 COMM SOC Meter
1 × 24V 30A Charger (28.8V DC) - Ring Terminals
3 × 4AWG Black Cable with 11 inches Ring to Ring Terminal
3 × 4AWG Red Cable with 11 inches Ring to Ring Terminal
Designed For 48V Applications
Tech Specs
Single Stack Tech Specs
| System Voltage: | 24V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 1.63kWh |
| Ah Capacity: | 64Ah |
| Charging Voltage Range: | 27.8 – 29V |
| Max Charge Voltage: | 29.2V |
| Operating Voltage Range: | 24 – 28.8V |
| Suggested Low Voltage Cutoff: | 24 – 25.4V |
| BMS Cutoff Range: | 21 – 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 100A |
| Max Continuous Power: | 2560W |
| Max Discharge Peak Current: | 200A (Max 5 seconds) |
| Max Charge Current: | 64A |
| Charge Temperature Range: | -4°F – 131°F (-20°C – 55°C) |
| Discharge Temperature Range: | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months) 32°F – 77°F (0°C – 25°C) (Max 12 months) |
| Weight: | 38 lb (17.2 kg) |
| Depth: | 7.1 in (180 mm) |
| Width: | 10.2 in (260 mm) |
| Height: | 10.8 in (274 mm) |
| Max Connections: | Up to (10) Parallel |
| Protection Rating: | IP67 / NEMA 6 |
| Communications: | CANBus |
| Self-Heating: | Yes |
| EAGLE2 24V & 48V Specs Sheet |
| EAGLE2 24V & 48V User Manual |
| CE Certificate |
| EMC Certificate |
| UN38.3 Certification |
