3*72V RAPTOR 2 Kit
BigBattery’s all-new 72V LiFePO4 RAPTOR 2 is a game-changer when it comes to powering your high-voltage golf carts, transport vehicles, and industrial equipment, packing 7.68 kWh of capacity in a highly durable, energy-dense form factor.
The RAPTOR 2 was designed with safety, longevity, and visibility in mind. Not only does this battery come equipped with Tier 1 LFP cells, the safest chemistry on the market today, along with a state-of-the-art BMS featuring an automatic cell-balancing function, but all of these advanced components are housed in an IP65-rated, vibration-resistant casing so you can work hard and play harder. But it’s not enough just to know your power is secure. You should be able to see it firsthand, and the RAPTOR 2 makes this possible. With an LED State of Charge Indicator, and full RS485 communication protocols, you can stay updated on the status and performance of your battery with just a glance.
Outfit your equipment with a reliably powerful, energy-dense RAPTOR 2 battery system, and experience superior lithium performance around the neighborhood, on your campus, around the worksite, or in your warehouse. Shop the all-new 72V RAPTOR 2 today.

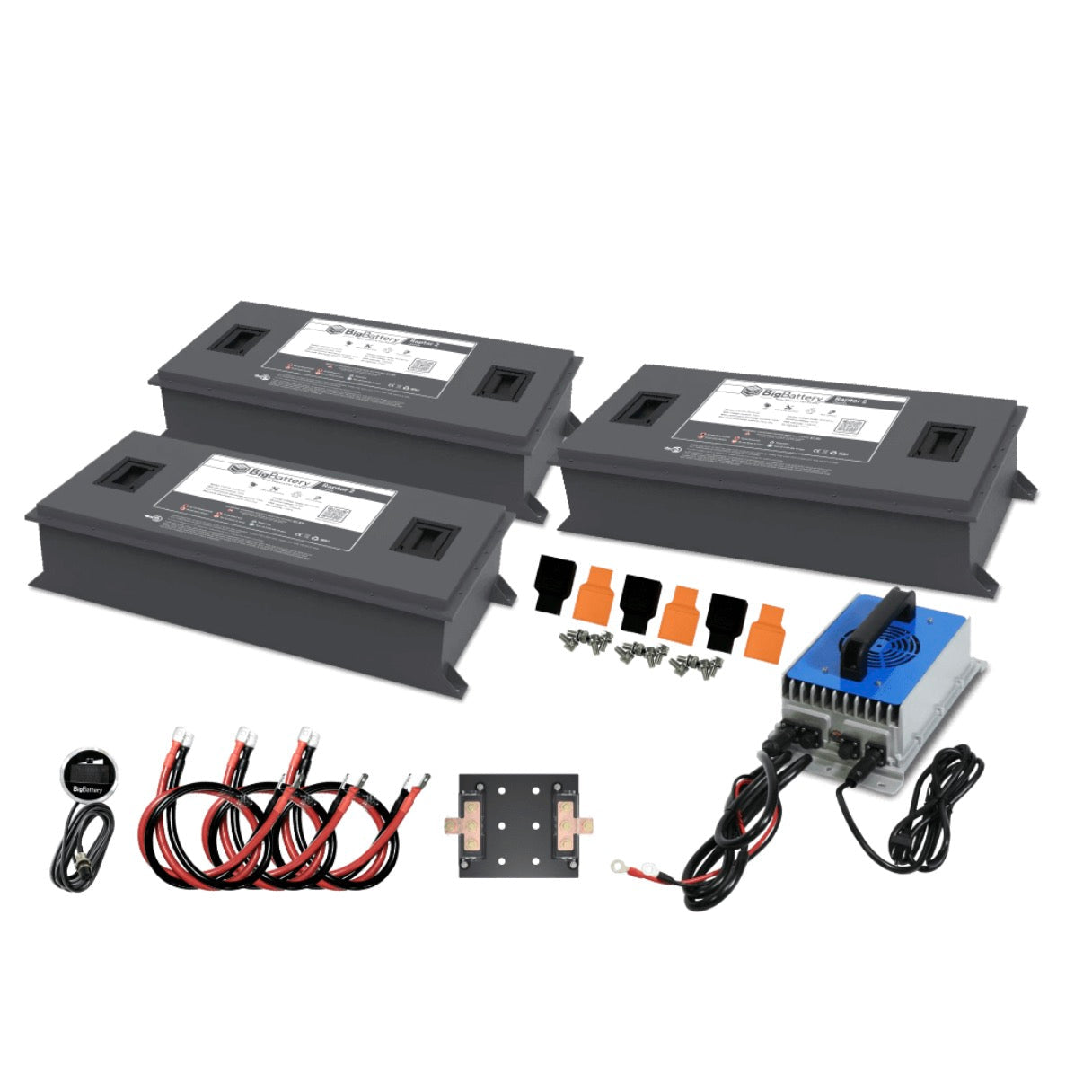

Kit Includes:
3× 72V RAPTOR 2 - 7.68kWh LiFePO4

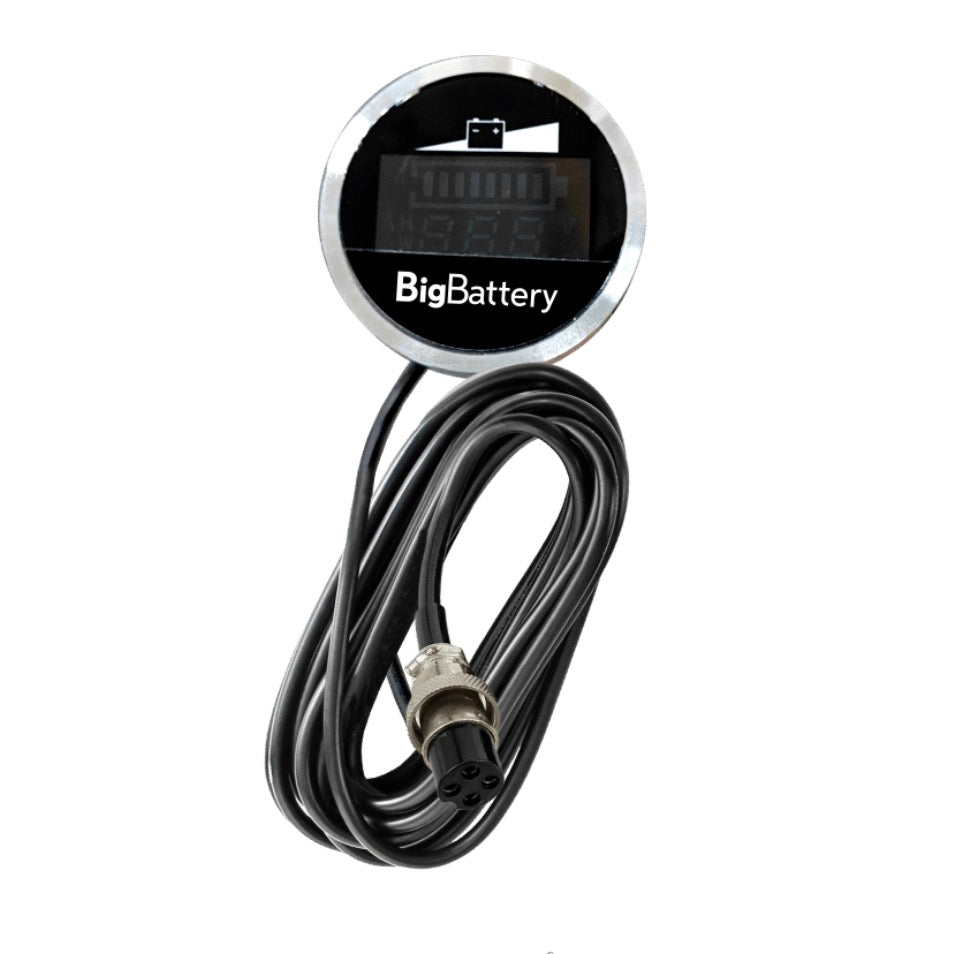

1 × 36V and 72V Raptor 2 Battery Capacity Meter

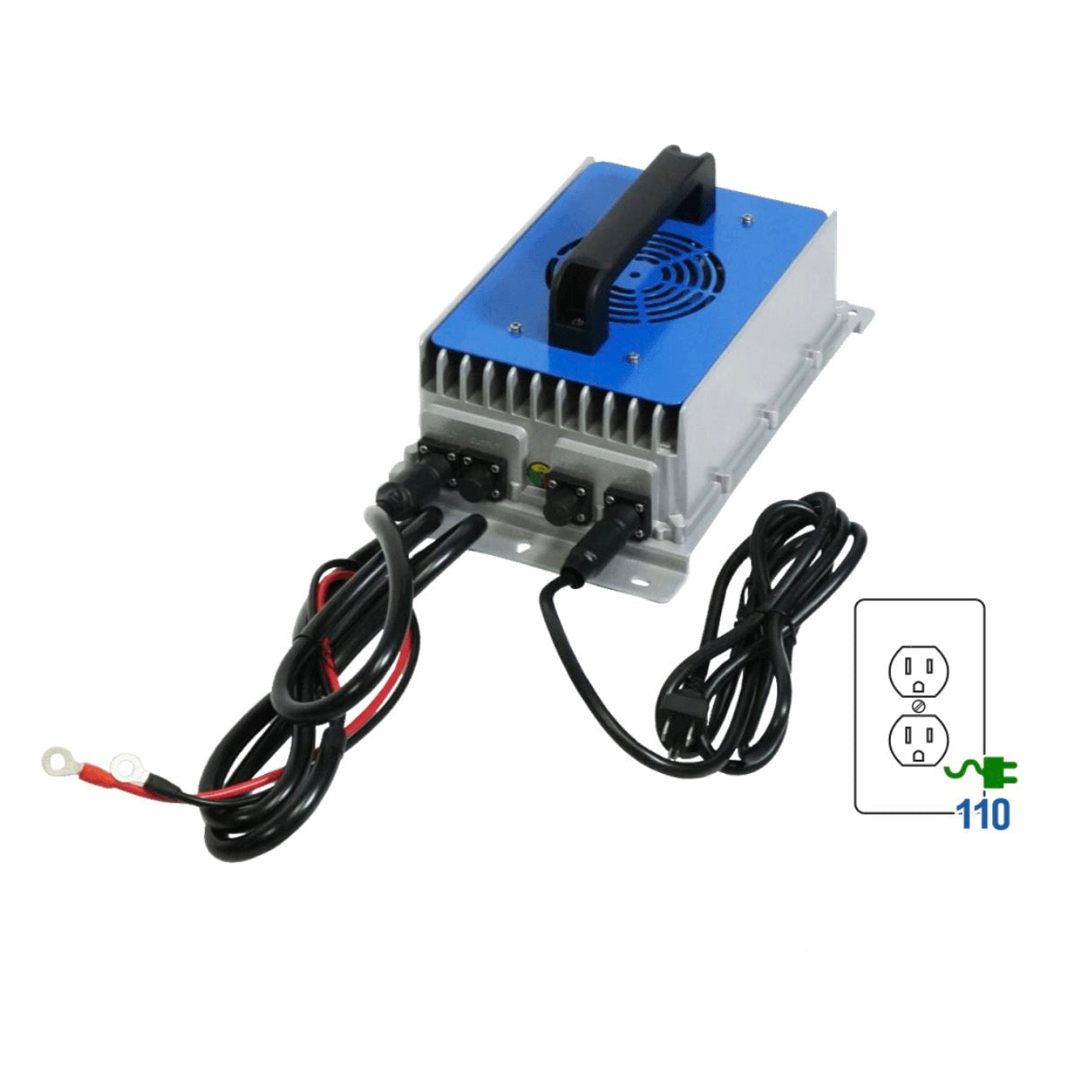

1 × 72V 15A Charger (86.4V DC) - Ring Terminals

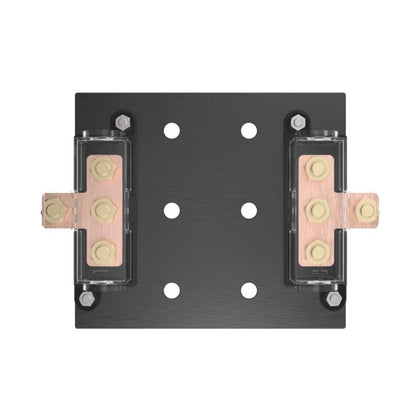

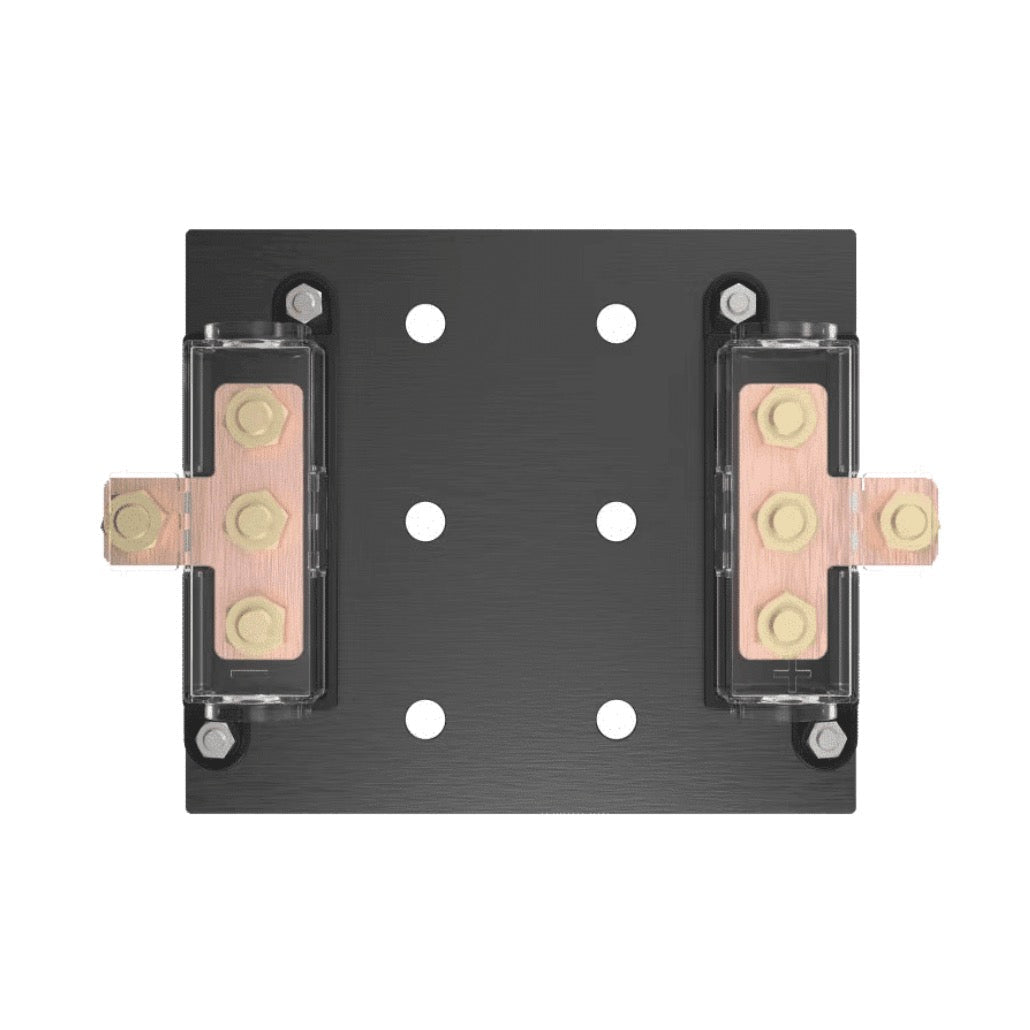

1 × Parallel Busbar
Designed Applications
Tech Specs
Single Stack Tech Specs
| System Voltage: | 72V |
| Nominal Voltage: |
76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: |
7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: |
85.2 – 87.6V |
| Max Charge Voltage: |
87.6V |
| Operating Voltage Range: |
72 – 87.6V |
| Suggested Low Voltage Cutoff: |
72 – 76.2V |
| BMS Cutoff Range: |
66V – 70.5V |
| Cell Configuration: |
24S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: |
7680W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 131°F (-20°C – 55°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months, SoC >50%) |
| Weight: |
143 lb (64.9 kg) |
| Depth: | 15.3 in (389 mm) |
| Width: |
34.5 in (876 mm) |
| Height: | 7.4 in (188 mm) |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | RS485 |
