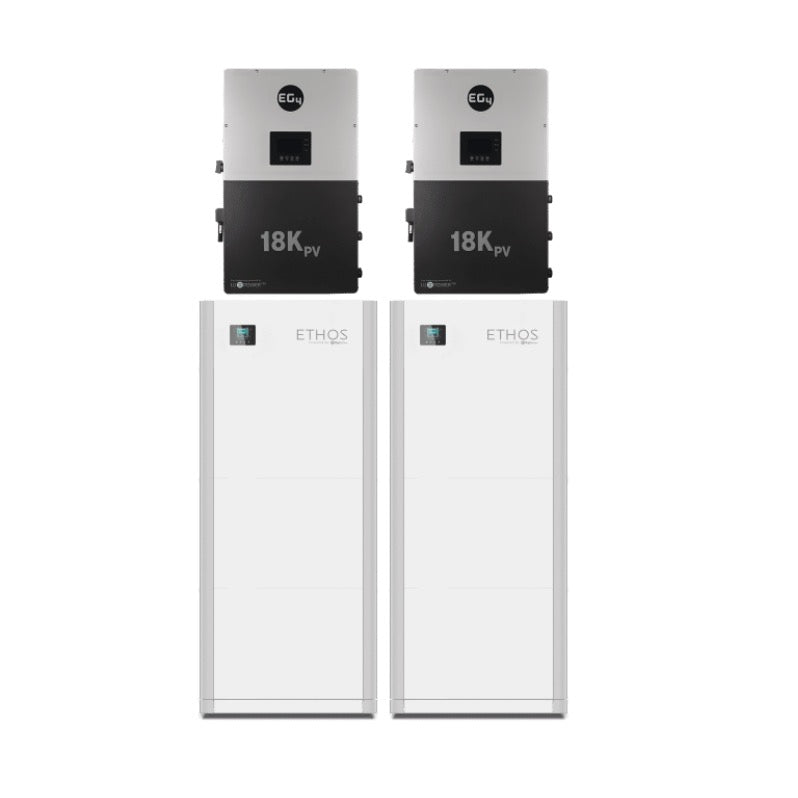

BigBattery| 24kW 30.7kWh ETHOS Energy Storage System (ESS)

BigBattery| 24kW 30.7kWh ETHOS Energy Storage System (ESS)

Regular price $18,300.00 USD
Regular price $22,690.00 USD Sale price $18,300.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

BigBattery’s 48V ETHOS systems are here, and this 30kWh outdoor configuration is the ideal solution for grid-tied power in your family home, cabin, or mansion, supported by comprehensive safety, reliability, and state-of-the-art features.

The ETHOS System was built to be a versatile home power solution, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS in your garage, shed, or exterior wall with an effortless installation. The ETHOS comes equipped with an IP65-rated casing, an internal fire suppression system, as well as an advanced BMS with auto cell-balancing to ensure long-lasting safety and reliability. Plus, its control box features an interactive LED display, along with CANBus and RS485 communication protocols, so you can always monitor the status and performance of your power.

But that’s not all. We pair this ETHOS system with 2 cutting-edge 12000W EG4 hybrid inverters, which feature their own LCD touch screen displays, 3 MPPT inputs each, integrated UPS modules for seamless on and off-grid switching, and the ability to handle PV arrays of up to 36000W. Plus, through their smart load control, AC coupling abilities, and peak shaving functions, you can meet your power needs and protect your home against unstable grids or rolling blackouts, while seeing huge savings each month on your electric bill.

Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your home with a powerful solar system, the ETHOS ensures reliable, efficient power delivery day in and day out, allowing you to save on utilities, or get rewarded for giving back to the grid through net metering programs and other tax incentives. Take control of your home’s power and shop the 48V ETHOS today.

Kit Includes:

6 × 48V ETHOS 5.12kWh Stackable Battery Module
2 × ETHOS RACK BASE
2 × 15kWh Ethos Controller to Battery Power Cable 4ft (1220mm)
1 × Parallel Busbar

Designed For 48V Applications

Tech Specs

Single Module Tech Specs

System Voltage:  48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
kWh Capacity: 15.36kWh
Ah Capacity: 300Ah
Charging Voltage Range: 55.6 – 57V
Max Charge Voltage: 57V
Operating Voltage Range: 48 – 57V
Suggested Low Voltage Cutoff: 48 – 50.8V
BMS Cutoff Range: 42 - 47V
Cell Configuration: 16S 2P
Max Continuous Discharge Current: 250A
Max Continuous Power: 12800W
Max Discharge Peak Current: 300A (Max 5 seconds)
Max Charge Current: 250A
Charge Temperature Range: 32°F – 113°F (0°C – 45°C)
Discharge Temperature Range: -4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range: 59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%): -4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight: 387 lb (175.5 kg))
Depth: 6.7 in (170 mm)
Width: 26.5 in (674 mm)
Height: 59.8 in (1520 mm)
Max Connections: Up to (16) parallel connections per control box
Protection Rating: IP65 / NEMA 4X
Communications: CANBus / RS485
Certifications: UL9540a, UL1973, & UN38.3
Inverter Downloads
Spec Sheet: Spec Sheet
User Manual: User Manual
Rapid Shut Down Wiring Guide: Rapid Shut Down Wiring Guide
UL1741 Certificate: UL1741 Certificate
View full details

Introducing the 48V ETHOS

The next generation of residential ESS is here! The 48V LiFePO4 ETHOS is a UL-certified, CEC-listed solution designed to provide reliable power storage for every home in America. Boasting a stackable, modular design, with all cables and components included, the ETHOS is easily installed to your wall & affords the ability to expand upon your system later on. We pair the ETHOS with a cutting-edge, UL1741-certified LUXPower inverter capable of supporting 18kW PV arrays, but the ETHOS is compatible with dozens of 48V inverters in case you already have one setup at home. Be sure to check in with your local AHJ to confirm your desired system is compliant with all state and regional regulations.
With preconfigured systems for indoor & outdoor installations, you can shop confidently knowing that BigBattery has a power system to support your energy needs. Plus, for solar installers, flexible system configurations & special installer financing options make the ETHOS the ideal battery solution for your installs. Check out our all-new 48V ETHOS Systems below!

BigBattery ETHOS - The Future of UL-Certified Energy Storage Systems

ETHOS Expansion Kit | Integrate Seamless Power & Modular Versatility

BigBattery's 48V ETHOS - UL-Certified Lithium Energy Storage System

How to Size a Home Solar Power System

UL-Certified 48V ETHOS - Product Unboxing

FAQ

How do I connect this battery into my existing system?

These batteries use a standard
amphenol ESS connector. Each
module can be connected using the included cables. You
may also purchase additional
cables from BigBattery.

How many times can I putthis battery in parallel/series?

These batteries are not series
capable but can be connected
in parallel up to 16 times. Make
sure that the total amount of
these batteries in your configuration never exceeds sixteen total batteries. When connecting
batteries in parallel, ensure all
batteries are within 0.3 volts of
one another.

How long will my battery last,and what do I do at the end ofits life?

Lithium iron phosphate (LiFePO4) batteries can be cycled
from 3500 - 5000 times (80%
DoD, 0.5C). If you cycle the battery daily, you can get over 10
years of use from your battery.
When your battery is at the end
of its lifespan, contact us & we’ll
recycle it for you, free of charge!
