BigBattery| 2*24V HUSKY 2 Kit
BigBattery| 2*24V HUSKY 2 Kit
Couldn't load pickup availability
2*24V HUSKY 2 Kit
The 24V 15.36kWh LiFePO4 HUSKY 2 Kit is the latest and greatest from BigBattery, providing unmatched reliability and efficiency in your RVs, camper vans, and marine applications.
The HUSKY 2 is our most energy-dense 24V solution to date, designed to power your adventures no matter how far they take you. From its Tier 1 LFP cells to its generous operating parameters and wide temperature range, this battery redefines versatility and durability when it comes to lithium power storage. But that’s not all…
The HUSKY 2 comes with state-of-the-art features to enhance the safety and visibility of your power. Not only is it housed in an IP65-rated casing, and equipped with an advanced BMS capable of auto-balancing cells, but it also boasts a self-heating function to ensure you have reliable power through every winter excursion. Plus, the HUSKY 2 features full CANBus and RS485 communication protocols so you can always monitor the status and performance of your power.
Our HUSKY 2 Kit was designed to serve as a plug-and-play solution for your adventure vehicles and aquatic vessels, and comes with all cables and components included for a quick and easy installation, all while requiring zero routine maintenance. Equipped with the HUSKY 2, you’ll be powered and prepared to hit the road, or the water, worry-free every time. Shop the all-new 24V HUSKY 2 Kit today

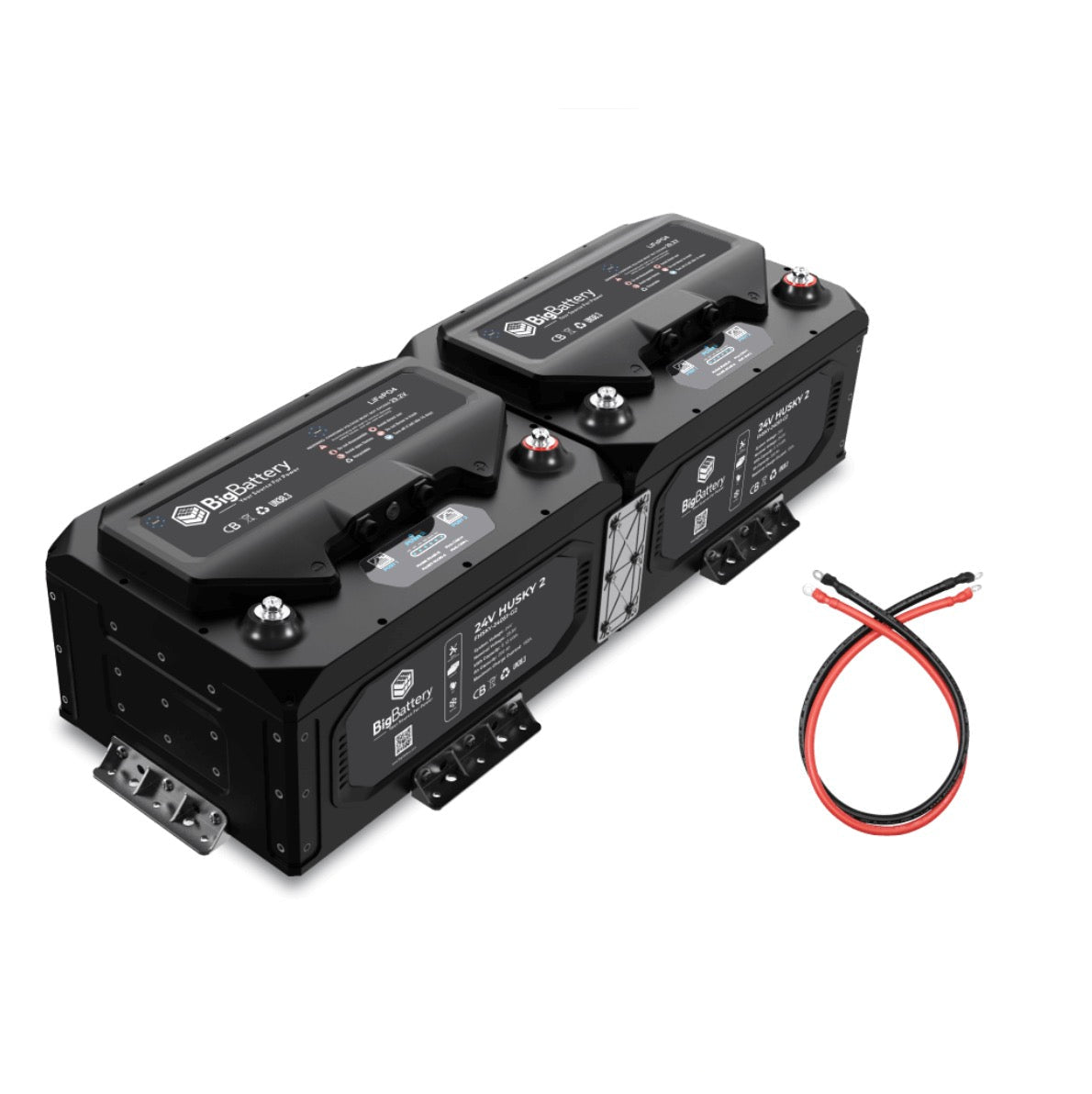

Kits includes:
2 × 24V HUSKY 2 - LiFePO4 - 200Ah - 5.12kWh
1 × 4AWG (Black and Red) 21 inches Ring to Ring Terminal Cable
Designed For 48V Applications
Tech Specs
Single Stack Tech Specs
| System Voltage: | 24V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 5.12kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: |
27.8 – 28V |
| Max Charge Voltage: |
29.2V |
|
Operating Voltage Range: |
424 – 28.8V |
| Suggested Low Voltage Cutoff: |
24 – 25.4V |
| BMS Cutoff Range: | 421 – 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 5120W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 150A |
| Charge Temperature Range: | -4°F – 113°F (-20°C – 45°C) |
| Discharge Temperature Range: | -4°F – 122°F (-20°C – 50°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | -4°F – 122°F (-20°C – 50°C) (Max 6 months) |

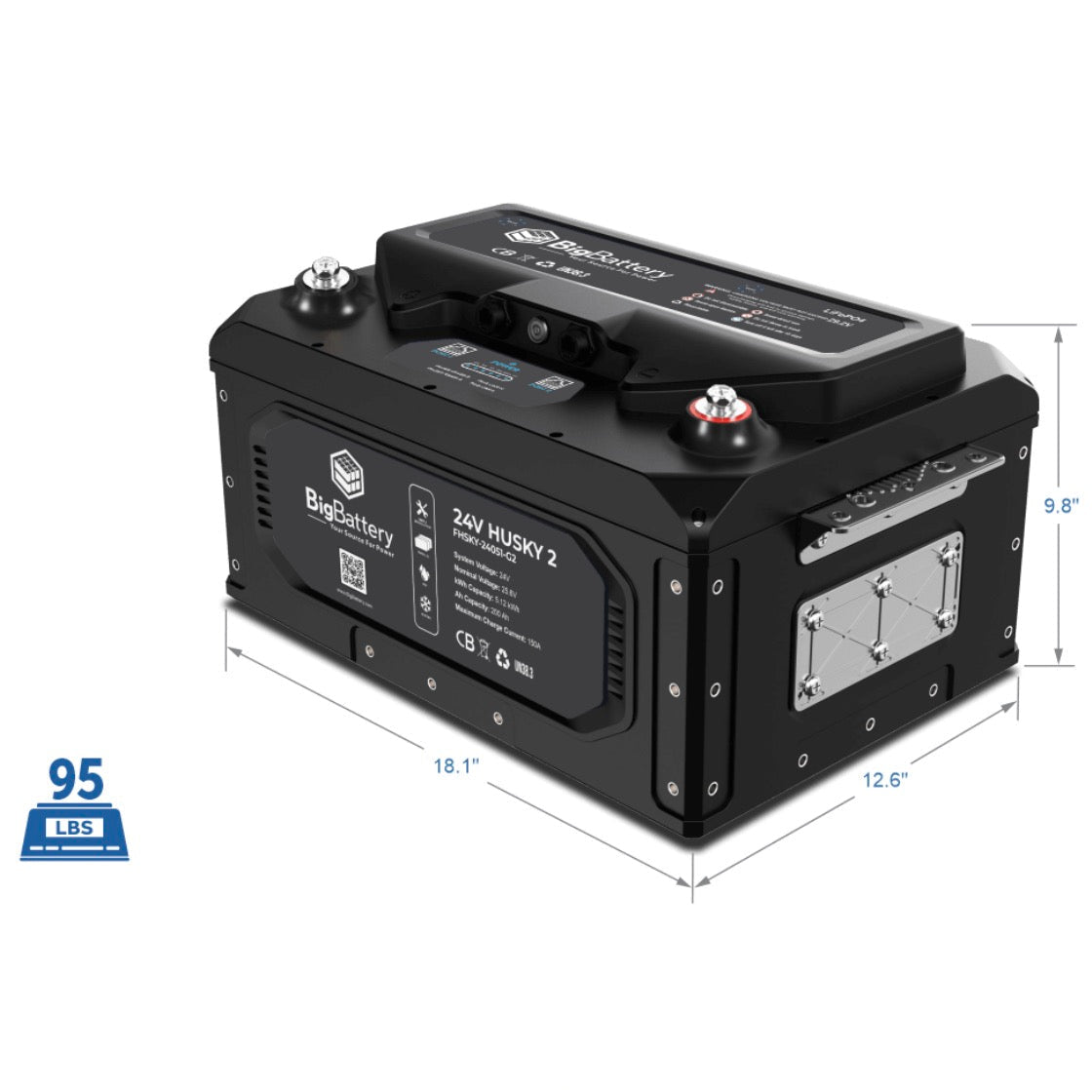

| Weight: | 95 lb (45.4 kg) |
| Depth: | 12.6 in (320 mm) |
| Width: | 18.1 in (460 mm) |
| Height: | 9.8 in (249 mm) |
| Max Connections: | Up to (16) Parallel |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | CANBus / RS485 |
| Self-Heating: | Yes |
