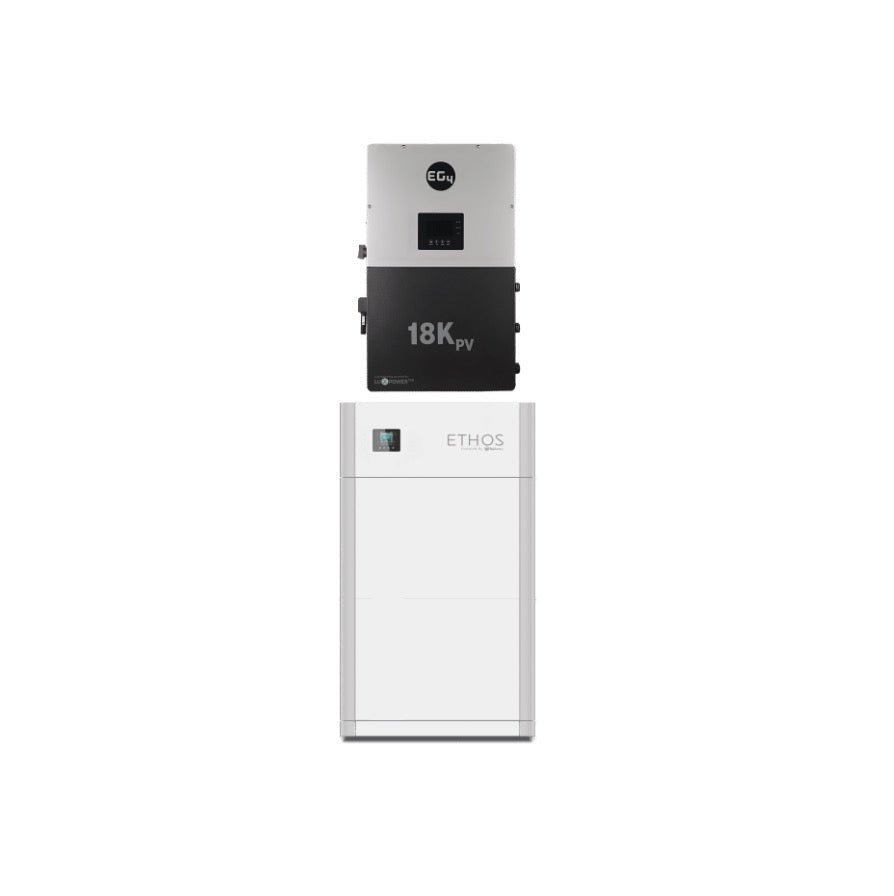

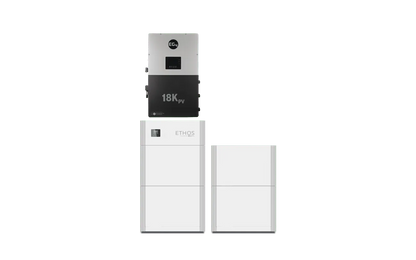

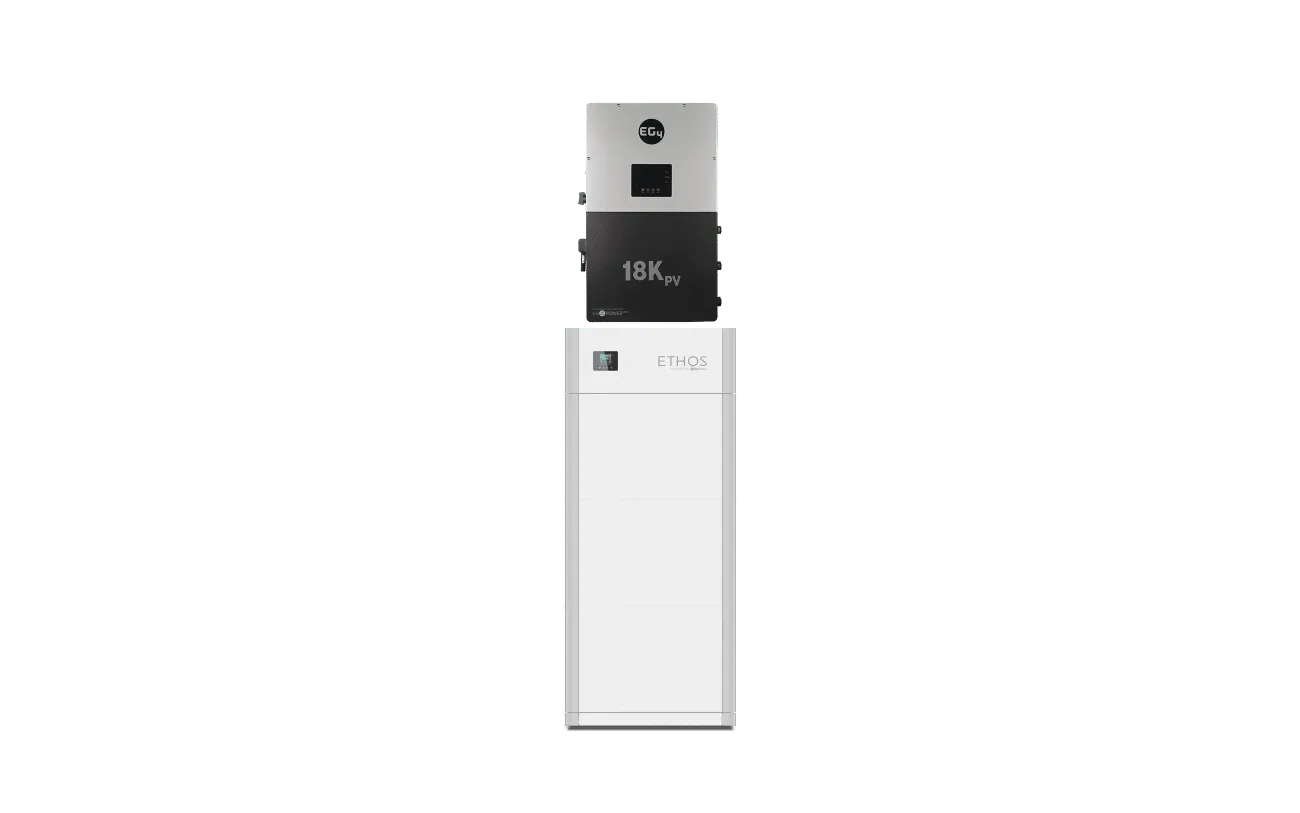

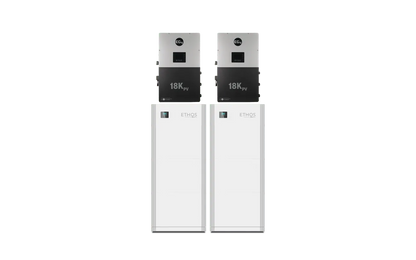

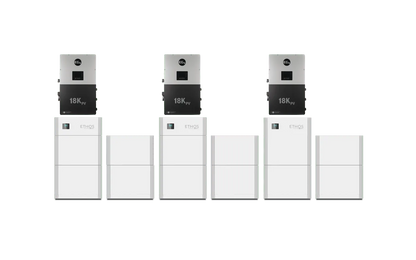

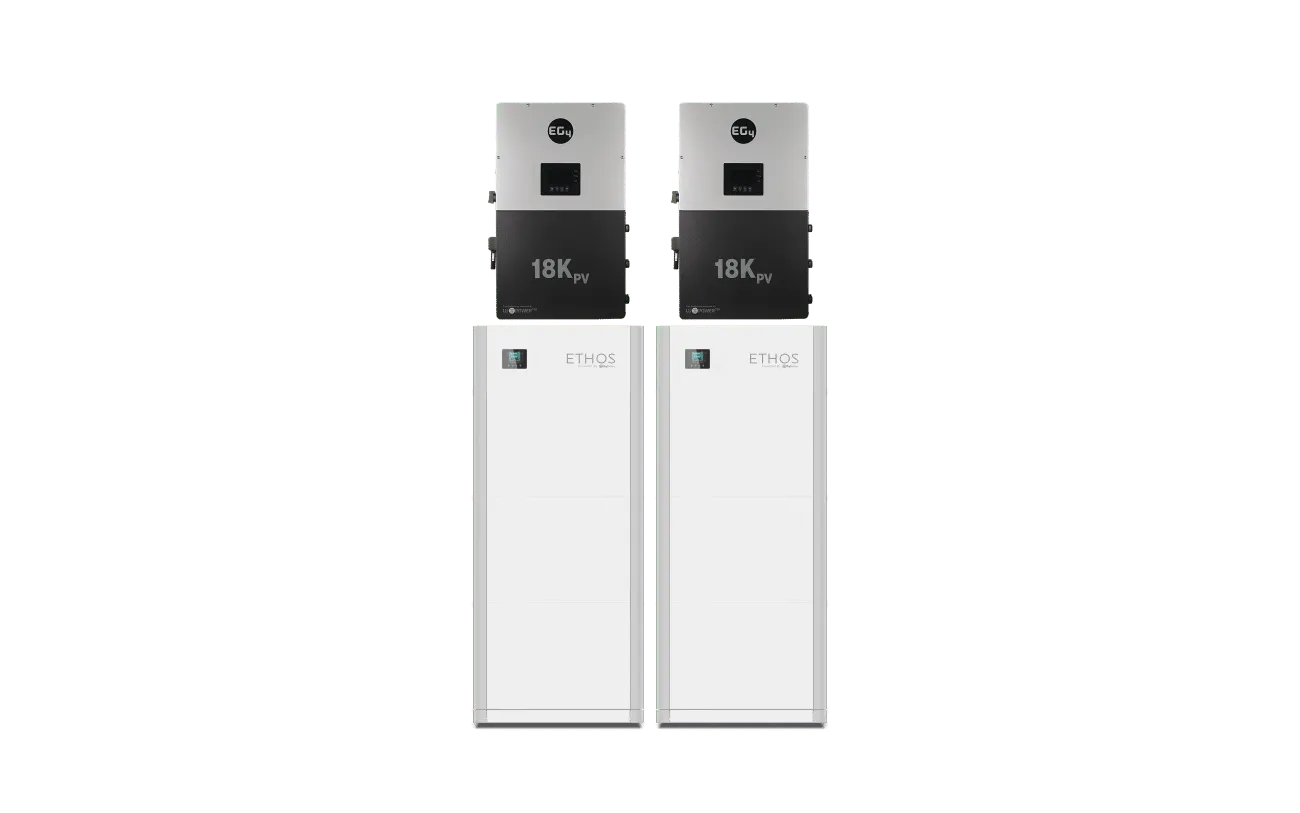

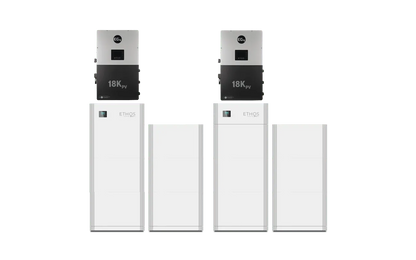

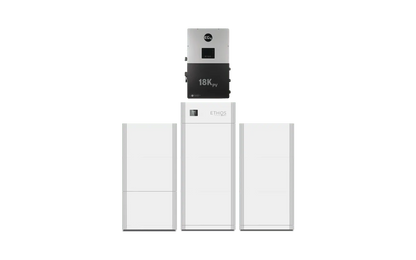

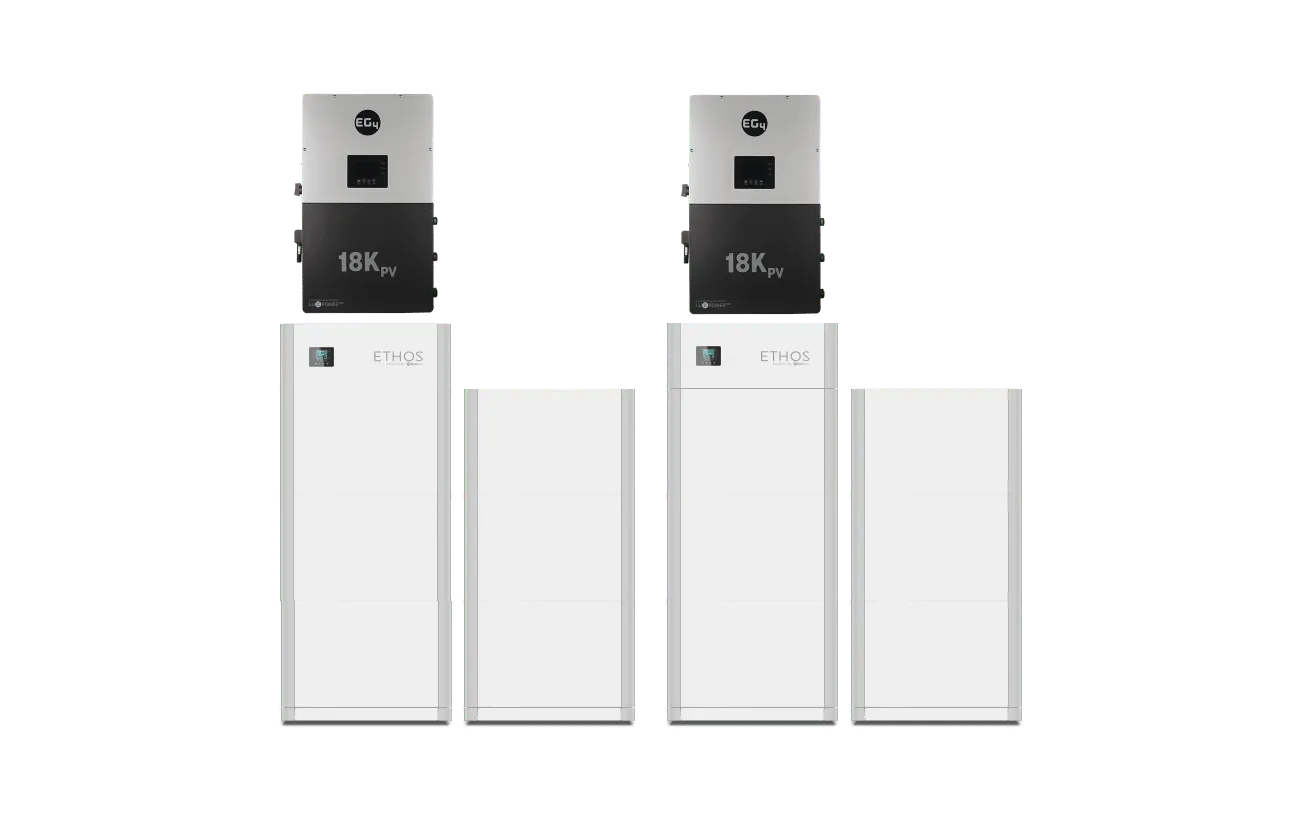

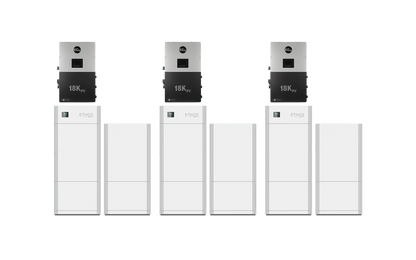

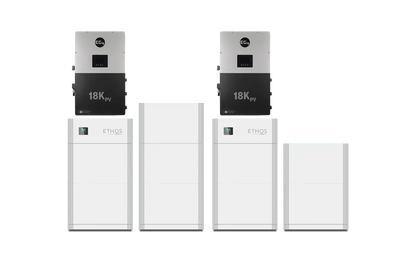

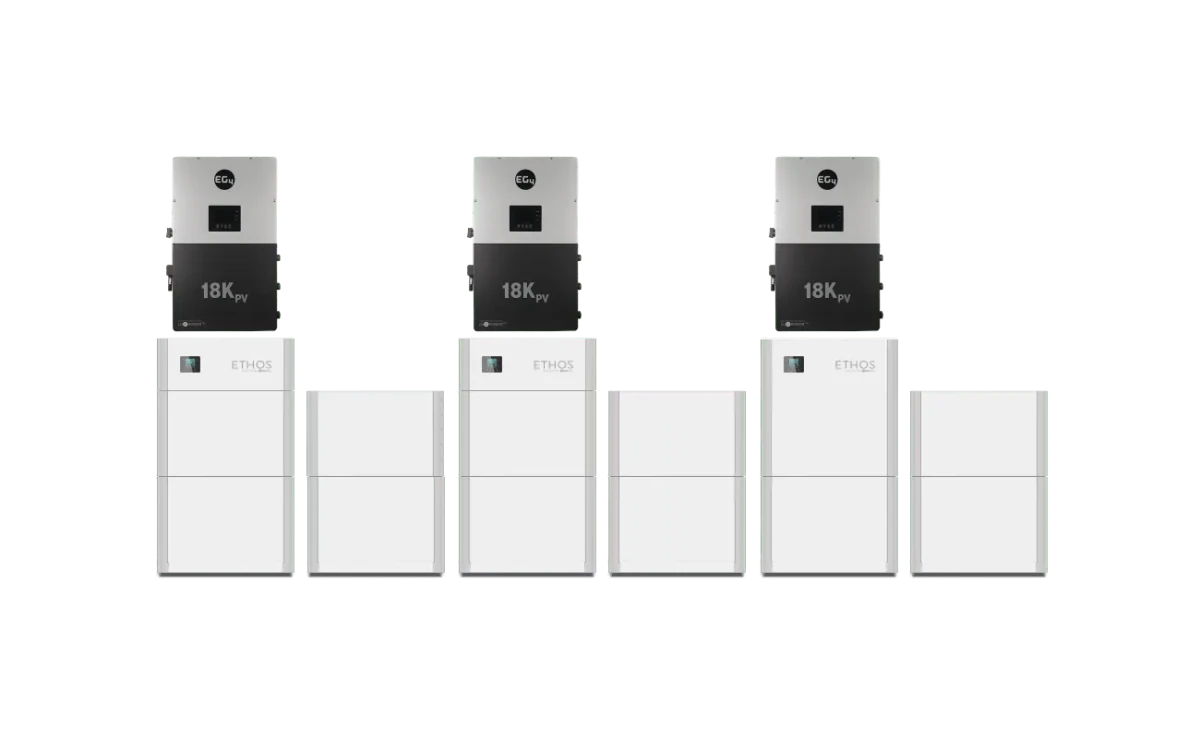

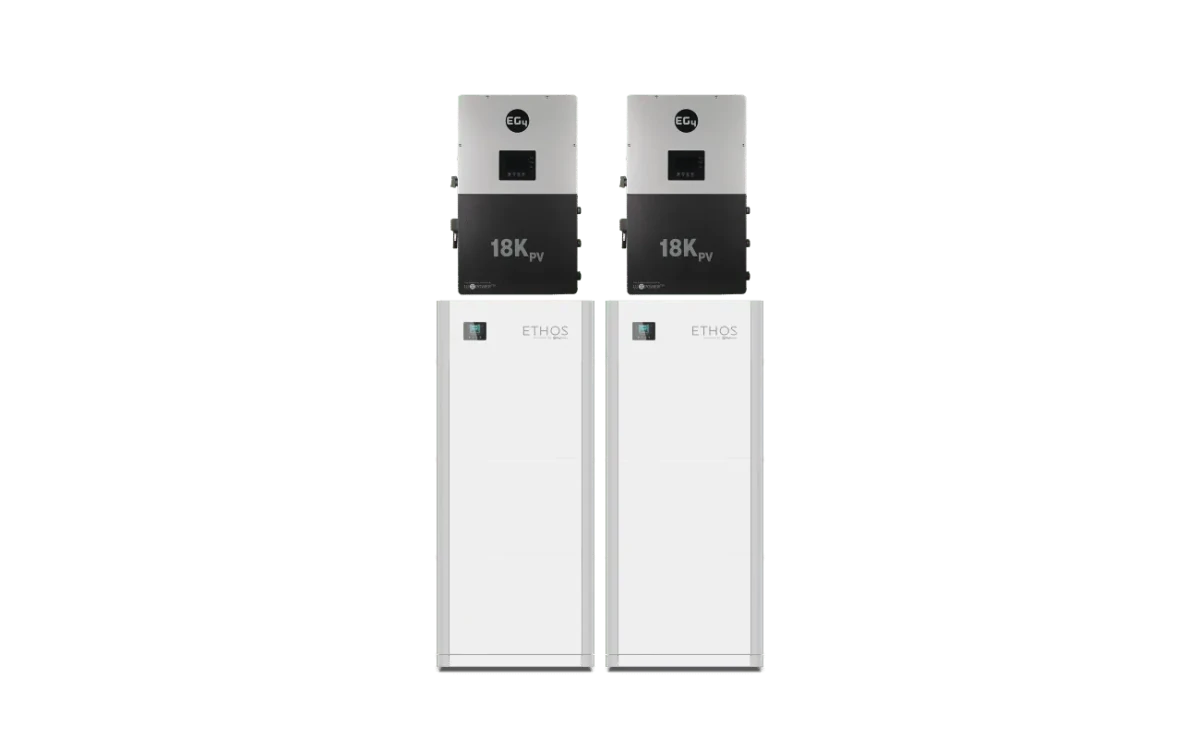

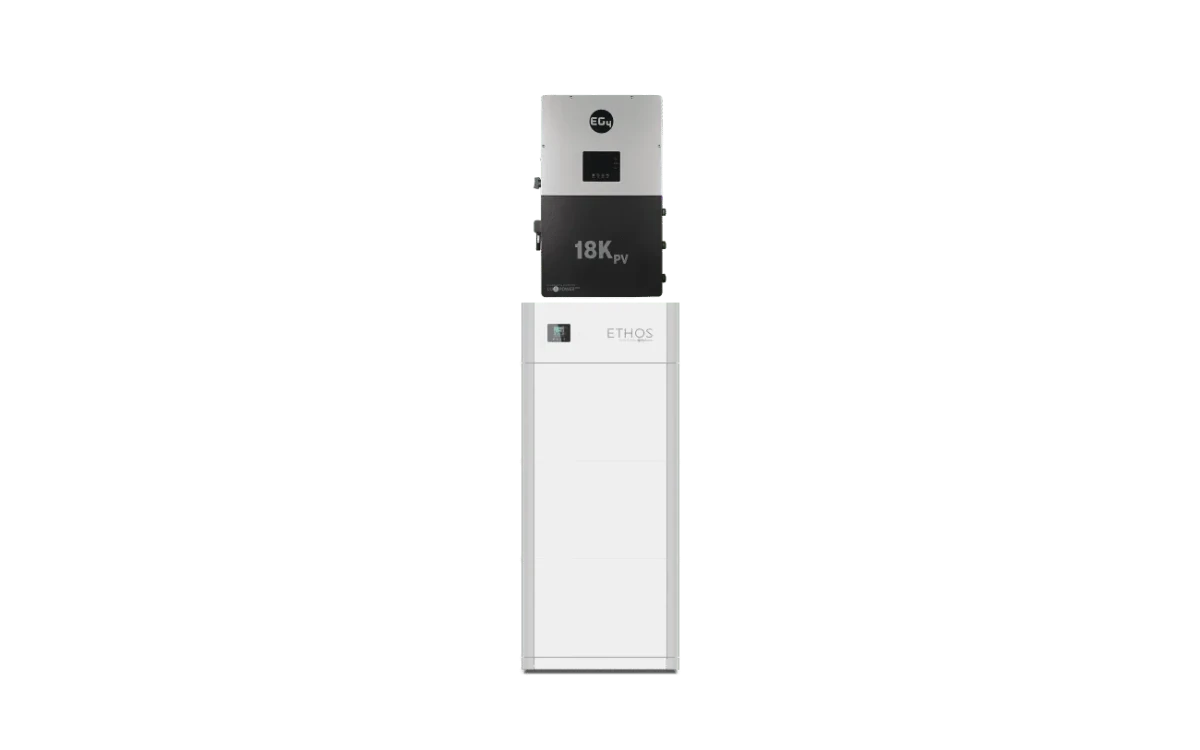

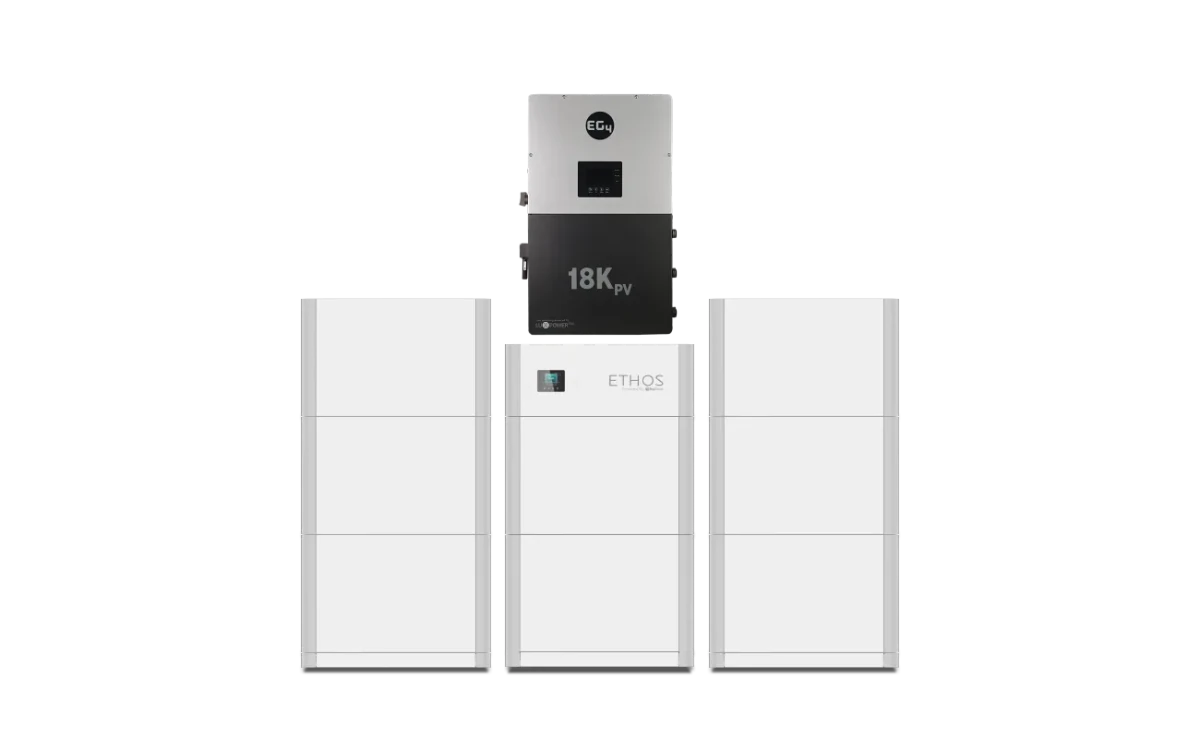

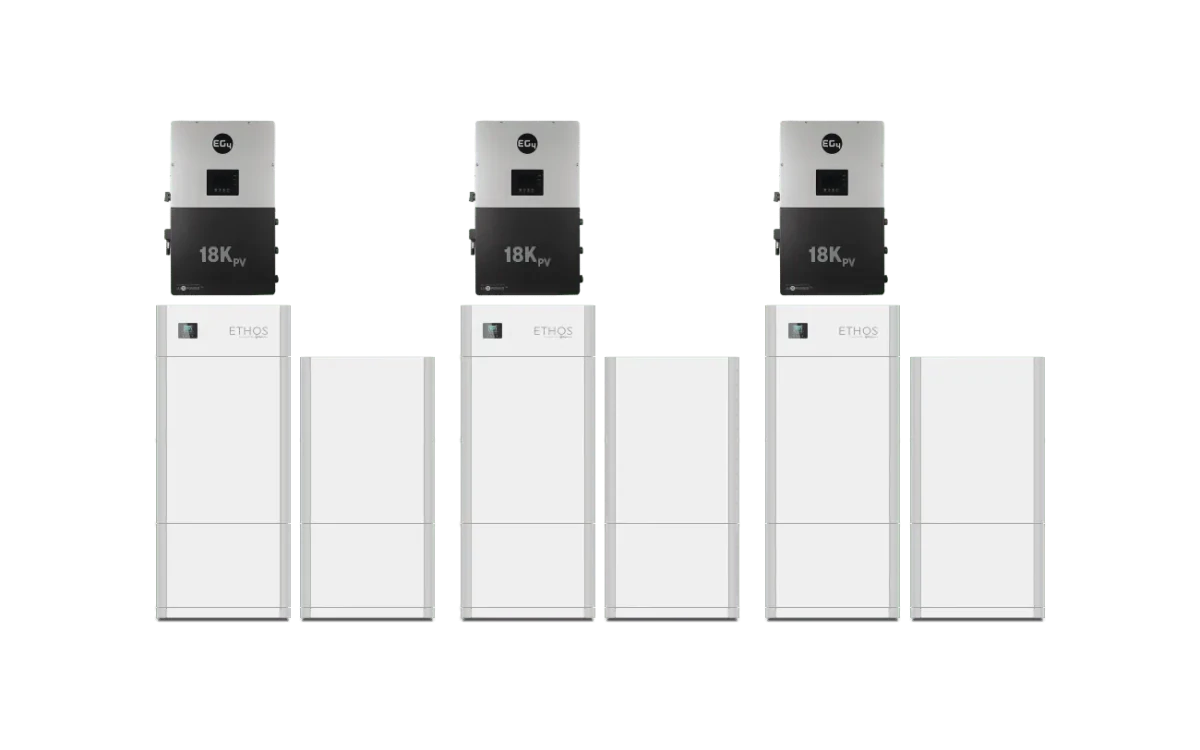

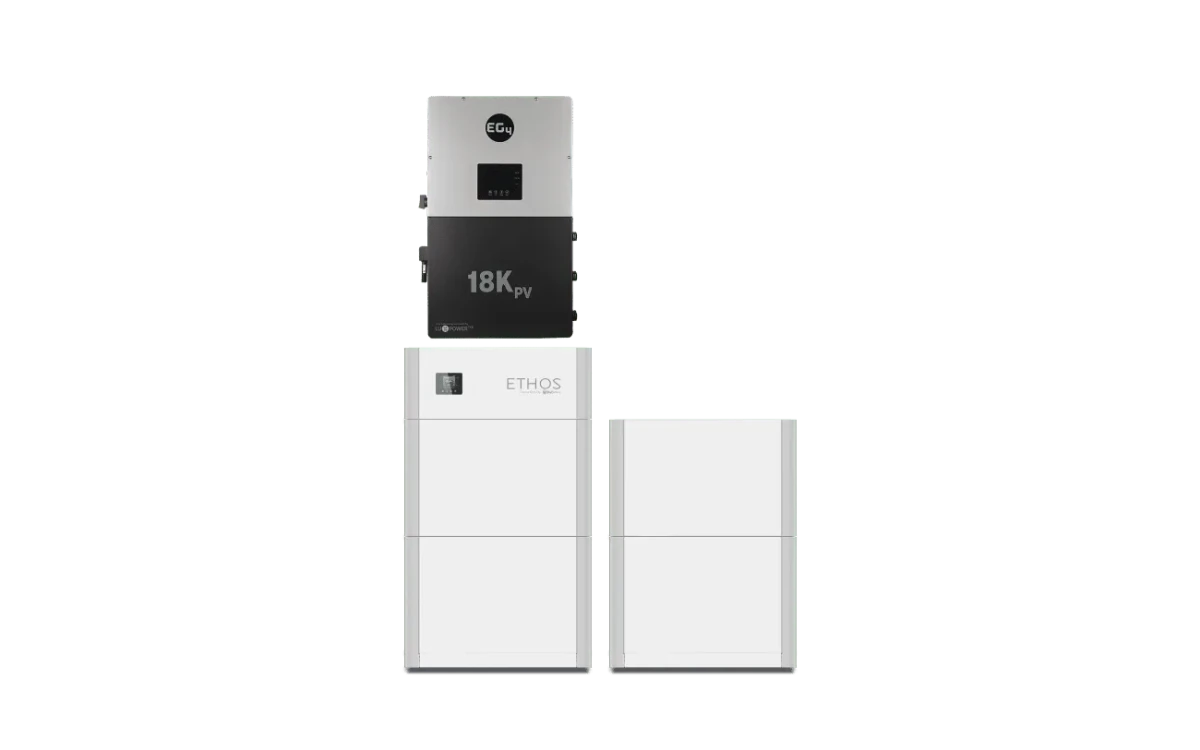

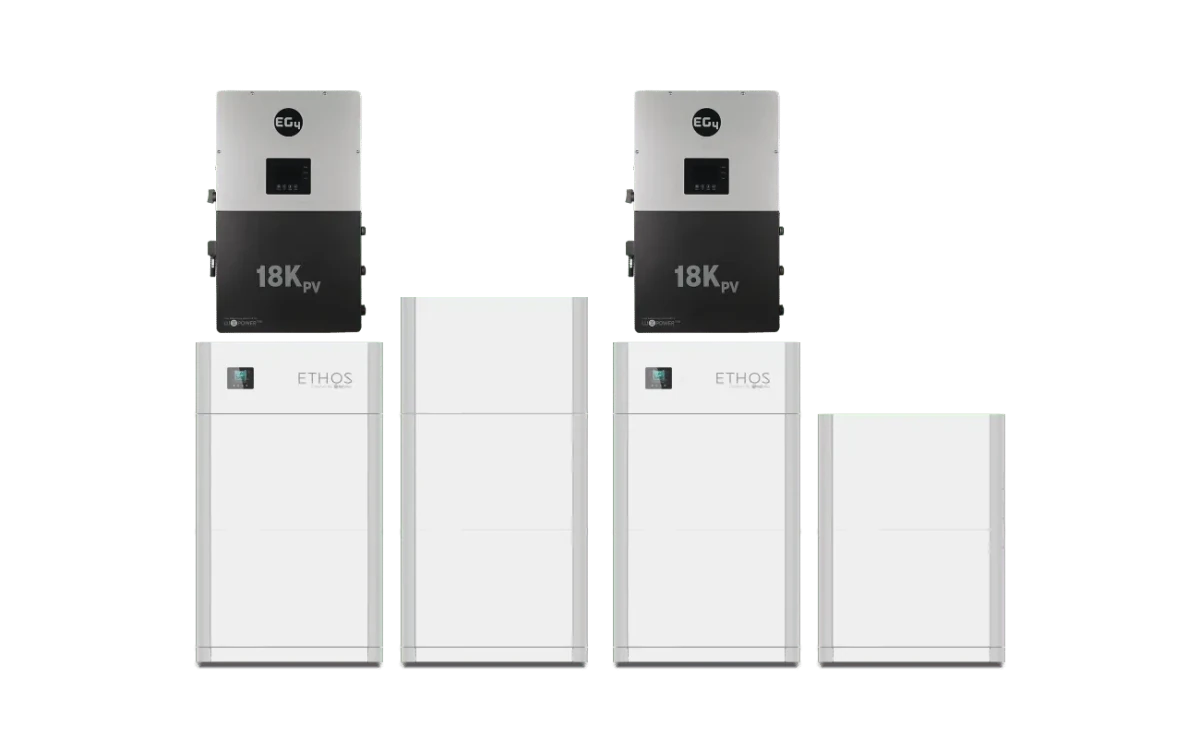

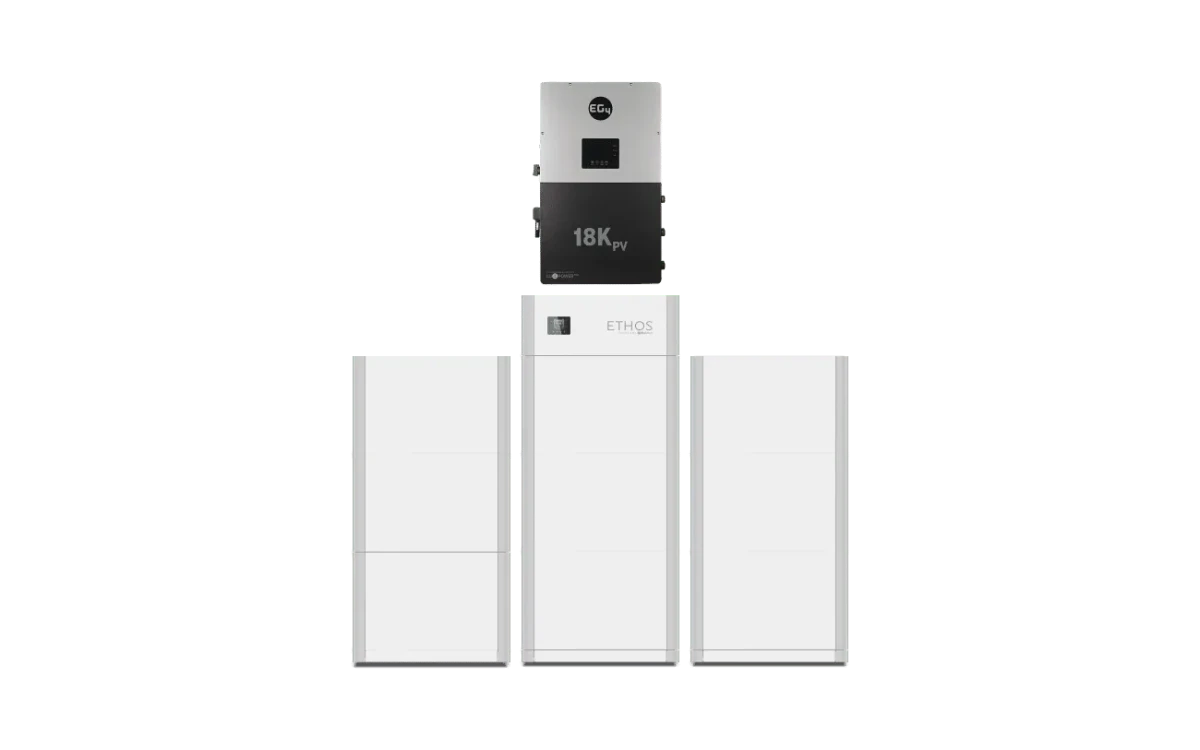

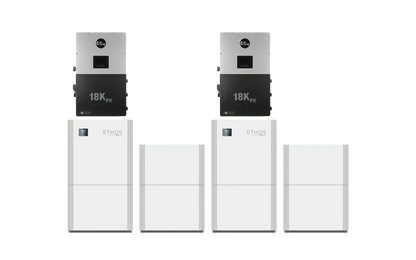

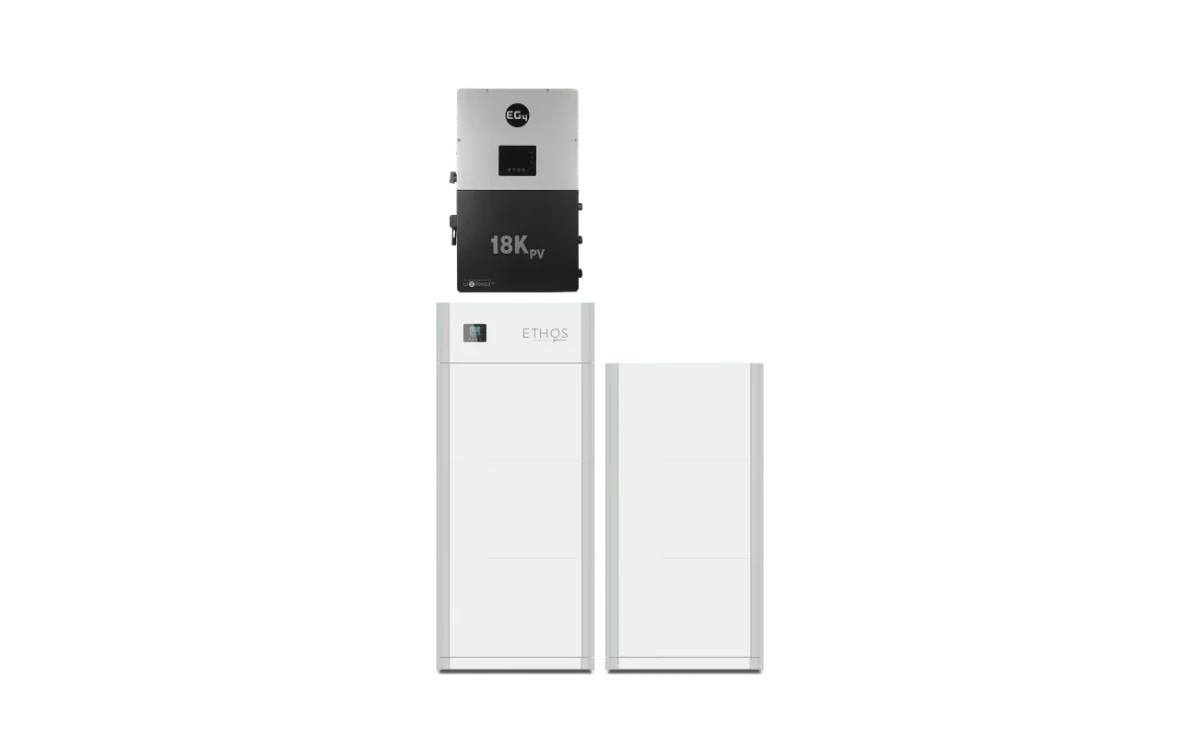

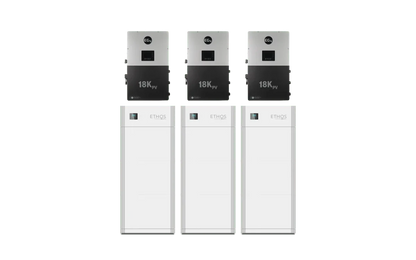

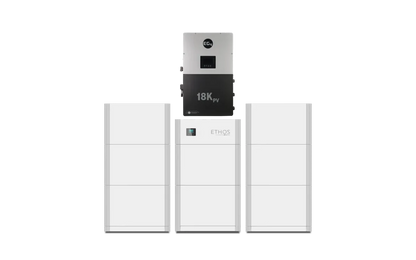

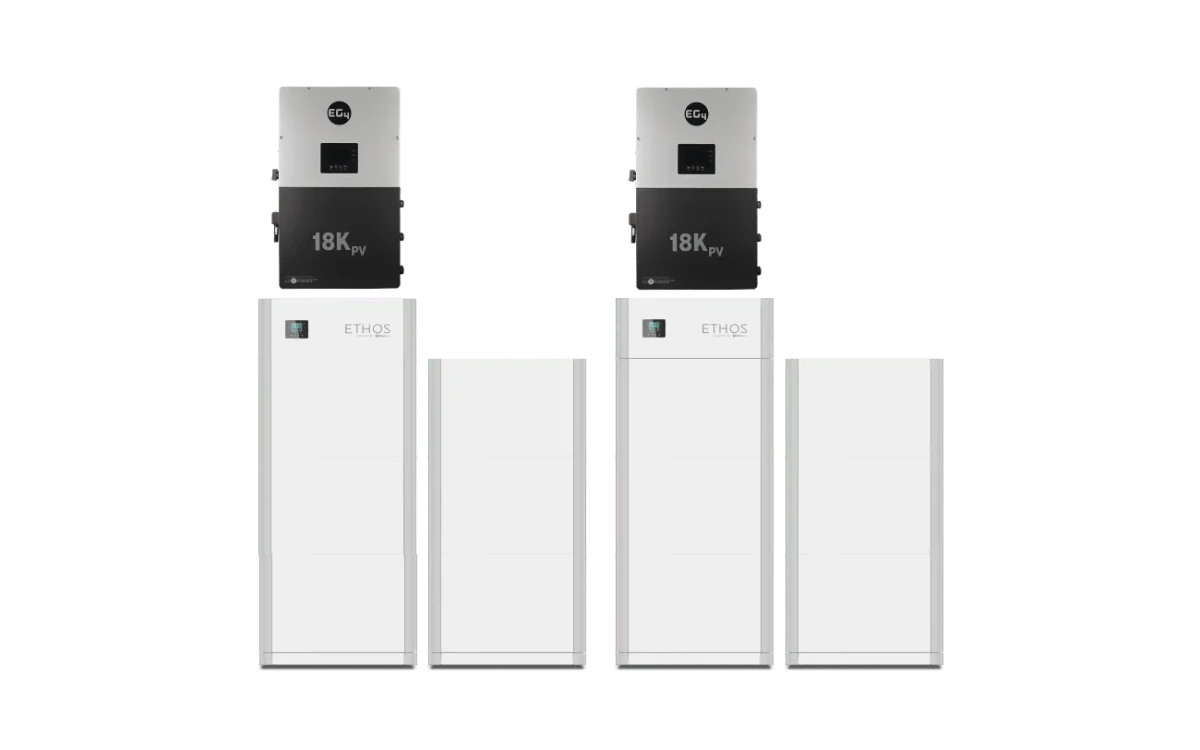

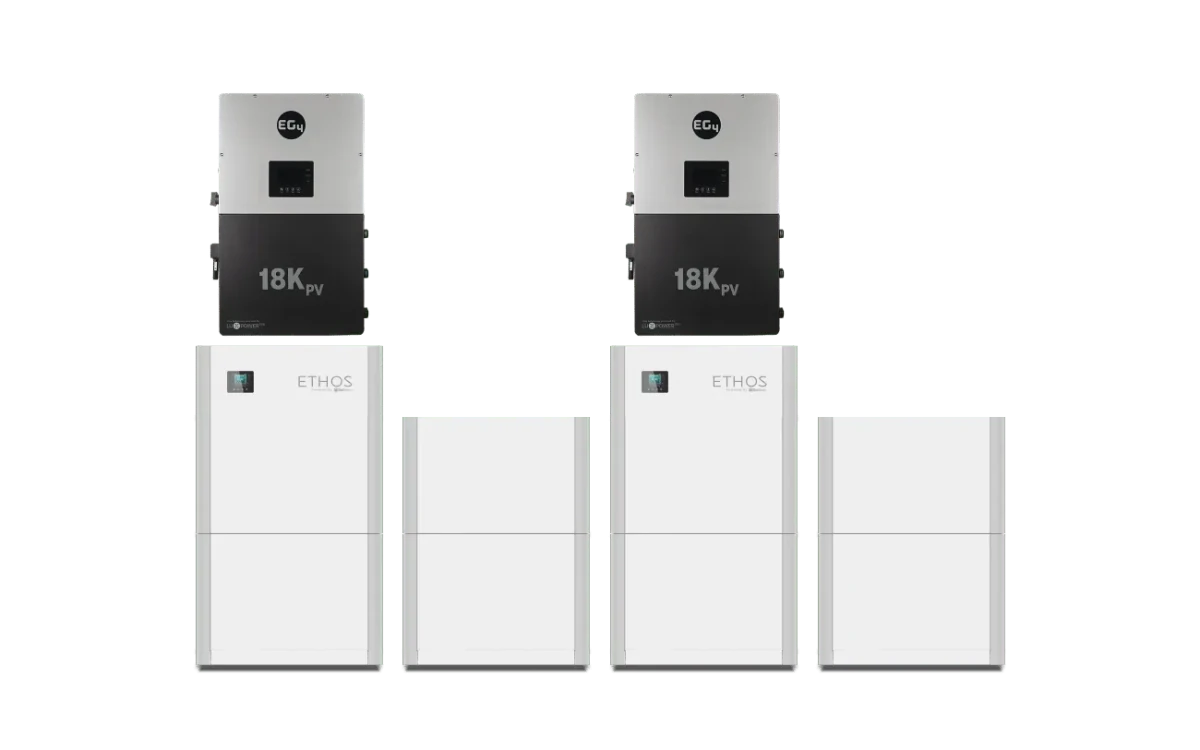

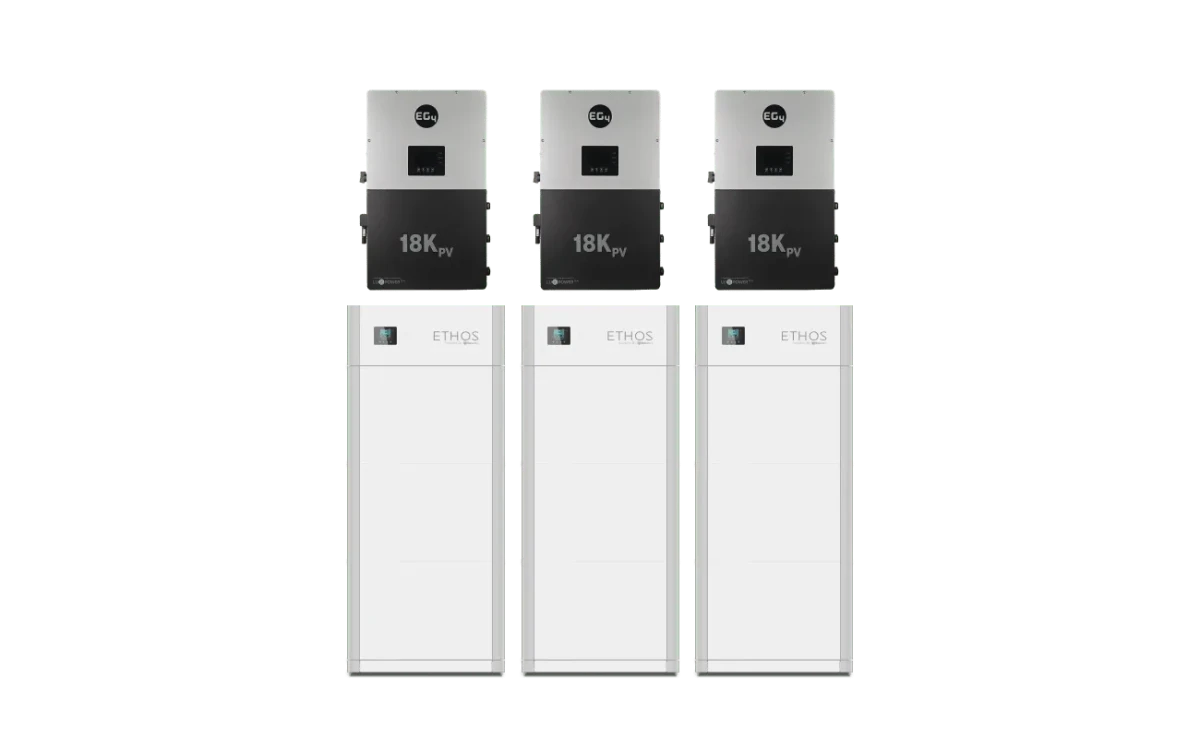

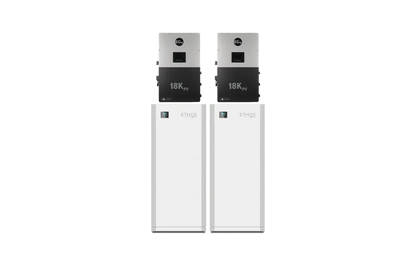

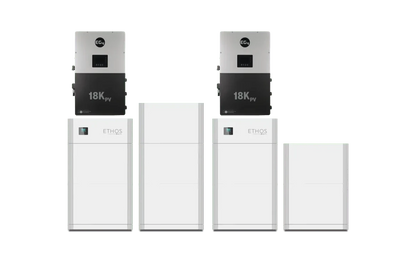

BigBattery|18kPV 10.2kWh ETHOS System (ESS)
BigBattery|18kPV 10.2kWh ETHOS System (ESS)
Couldn't load pickup availability
BigBattery’s 48V ETHOS systems are here, and this indoor configuration is the ideal solution for grid-tied power in your tiny home, cabin, or family home, supported by comprehensive safety, reliability, and state-of-the-art features.
The ETHOS System was built to be a versatile home power solution, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS to your wall with an effortless installation. The ETHOS comes equipped with an IP65-rated casing, an internal fire suppression system, as well as an advanced BMS with auto cell-balancing to ensure long-lasting safety and reliability. Plus, its control box features an interactive LED display, along with CANBus and RS485 communication protocols, so you can always monitor the status and performance of your power.
We pair our ETHOS with a cutting-edge 12000W EG4 hybrid inverter, which features its own LCD touch screen
Kit Includes:
Designed For 48V Applications
Tech Specs
Single Module Tech Specs
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: |
10.24kWh |
| Ah Capacity: | 200Ah |
| Charging Voltage Range: | 55.6 – 57V |
| Max Charge Voltage: | 57V |
| Operating Voltage Range: | 48 – 57V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| Cell Configuration: |
16S 2P |
| Max Continuous Discharge Current: | 200A |
| Max Continuous Power: | 10240W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range (SoC >50%): | -4°F – 113°F (-20°C – 45°C) (Max 6 months) |
| Weight: | 273 lb (123.8 kg) |
| Depth: | 6.7 in (170 mm) |
| Width: | 26.5 in (674 mm) |
| Height: | 43.3 in (1100 mm) |
| Max Connections: | Up to (16) parallel connections per control box |
| Protection Rating: | IP65 |
| Communications: | CANBus / RS485 |
| Certifications: | UL9540a, UL1973, & UN38.3 |
Inverter Downloads
| Spec Sheet: | Spec Sheet |
| User Manual: | User Manual |
| Rapid Shut Down Wiring Guide: | Rapid Shut Down Wiring Guide |
| UL1741 Certificate: | UL1741 Certificate |
