BigBattery|12kW 30.7kWh ETHOS Off-Grid Power System

BigBattery|12kW 30.7kWh ETHOS Off-Grid Power System

Regular price $10,700.00 USD
Regular price $10,700.00 USD Sale price $10,700.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

BigBattery’s 48V ETHOS systems are here, and this 20.48kWh configuration is the ideal solution for off-grid power in your tiny home, cabin, or homestead, supported by comprehensive safety, reliability, and state-of-the-art features.

The ETHOS System was built to be a versatile off-grid power solution, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS to your wall with an effortless installation. The ETHOS comes equipped with an IP65-rated casing, an internal fire suppression system, as well as an advanced BMS with auto cell-balancing to ensure long-lasting safety and reliability. Plus, its control box features an interactive LED display, along with CANBus and RS485 communication protocols, so you can always monitor the status and performance of your power.

But that’s not all. We pair our ETHOS with the cutting-edge 12000XP split-phase, off-grid inverter from EG4, which features its own LCD touch screen display, 2 MPPT inputs, an integrated UPS module for seamless on and off-grid switching, and the ability to handle PV arrays of up to 24000W, with a rated power of 12000W. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids or rolling blackouts, while seeing huge savings each month on your electric bill through peak shaving and time-of-use offsetting.

Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your home with an uninterrupted power system to last all season, or all year long, the ETHOS ensures reliable, efficient power delivery day in and day out, allowing you to save on utilities, and most importantly, stay powered and prepared. Take control of your power and shop the 48V ETHOS today.

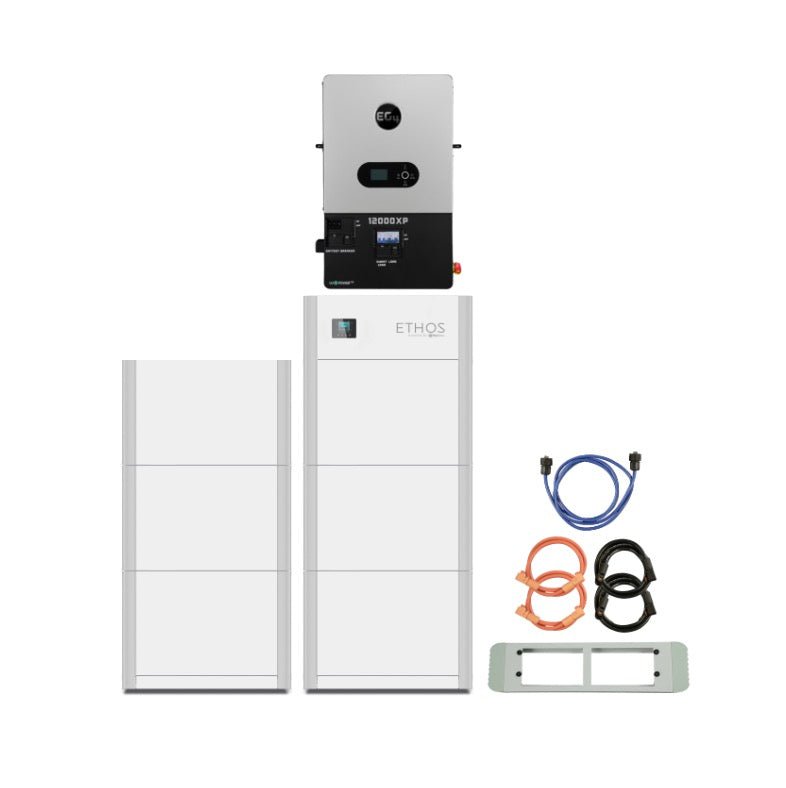

Kit Includes:

4 × 48V ETHOS 5.12kWh Stackable Battery Module
1 × ETHOS RACK BASE
1 × Ethos Parallel Comm Cable 4.9 ft (150cm)
2 × Ethos Parallel Power Cable 4.9 ft (1500mm)



Designed For 48V Applications

Tech Specs

Single Module Tech Specs

System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
kWh Capacity: 15.36kWh
Ah Capacity: 300Ah
Charging Voltage Range: 55.6 – 57V
Max Charge Voltage: 57V
Operating Voltage Range: 48 – 57V
Suggested Low Voltage Cutoff: 48 – 50.8V
Cell Configuration: 16S 2P
Max Continuous Discharge Current: 250A
Max Continuous Power: 12800W
Max Discharge Peak Current: 300A (Max 5 seconds)
Max Charge Current: 200A
Charge Temperature Range: 32°F – 113°F (0°C – 45°C)
Discharge Temperature Range: -4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range: 59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%): -4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight: 387 lb (175.5 kg)
Depth: 6.7 in (170 mm)
Width: 26.5 in (674 mm)
Height: 43.3 in (1100 mm)
Max Connections: Up to (16) parallel connections per control box
Protection Rating: IP65 / NEMA 4X
Communications: CANBus / RS485
Certifications: UL9540a, UL1973, & UN38.3

Inverter Specs

AC Input

AC Voltage:   120V AC / 240V AC
AC Frequency: 50 Hz / 60 Hz
Max. Continuous AC Current: 37.5A @ 240V
Max. AC Input Power: 9000W
Max. AC Bypass: 50A

AC OUTPUT

Output Voltage: 120V AC / 240V AC
Output Frequency: 50 Hz / 60 Hz
Max. Continuous Output Current: 25A @ 240V
Output Power: 6000W
 Surge Capacity: 12000W (3.5 sec) / 11000W (5 sec)
Power Factor: 0.99 (Full Load)
Reactive Power Adjustment Range: -0.8 ~ 0.8 Leading Adjustable
Total Harmonic Distortion: <3%
Switching Time: <15 ms (Single) / <30 ms (Parallel)

PV INPUT

No. of MPPTs:   2 (1)
Max. Input Current: 17A / 17A
Max. Short Circuit Input Current: 25A / 25A
DC Input Voltage Range: 100 - 480V DC
Start Up Voltage: 100V DC ± 10V DC
MPPT Operating Voltage Range: 120 - 385V DC
MPPT Voltage: 320V DC
Max. PV Array Power: 8000W (4000W per MPPT)
Max. Efficiency: 99%

BATTERY

Nominal Voltage:   48V DC
Voltage Range: 46.4 - 60V DC
 Max. Discharge Current: 140A
 Max. Charge Current: 125A
DC Cut-Off Voltage: 59V DC
DC Recovery Voltage: 57.4V DC
Charge Cut-Off Voltage: 58.4V DC

OPERATING ENVIRONMENT

 Operating Temperature Range: 32ºF - 113ºF (0ºC - 45ºC)
Storage Temperature Range: 5ºF - 140ºF (-15ºC - 60ºC)
Altitude: <6,561 ft (2000 m)
Relative Humidity: 5 - 95%
Typical Noise Emission: <58 dB
Protection Rating: IP20
Max. Parallel Connections: 16

DIMENSIONS

Weight: 52.9 lbs (24 kg)
Depth: 5.25 in (132 mm)
Width: 18 in (457 mm)
Height: 25.5 in (648 mm)
Inverter Downloads
Warranty: Warranty
Spec Sheet: Spec Sheet
User Manual: User Manual
Monitoring System Guide: Monitoring System Guide
UL1741 Certificate: UL1741 Certificate
Monitoring Adapter Installation Guide: Monitoring Adapter Installation Guide
View full details

Introducing the 48V ETHOS

The next generation of residential ESS is here! The 48V LiFePO4 ETHOS is a UL-certified, CEC-listed solution designed to provide reliable power storage for every home in America. Boasting a stackable, modular design, with all cables and components included, the ETHOS is easily installed to your wall & affords the ability to expand upon your system later on. We pair the ETHOS with a cutting-edge, UL1741-certified LUXPower inverter capable of supporting 18kW PV arrays, but the ETHOS is compatible with dozens of 48V inverters in case you already have one setup at home. Be sure to check in with your local AHJ to confirm your desired system is compliant with all state and regional regulations.
With preconfigured systems for indoor & outdoor installations, you can shop confidently knowing that BigBattery has a power system to support your energy needs. Plus, for solar installers, flexible system configurations & special installer financing options make the ETHOS the ideal battery solution for your installs. Check out our all-new 48V ETHOS Systems below!

BigBattery ETHOS - The Future of UL-Certified Energy Storage Systems

ETHOS Expansion Kit | Integrate Seamless Power & Modular Versatility

BigBattery's 48V ETHOS - UL-Certified Lithium Energy Storage System

How to Size a Home Solar Power System

UL-Certified 48V ETHOS - Product Unboxing

FAQ

How do I connect this battery into my existing system?

These batteries use a standard
amphenol ESS connector. Each
module can be connected using the included cables. You
may also purchase additional
cables from BigBattery.

How many times can I putthis battery in parallel/series?

These batteries are not series
capable but can be connected
in parallel up to 16 times. Make
sure that the total amount of
these batteries in your configuration never exceeds sixteen total batteries. When connecting
batteries in parallel, ensure all
batteries are within 0.3 volts of
one another.

How long will my battery last,and what do I do at the end ofits life?

Lithium iron phosphate (LiFePO4) batteries can be cycled
from 3500 - 5000 times (80%
DoD, 0.5C). If you cycle the battery daily, you can get over 10
years of use from your battery.
When your battery is at the end
of its lifespan, contact us & we’ll
recycle it for you, free of charge!
