120 / 240 VAC (Split Phase)
Output Rated Voltage
60Hz
Output Rated Frequency

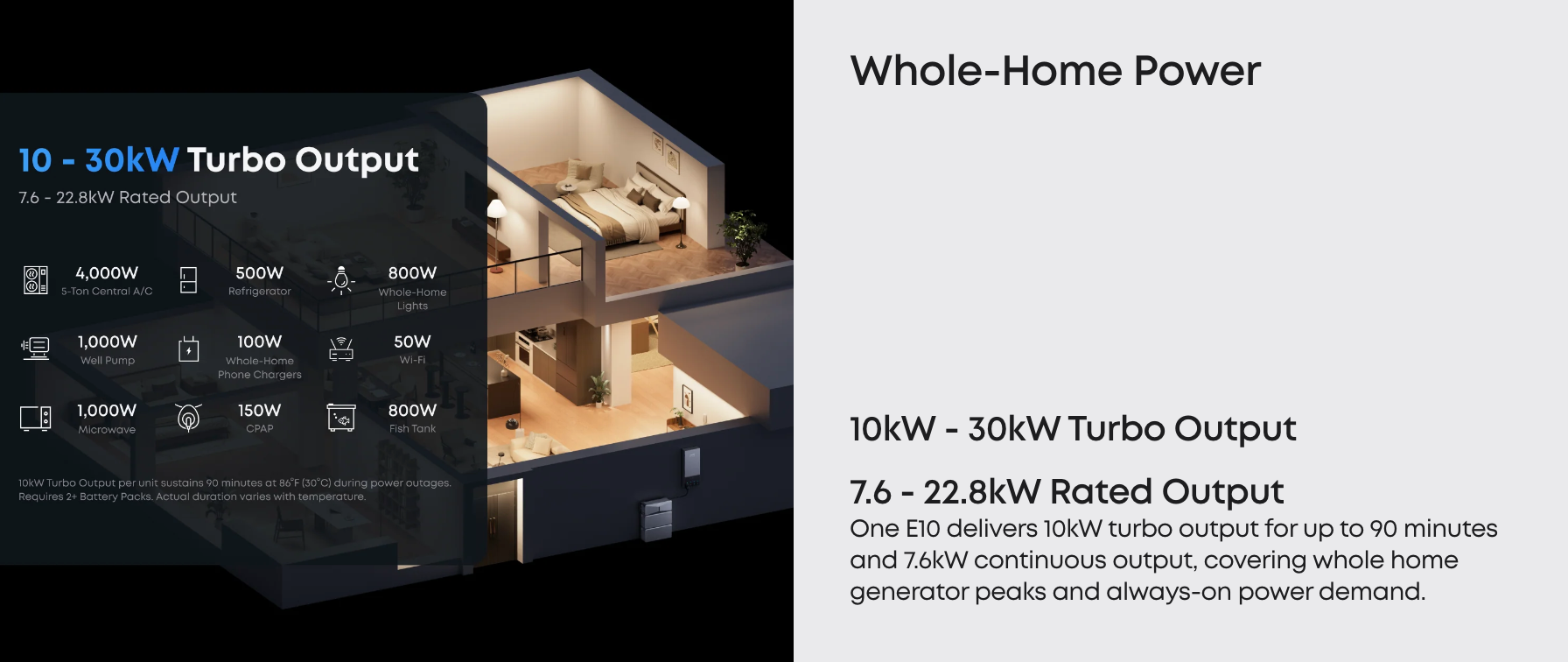

7,680W, 32A
Maximum Continuous Output Power / Current (With Battery)
10,000W, 41.6A (90 Minutes)
Turbo Backup Output Power / Current (With two Batteries)

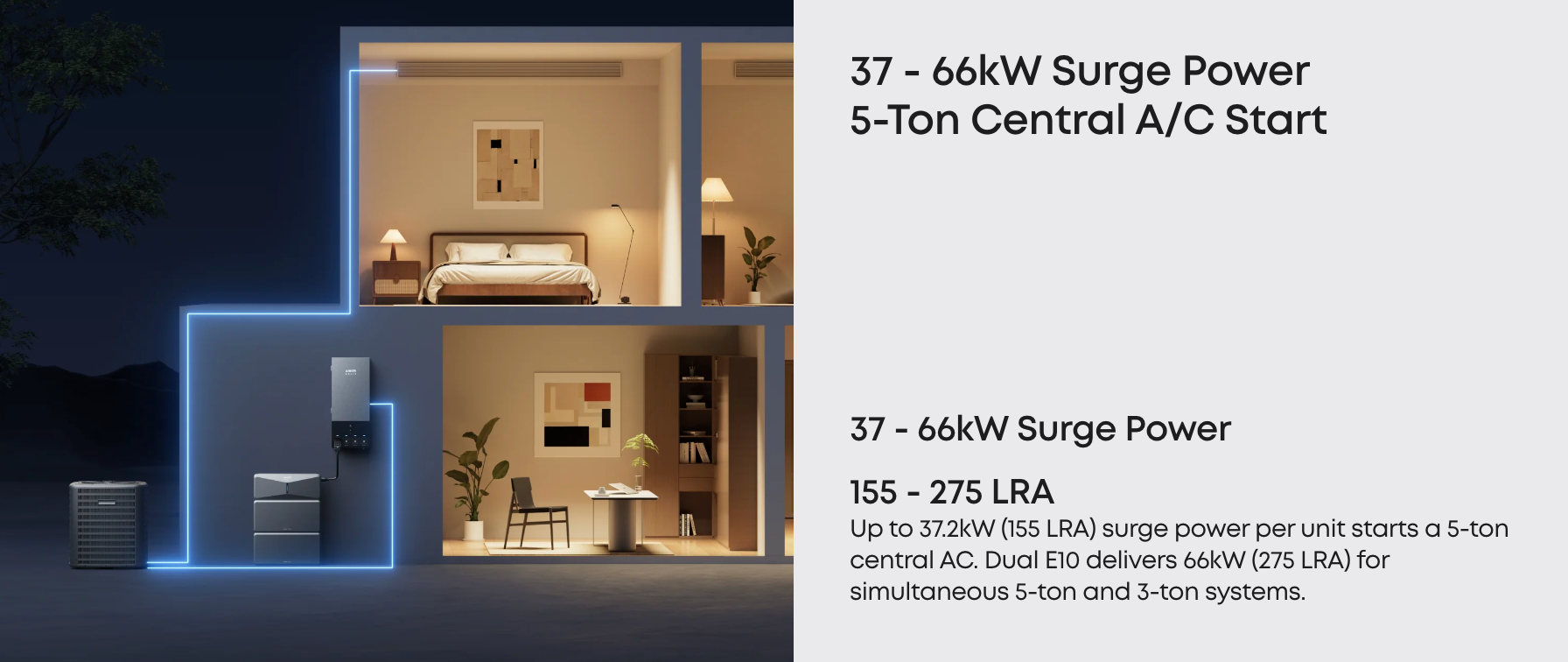

120A (1 Inverter, 1 Battery)155A (1 Inverter, 2+ Batteries)275A (2+ Inverters, 2+ Batteries Each)
LRA Equivalent Ability
1,800W, 120V / 15A*<3 hours when the current exceeds 12A7,680W, 240V / 32A
AC Input Port Recharging
9,600W, 240V / 40A
AC Input Port Bypass

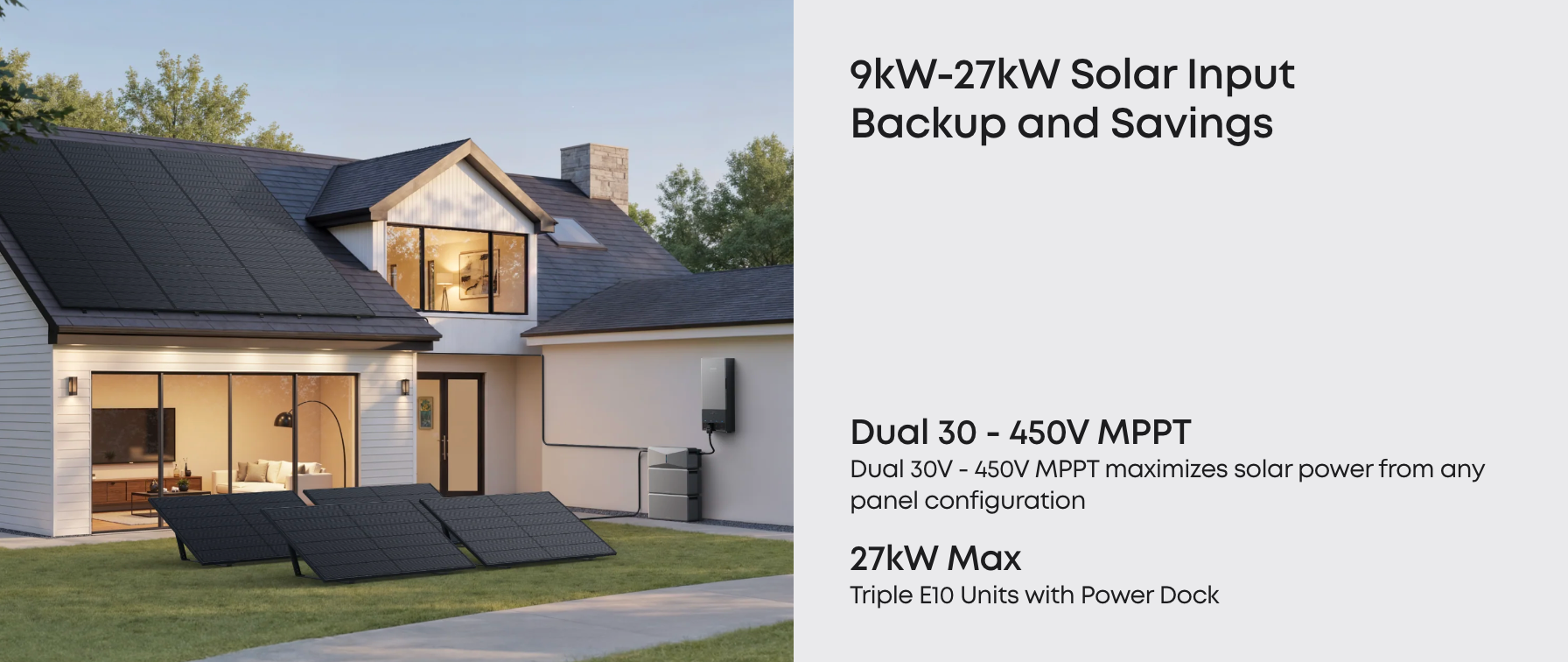

2x 4,500W, 30 to 450V(DC), 15A(Imp)
PV (Solar) Input
4,500W

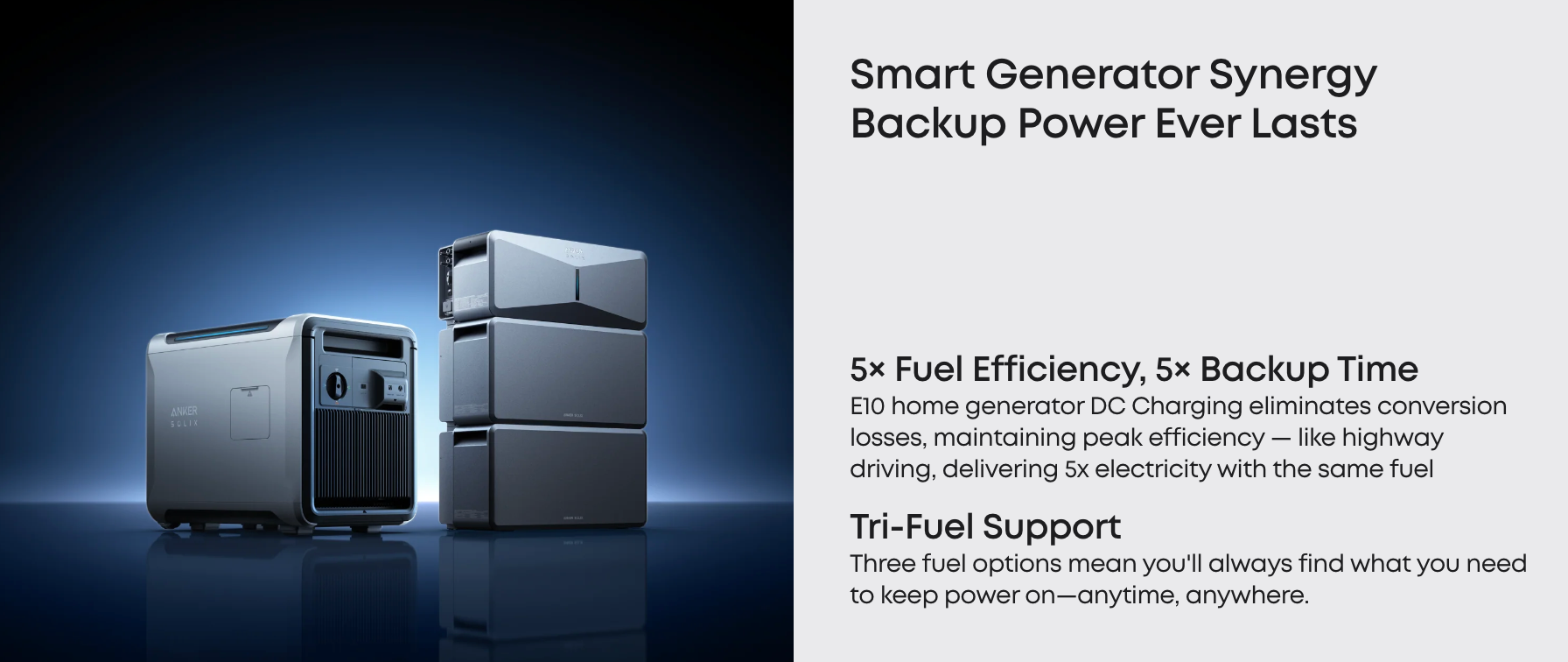

DC Generator Input
5 Years
Warranty

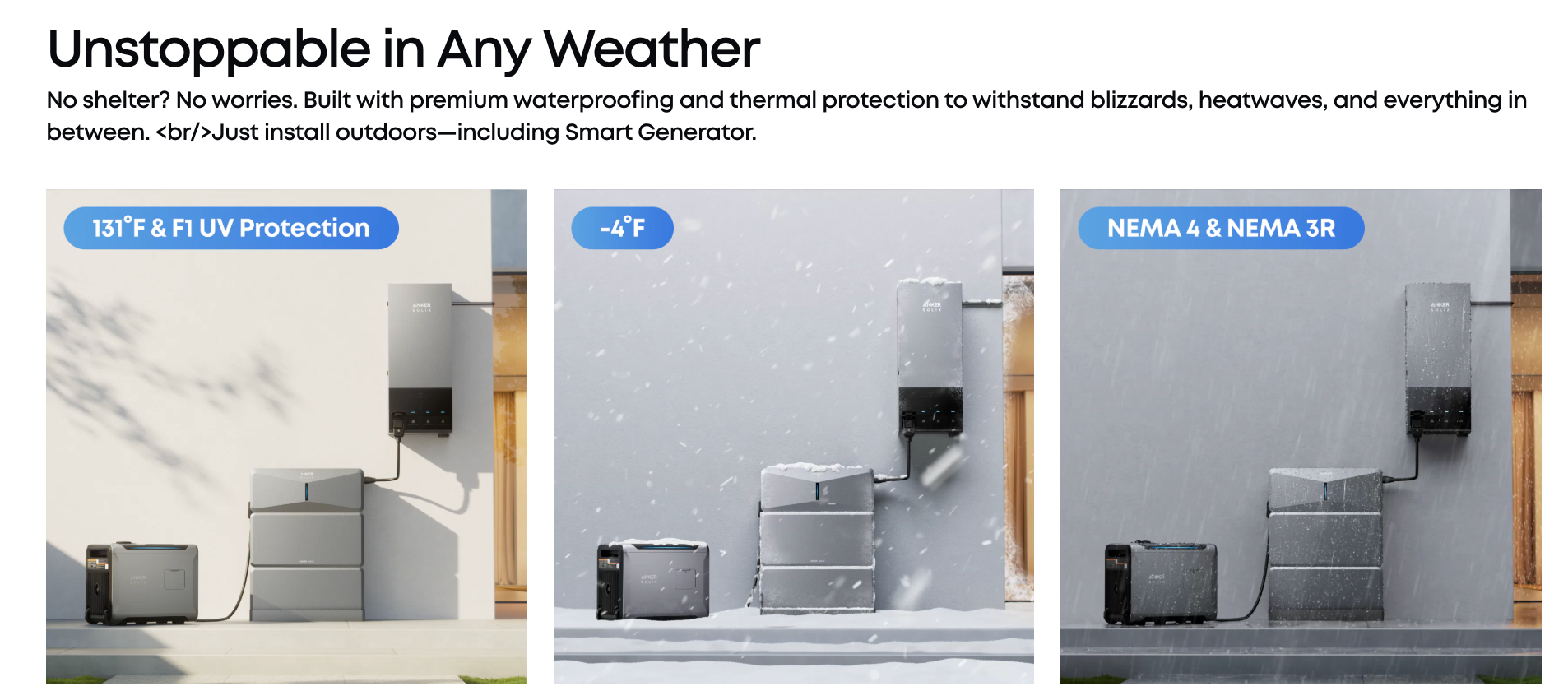

NEMA TYPE 4 (IP66)
Enclosure Type
-4 °F to 131 °F (-20~55°C)
Operating Temperature
Wi-Fi, Bluetooth
Connectivity
26.4" x 11.8" x 10.2" (670 x 300 x 260 mm)
Dimensions (W x H x D)
60.6lb (27.5kg)
Weight

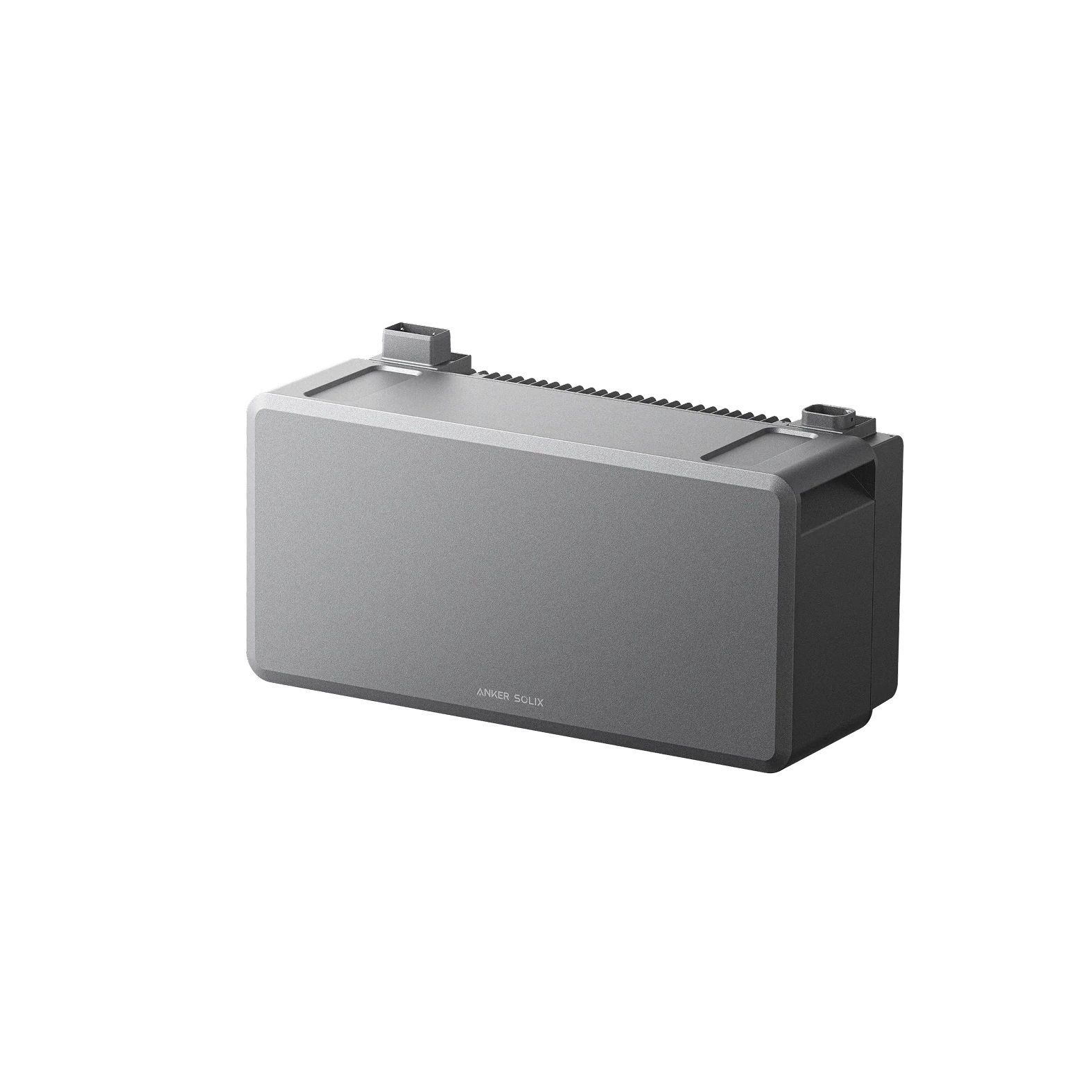

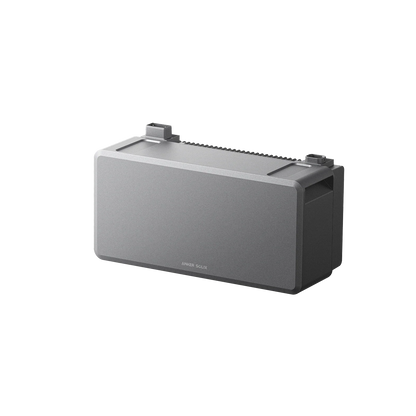

Li-ion (LFP) 4000+ Cycles
Battery Type

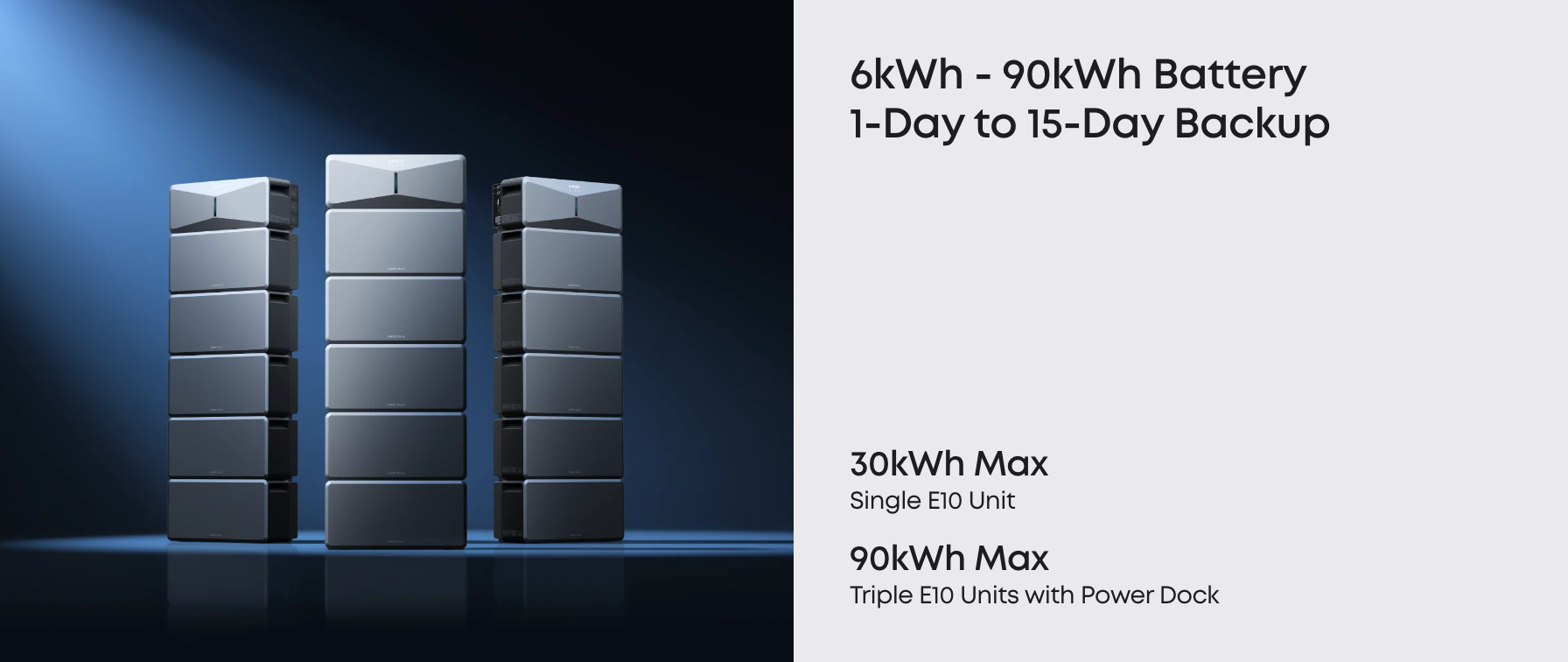

6,144 Wh per Battery | Up to 30 kWh Total Capacity with One Power Module
Capacity
400V
Battery Terminal Voltage
UL 9540, UL 9540A
Certification

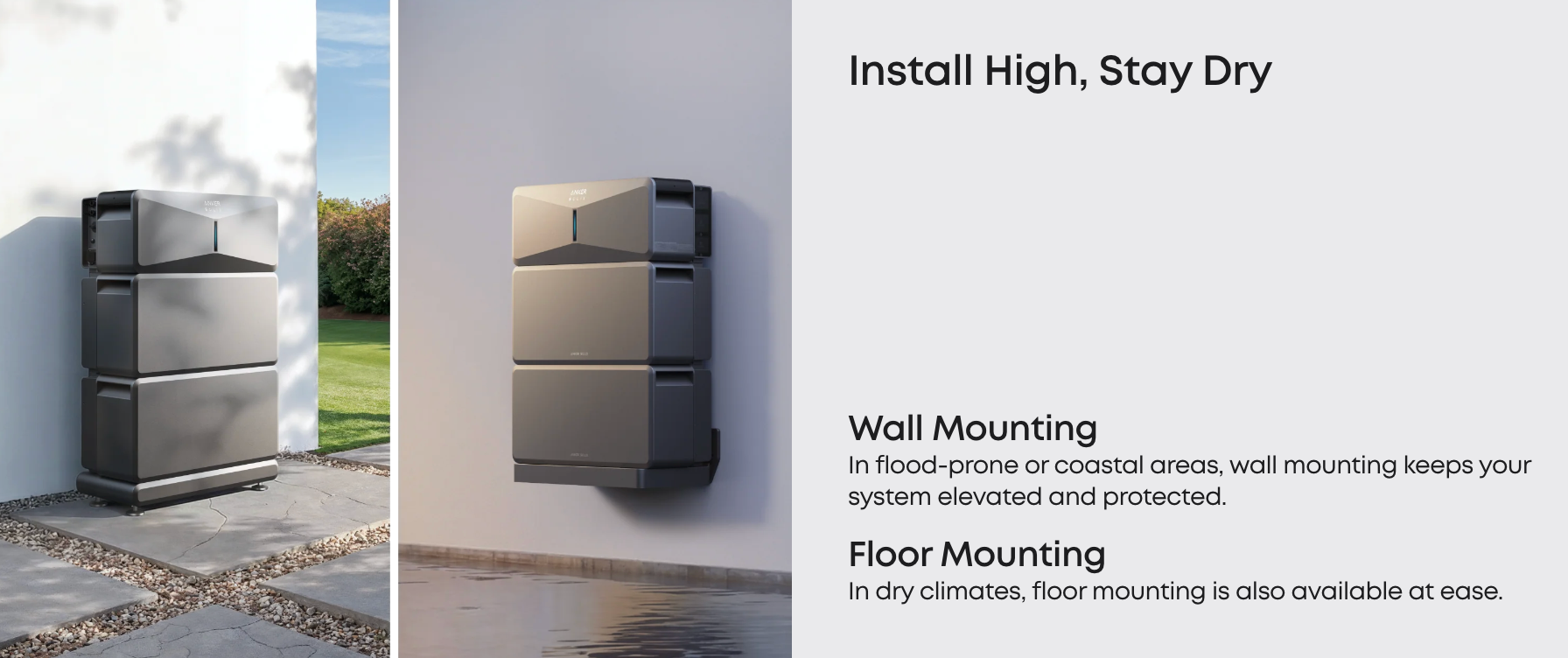

Floor Mounting Or Wall Mounting
Installation Option
26.4" x 12.7" x 11.1" (670 x 322 x 281 mm)
130 Ibs (59 kg)
Rated Voltage
60 Hz
Rated Frequency
≤20 ms
Switchover Time

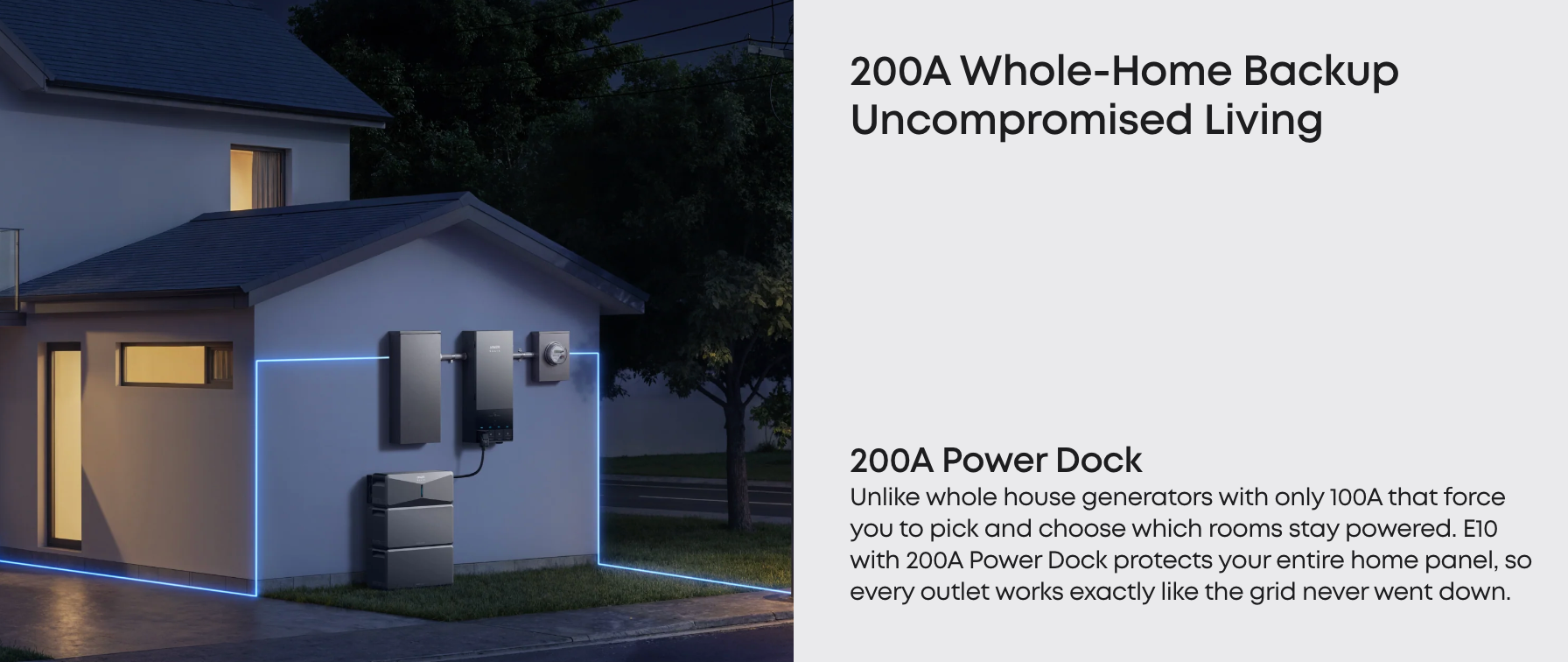

200 A Maximum, 160 A Continuous
Grid Connection
Subpanel Connection
4*100A, Total≤160A
Plug&Play AC Ports
100 A Maximum, 80 A Continuous
Circuits 1 and 2 (Load Or Generator)
80 A Maximum, 64 A Continuous
Circuits 7 and 8 (Load Or AC Solar)
60 A Maximum, 48 A Continuous
Circuits 3, 4, 5, 6, 9, 10, 11, 12 (Load)
125 A Maximum, 100 A Continuous
Circuits For Batteries
10 Years
NEMA TYPE 3R
Wall Mounting
36.1" × 15" × 7.1" (380 × 916 × 180 mm)
60 Ibs (27.2 kg)
100 A Max (40A for E10)
Maximum On-Grid Port Current
100 A Max (50A for E10)
Maximum Backup Port Current
16.5" × 11" × 5.2" (418 x 280 x 131 mm)
14.3 Ibs (6.5 kg)
