ACOPOWER|110-220W 12V Flexible Solar RV Kits With PWM LCD Charge Controller 20A

ACOPower RV Solar Kits are carefully arranged to meet your RV needs. Offers many benefits for homes, RVs, trailers, boats, sheds and cabins, Incorporating a small off-grid power system can give you greater travel independence and potential power cost savings. Going off-grid has never been easier!

Taking a trip in your RV can create lifetime memories. Don't let traditional gas powered generators or power hookups slow you down. ACOPower 110-220 Watt 12 Flexible Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup.

This solar kit conveniently includes All the tools necessary for a new system

Flexible Solar Panels

HY-PWM20AW Charge Controller

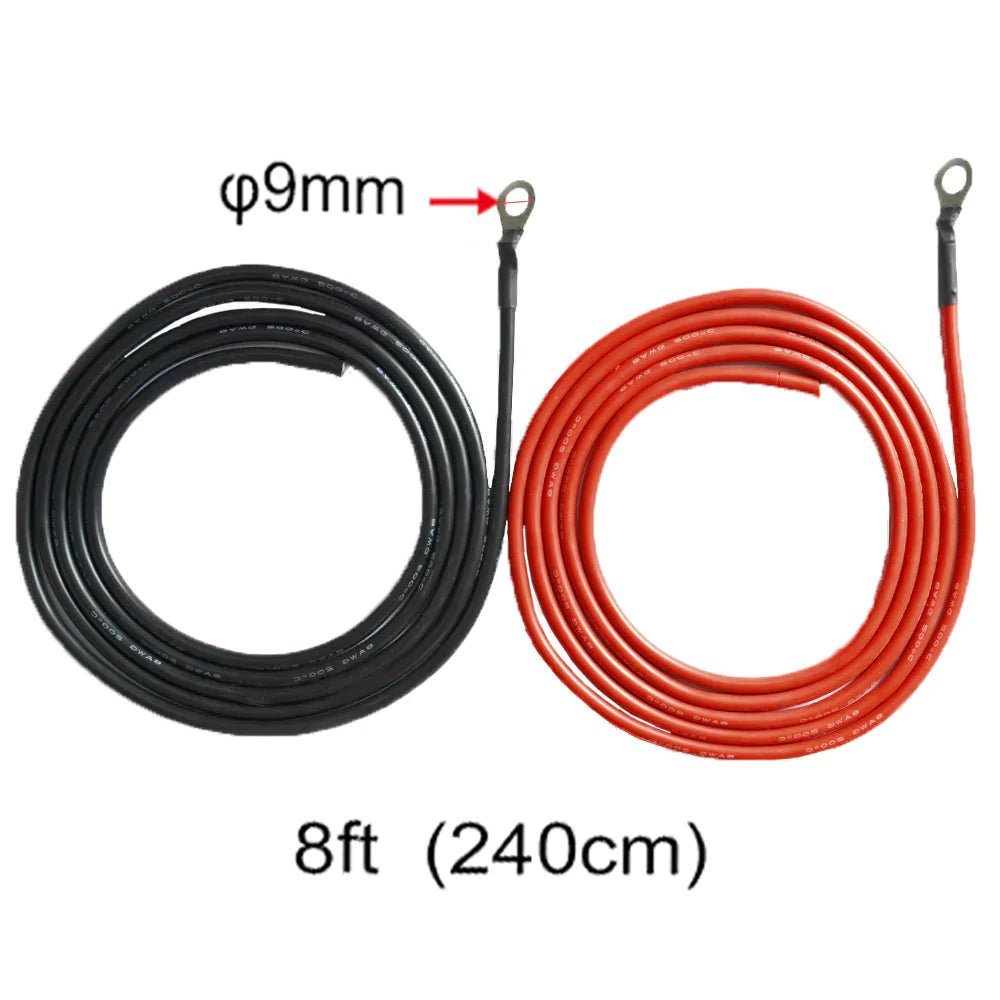

8FT 8AWG Tray Cable

30ft 12AWG PV Cable

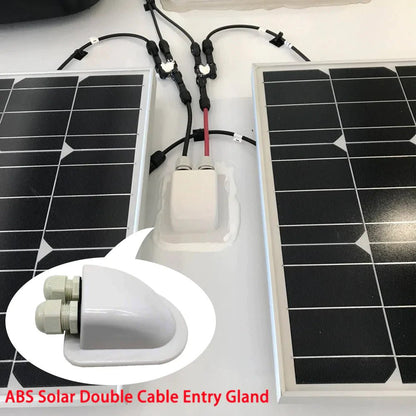

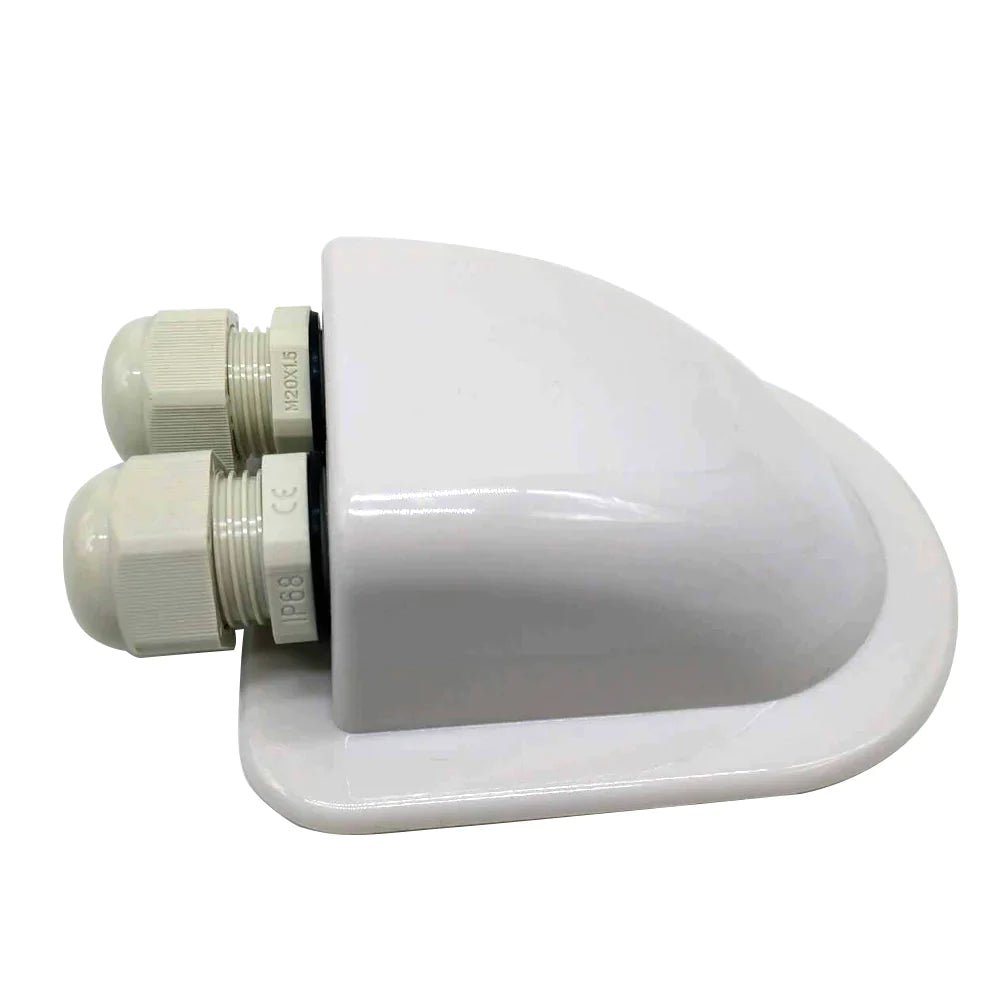

Cable Entry Housing

Kick-start your solar adventure with a ACOPower Kit.

    110W-20A

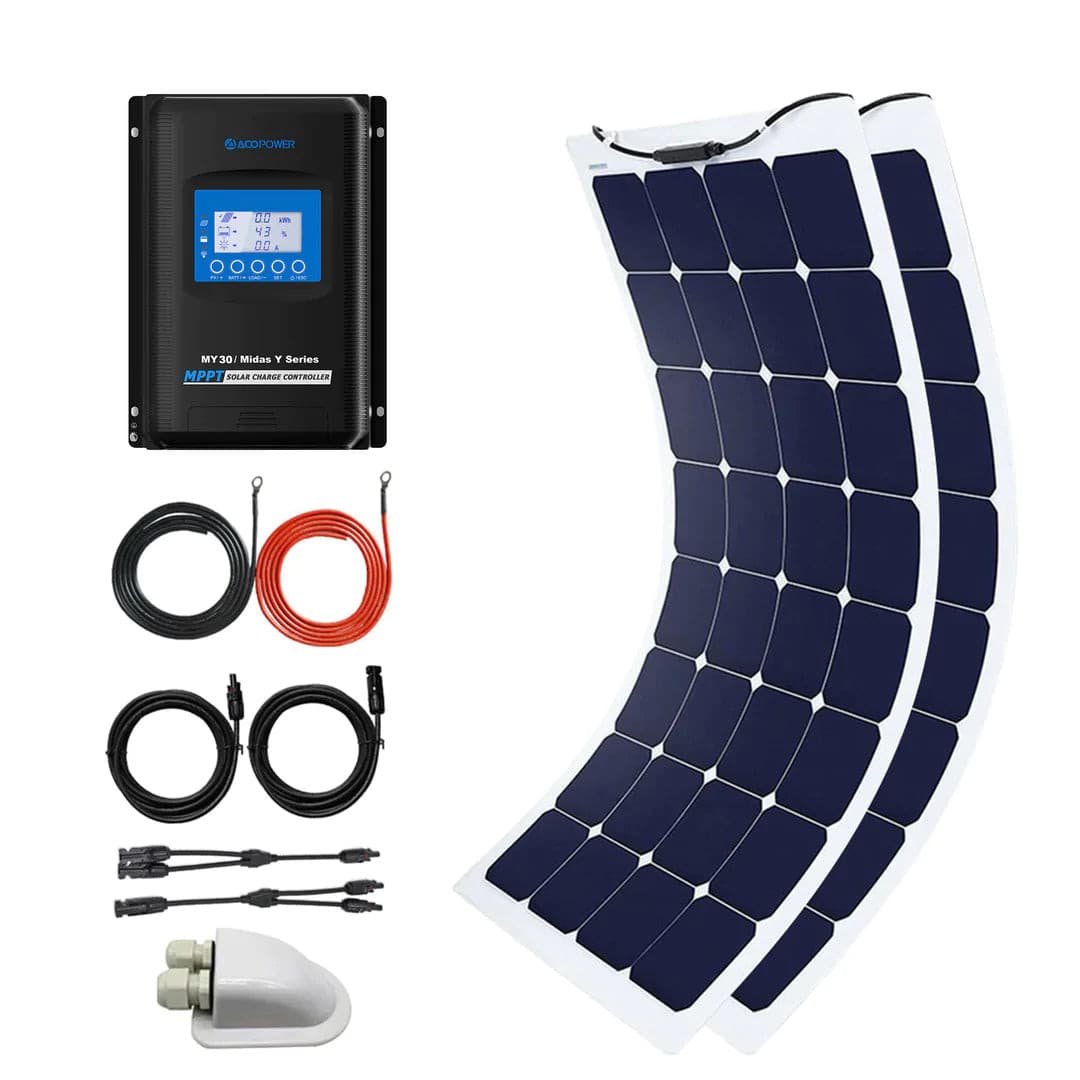

    Complete kit includes: (1)ACOPOWER 110 Watt 12 Volt Flexible Solar Panel (2)20A PWM Waterproof Charge Controller(3)30ft 10AWG Solar Cable (4) 8ft 10AWG Tray Cable(5) Cable Entry Housing
    Flexible And Portable Panel : the thin solar film can be gently flexed to follow a smooth curve of 27 degrees max on a coach roof, RV, boat, caravan, cabin, tent, golf cart etc. Light weight of 4.85 lbs. Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system

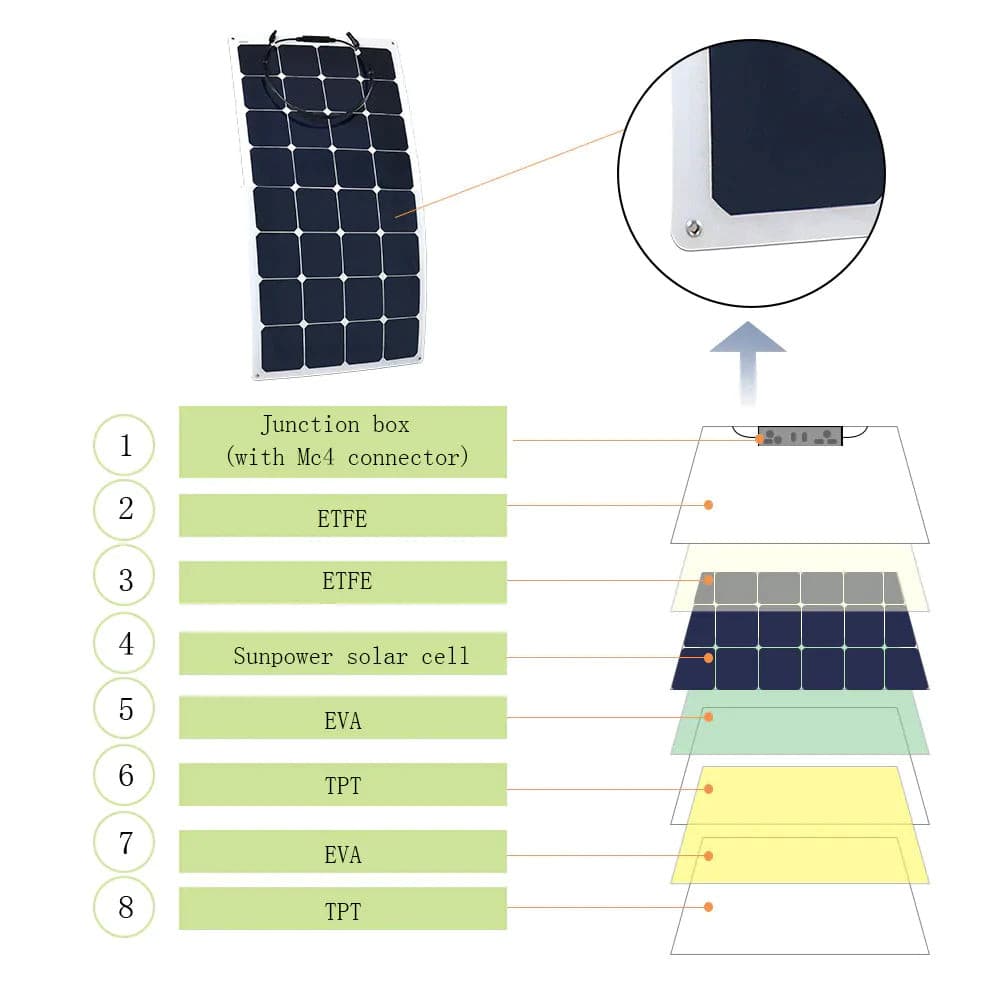

    Powerful And Durable : made from monocrystalline PV cells , the most efficient solar cells provider in the world. 21.5%-24% Higher-than-average Module Conversion Efficiency. ETFE Design longer life time of 15 years and is Scratches-protected and weather resistant.
    20A 12V/ 24V Waterproof PWM charger controller:8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium. 20 amps 12V/ 24v auto continuous charging capacity, enables use of up to 12V/360watts, 24V/720watts. Please check the detail with the ASIN: B07S8951WC
    25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components

    Tech Specs

    ACOPOWER 110W FLEXIBLE SOLAR PANEL

    Maximum Power at STC (Pmax): 110W Open-Circuit Voltage (Voc): 20.8V
    Maximum Operating Voltage (Vmp): 17.6V Short-Circuit Current (Isc): 6.9A
    Maximum Operating Current (Imp): 6.25A Operating Temperature: -20ºC to 65ºC
    Dimension: 1070x540x3mm / 44.7x21.3x0.12 in Weight: 2.2kg / 4.85 lbs



    ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER

    Nominal system voltage: 12/24VDC Auto Rated charge current: 30A
    Battery input voltage range: 8V~32V Max.PV open circuit voltage: 100VDC
    Max.PV input power: 12V/390W, 24V/780W MPP voltage range: V(BAT+2V)~72V
    Working environment temperature: -25℃~+50℃ Storage temperature range: -35℃~+80℃
    Grounding: Common negative Communication: RS485
    Power Terminals: 6AWG(16mm2) Enclosure: IP30
    Dimensions: 228x164x55mm Weight: 1.2kg



    WARRANTY INFORMATION

    Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.

    Solar Charge Controllers: The controller itself comes with a 1-year warranty.

    Accessories: 1-year material warranty

    Packing list

    • 2PC HY-FL-110W
    • 1PC HY-MPPT30A
    • 1PC 8FT 8AWG Tray Cable
    • 1PC 30ft 12AWG PV Cable
    • 1PC Cable Entry Housing

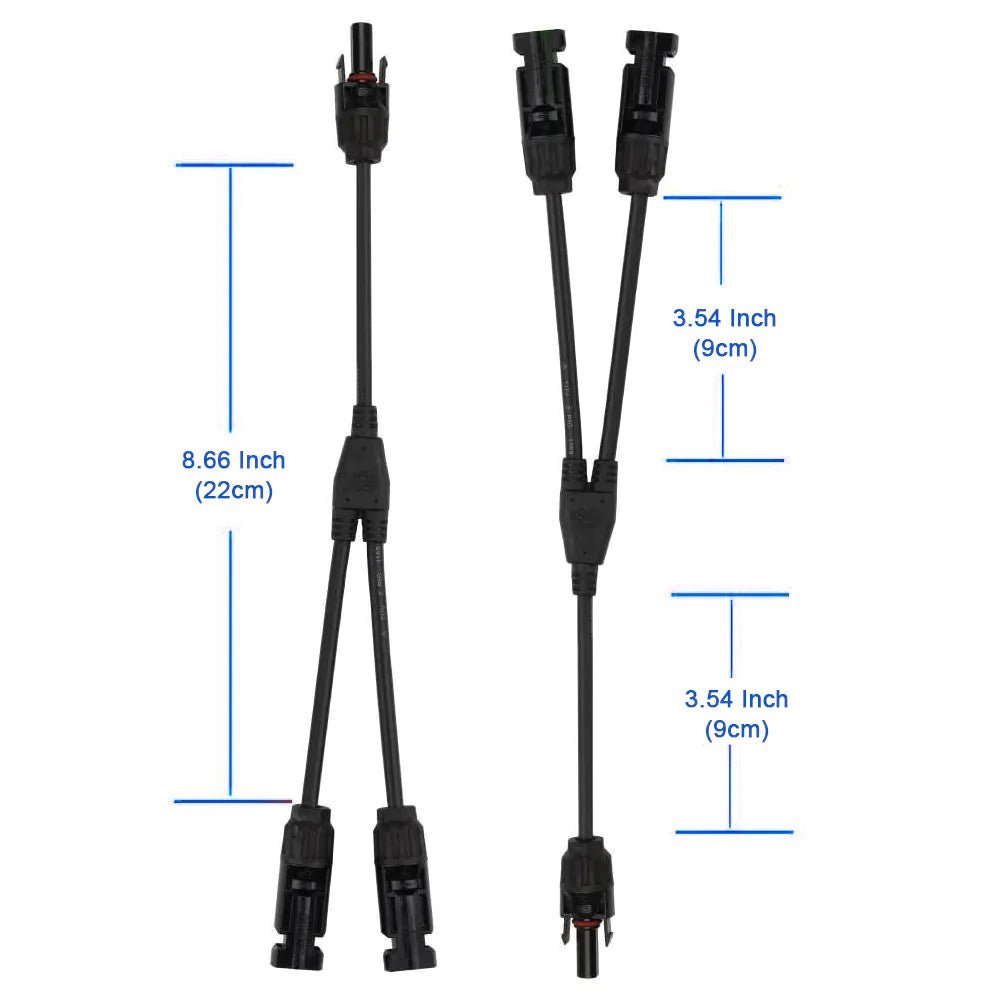

    • 1PC Pair PV T/Y Connectors

    User Manual

    220W-20A

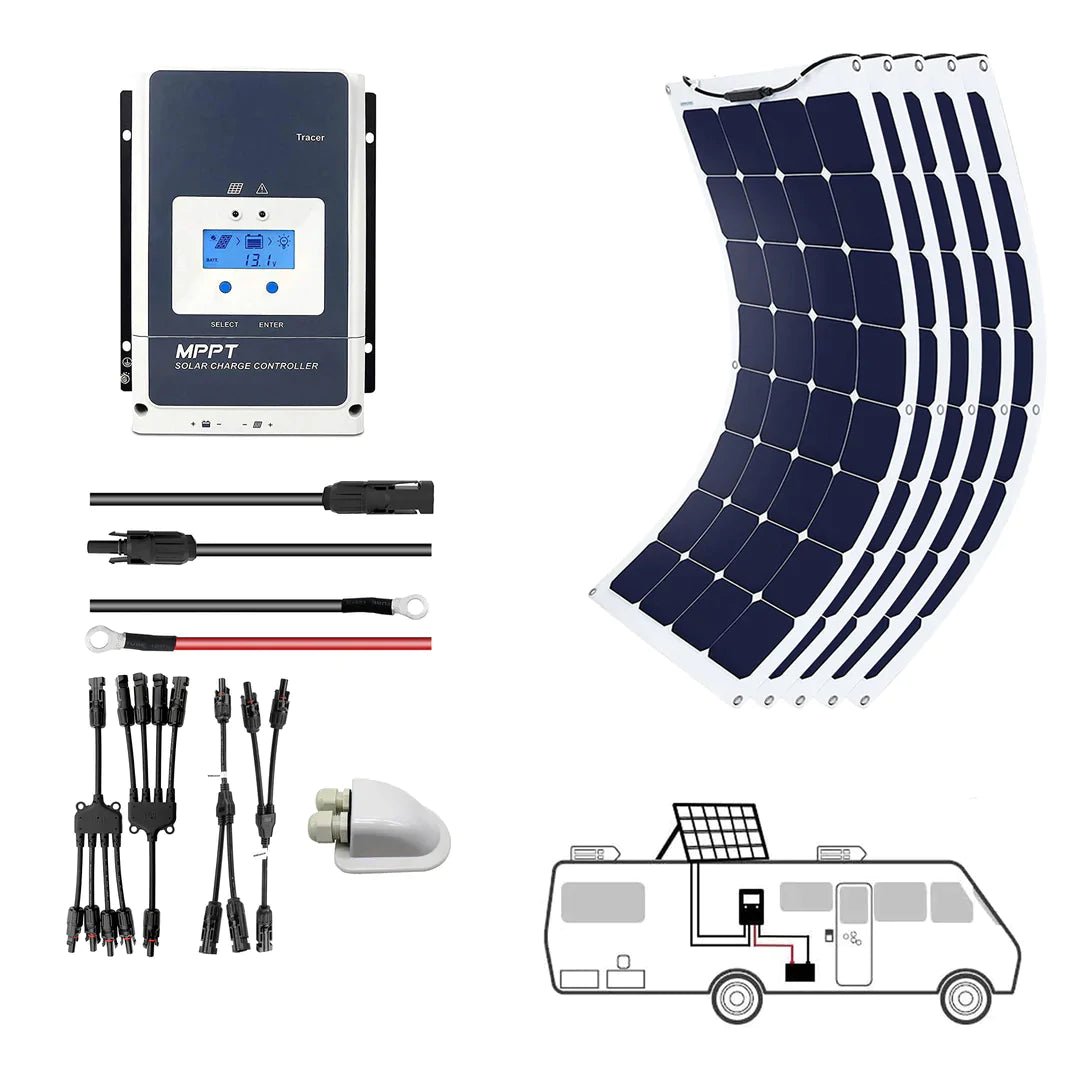

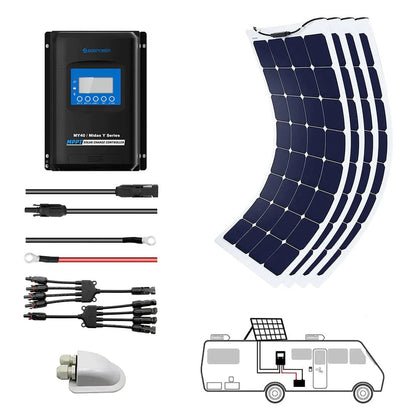

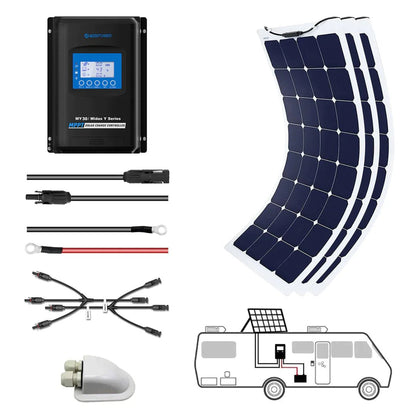

    Complete kit includes: (1)3PCS 110 Watt 12 Volt Flexible Solar Panel (2)30A MPPT Charge Controller(3)30ft 10AWG Solar Cable (4) 8ft 10AWG Tray Cable(5) Cable Entry Housing(5) 1 Pairs Y Branch Connectors ,1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM)
    Flexible and Portable : the thin solar film can be gently flexed to follow a smooth curve of 27 degrees max on a coach roof, RV, boat, caravan, cabin, tent, golf cart etc. Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations ;Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels) ;Can be installed without costly structural roof reinforcements.
    Powerful And Durable : made from monocrystalline pv cells , the most efficient solar cells provider in the world. 21.5%-24% Higher-than-average Module Conversion Efficiency. ETFE Design longer life time of 15 years and is Scratches-protected and weather resistant.

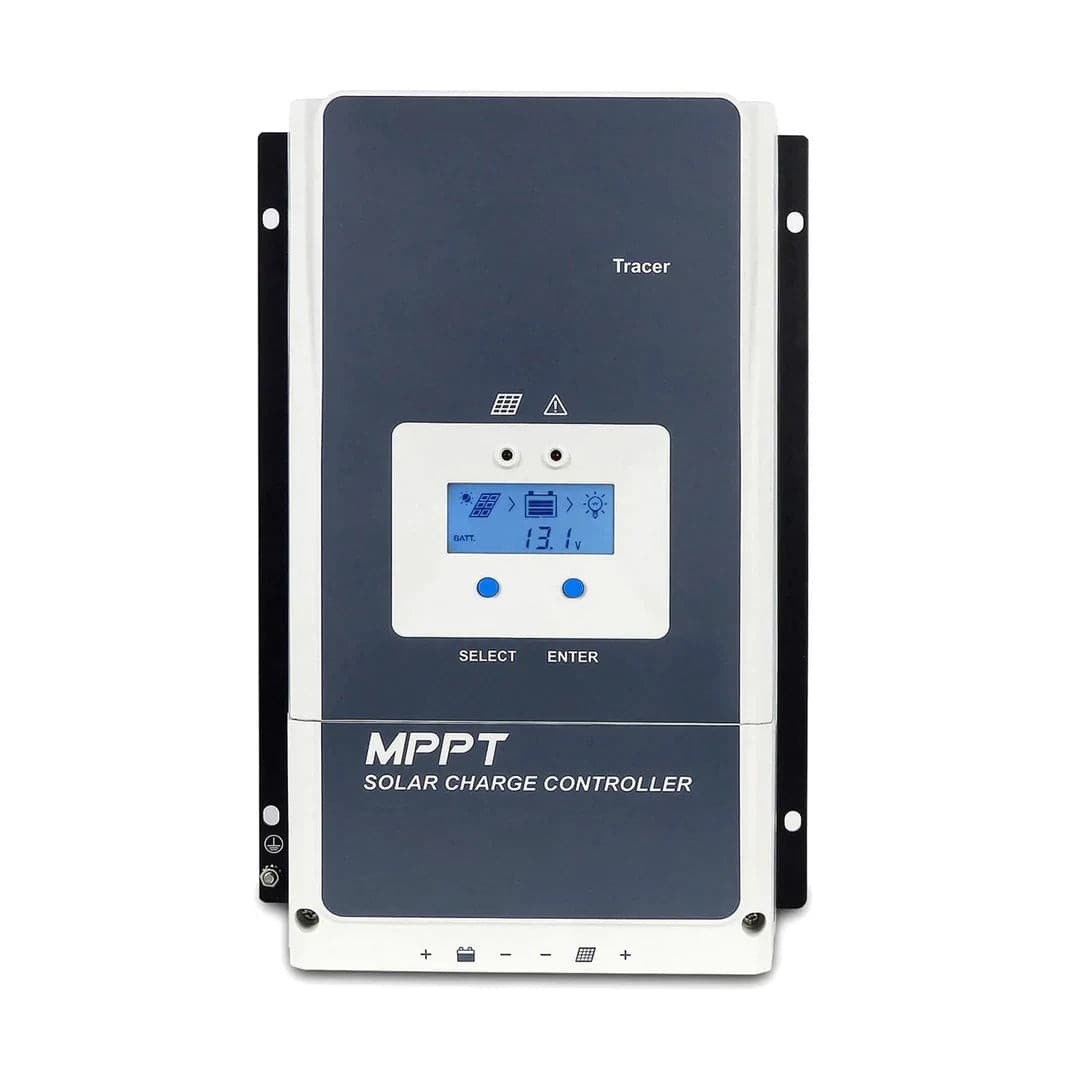

    MPPT Charge Controller: Advanced Charge Control Technology (MPPT) with high tracking efficiency no less than 99.50%; peak conversion efficiency of 98%; Ultra-fast tracking speed; accurately recognizing and tracking of multiple power point; 3-stage charge;Common negative
    grounding design. Easy Monitor and Operate: Multi-function LCD displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50
    25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components


    Tech Specs

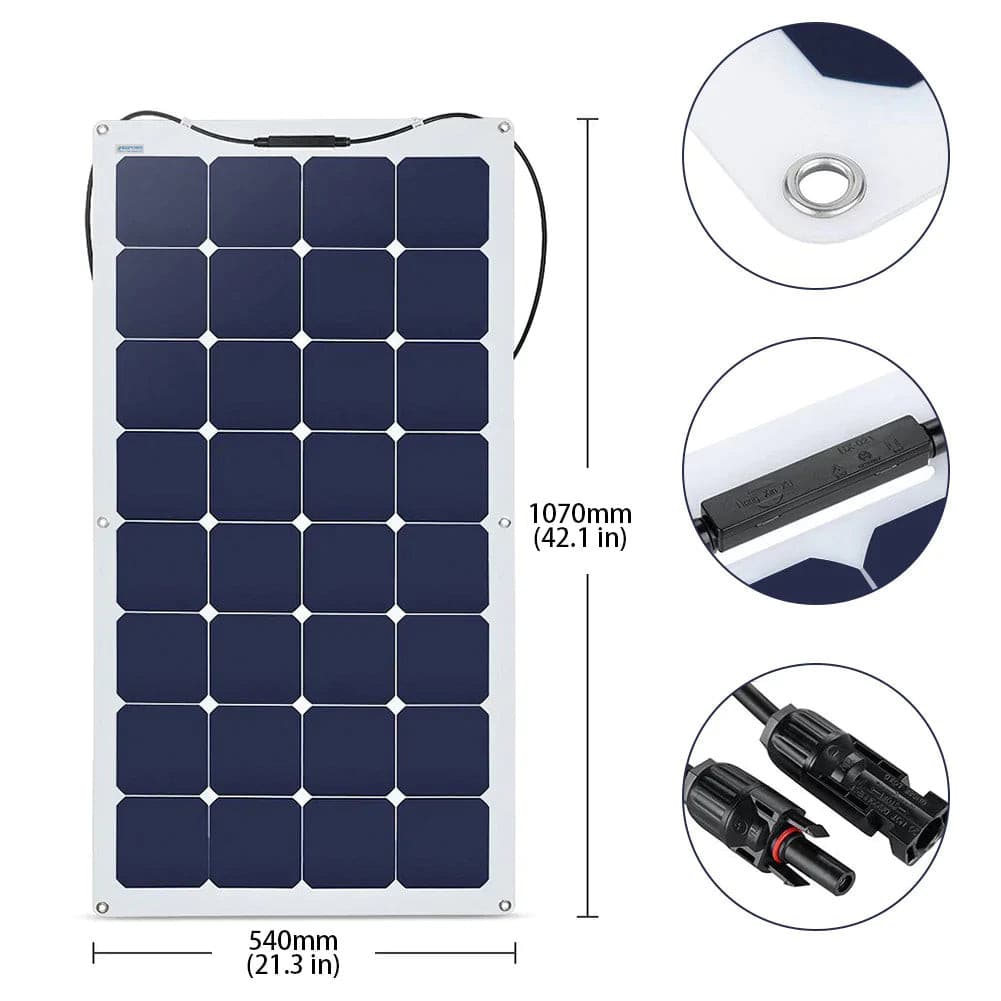

    ACOPOWER 110W FLEXIBLE SOLAR PANEL

    Maximum Power at STC (Pmax): 110W Open-Circuit Voltage (Voc): 20.8V
    Maximum Operating Voltage (Vmp): 17.6V Short-Circuit Current (Isc): 6.9A
    Maximum Operating Current (Imp): 6.25A Operating Temperature: -20ºC to 65ºC
    Dimension: 1070x540x3mm / 44.7x21.3x0.12 in Weight: 2.2kg / 4.85 lbs

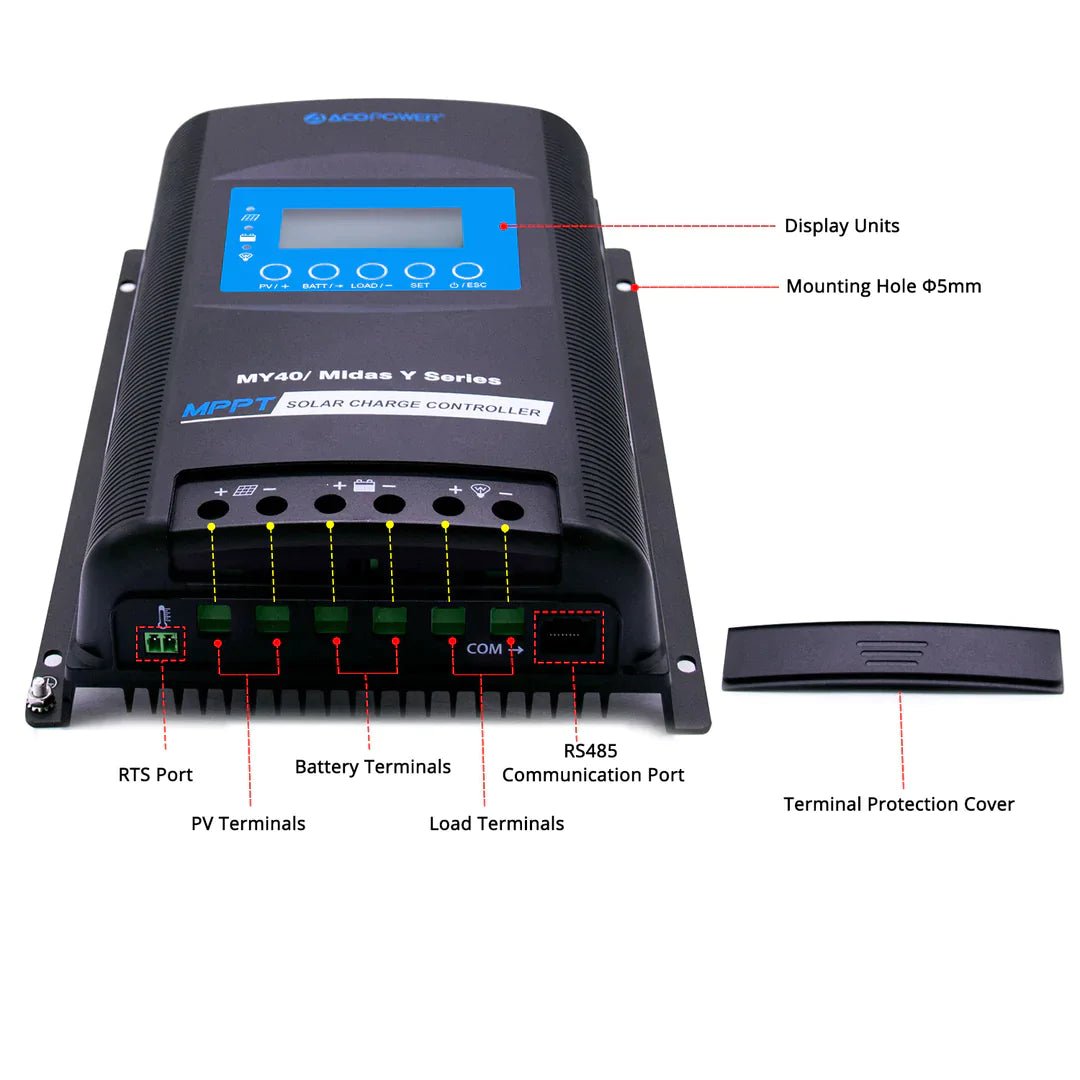

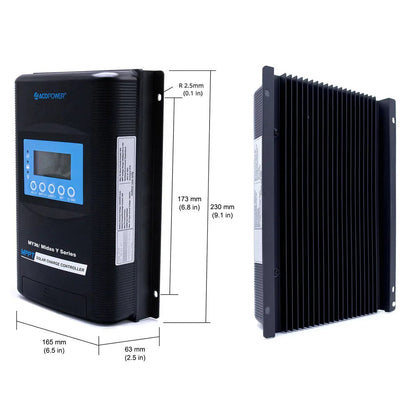

    ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER

    Nominal system voltage: 12/24VDC Auto Rated charge current: 30A
    Battery input voltage range: 8V~32V Max.PV open circuit voltage: 100VDC
    Max.PV input power: 12V/390W, 24V/780W MPP voltage range: V(BAT+2V)~72V
    Working environment temperature: -25℃~+50℃ Storage temperature range: -35℃~+80℃
    Grounding: Common negative Communication: RS485
    Power Terminals: 6AWG(16mm2) Enclosure: IP30
    Dimensions: 228x164x55mm Weight: 1.2kg

    WARRANTY INFORMATION

    Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.

    Solar Charge Controllers: The controller itself comes with a 1-year warranty.

    Accessories: 1-year material warranty

    Packing list

    • 1PC 30ft 12AWG PV Cable
    • 1PC 8FT 8AWG Tray Cable
    • 1PC Cable Entry Housing

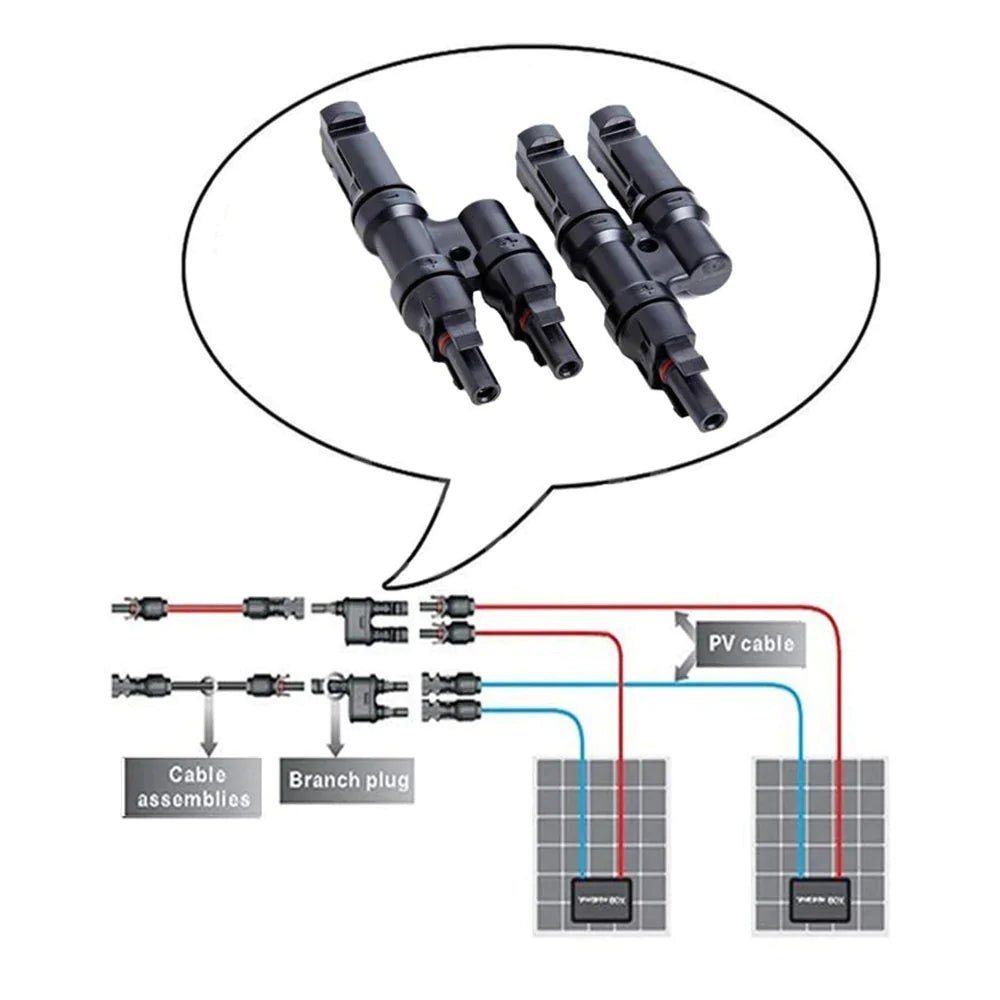

    • 1 Pair 1Y3 Branch Connector:1 male to 3 female(M/FFF) and 1 female to 3 male(F/MMM).

    User Manual
