Power Rating: 50A
System Voltage: 120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces: 12 spaces
Number of Circuits: Expandable to 24 circuits with tandem breakers
Product details

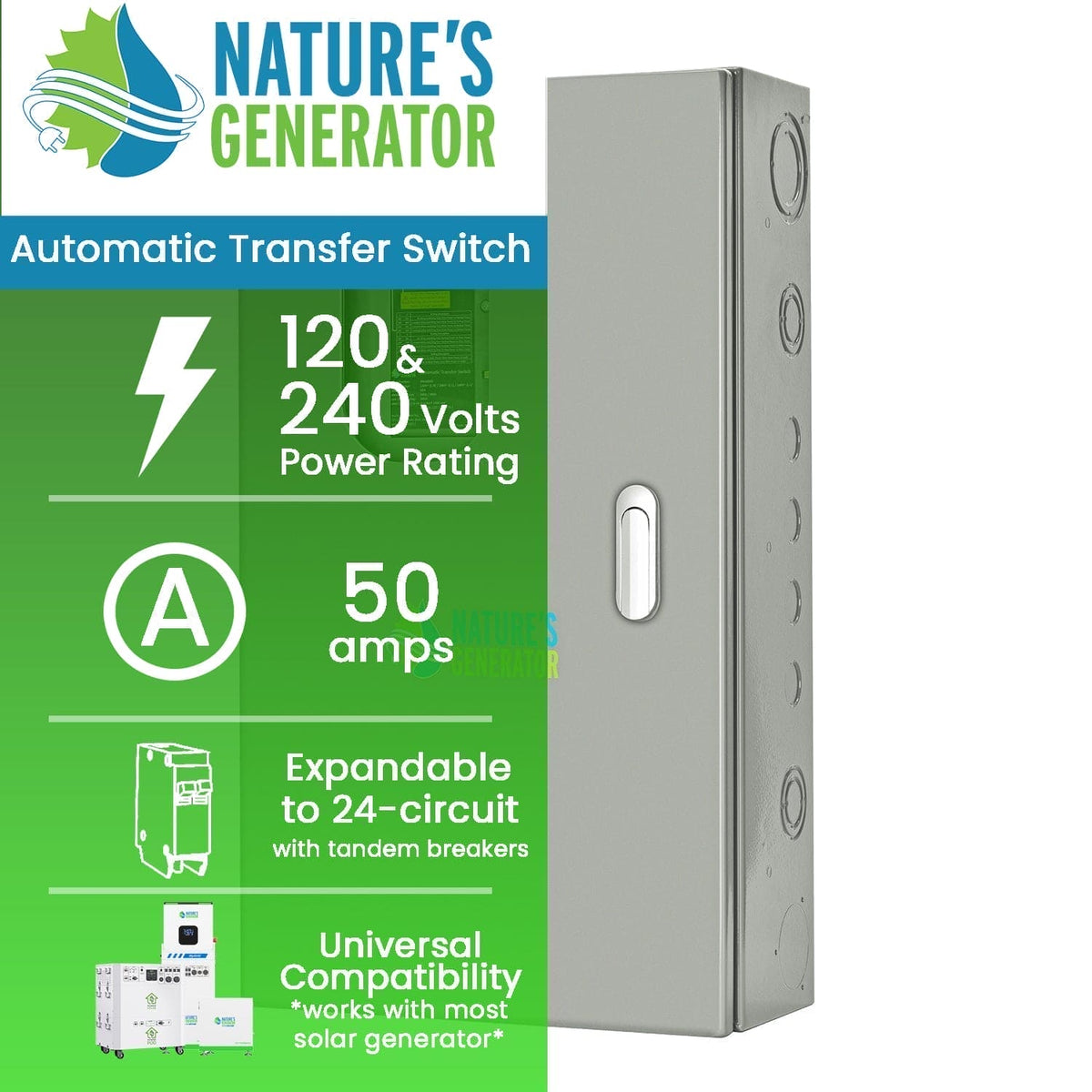

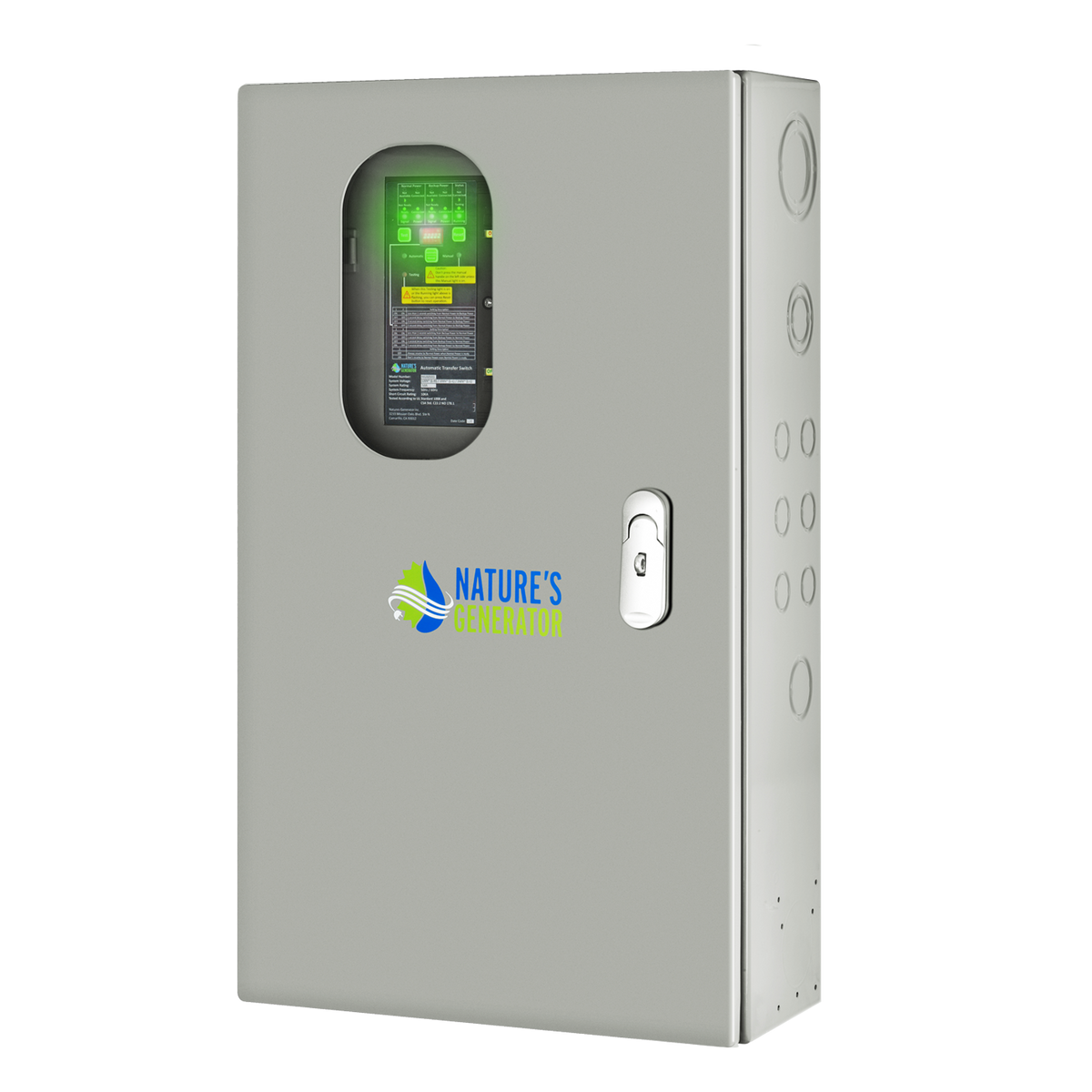

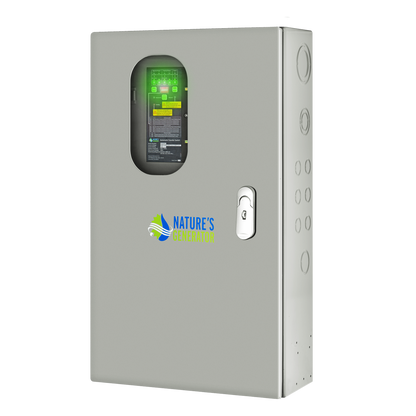

Nature's Generator 50A Automatic Generator Transfer Switch
• Reliable Automatic Power Switching: Seamlessly transfers selected circuits from utility power to backup power during an outage—no manual intervention required.
• High-Capacity & Broad Compatibility(63A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports up to 50 amps and works with 120V, 120/240V, and 120/208V systems. Fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. Connection Instructions (Video)
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.
• Extensive Circuit Coverage: Manages up to 24 circuits, allowing essential appliances and systems to stay powered during outages.

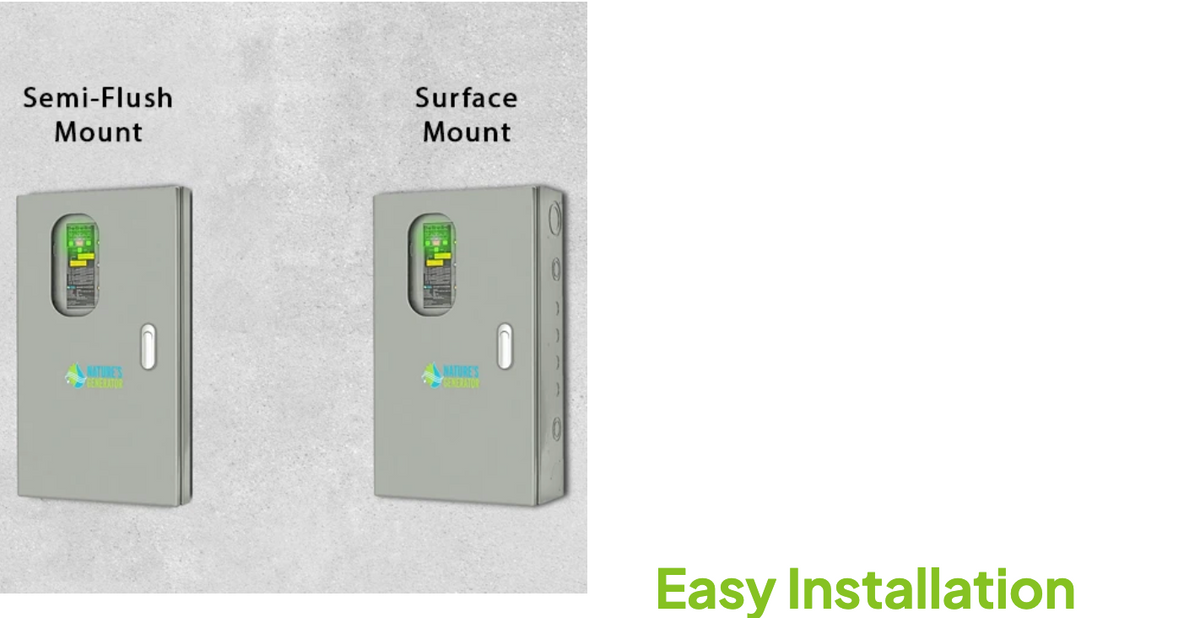

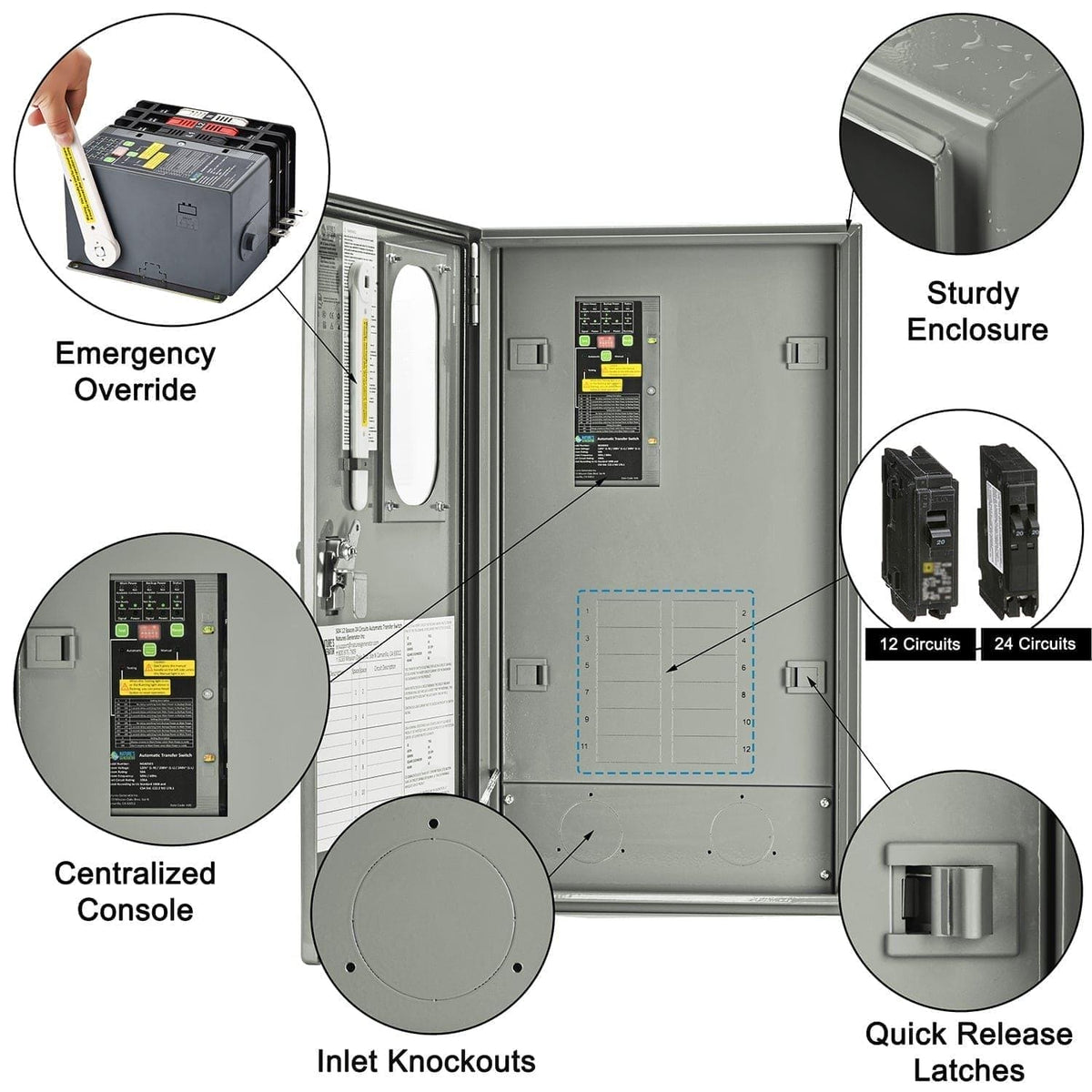

• Durable, Heavy-Duty Enclosure: Built with a rugged enclosure designed for dependable performance and long-term reliability in demanding installation environments.

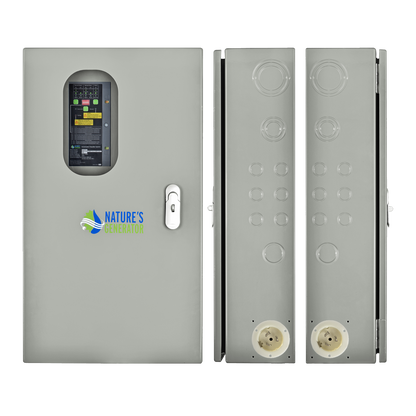

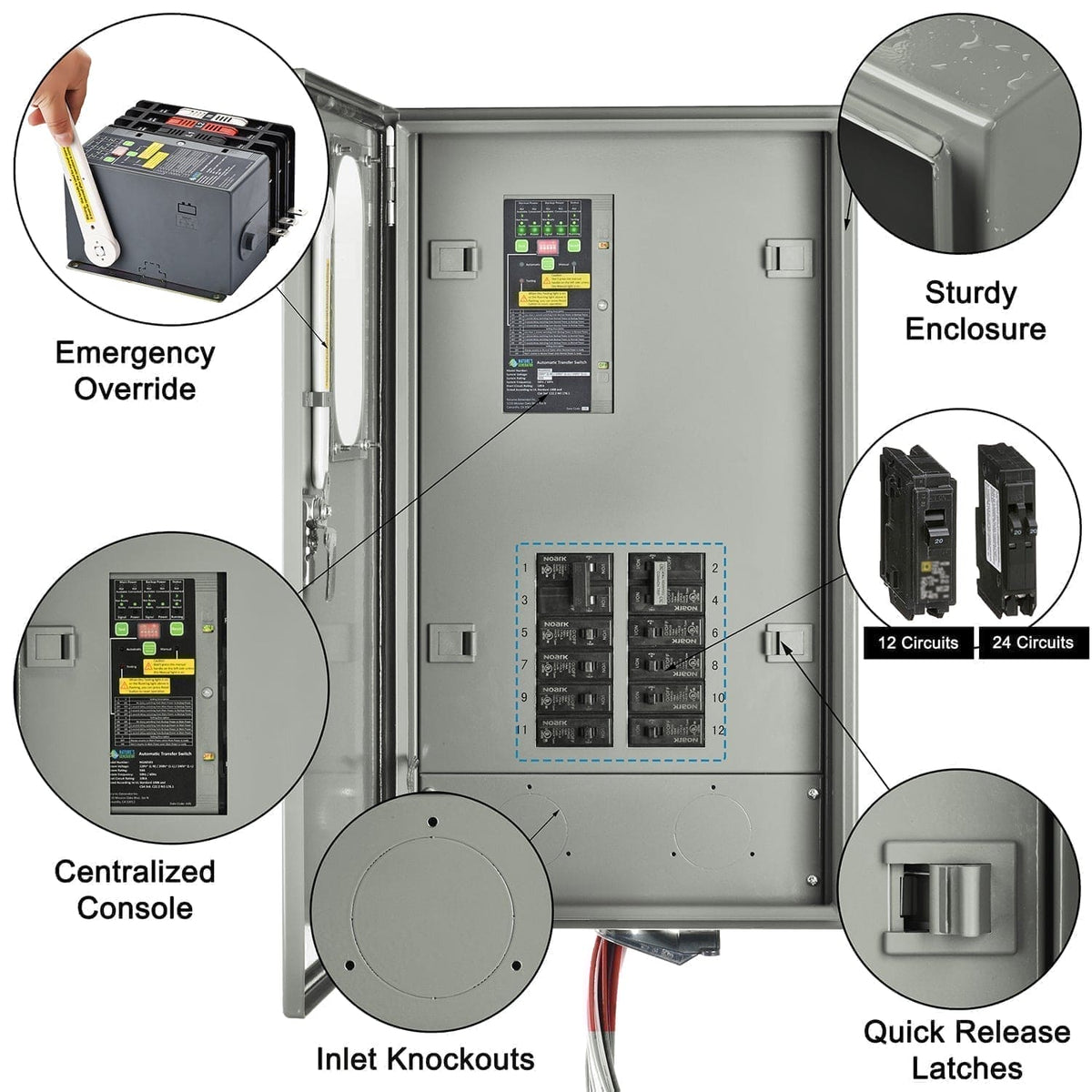

• Complete Connection & Control System: Includes a CS6375 50A inlet and 50A power cord, plus a centralized control console for system monitoring, testing, and manual power source override.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.
ATS Model Comparison: Find Your Perfect Match
Find the perfect ATS solution for your needs. Compare features and specifications to make a confident, informed decision.
ATS Specifications
Tech Specs
50A Automatic Transfer Switch
Built for scalable home power, offering flexible circuit expansion and clean, organized control.
50A Automatic Transfer Switch

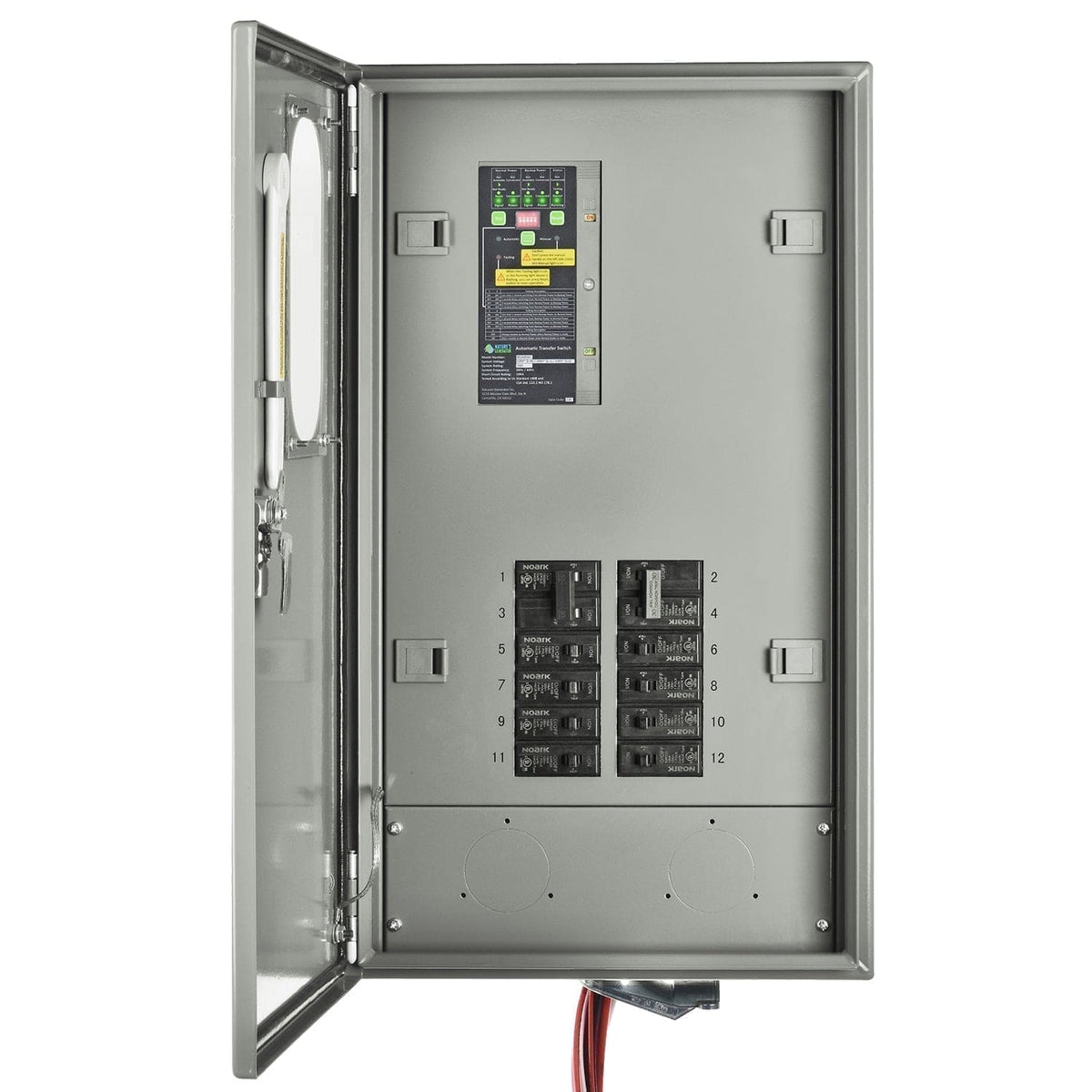

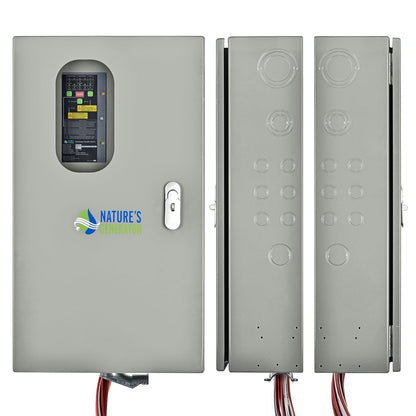

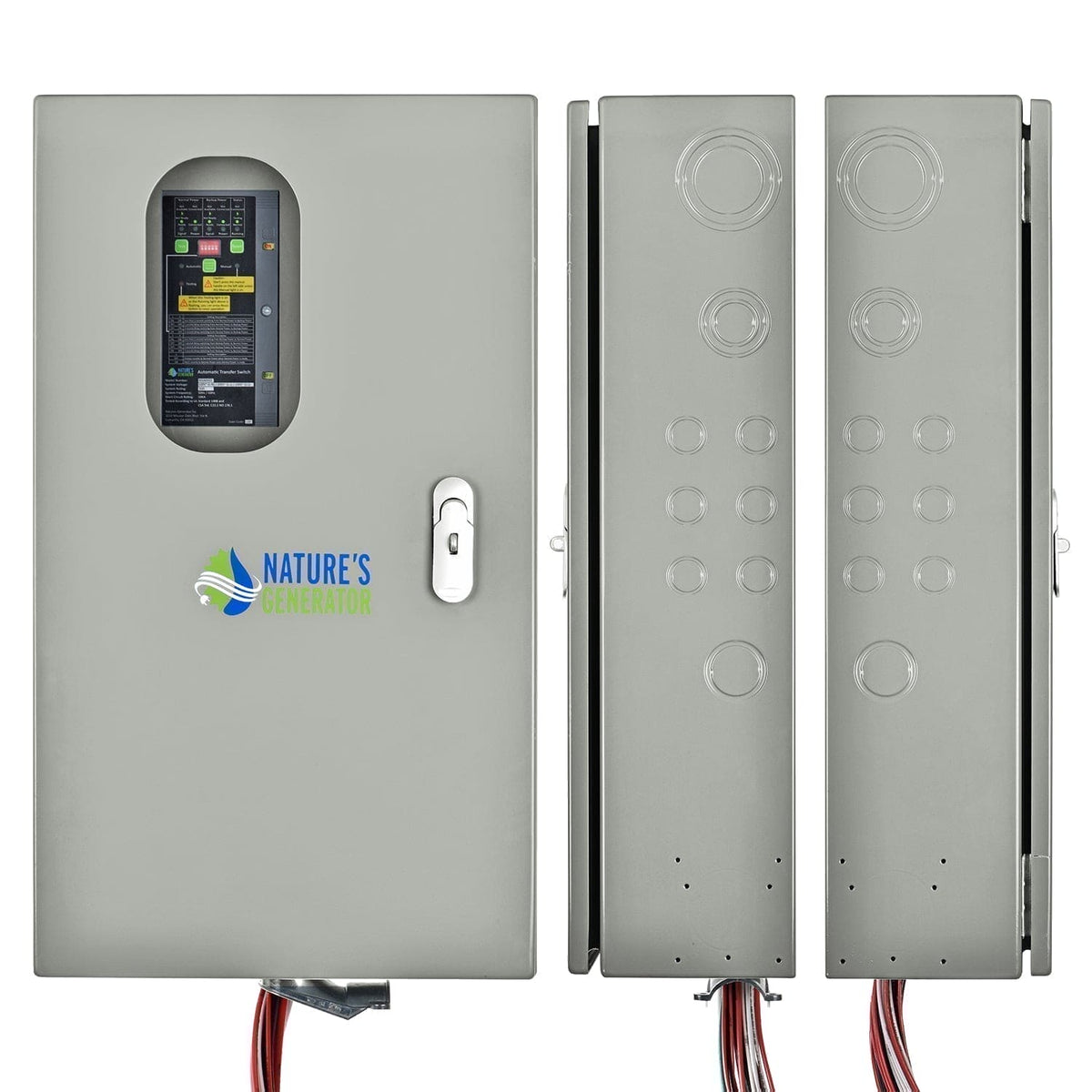

Prewired 50A Automatic Transfer Switch
50A Automatic Transfer Switch
Specification
General
Dimension: 630*360*160mm
(24 3/4*14 1/4*6 1/2 inches)
Weight: 54 lbs(24.5 kg)
Warranty: 5-Year Limited Warranty
Certification*
UL 508A
UL1008
UL 1008, CAN/CSA C22.2 No. 178.1

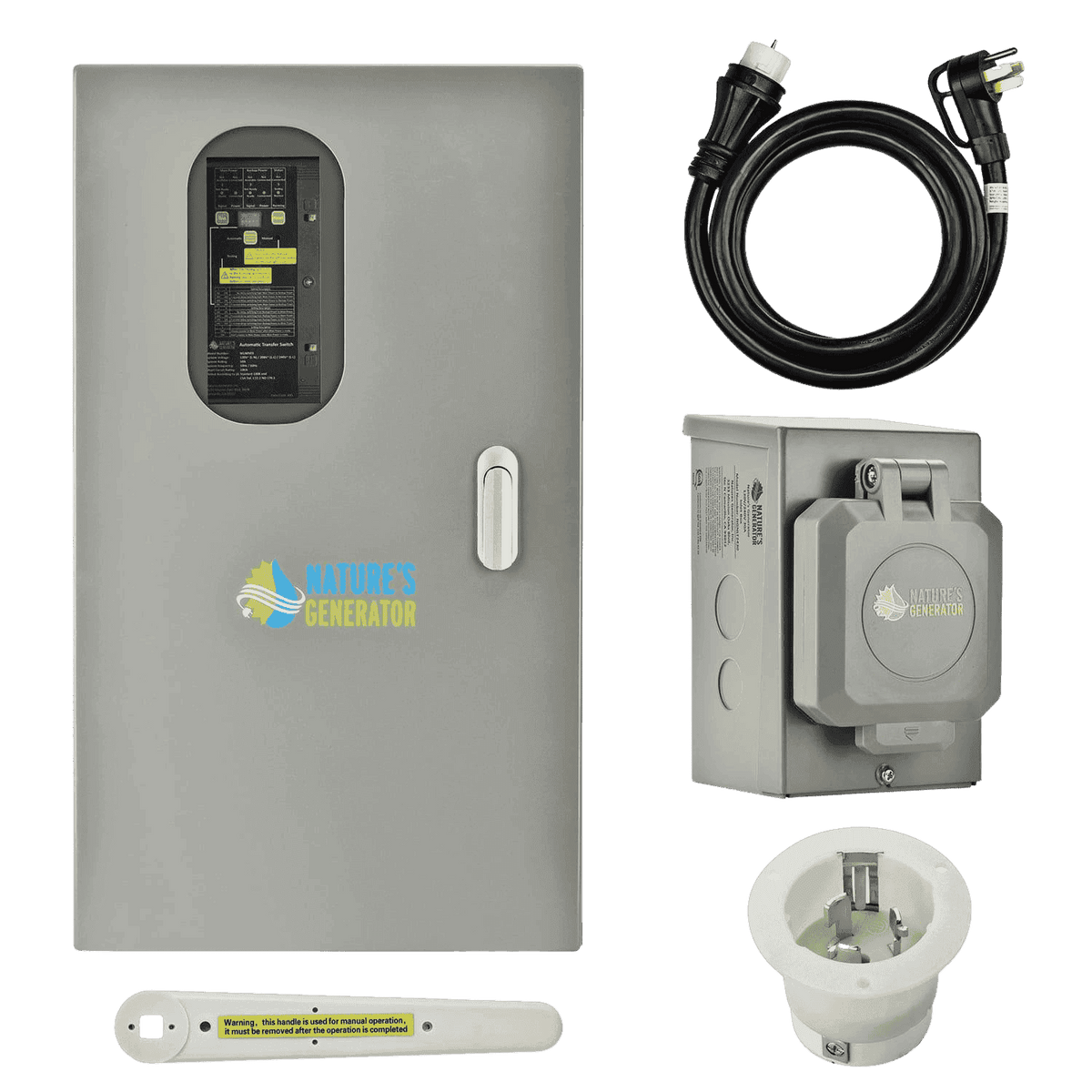

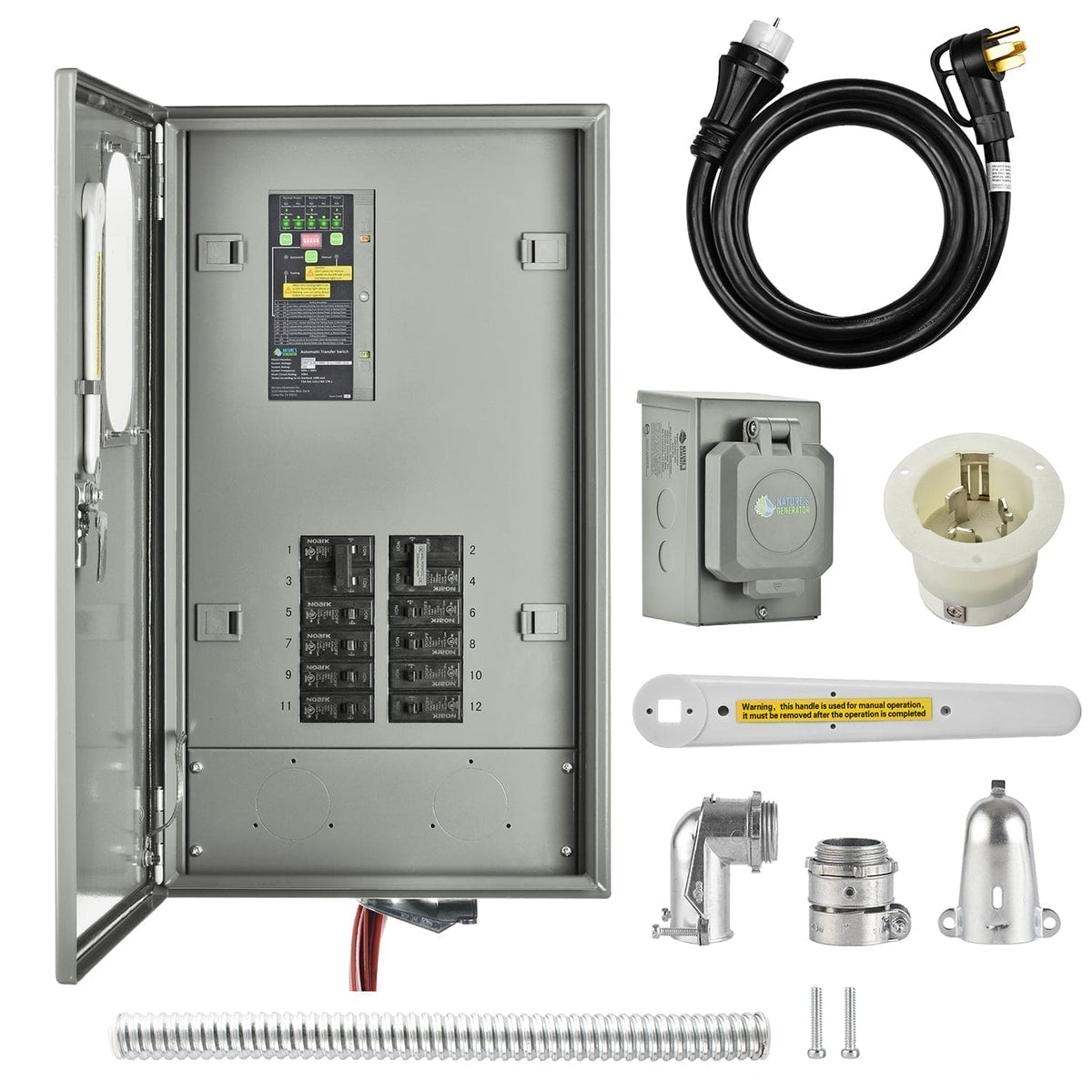

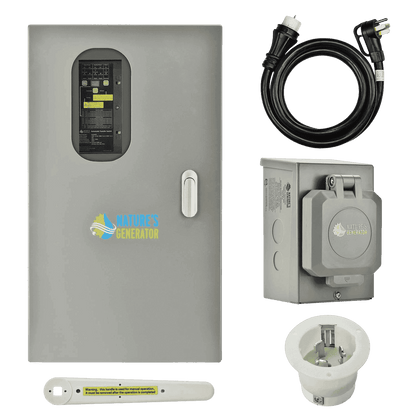

What's in the Box
1* 50A Automatic
Transfer Switch
1* Manual Override
Handle
1* 50A Power Inlet Box
1* Power Cord
1* User
Documents
50A Automatic Transfer Switch User Manual
Pre-Wired 50A Automatic Transfer Switch User Manual
Certification: UL 1008
50A Automatic Transfer Switch Specification Sheet
