Voltage
120V 30 amps
Product details

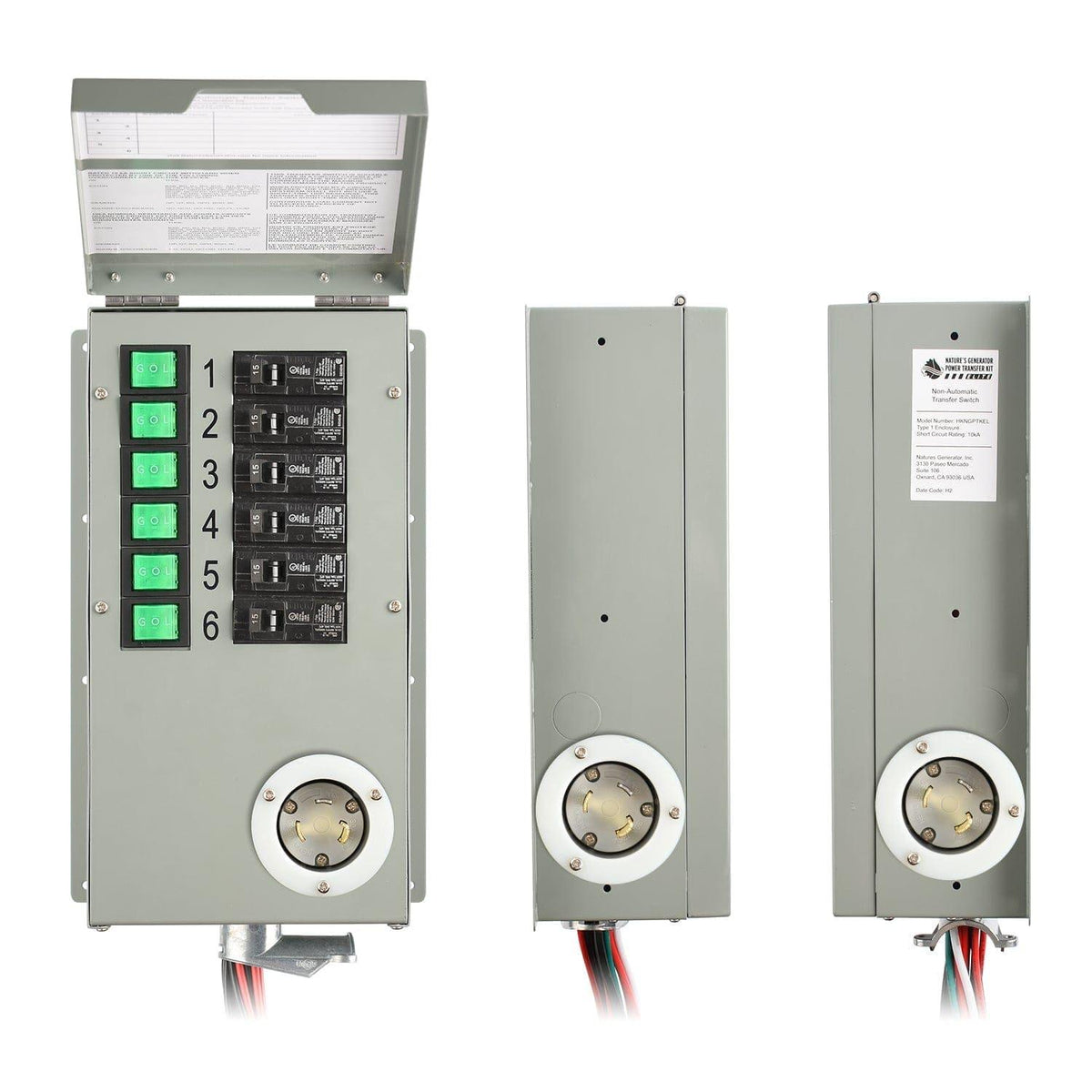

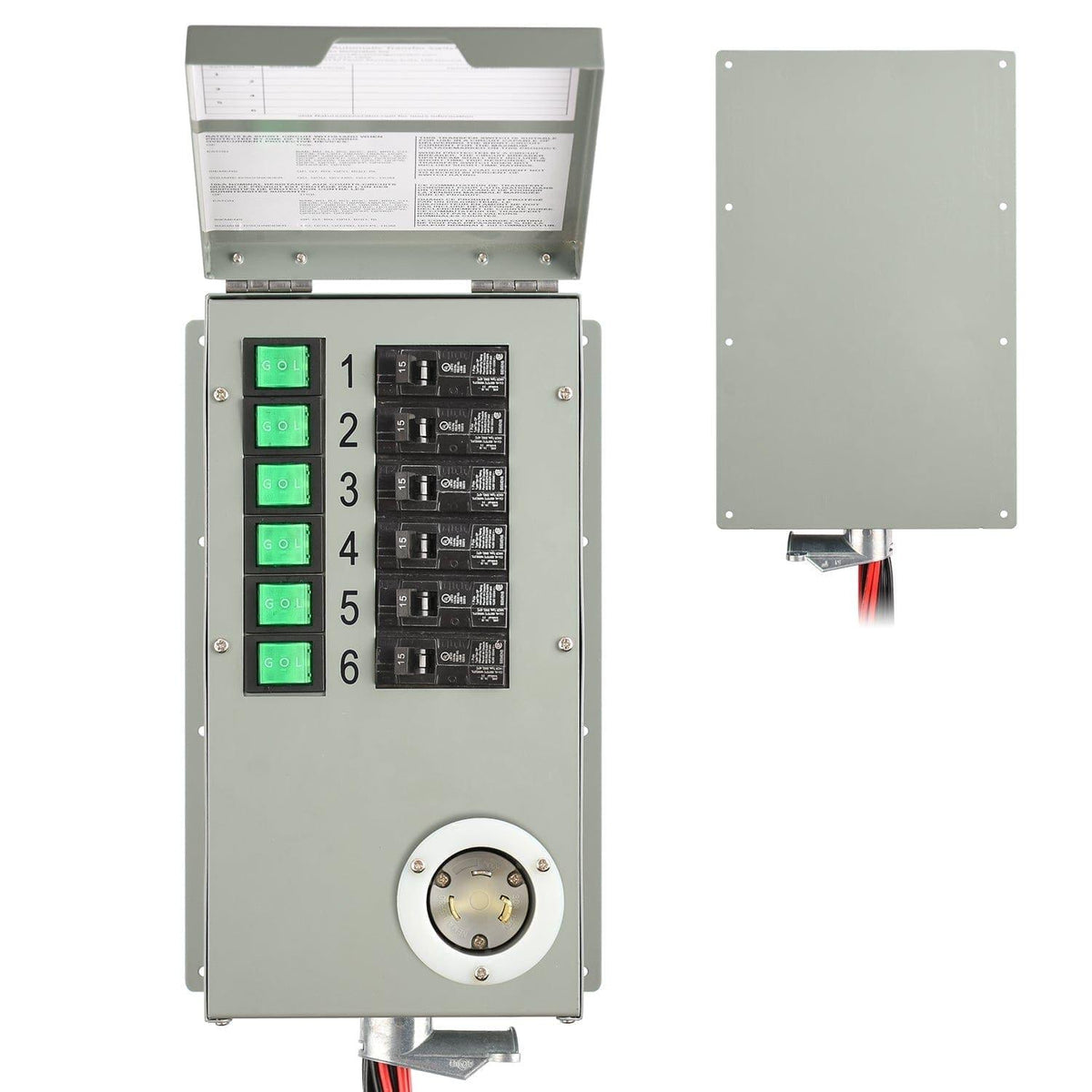

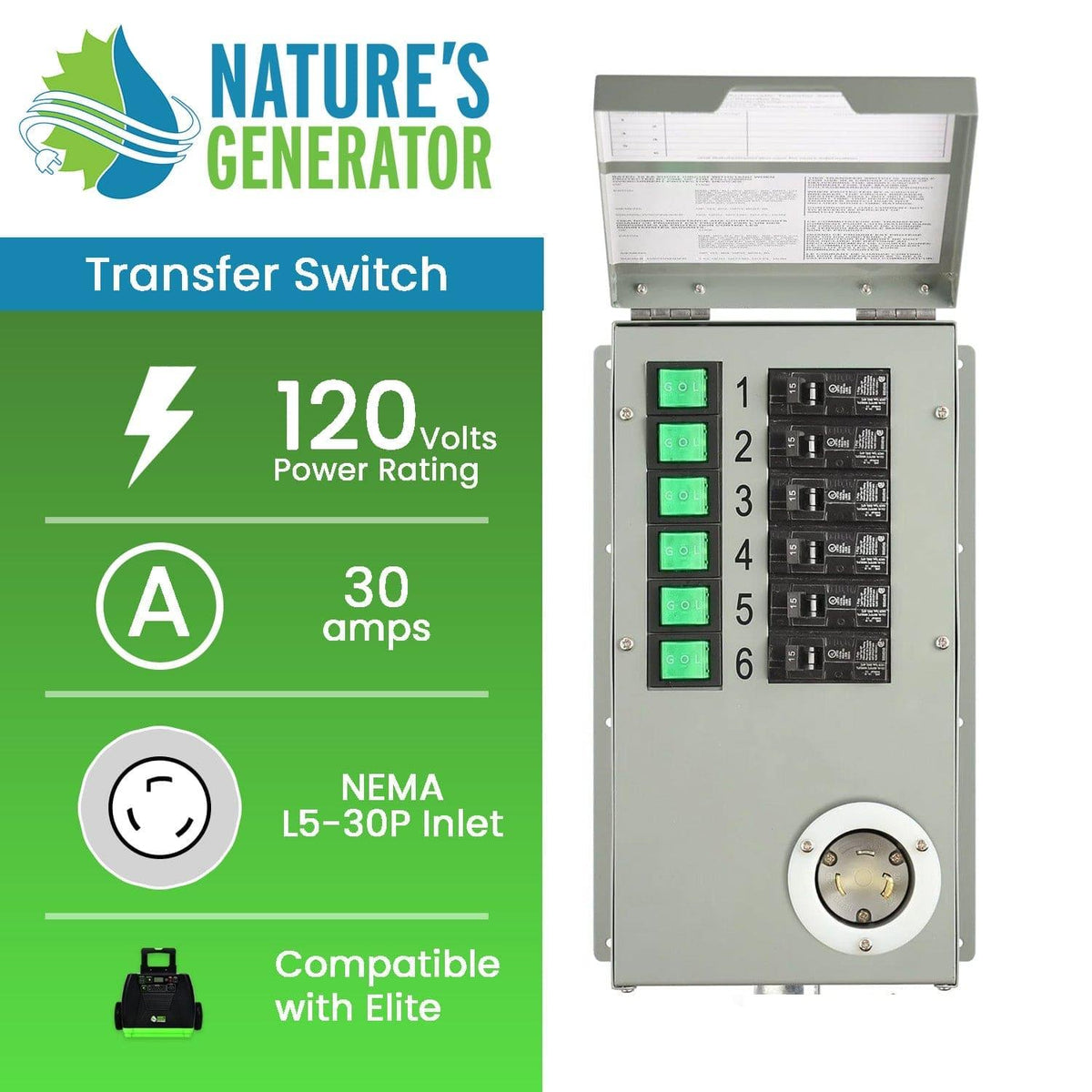

Nature’s Generator 120V 30A 6-Circuit Non-Automatic Transfer Switch
• Safe Manual Power Switching: Provides a secure, non-automatic way to connect your generator to your home’s electrical system, giving you full control over power during an outage.
• 30A Power Capacity with Flexible Circuit Support: Rated for 30 amps at 120V, supporting up to 6 circuits to power essential home loads, and compatible with AFCI/GFCI breakers.

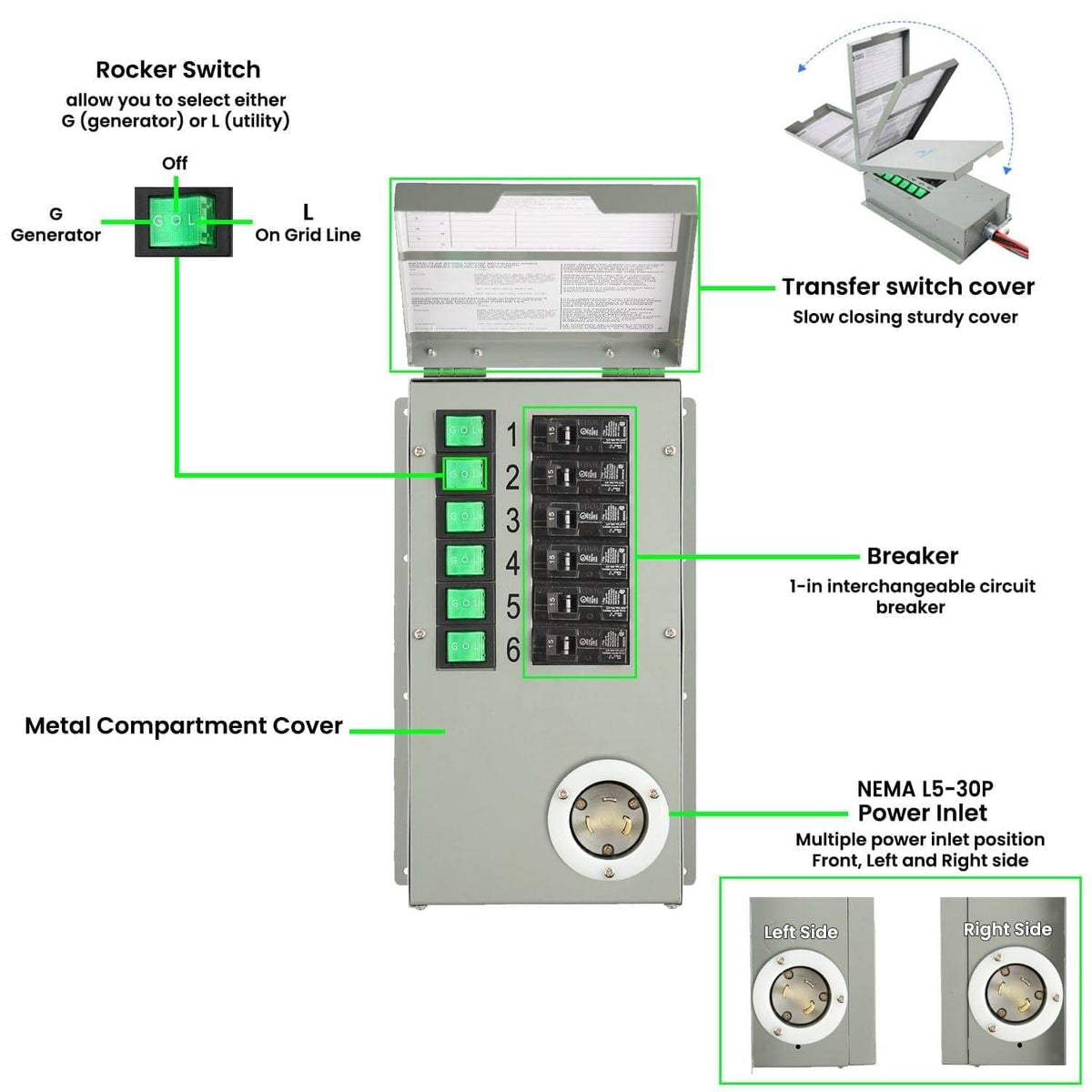

• Precise Circuit Control & Load Management: Manual selector switches allow you to choose and manage specific circuits efficiently while preventing backfeeding and protecting your electrical system.

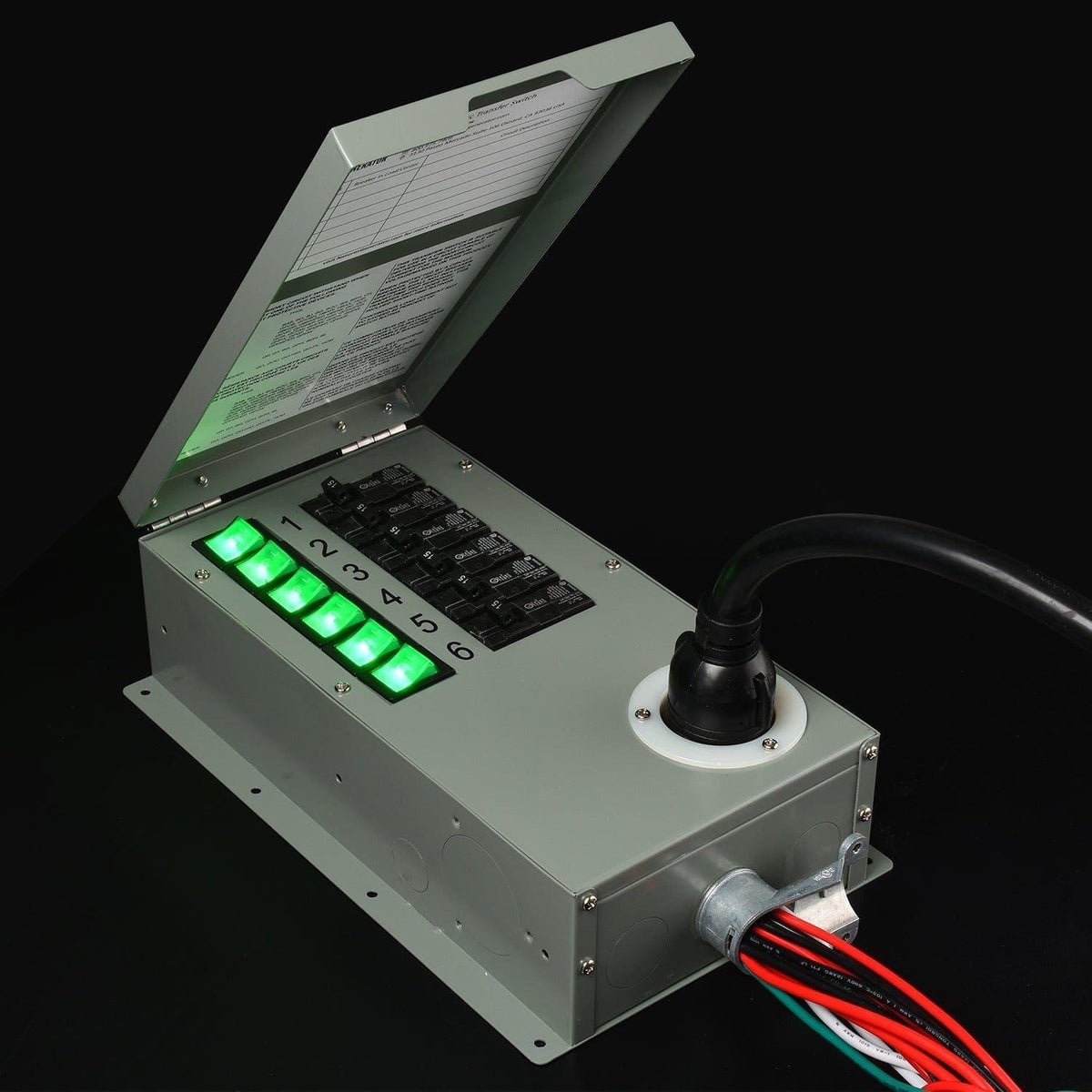

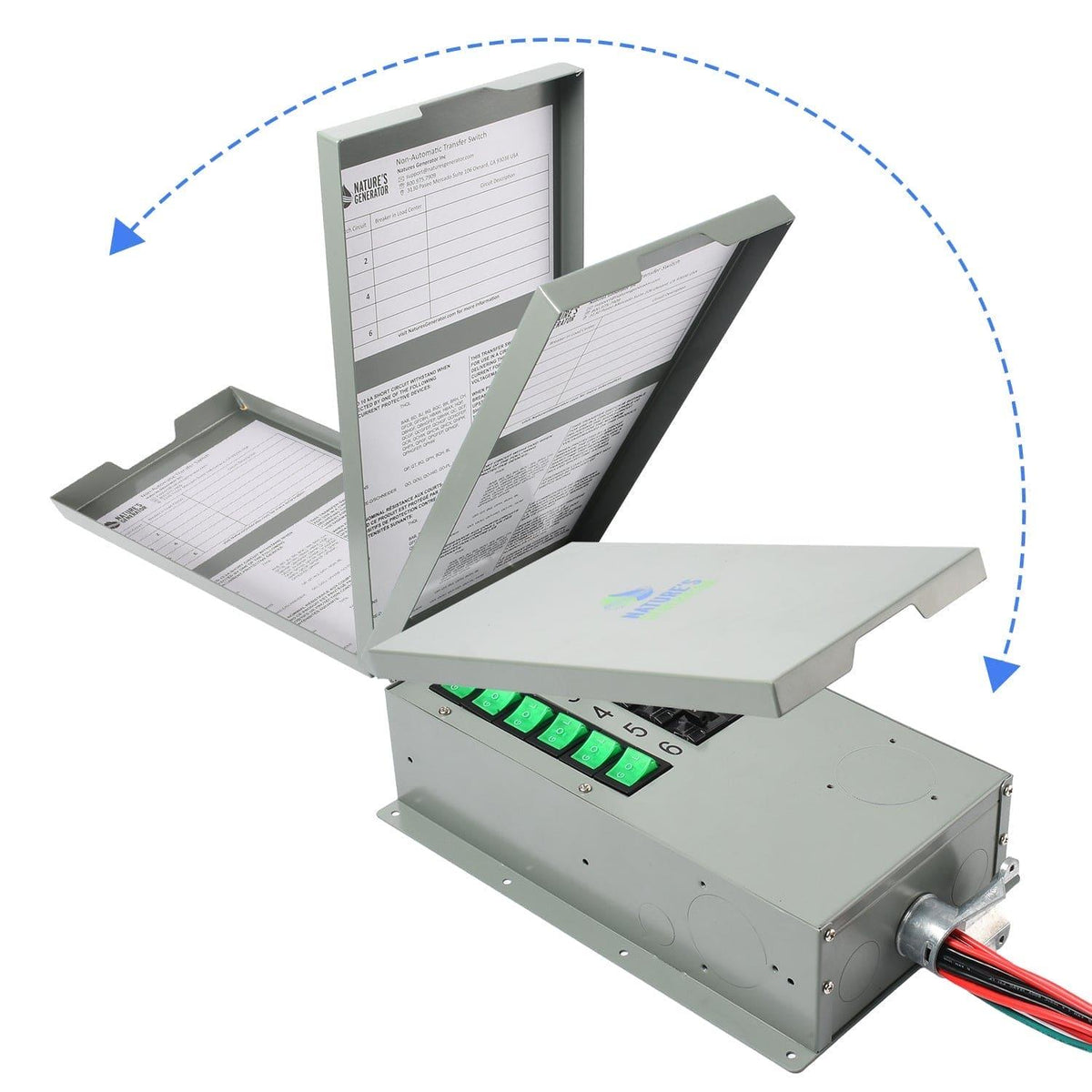

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.

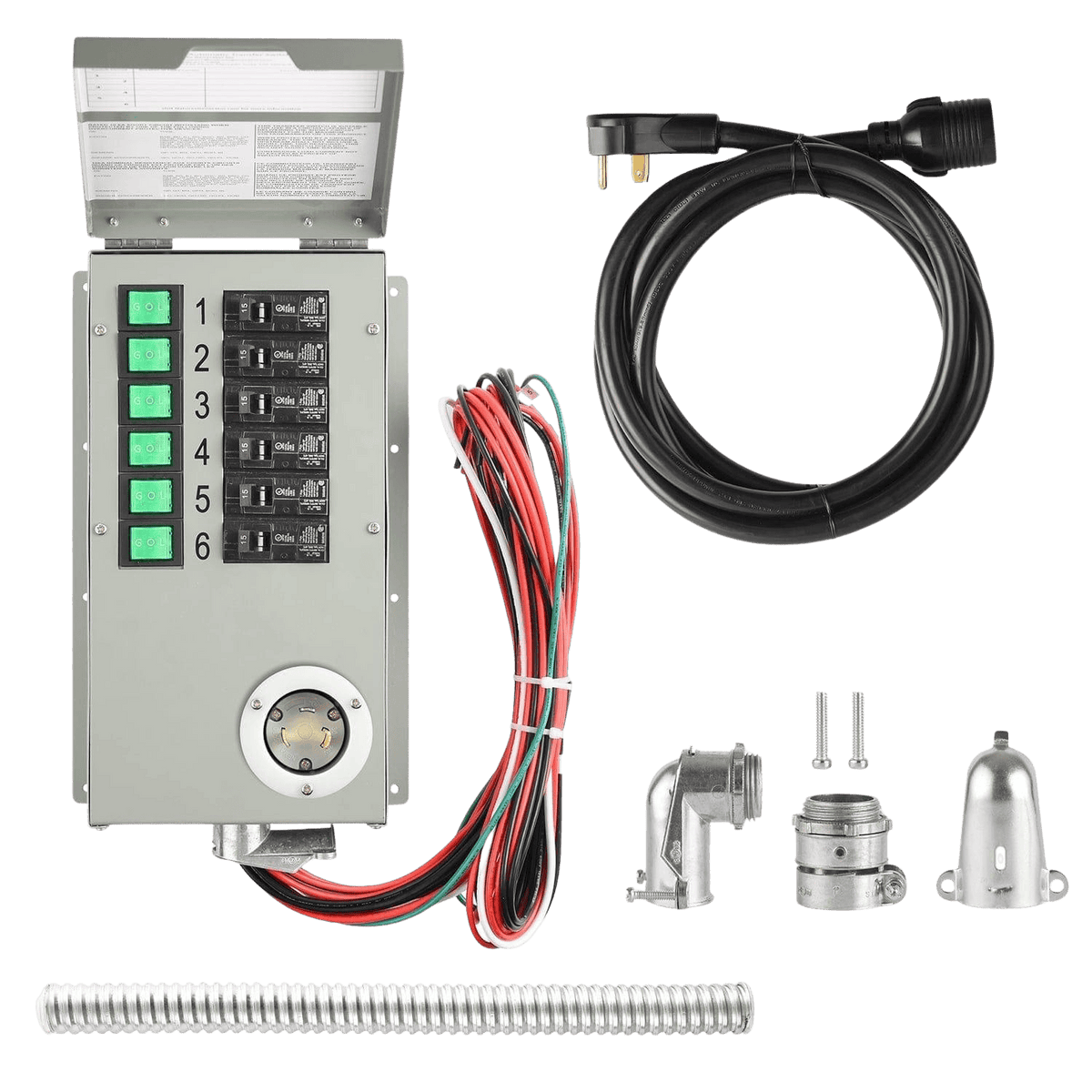

• Complete Generator Connection Kit: Includes a L5-30P 30A power inlet, 30A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.
Features
Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.
Compatibility by Generator
Matching Accessories
Breaker Comparison
12 Circuits 50A
Pre-installed Breakers

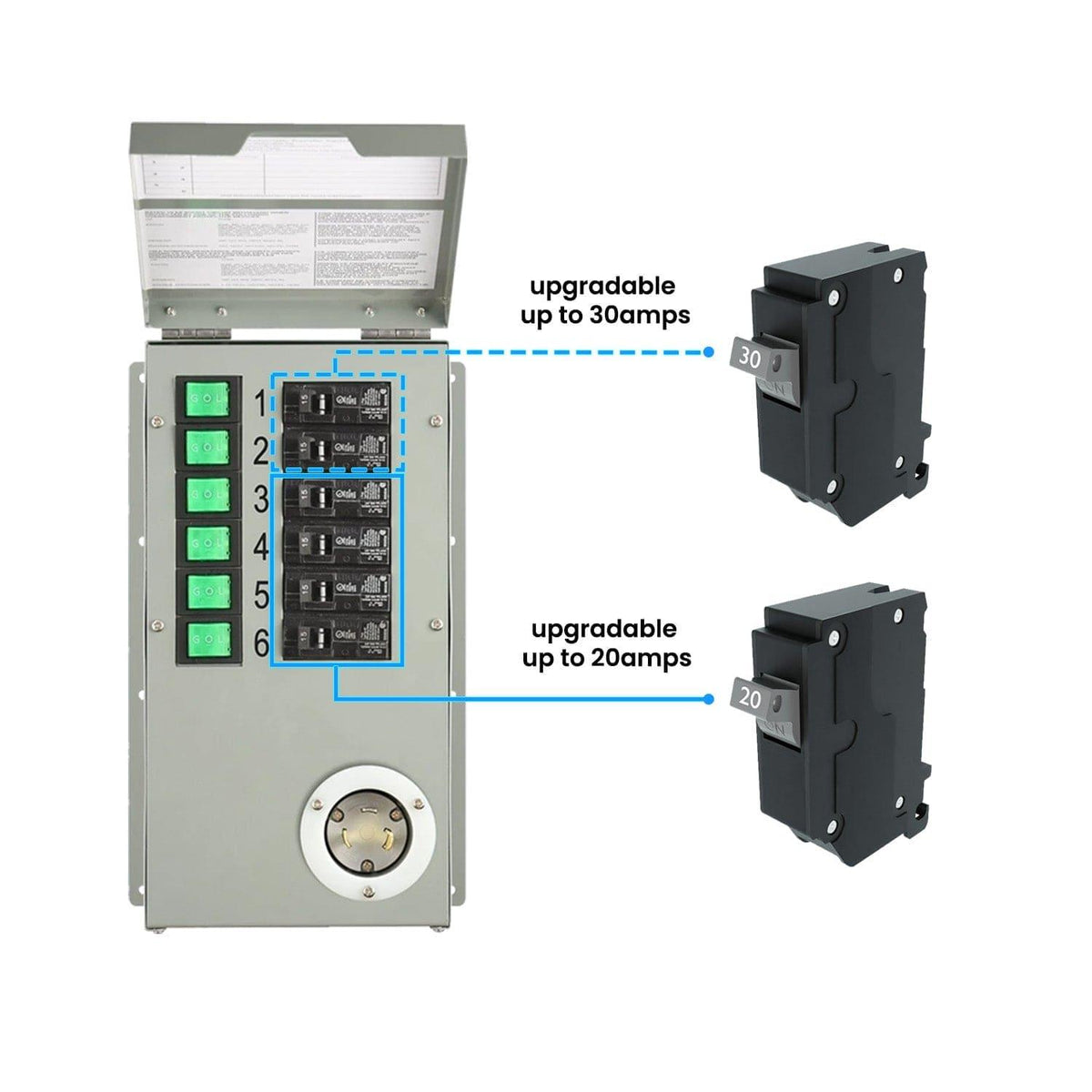

| Type | Quantity | Wire Gauge | Upgradable to |
|---|---|---|---|
| 1-Pole 15A Breaker | 2 | 10 AWG | 30A Breaker |
| 1-Pole 15A Breaker | 4 | 12 AWG | 20A Breaker |
Pre-installed Backup Power Conductors
| Type | Wire Gauge |
|---|---|
| Line 1 | 10 AWG |
| Neutral | 10 AWG |
| Ground | 12 AWG |
Tech Specs
Safe and Reliable Power Transfer Kit
Secure, flexible, and reliable generator connection for safe home power transfer during emergencies.
120V 30A 6-Circuit Manual Transfer Switch
Specification
Inlet
NEMA L5-30P inlet
Number of Circuits
6 circuits
General

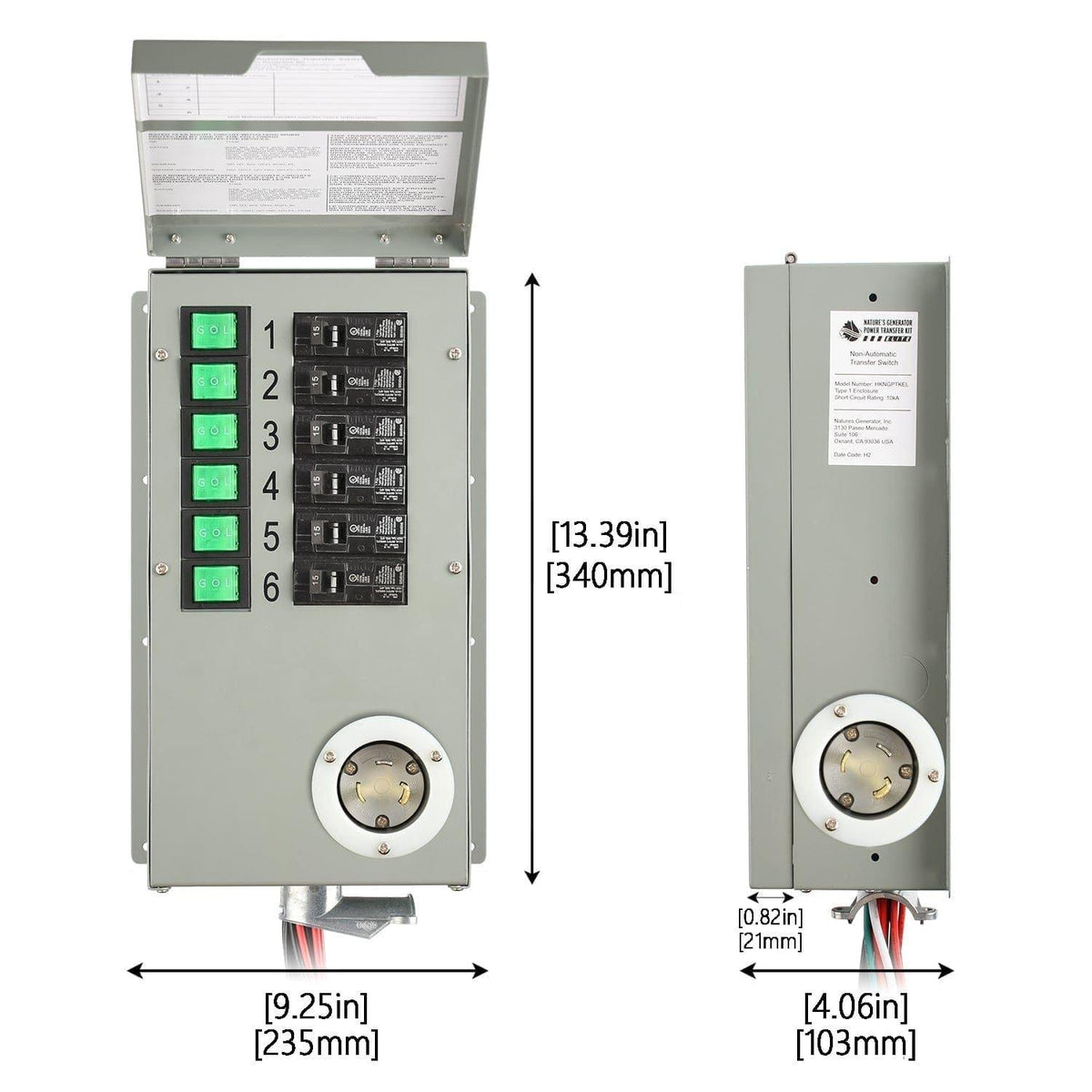

Dimension
9 ¼ x 13 ³/₈ x 4 ¹/₈ in.
(235 mm x 340 mm x 103 mm)
Weight
11.8 lbs
Warranty
5-Year Limited Warranty
Temperature
Storage temperature
23–111 °F(-5–45 °C)
Operating temperature
32-104 °F(0-40 °C)
Certification*
UL 1008
CAN/CSA C22.2 No. 178.1

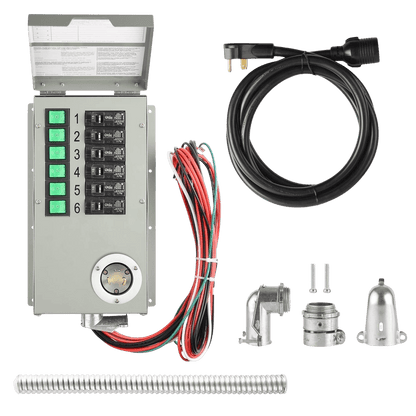

What's in the Box
Documents
120V 30A Manual Transfer Switch Specification Sheet
120V 30A Manual Transfer Switch Installation Guide
Certificate of Compliance - UL1008, CAN/CSA C22.2 No. 178.1
