Voltage
120V 15 Amps
Product details

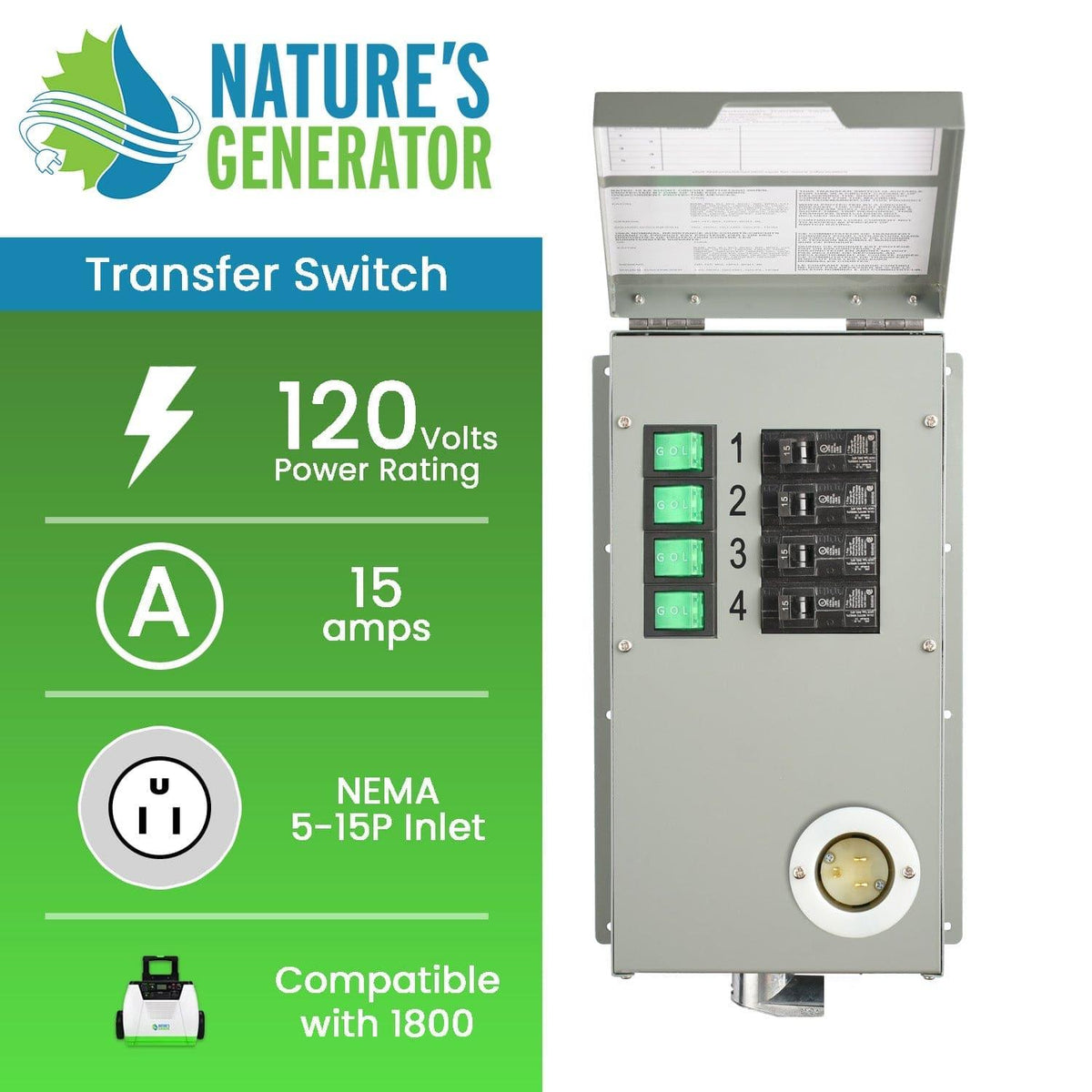

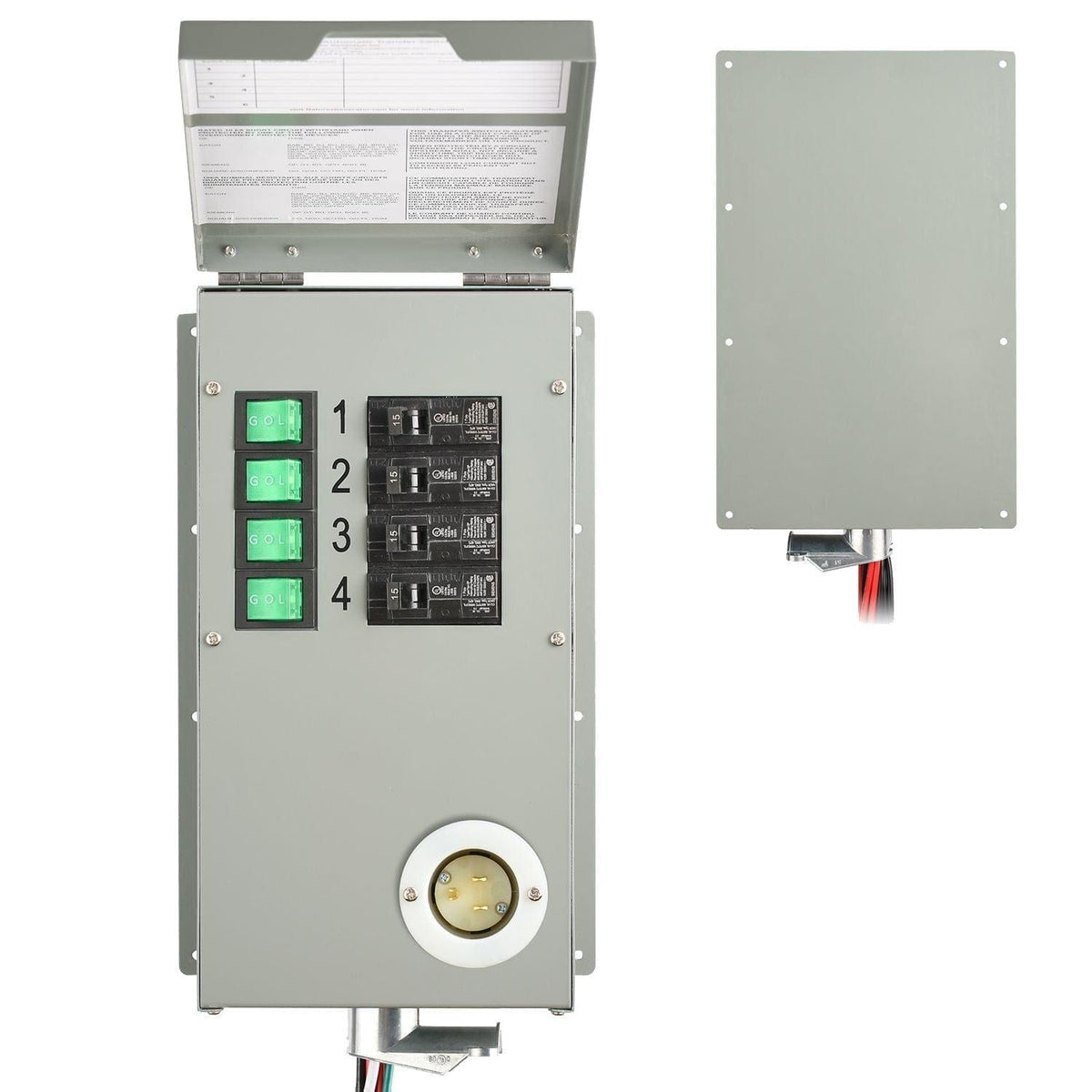

Nature's Generator 120V 15A 4-Circuit Non-Automatic Transfer Switch

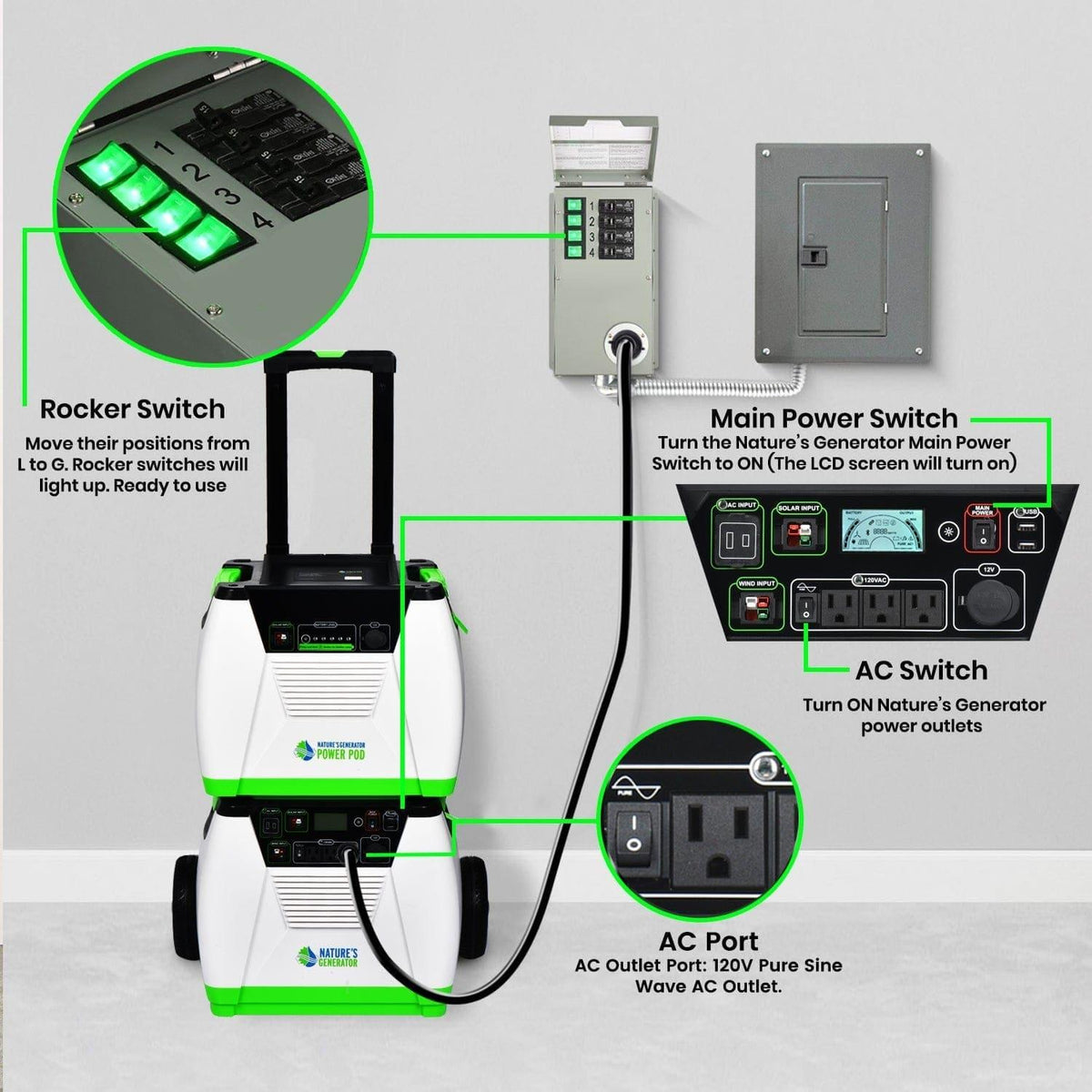

• Safe Manual Power Switching: Provides a secure, non-automatic way to connect your generator to your home’s electrical system, giving you full control over power during an outage.
• 15A Power Capacity with Flexible Circuit Support: Rated for 15 amps at 120V, supporting up to 4 circuits to power essential home loads, and compatible with AFCI/GFCI breakers.

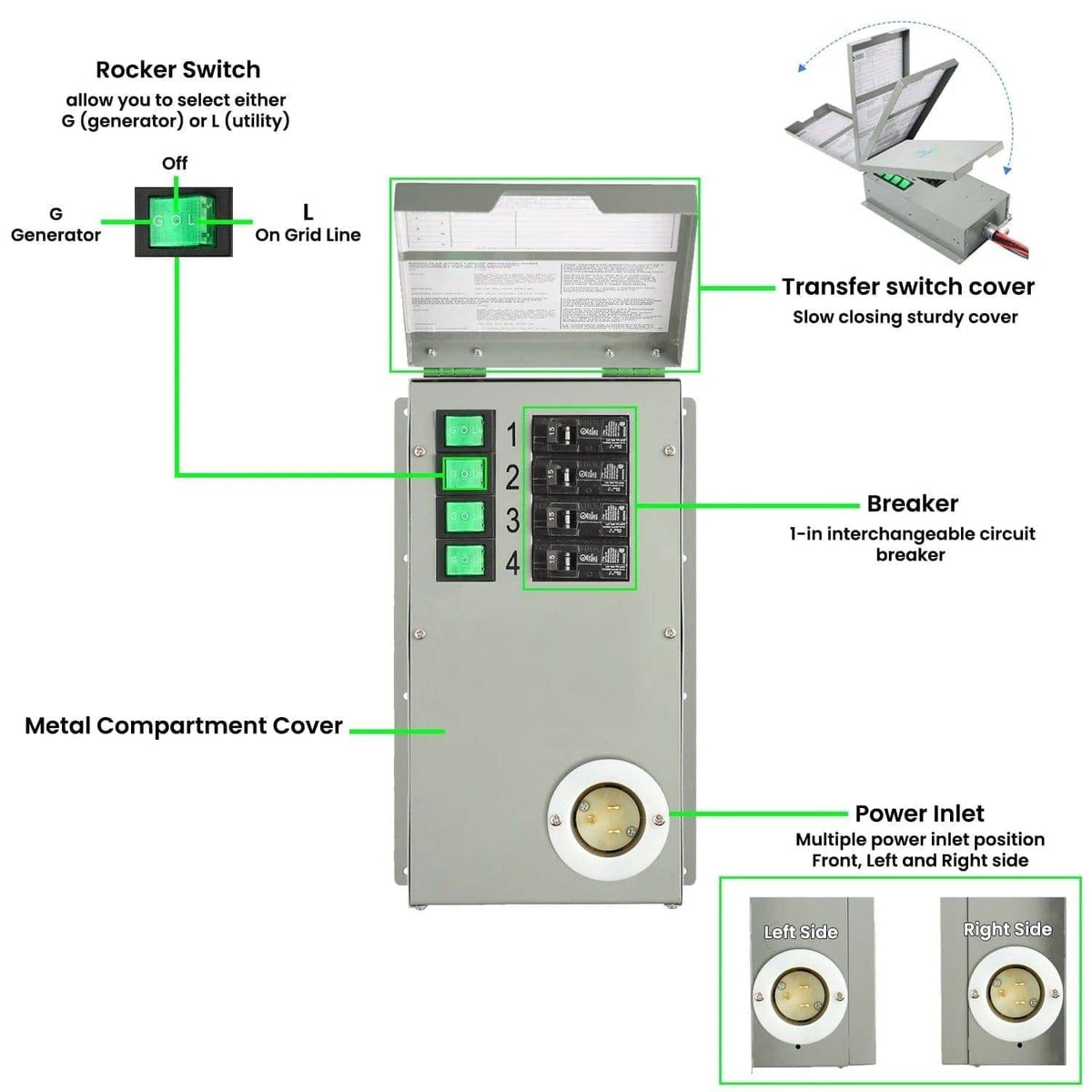

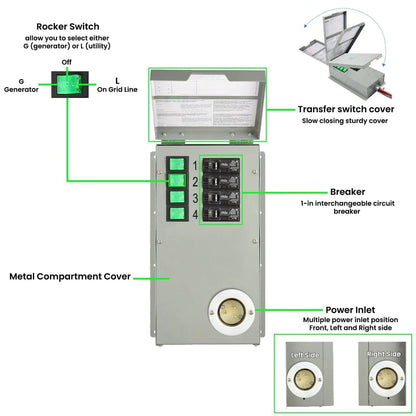

• Precise Circuit Control & Load Management: Manual selector switches allow you to choose and manage specific circuits efficiently while preventing backfeeding and protecting your electrical system.

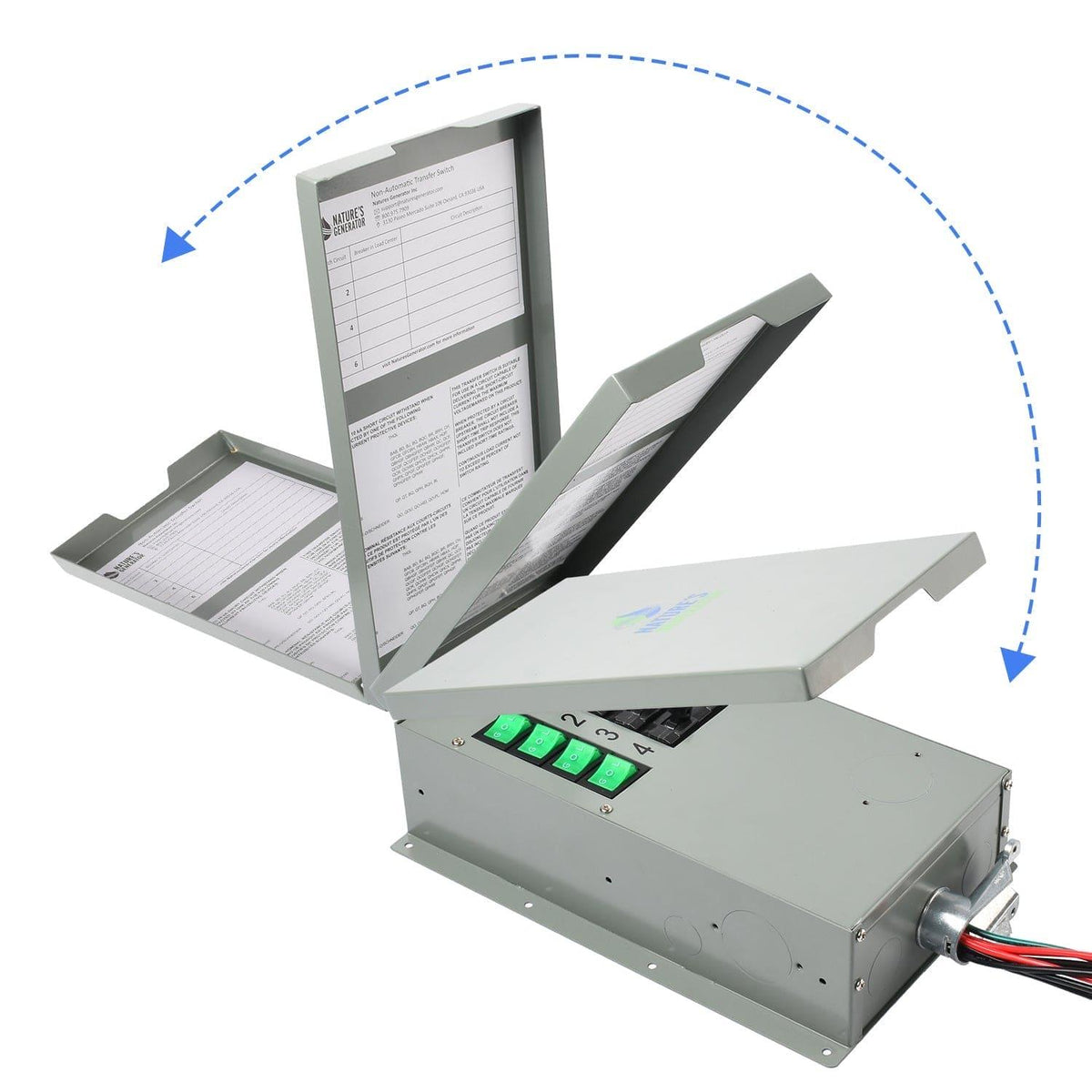

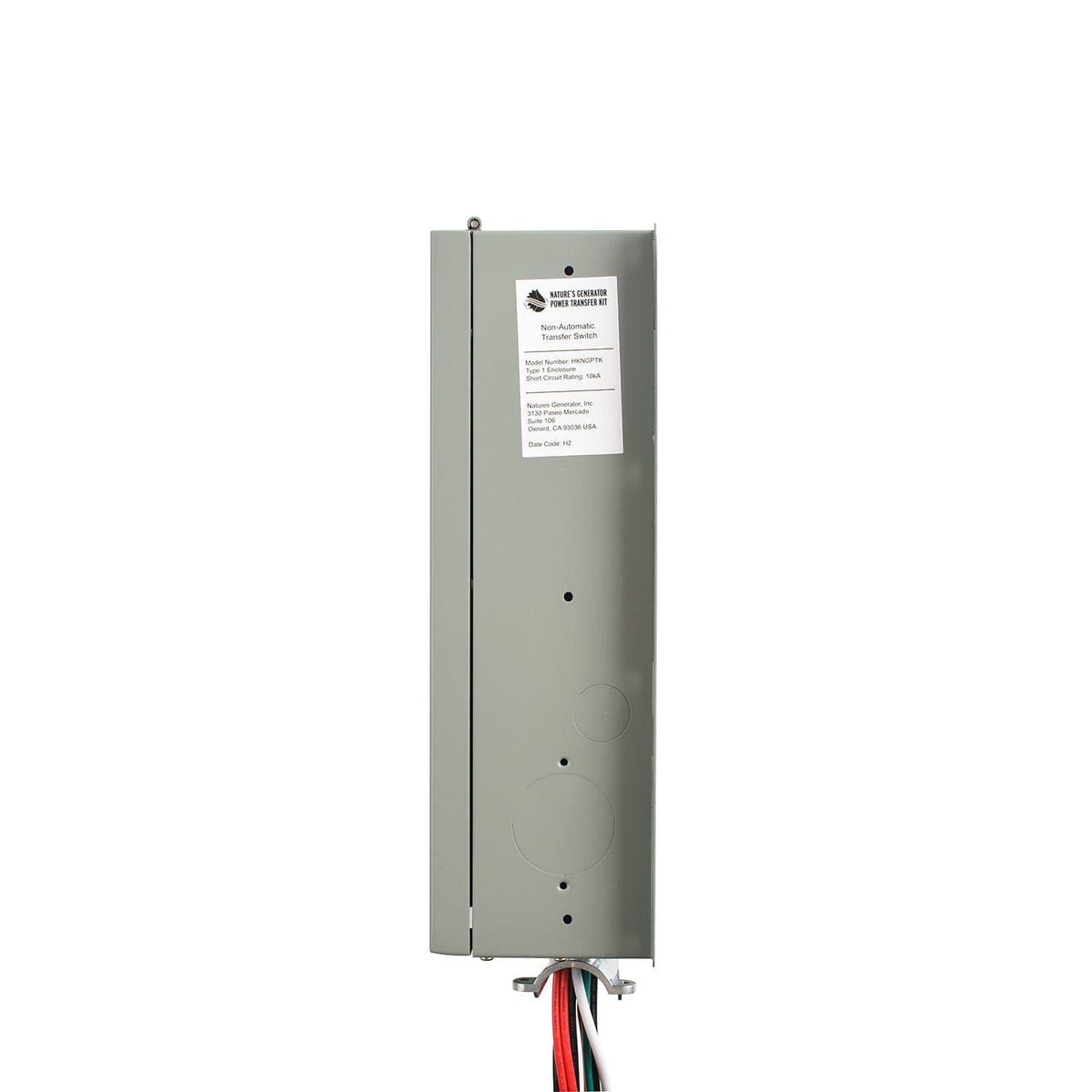

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.

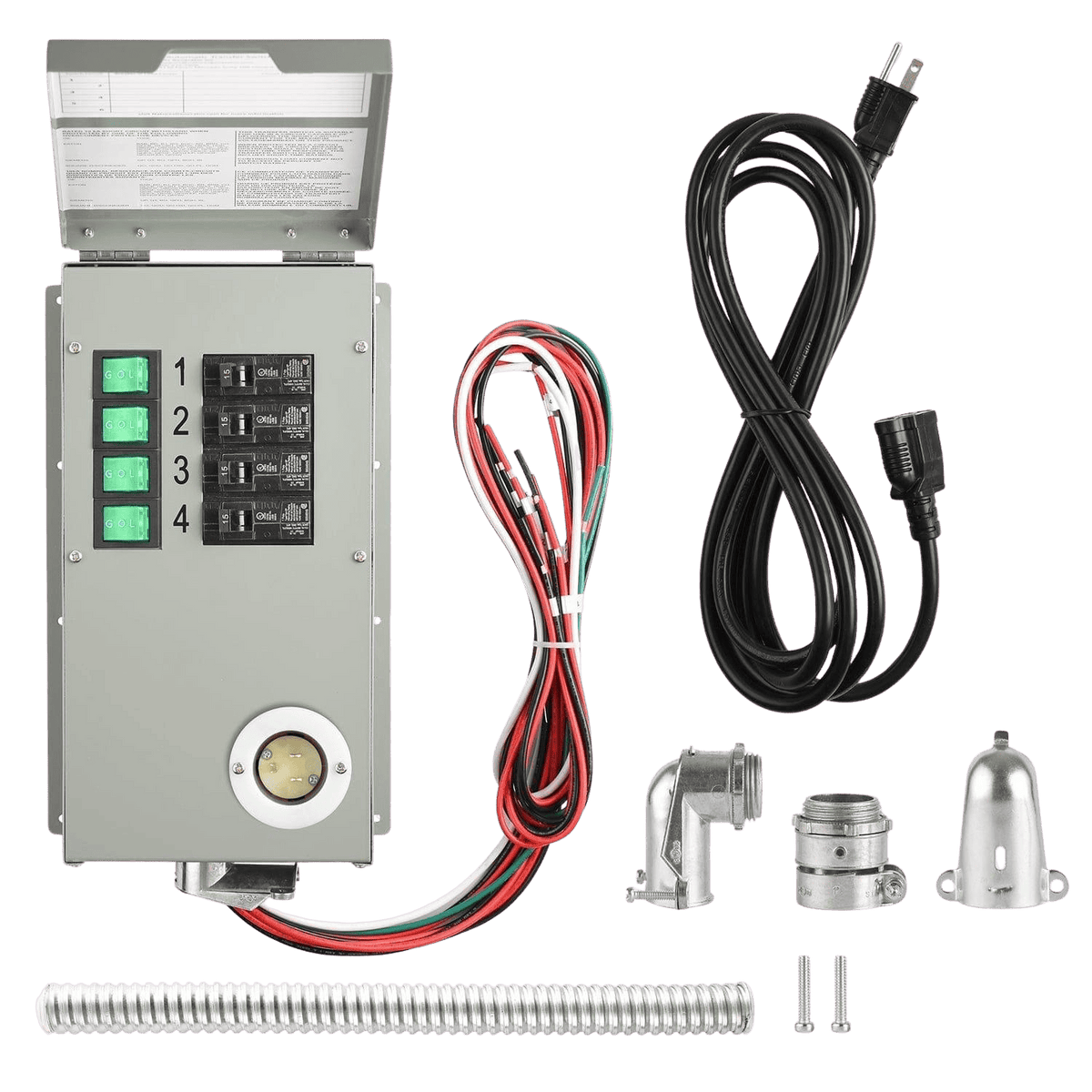

• Complete Generator Connection Kit: Includes a 5-15P 15A power inlet, 15A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.
Features
Explore the built-in capabilities designed to deliver safe, reliable, and seamless power switching for home and backup systems.
Compatibility by Generator
Matching Accessories
Breaker Comparison
12 Circuits 50A
Pre-installed Breakers
| Type | Quantity | Wire Gauge |
|---|---|---|
| 1-Pole 15A Breaker | 4 | 12 AWG |
Pre-installed Backup Power Conductors
| Type | Wire Gauge |
|---|---|
| Line 1 | 12 AWG |
| Neutral | 12 AWG |
| Ground | 12 AWG |
Tech Specs
120V 15A 4-Circuit Manual Transfer Switch
Specification
Inlet
NEMA 5-15P inlet
Number of Circuits
4 circuits
Temperature
Storage temperature
23–111 °F(-5–45 °C)
Operating temperature
32-104 °F(0-40 °C)
General

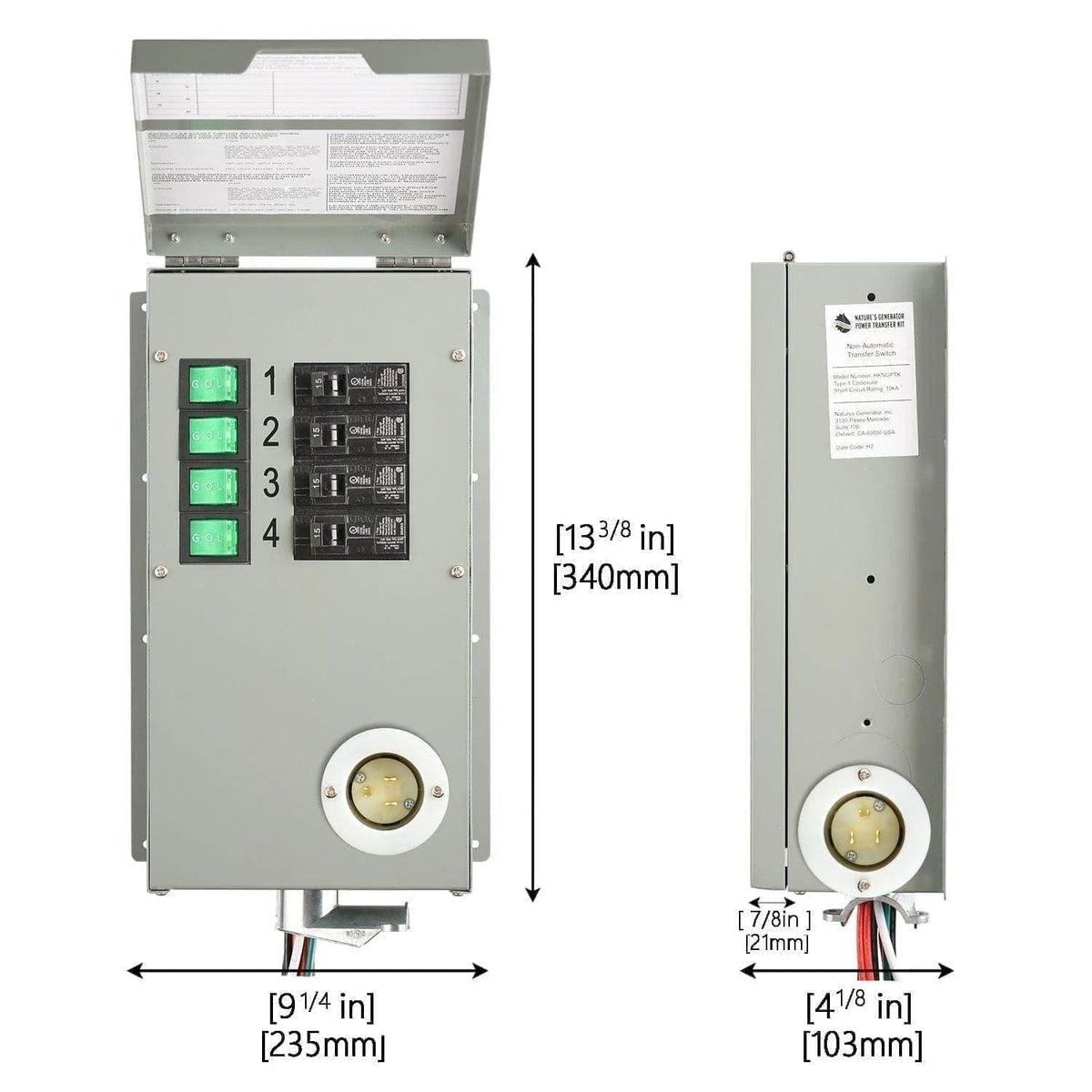

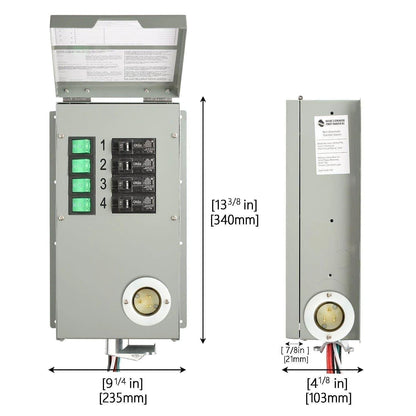

Dimension
9-1/4 inch x 13-3/8 inch x 4-1/8 inch
(235 mm x 340 mm x 103 mm) W x D x H
Weight
10.1 lbs (4.58 Kg)
Warranty
5-Year Limited Warranty
Certification*
What's in the Box
Documents
120V 15A 4-Circuit Manual Transfer Switch Specification Sheet
15A Manual Transfer Switch Installation Guide
Certificate of Compliance - UL1008, CAN/CSA C22.2 No. 178.1
