Voltage: 120V/240V
Inlet: NEMA L14-30P inlet
Number of Circuits: 12 circuits
Product details

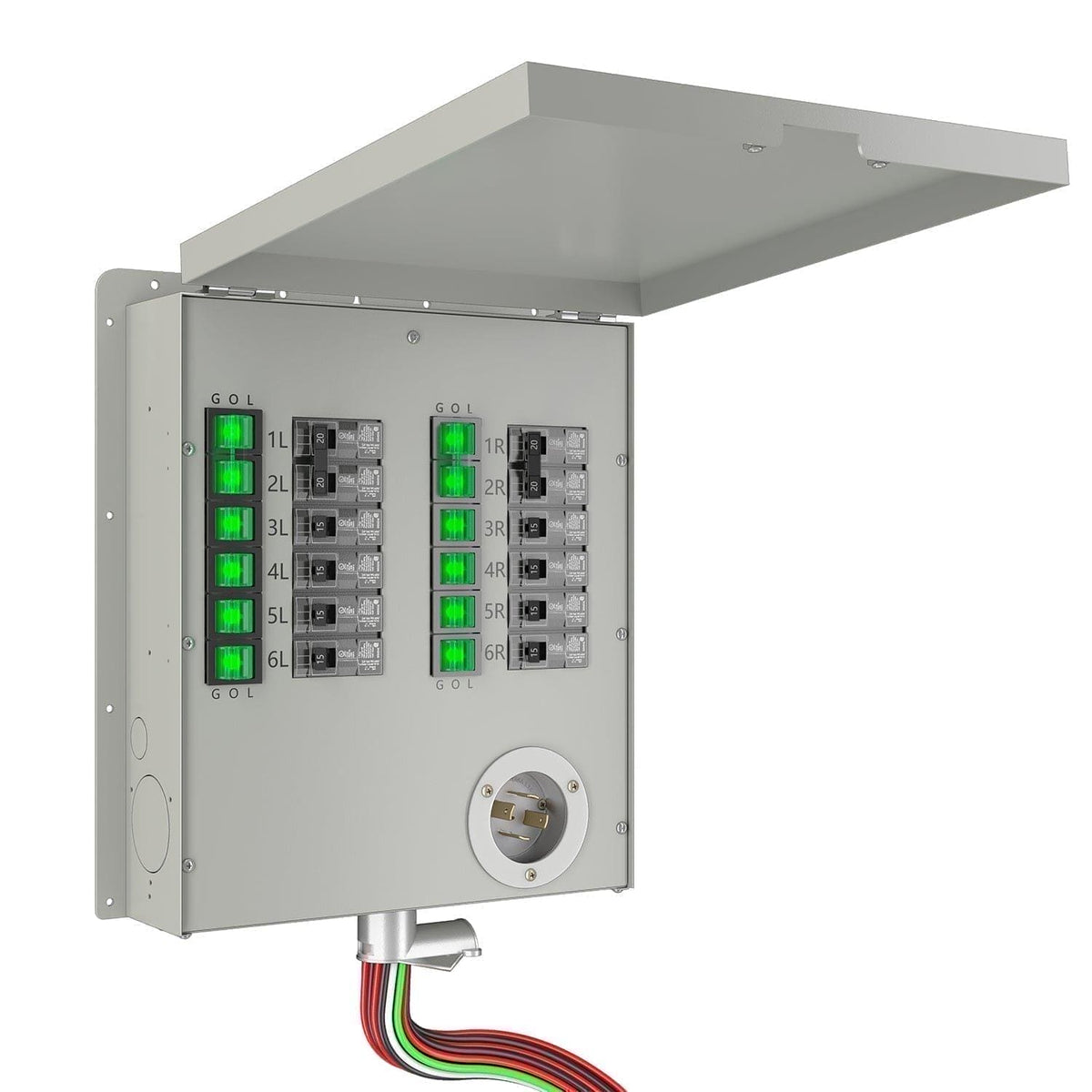

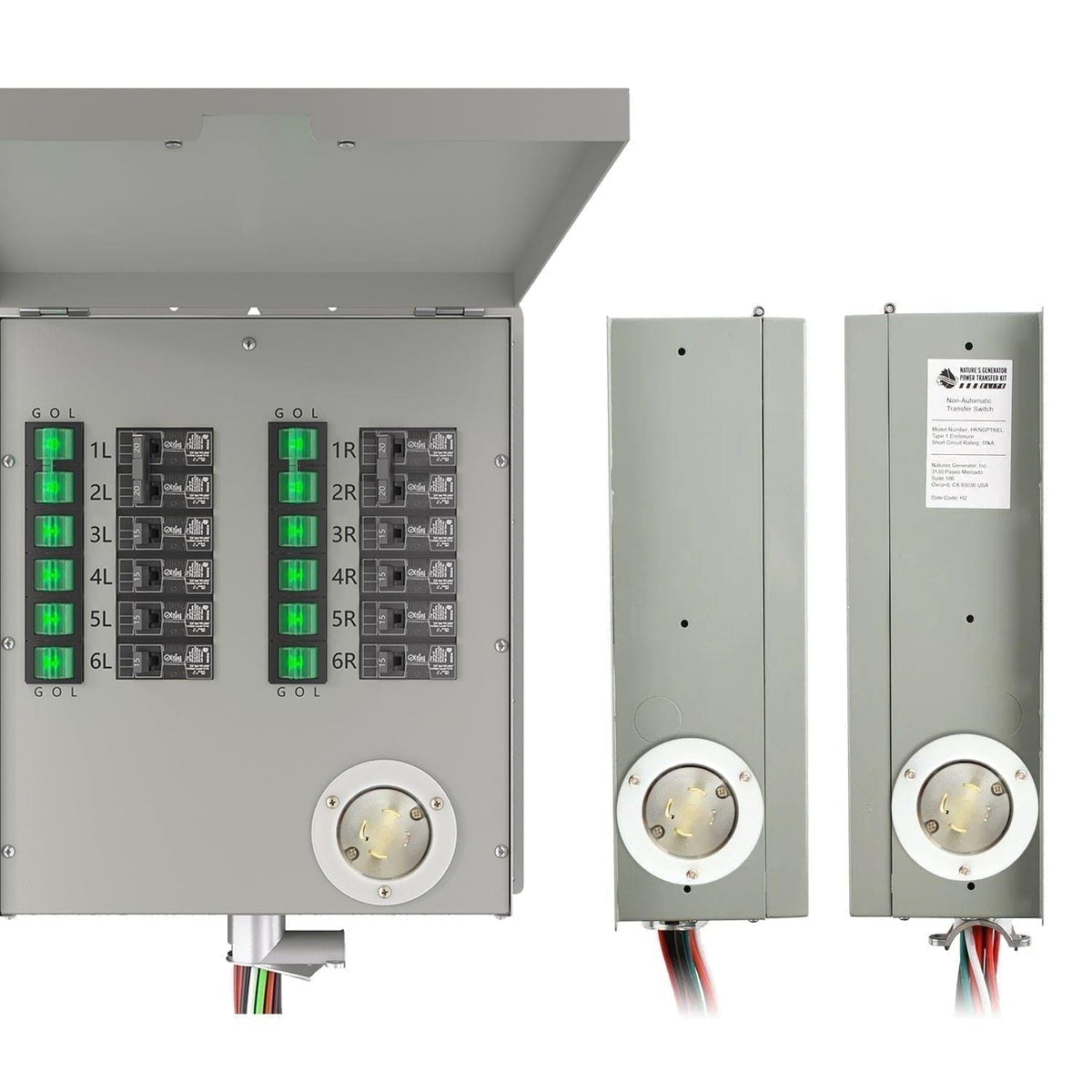

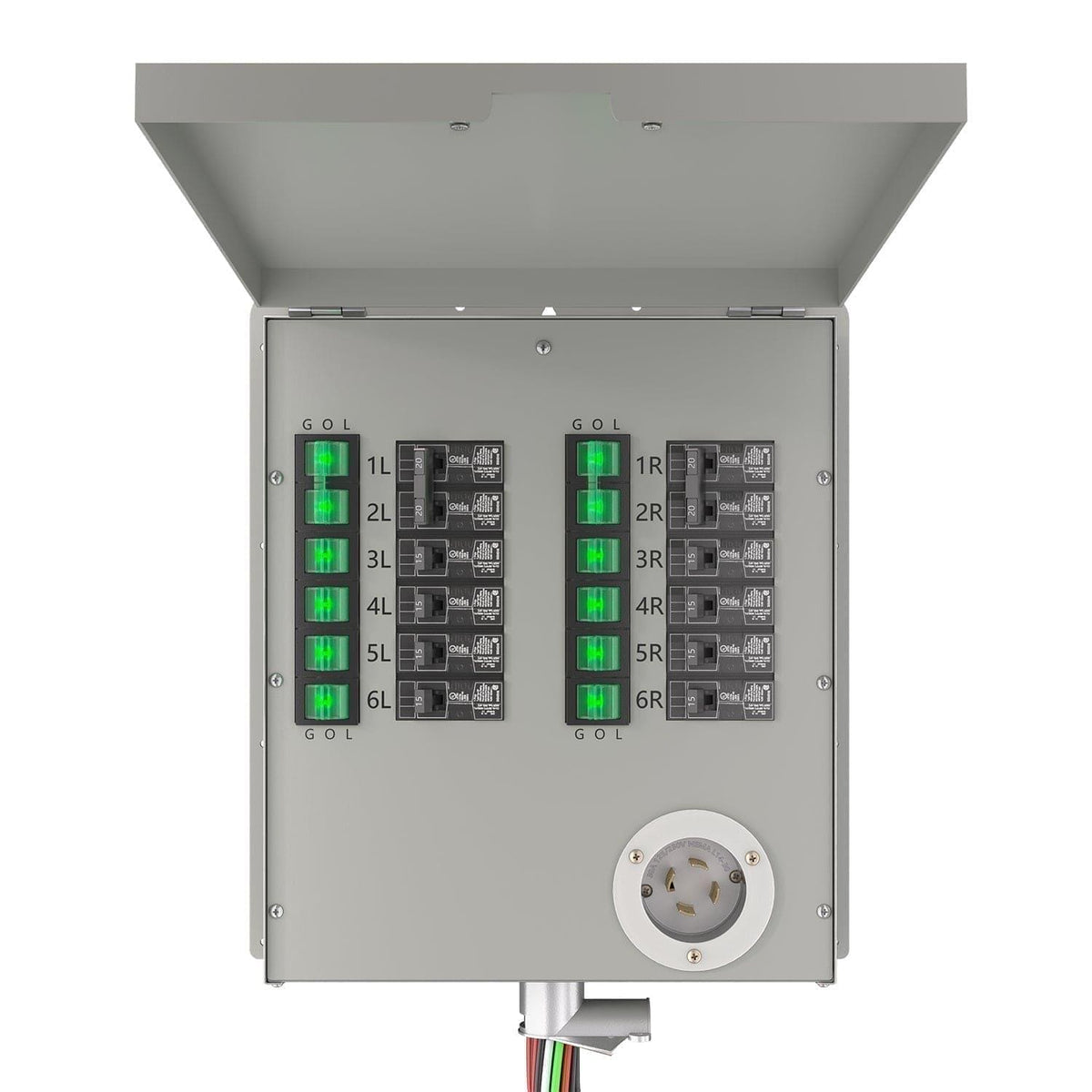

Nature's Generator 12-Circuit 120/240V 30A Non-Automatic Transfer Switch
• 30A Power Capacity with Flexible Circuit Support: Rated for 30 amps at 120/240V, supporting up to 12 circuits (configurable as twelve 120V circuits or six 240V circuits), and compatible with AFCI/GFCI breakers.

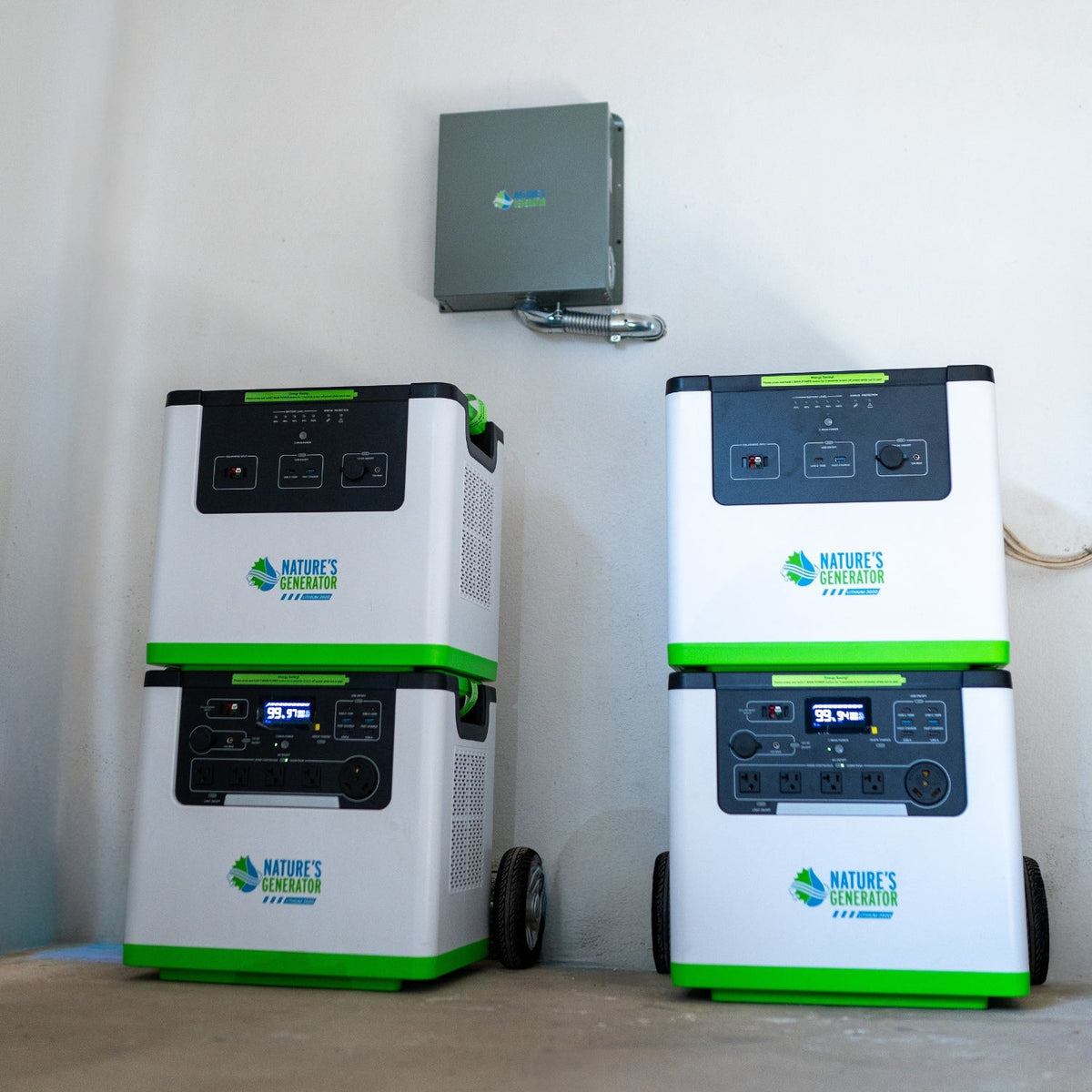

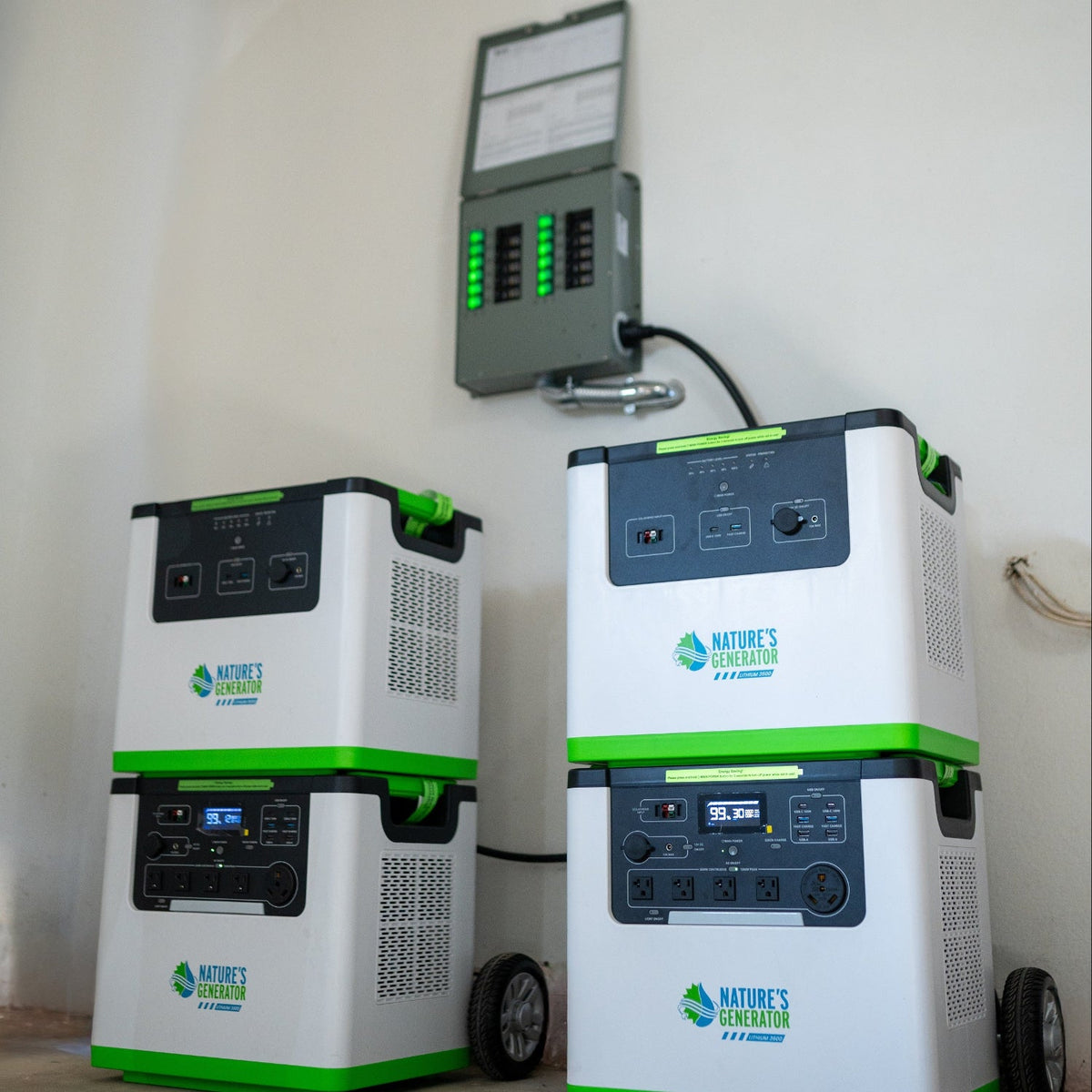

• Hybrid Grid & Stored Energy Operation: When connected to a home energy storage system like MyGrid 10K, selected circuits can run on stored energy while others remain on the grid, helping reduce electricity use and save on power bills.
• Safe Manual Power Switching & Circuit Control: Provides a secure, non-automatic way to connect your generator or backup power system to your home’s electrical system. Manual selector switches allow you to control and manage specific circuits while preventing backfeeding and protecting your electrical system.

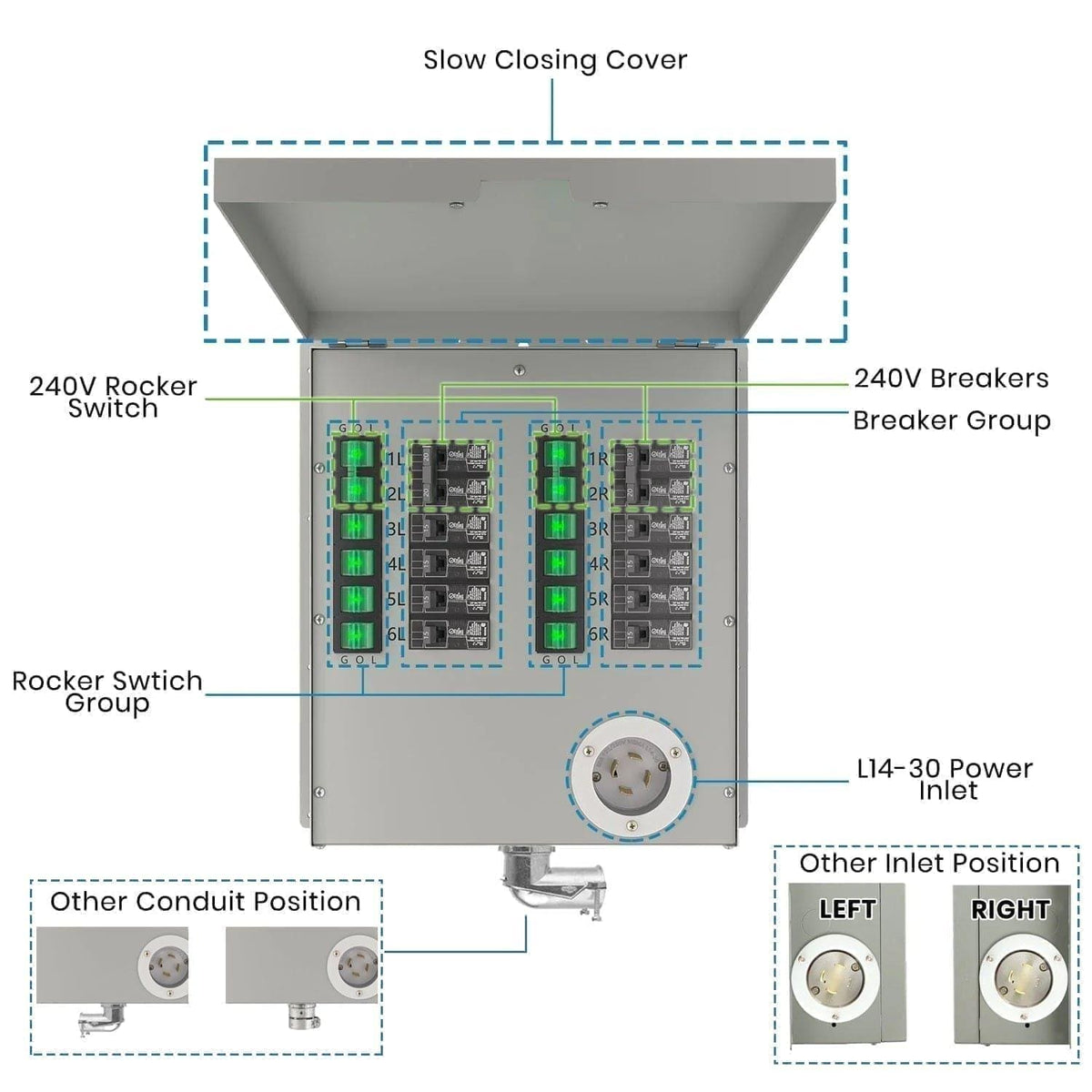

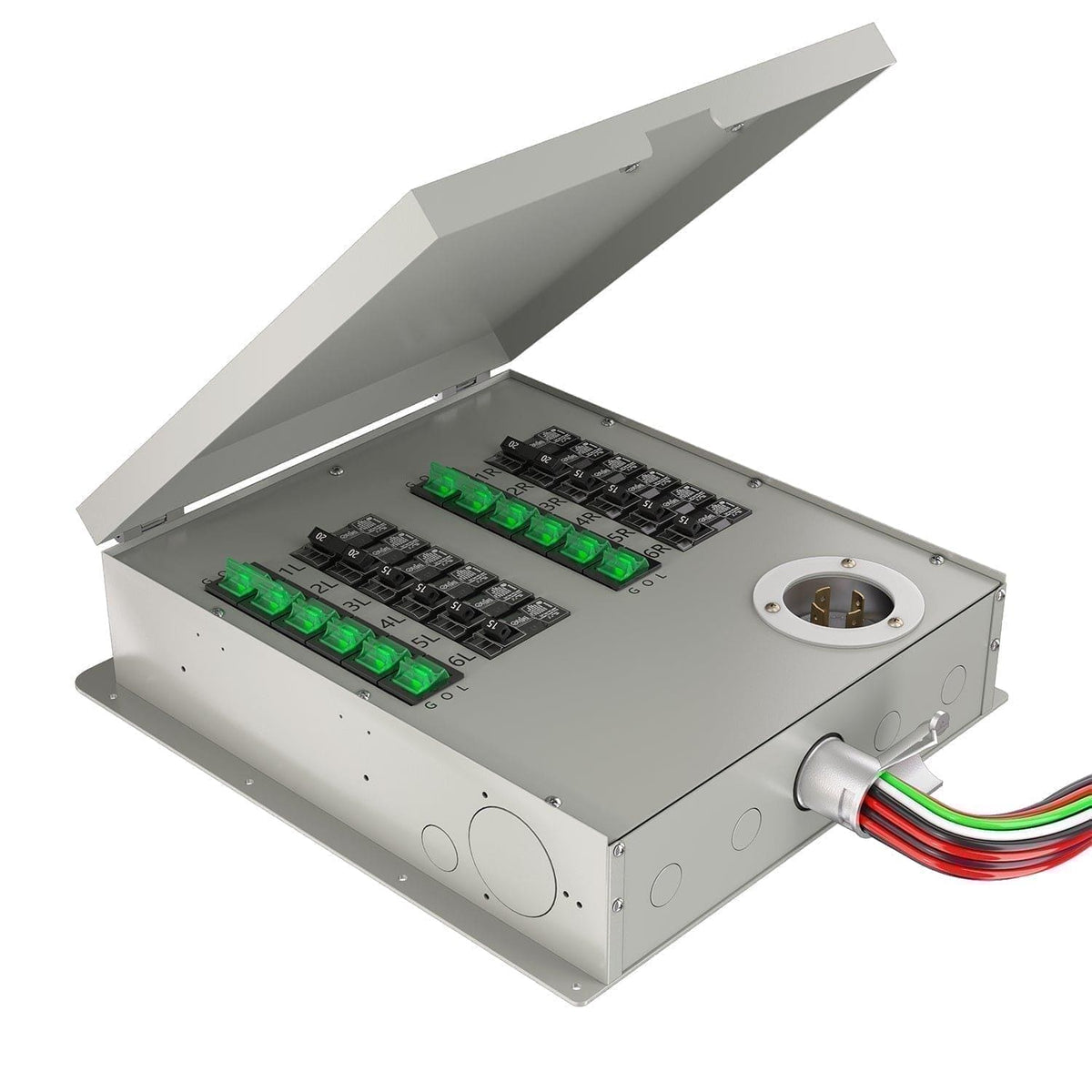

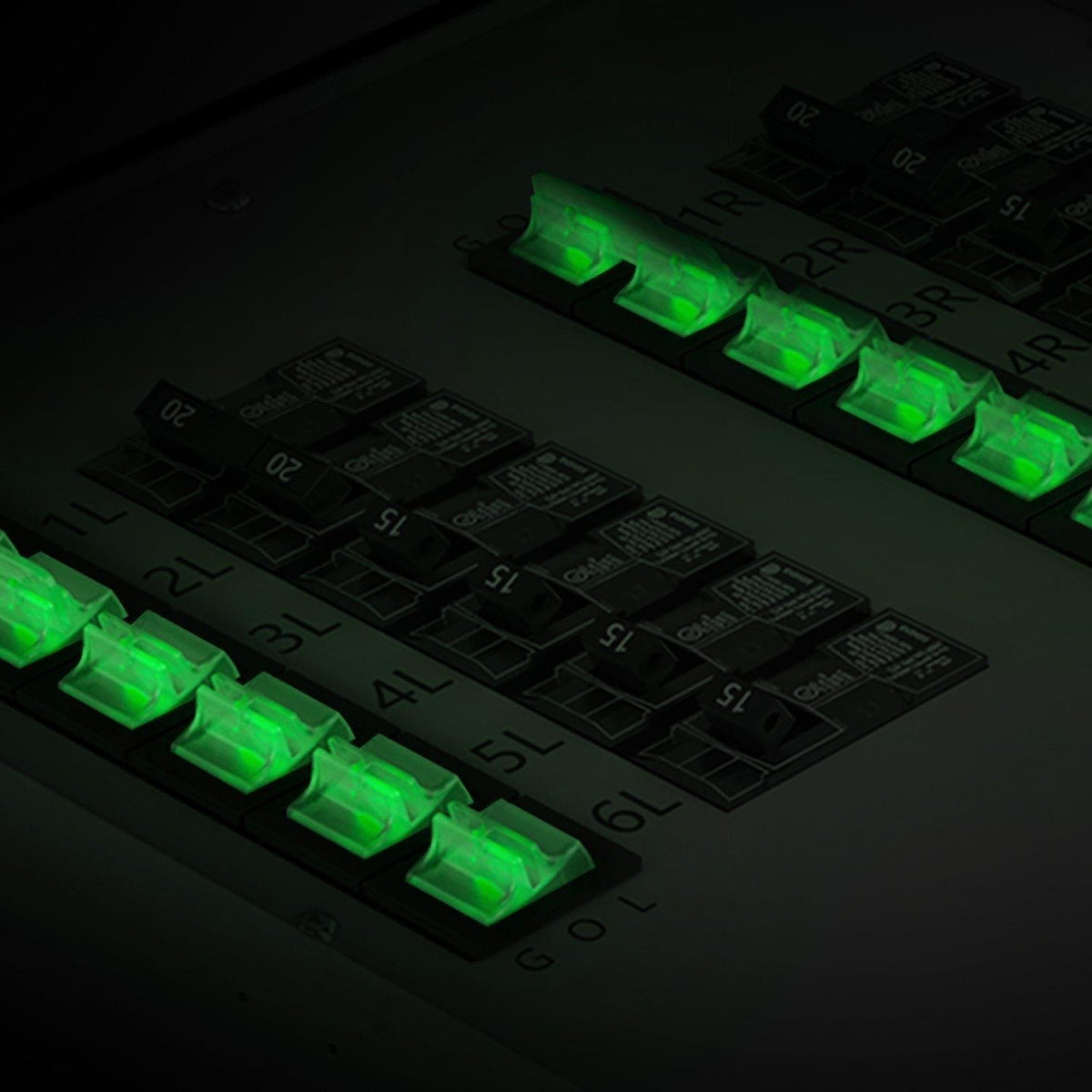

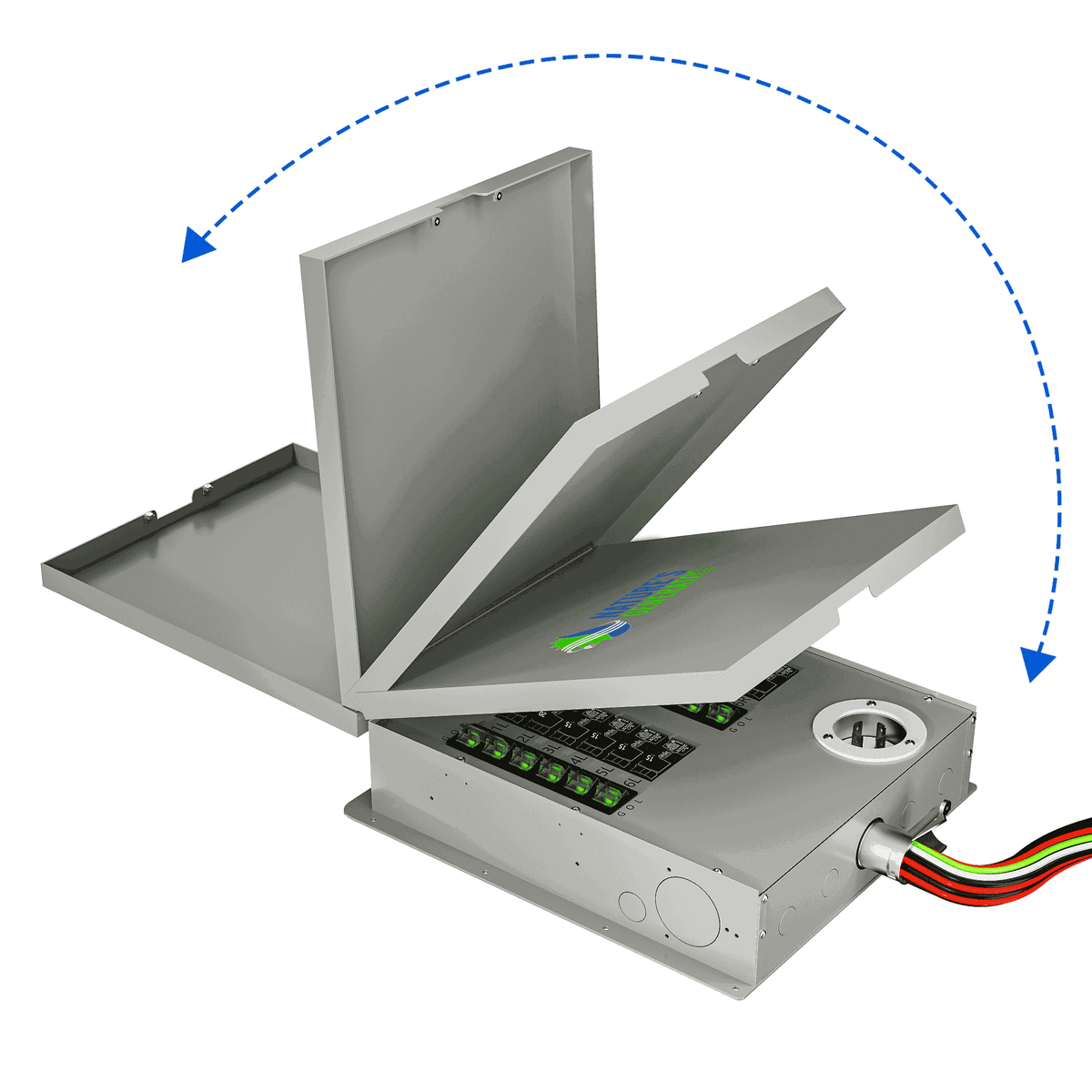

• Durable, Installation-Ready Construction: Built with a rugged steel enclosure and illuminated rocker switches that clearly indicate generator power status for safe, reliable operation.
• Complete Generator Connection Kit: Includes a L14-30P 30A power inlet, 30A power cord and pre-wired components to simplify installation with compatible generator systems.
• Certified for Safety & Code Compliance: Independently tested and certified to meet UL 1008 and CAN/CSA C22.2 No. 178.1 standards, with compliance verified under ISO/IEC Guide 17067 for safe, code-compliant operation.
Compatibility by Generator
Matching Accessories
Breaker Comparison
12 Circuits 50A

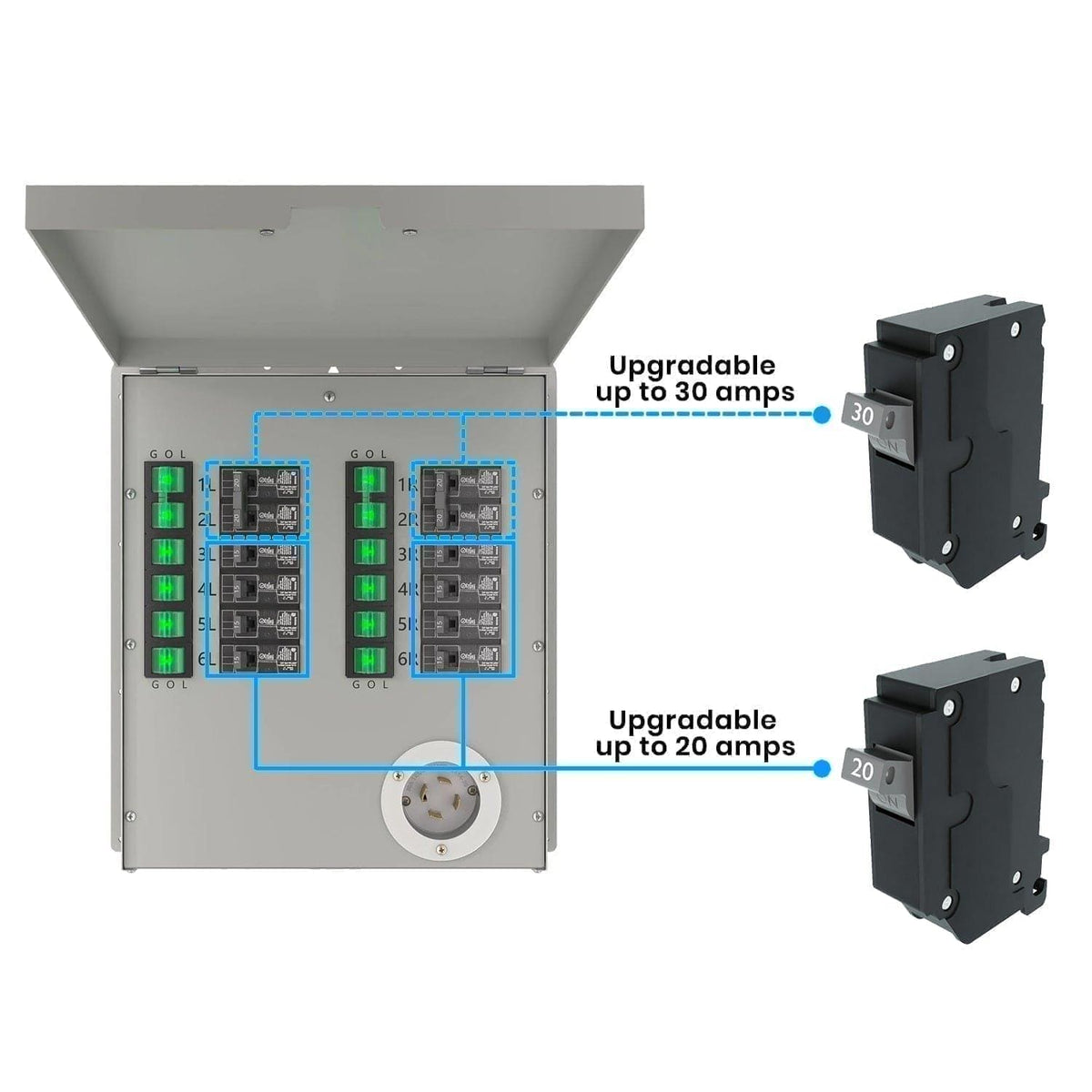

Pre-installed Breakers
| Type | Quantity | Wire Gauge | Upgradable to |
|---|---|---|---|
| 2-Pole 20A Breaker | 2 | 10 AWG | 30A Breaker |
| 1-Pole 15A Breaker | 8 | 12 AWG | 20A Breaker |
Pre-installed Backup Power Conductors
| Type | Wire Gauge |
|---|---|
| Line 1 | 10 AWG |
| Line 2 | 10 AWG |
| Neutral | 10 AWG |
| Ground | 12 AWG |
Tech Specs
Safe and Reliable Power Transfer Kit
Secure, flexible, and reliable generator connection for safe home power transfer during emergencies.
12-Circuit 120V/240V 30A Manual Transfer Switch
Specification
Dimension and Weight

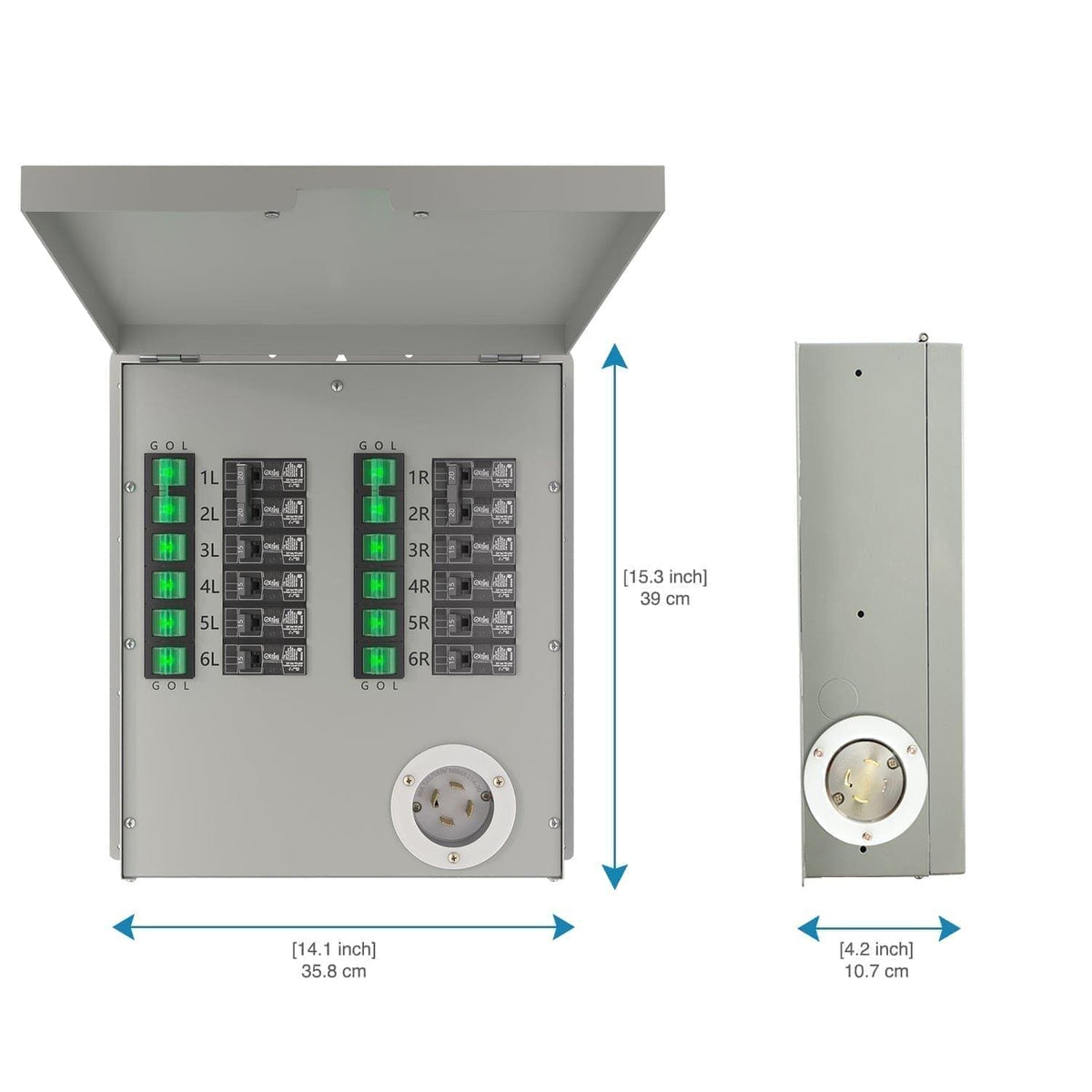

Dimensions: 14 1/8 inch x 15 1/4 inch x 4 1/4 inch (35.8 cm x 39 cm x 10.7 cm)
Weight out of box: 27.6 lbs. (12.5 Kg)
Warranty: 5-Year Limited Warranty
Certification*
What's in the Box
|

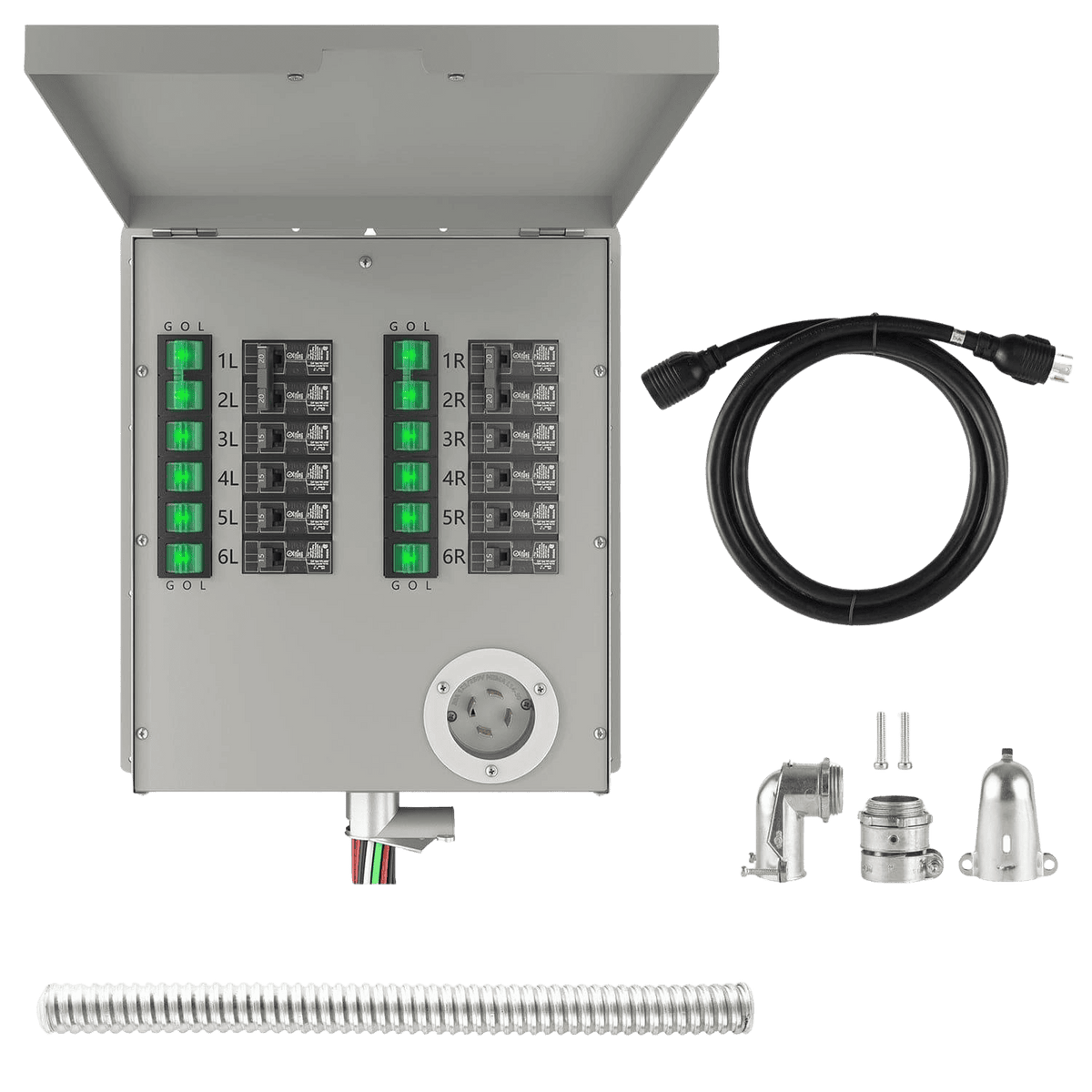

1x12-Circuit 120/240V 30A Transfer Switch 1x L14-30P Inlet 1x 1-1/4" 18 in Flexible Metal Conduit 1x lOft 10AWG Power Cord 1x1-1/4" 90° Flexible Metal Conduit Connector 1x1-1/4" Straight Flexible Metal Conduit Connector 4x Spare Switch Bridges 1x Installation Guide |
 |
30A Manual Transfer Switch Specification Sheet
