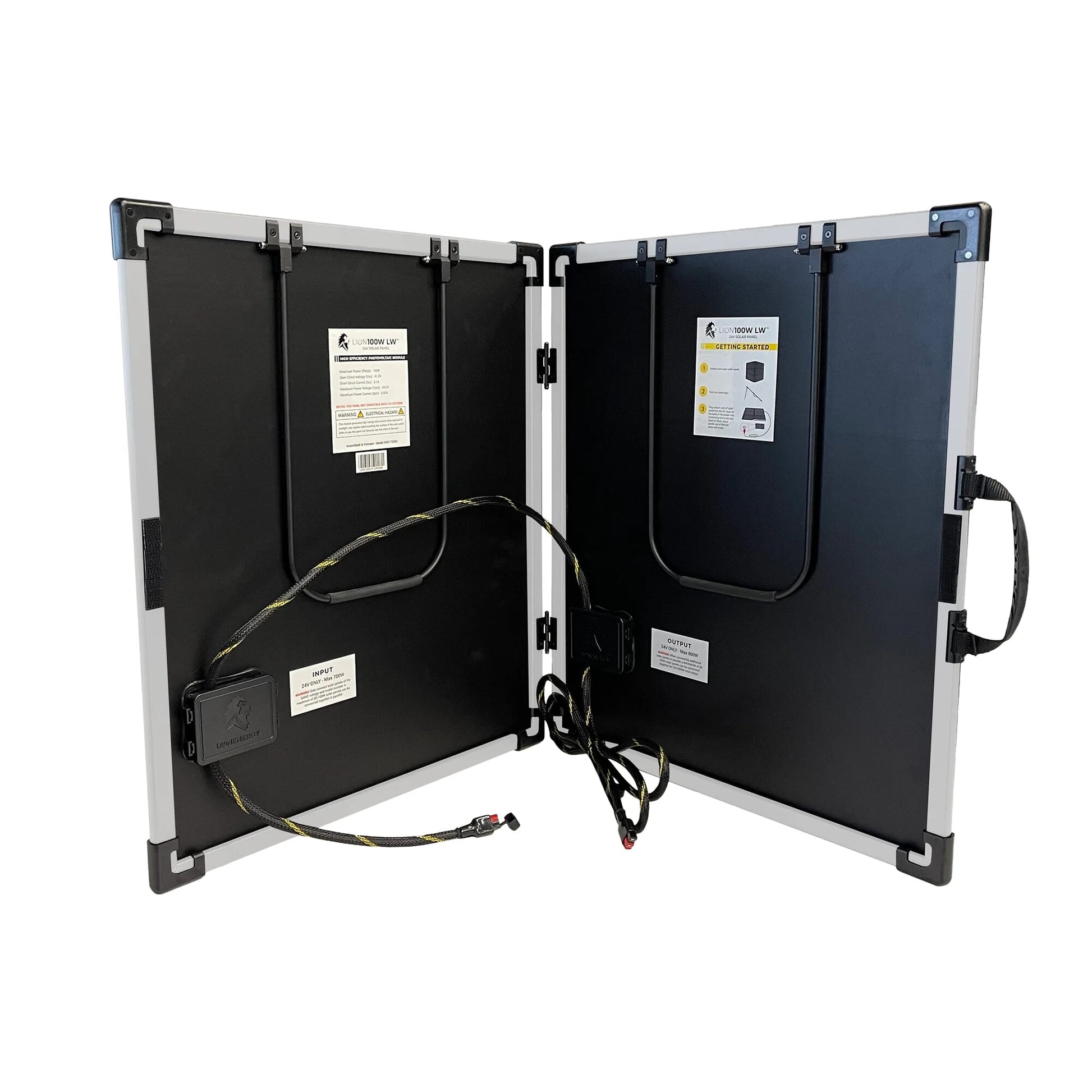

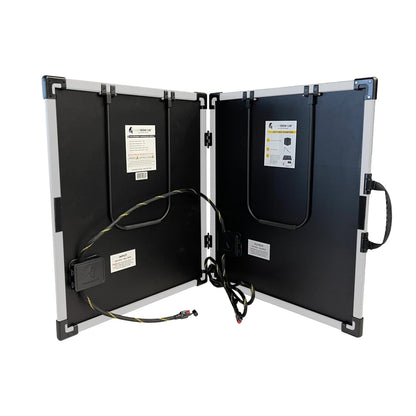

LionEnergy 100W LW (12V) Solar Panel
The Lion 100W LW (Light Weight) 12V portable solar panel delivers clean, renewable energy to power your life perfect for recharging units like the UT1300 and Summit using nothing but the sun. Lightweight at just 8.5 lbs., it’s easy to use, durable with anti-corrosive aluminum, expandable for faster charging, and powerful enough to produce up to 100W of output.
Specs
Weight
8.5 lbs (some versions list 22 lbs).
Dimensions (Unfolded)
23.5″ × 40 7/8″ × 0.75″ or 26.5″ × 40″ × 1″.
Dimensions (Folded)
23.5″ × 20 7/16″ × 1.5″ or 26.5″ × 20″ × 2″.
Rated Power
100W / 12V @ 5.84A.
Max Output
18V @ 5.56A.
Short-Circuit Current (ISC)
6.14A.
Open Circuit Voltage (VOC)
20.52V.
Max Power Point (Impp/Vmpp)
5.84A @ 17.1V.
Panel Type
Monocrystalline solar cells.
Construction
Durable folding panel with protective casing for field use.
Expandable
Can link up to 4 panels for increased output.
Use Case
Connects to Lion Energy solar generators and power banks.
Warranty
5 years (some variants specify 1 year).
Life Cycles
Rated for 20 years of solar output performance.
