Rich Solar Basic 600 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging

Name: Rich Solar Basic 600 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging
Brand: RICH SOLAR
SKU: RS-K6004
Price: 1079.99 USD
Availability: InStock

$1,079.99 USD

Sale Sold out

California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Specifications & Downloads

Full Specification:

MEGA 200 Solar Panel

Download

BRAVO 40 40 Amp MPPT Solar Charge Controller

Download

User Manual:

BRAVO 40 40 Amp MPPT Solar Charge Controller

Download

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar 600W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Power

Features

600W Solar Array: Includes three 200W monocrystalline solar panels, producing approximately 2.2kWh of energy per day under 4 peak sun hours.
12V DC System: Designed as a 12V off-grid solar power system compatible with existing equipment and future system expansion.
2.56kWh LiFePO₄ Battery: Includes one 12.8V 200Ah ALPHA 2 battery for dependable energy storage and backup power.
3000W Pure Sine Wave Inverter: Delivers 3,000W continuous (6,000W surge) pure sine wave output for reliable AC power.
40A MPPT Charge Controller: Maximizes solar harvest with up to 99.5% MPPT tracking efficiency for efficient battery charging.
Complete Solar Power Kit: Includes professionally matched components for faster system planning and installation.
Versatile Applications: Ideal for RVs, vans, cabins, tiny homes, and emergency backup power.

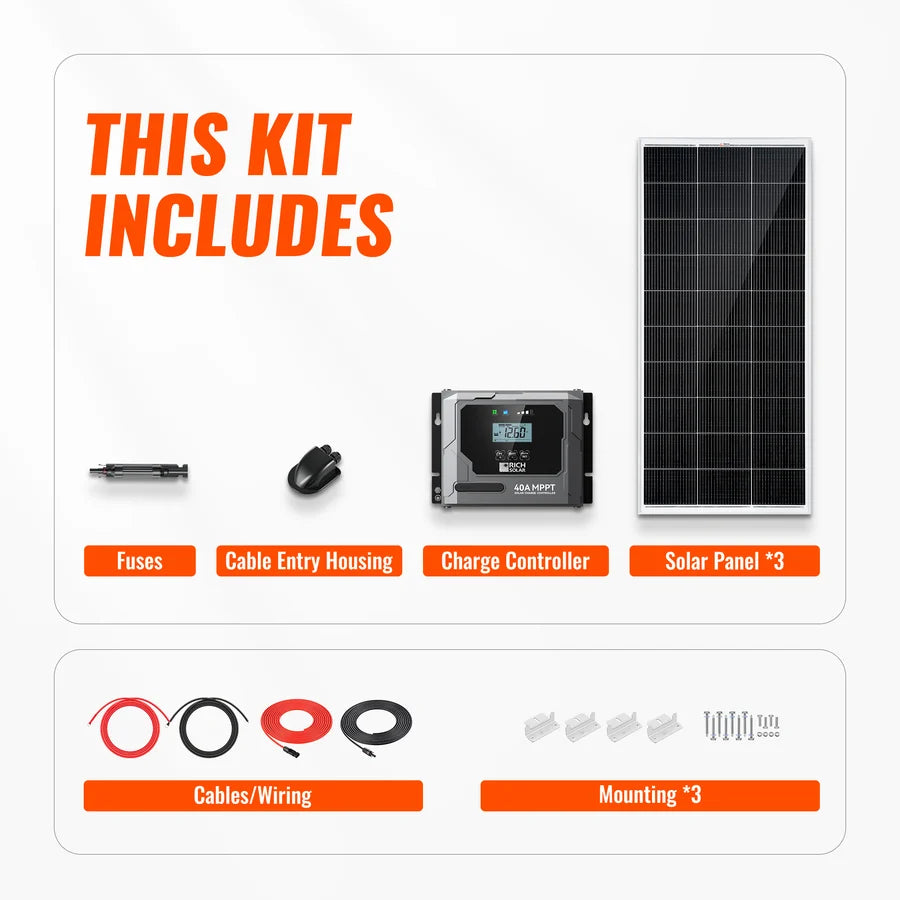

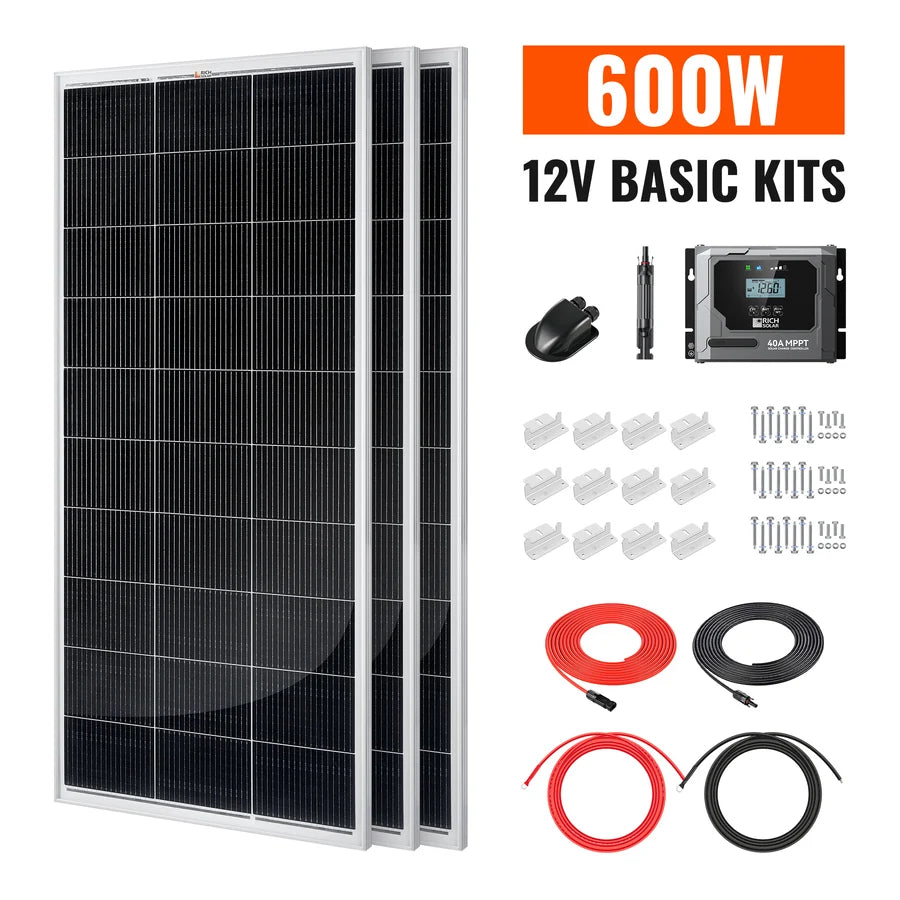

Kit Includes

3 x MEGA 200 12V 200W Solar Panels (RS-M200)
1 x Bravo 40 40A MPPT Charge Controller (RS-MPPT40PB)
3 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
1 x Cable Entry Housing (RS-C2B)
1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters

Warranty:

25-year limited power output warranty
10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in

BRAVO 40

40 Amp MPPT Solar Charge Controller

Features:

MPPT
Tracking Efficiency Above 99.5%
Charge Conversion Efficiency as high as 98%
12V/24V DC System Self-Adaptation
Reverse Discharge Protection
Targeted for Accuracy
Overvoltage Protection
Common Negative Connection
Charging Data Storage
Conformal Coating For Inside Board
Designed According to UL1741, EN/IEC 62109 1
In-house Design And Manufacture
Extensive Internal Electronics In-Circuit Protections And Safety Protections
Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Warranty:

2-Year Warranty

Specifications:

System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100VDC
Charging Technology: MPPT
Max PV Charging Current: 40A
Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.17kg / 2.58lb
Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

View full details

Kit Includes:

3 x 200 Watt Monocrystalline Solar Panel(RS-M200)
1 x 40A MPPT Solar Charge Controller(RS-MPPT40P)
1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery(RS-810)
1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery(RS-810)
3 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)

MEGA 200 Watt Solar Panel
The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.
- No. of Panels: 3 x MEGA 200 Watt Solar Panels
- Wattage Per Panel: 200W
- Total Wattage of Panels: 400W
Features:
- Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Installation:
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty:
- 25-year limited power output warranty
- 10-year workmanship warranty
Specifications:
- Maximum Power(Pmax): 200W
- Maximum Power Voltage(Vmp): 18.4V
- Maximum Power Current(Imp): 10.9A
- Open Circuit Voltage(Voc): 21.8V
- Short Circuit Current(Isc): 11.6A
- Temperature Range: -40 ~ +185°F
- Maximum Series Fuse Rating: 15A
- Weight: 24 lb
- Dimensions: 58.7 x 26.8 x 1.2 in
BRAVO 40 Amp MPPT Solar Charge Controller
Features:
- MPPT
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as high as 98%
- 12V/24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accuracy
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
Warranty:
- 2-Year Warranty
Specifications:
- System Nominal Voltage: 12/24V Auto
- Max. PV Open Circuit Voltage: 100VDC
- Charging Technology: MPPT
- Max PV Charging Current: 40A
- Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
- Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
- Housing Case Color: Black / Grey
- IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
- Net Weight: 1.17kg / 2.58lb
- Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
