Rich Solar 100 Watt Solar Kit

Name: Rich Solar 100 Watt Solar Kit
Brand: RICH SOLAR
Price: 299.99 USD
Availability: InStock

$299.99 USD

Sale Sold out

California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Specifications & Downloads

Full Specification:

20 Amp MPPT Solar Charge Controller

Download

User Manual:

20 Amp MPPT Solar Charge Controller

Download

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar 100 Watt Solar Kit

Features

100W Solar Array: Includes one 100W monocrystalline solar panel, producing approximately 0.4kWh of energy per day under 4 peak sun hours.
12V Solar Panel: Built with a 12V nominal solar panel, ideal for charging compatible battery systems.
20A MPPT Charge Controller: Maximizes solar harvest with up to 99% MPPT tracking efficiency and 98% peak conversion efficiency.
Solar Charging Kit: Includes a professionally matched solar panel and MPPT charge controller for efficient battery charging.
Versatile Applications: Ideal for RVs, trailers, boats, cabins, sheds, and other small off-grid solar systems.

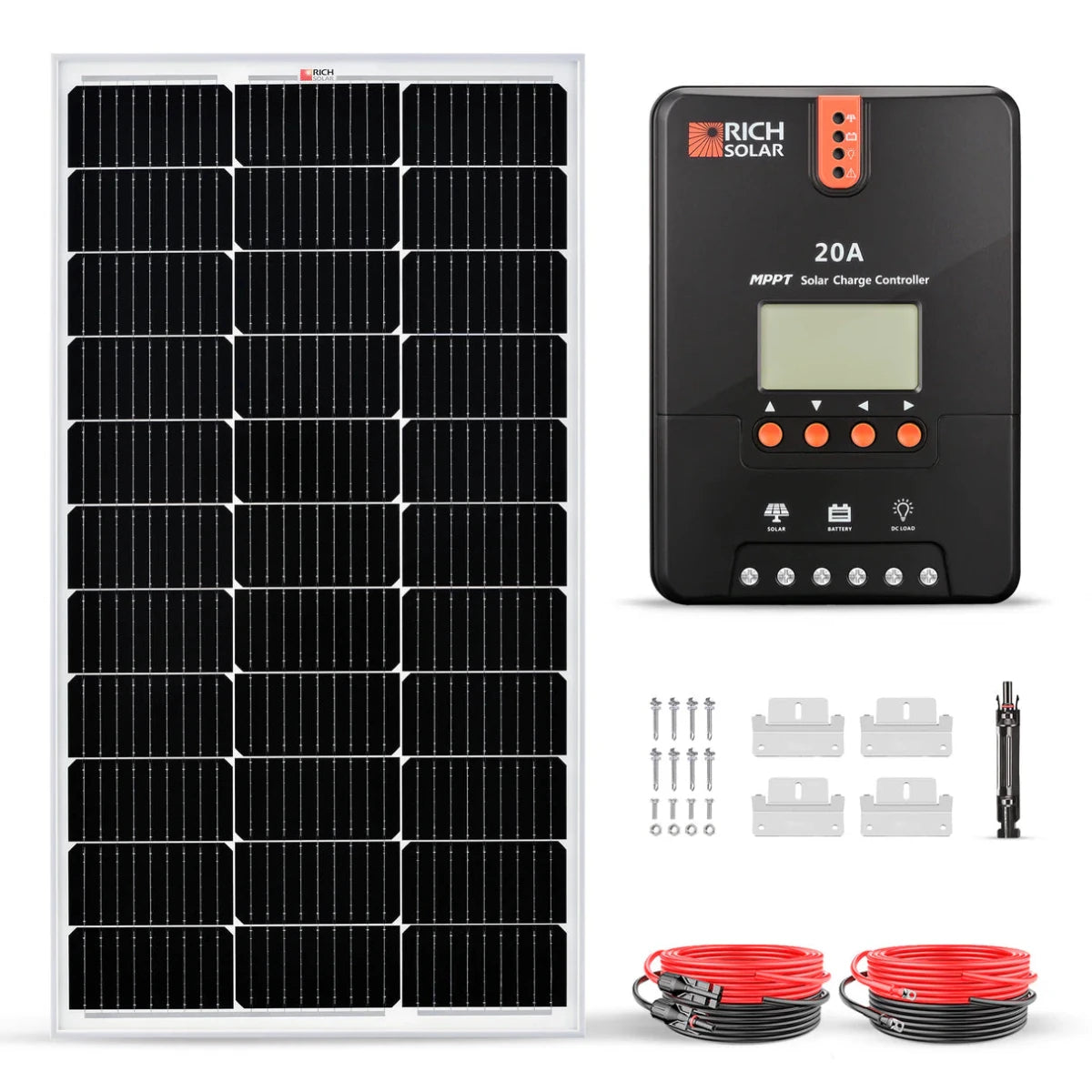

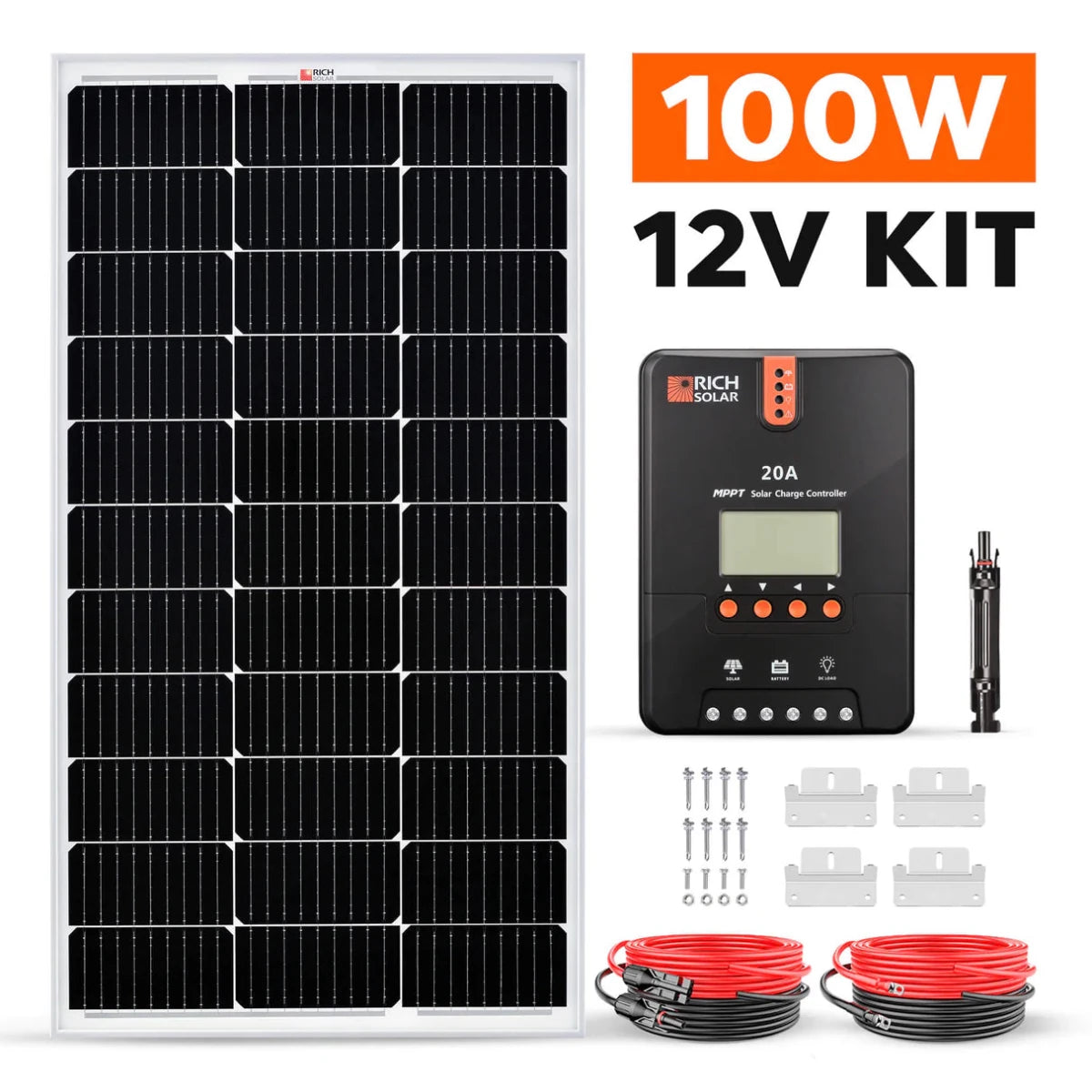

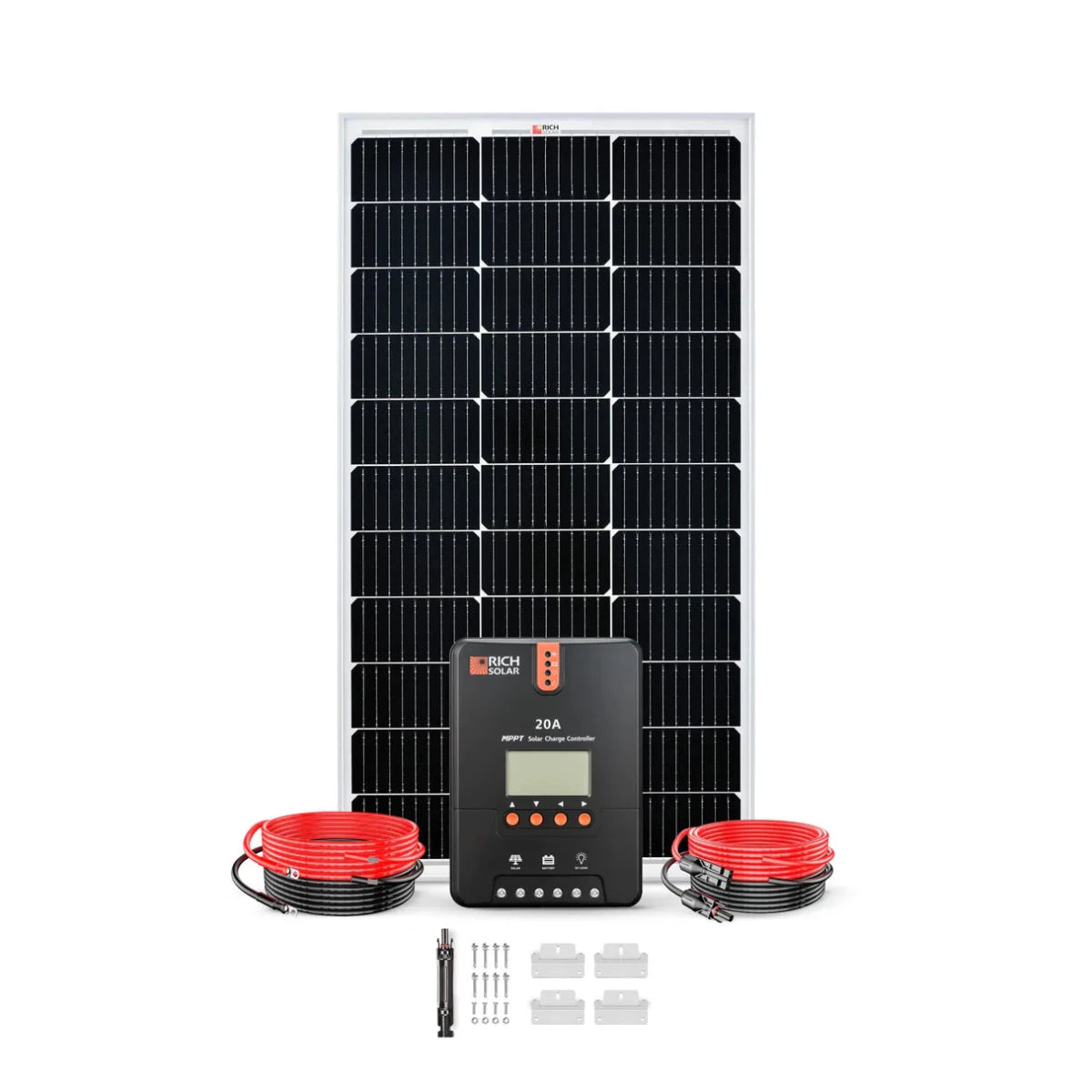

Kit Includes

1 x 100 Watt Monocrystalline Solar Panel (RS-M100)
1 x 20A MPPT Solar Charge Controller (RS-MPPT20)
1 x 20 ft 10 AWG Solar Cable (Red), connects the solar panel to the controller (RS-20101)
1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller(RS-20101)
1 x 10 ft 10 AWG Battery Cable (Red), connects controller to battery (RS-1010)
1 x 10 ft 10 AWG Battery Cable (Black), connects controller to battery (RS-1010)
1 x Mounting Z Bracket set (one set of 4) (RS-ZB4C)
1 x 10A Inline Fuse Holder with Fuse (RS-SC10F)

MEGA 100

100 Watt Solar Panel

The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

No. of Panels: 3 x MEGA 100 Watt Solar Panels
Wattage Per Panel: 100W
Total Wattage of Panels: 300W

Features:

12V off-grid solar panel.
0~+5W guaranteed positive power output.
IP67-rated.
Built with strong tempered glass and aluminum frame.
Certified to withstand challenging environmental conditions.
Excellent low light performance on cloudy days, mornings and evenings.

Installation:

Easy installation and handling for various applications.
Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
Compatible with on-grid and off-grid inverters.

Warranty:

25-year output warranty.
10-year workmanship warranty.

Specifications:

Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.6V
Maximum Power Current(Imp): 5.38A
Open Circuit Voltage(Voc): 22.8V
Short Circuit Current(Isc): 5.78A
Maximum System Voltage(Vmax): 1000VDC
Weight: 13.2 lb
Maximum Series Fuse Rating: 15A
Dimensions: 39.0 x 21.3 x 1.2 in

View full details

Kit Includes:

1 x 100 Watt Monocrystalline Solar Panel (RS-M100)
1 x 20A MPPT Solar Charge Controller (RS-MPPT20)
1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery (RS-1010)
1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery (RS-1010)
1 x Mounting Z Brackets (one set) (RS-ZB4C)
1 x 10A Inline Fuse Holder with Fuse (RS-SC10F)

MEGA 100 Watt Solar Panel
The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

Features:
- 12V off-grid solar panel.
- 0~+5W guaranteed positive power output.
- IP67-rated.
- Built with strong tempered glass and aluminum frame.
- Certified to withstand challenging environmental conditions.
- Excellent low light performance on cloudy days, mornings and evenings.
Installation:
- Easy installation and handling for various applications.
- Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
- Compatible with on-grid and off-grid inverters.
Warranty:
- 25-year output warranty.
- 10-year workmanship warranty.
Specifications:
- Maximum Power(Pmax): 100W
- Maximum Power Voltage(Vmp): 18.6V
- Maximum Power Current(Imp): 5.38A
- Open Circuit Voltage(Voc): 22.8V
- Short Circuit Current(Isc): 5.78A
- Maximum System Voltage(Vmax): 1000VDC
- Weight: 13.2 lb
- Maximum Series Fuse Rating: 15A
- Dimensions: 39.0 x 21.3 x 1.2 in
20 Amp MPPT Solar Charge Controller
Features:
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries
- Die-cast aluminum design allows for efficient heat dissipation
- RS232 port to communicate with BT-1 Bluetooth module
Warranty:
- 2-Year Warranty
Specifications:
- Nominal System Voltage: 12V/24V Auto Recognition
- Rated Battery Current: 20A
- Rated Load Current: 20A
- Max. PV Input Short Current: 25A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100 VDC
- Net Weight: 3.08 lb
- Discharge Circuit Voltage Drop: ≤0.15V
- Overall Dimensions: 8.27 x 5.94 x 2.34 in
