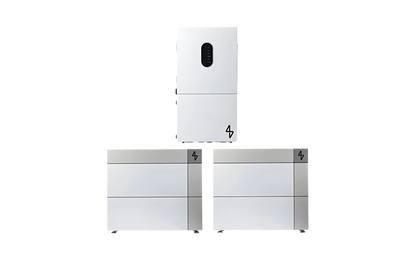

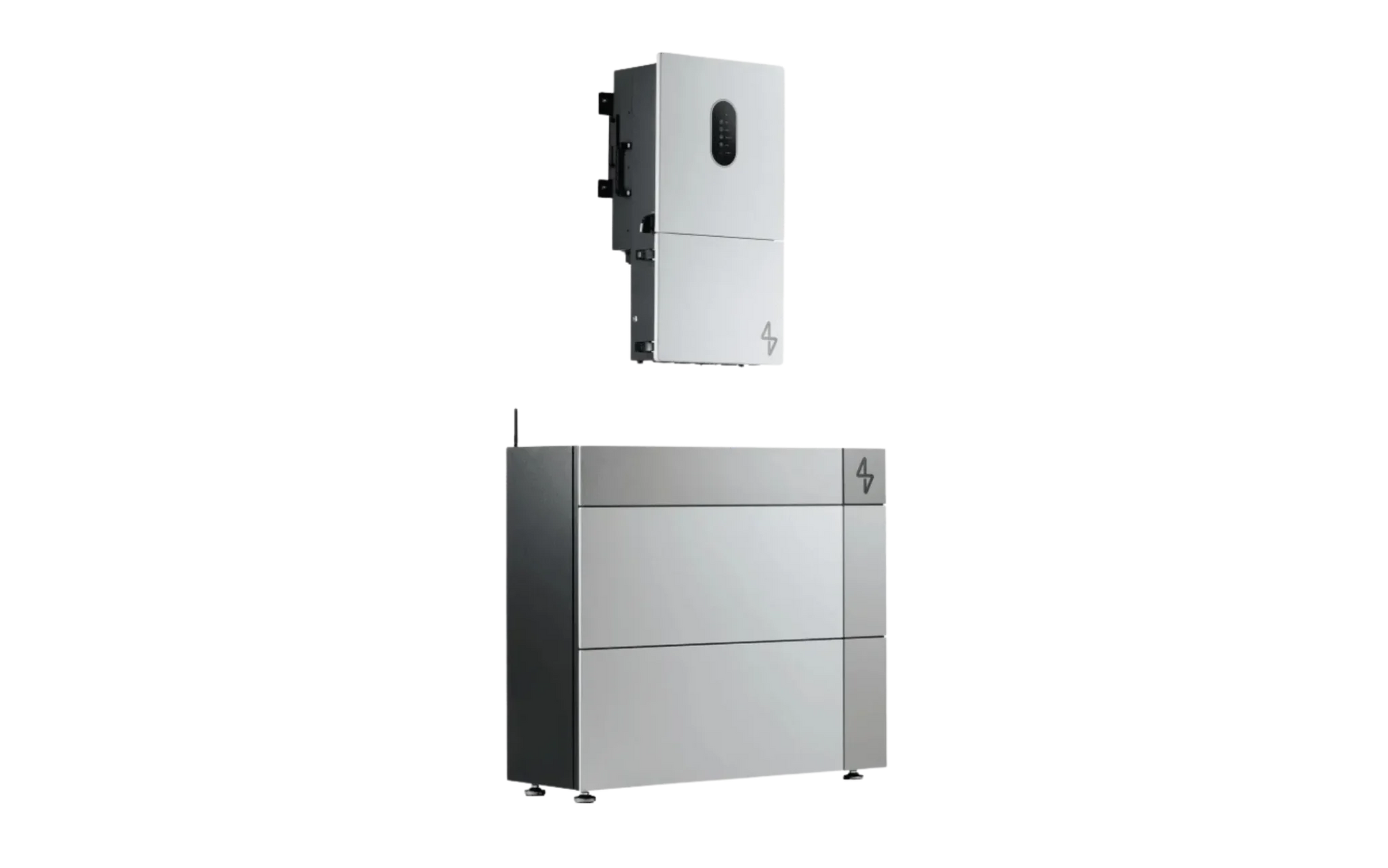

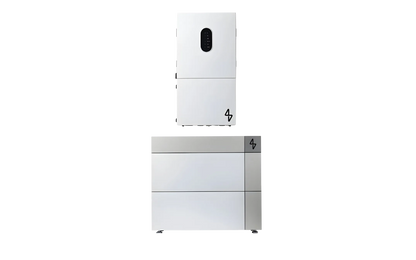

BigBattery MeterHome 14.3kWh Stackable Home Battery Backup System | 10kW Output | Solar, Grid & Generator Compatible | LiFePO4
BigBattery MeterHome 14.3kWh Stackable Home Battery Backup System | 10kW Output | Solar, Grid & Generator Compatible | LiFePO4
Couldn't load pickup availability
BigBattery MeterHome 14.3kWh Stackable Home Battery Backup System | 10kW Output | Solar, Grid & Generator Compatible | LiFePO4
Product Summary:

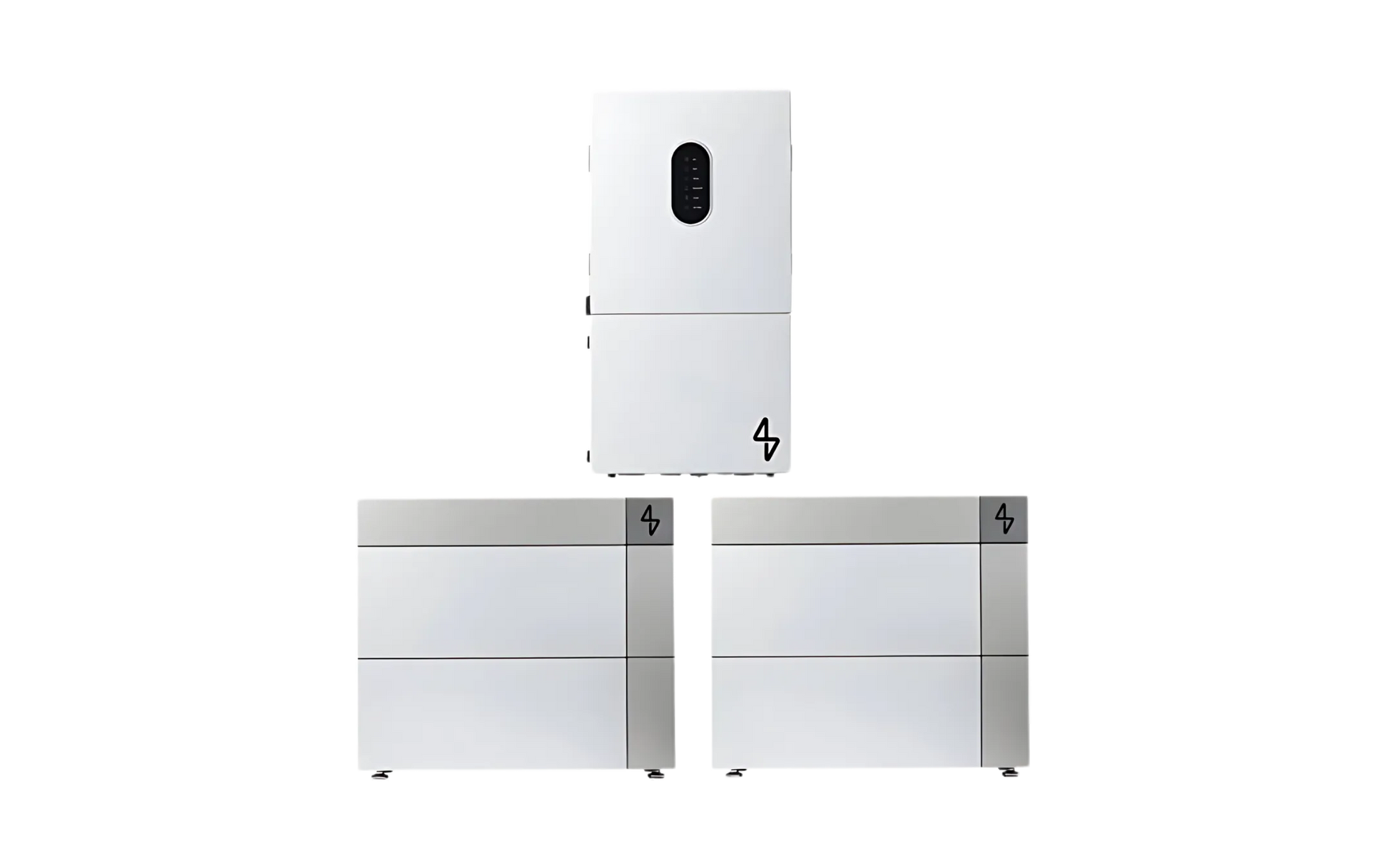

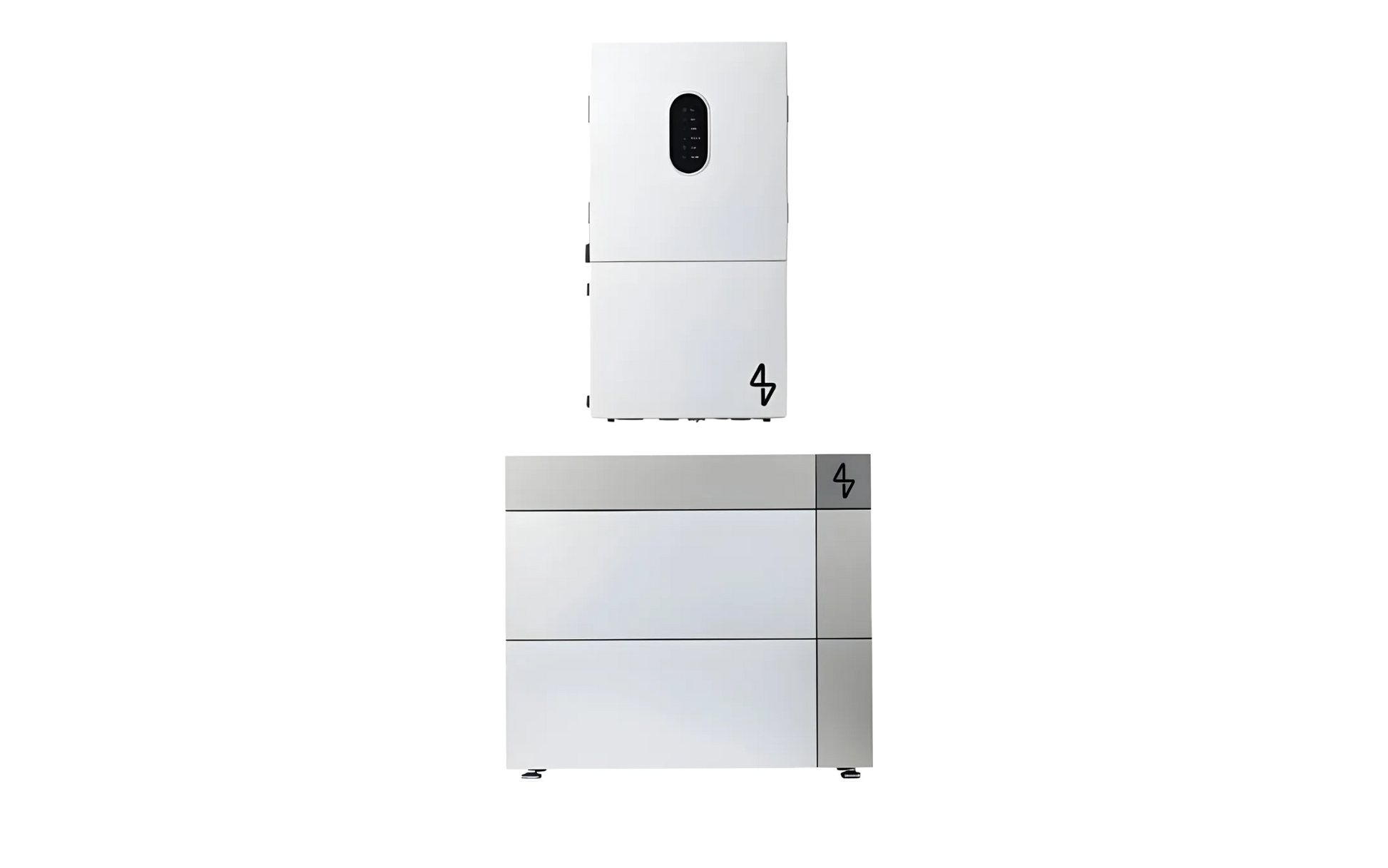

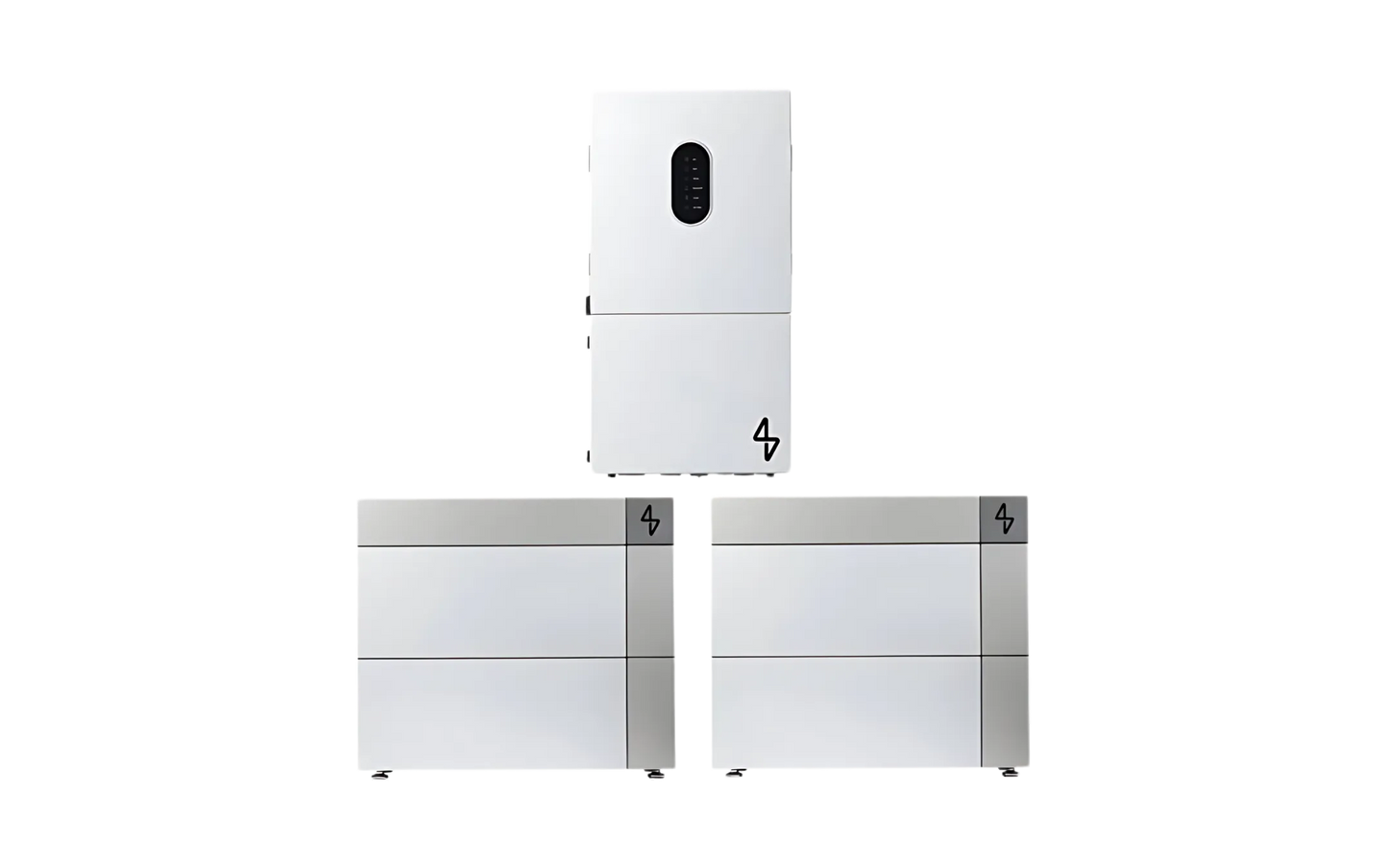

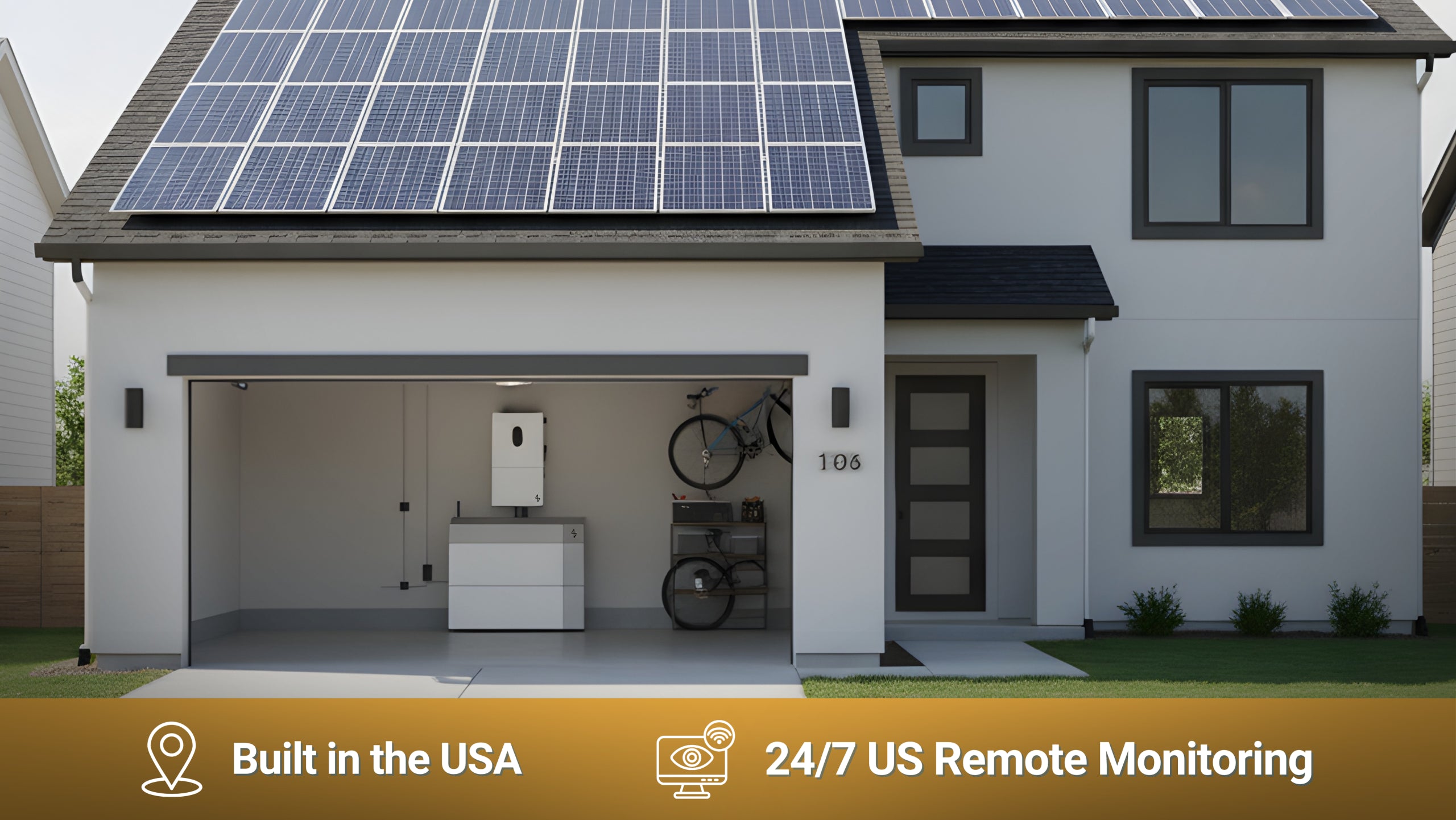

MeterHome is the all-in-one home energy storage system for whole-home backup, rate-hike protection, and everyday reliability. It integrates solar, grid, and generator with safe, stackable LiFePO₄ batteries, real-time weather outage protection, and 24/7 US-based monitoring – designed, built, and tested in the USA with a 10-year warranty.
Items included-Quantity depends on Your ESS Configuration
|

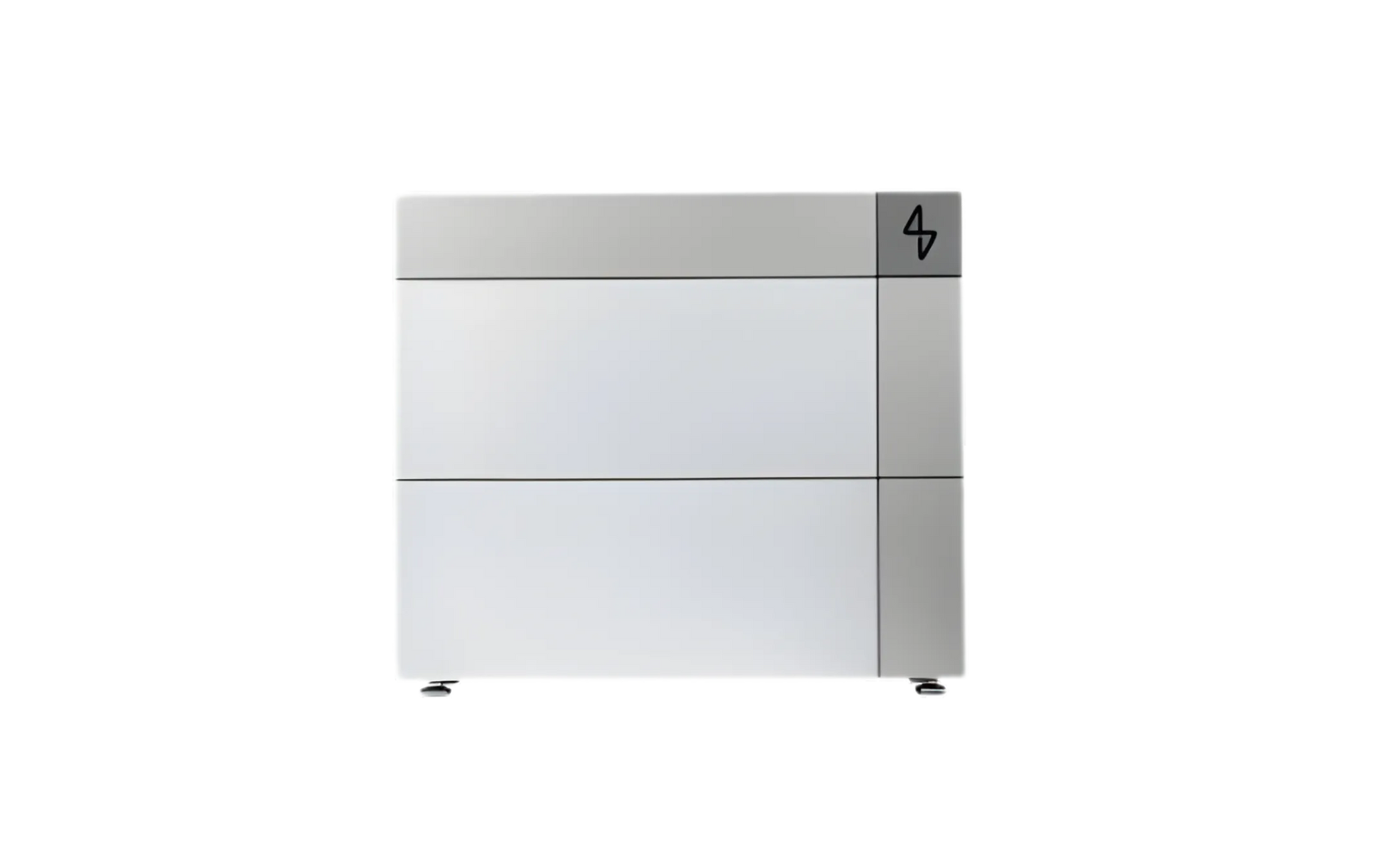

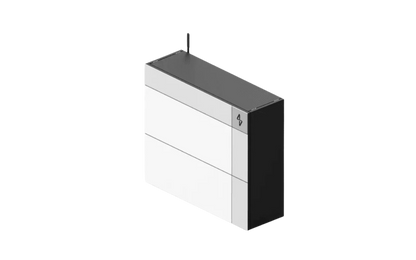

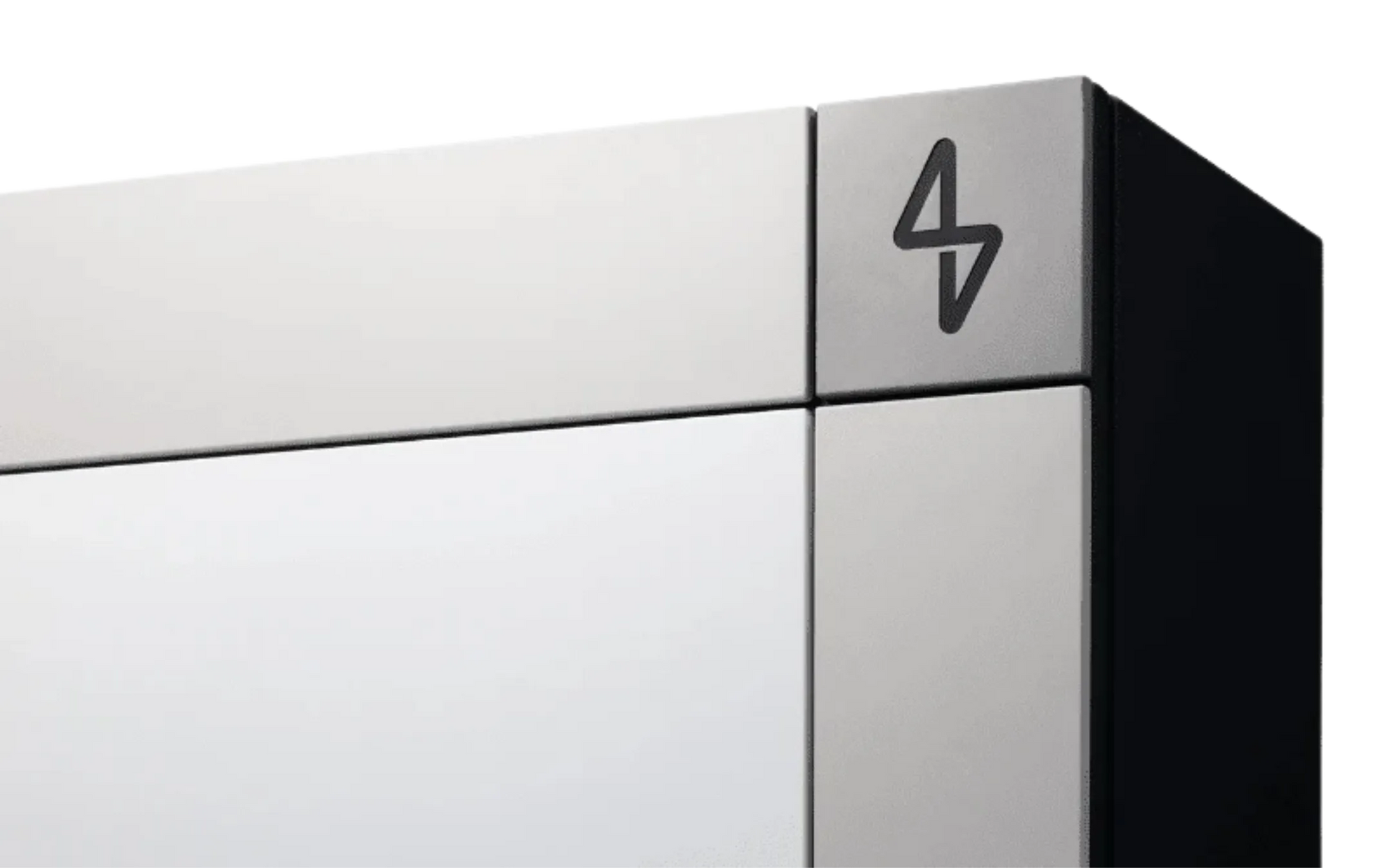

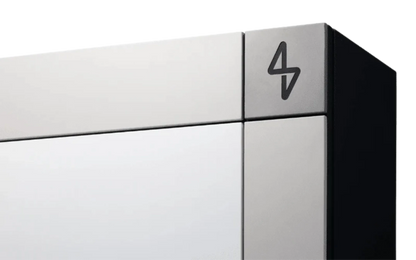

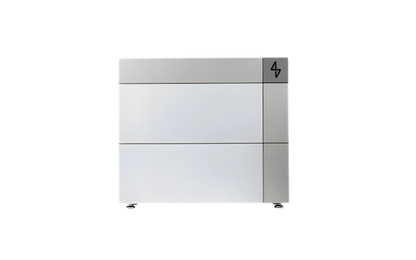

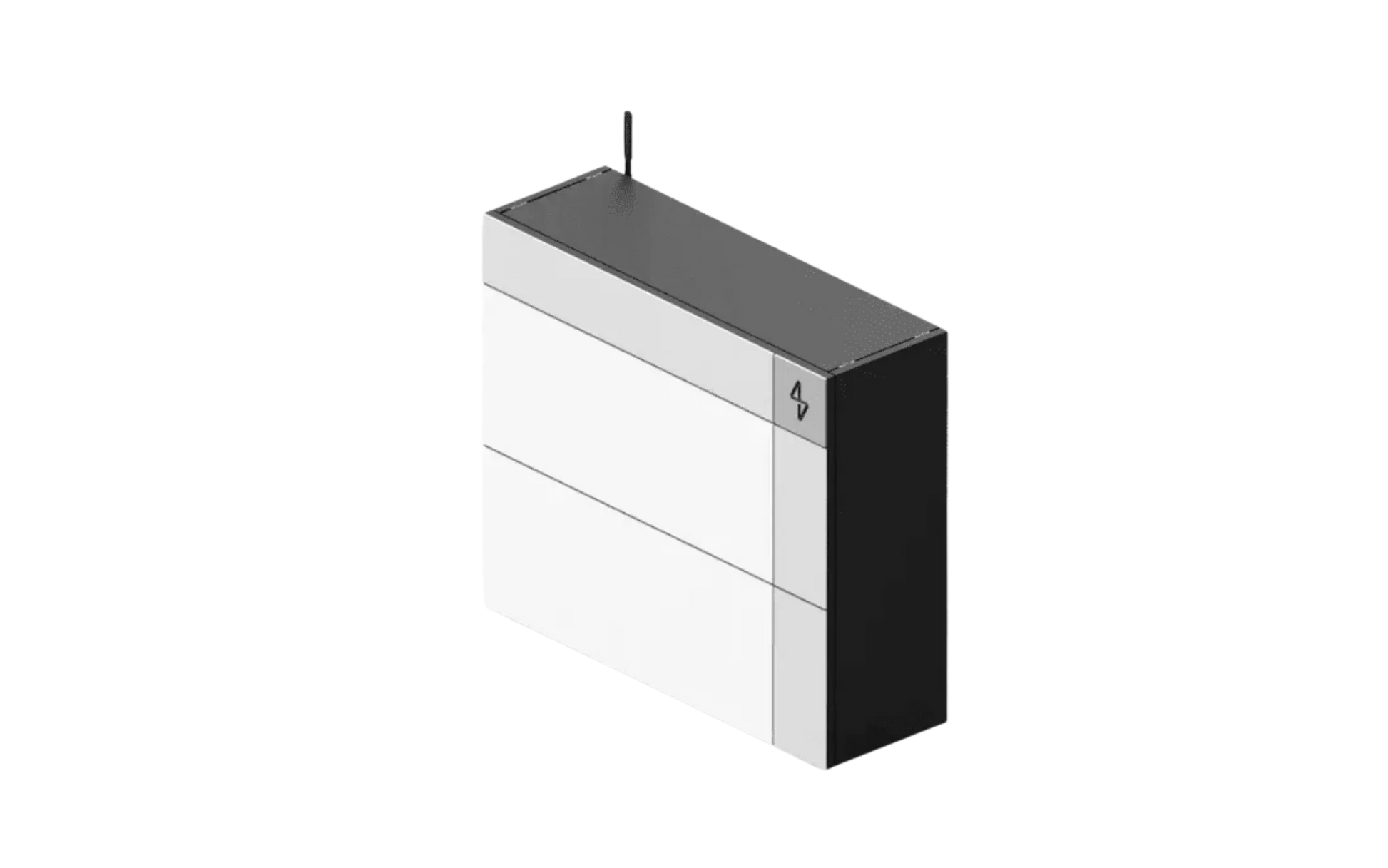

Battery Enclosure Tech Specifications |
|
|
Mechanical Specs |
|
|
Dimension (W x D x H) |
39.6″ x 16″ x 34.5″ (1006mm x 406mm x 876mm) |
|
Weight Approximation |
463 lbs. (210 kg) |
|
Installation Style |
Indoor, Floor Mounted |
|
Cooling |
air-cooled |
|
Environment Specs |
|
|
Humidity |
5%-95% |
|
Maximum Operation Altitude |
max 6,562ft (2000m) |
|
Enclosure Protection Rating |
IP 44 |
|
Performance Specs |
|
|
Energy Configuration (kWh) |
14.3 |
|
Maximum Charging / Discharging Current (A) |
150 |
|
Battery Operating Voltage (V) |
40-58.4 |
|
Battery Chemistry |
LiFePO4 |
|
Charging Temperature Range |
0°C to 35°C (32°F to 95°F) |
|
Discharging Temperature Range |
-30°C to 35°C (-22°F to 95°F) |
|
Cycle Life |
25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH |
|
Safety Certification |
UL60730, UL1973, UL9540, UL9540A, UN38.3 |
|
Warranty |
10 years (Standard) |
|
Connects up to |
8 Battery Enclosures |
|
Downloads |
|
|
System User Manual |
|
|
Install Guide |
|
|
Spec Sheet |
|

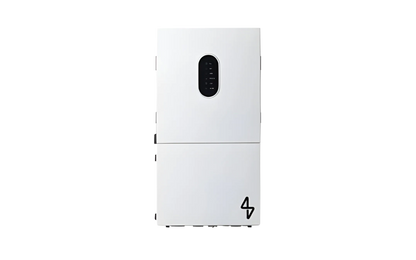

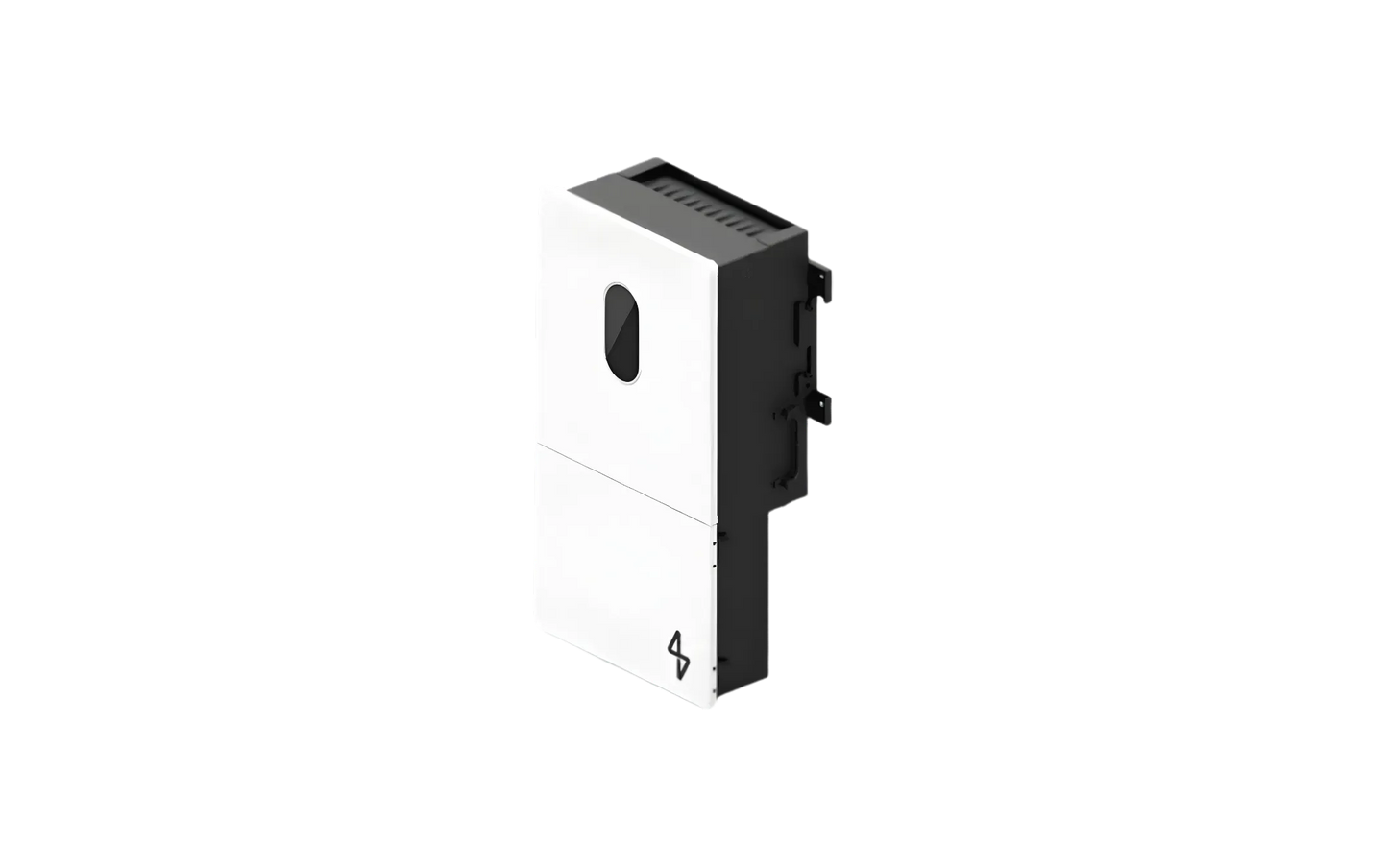

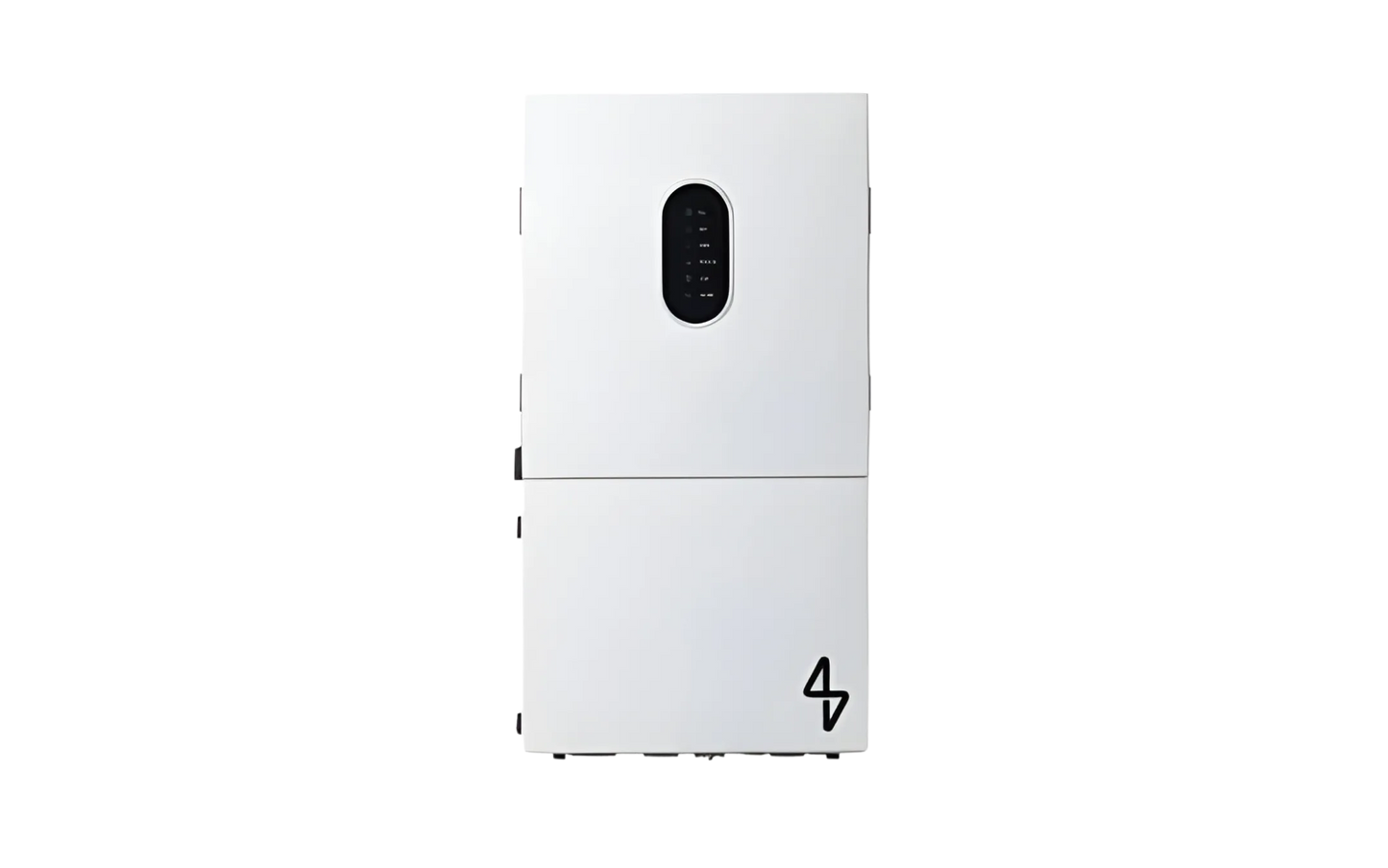

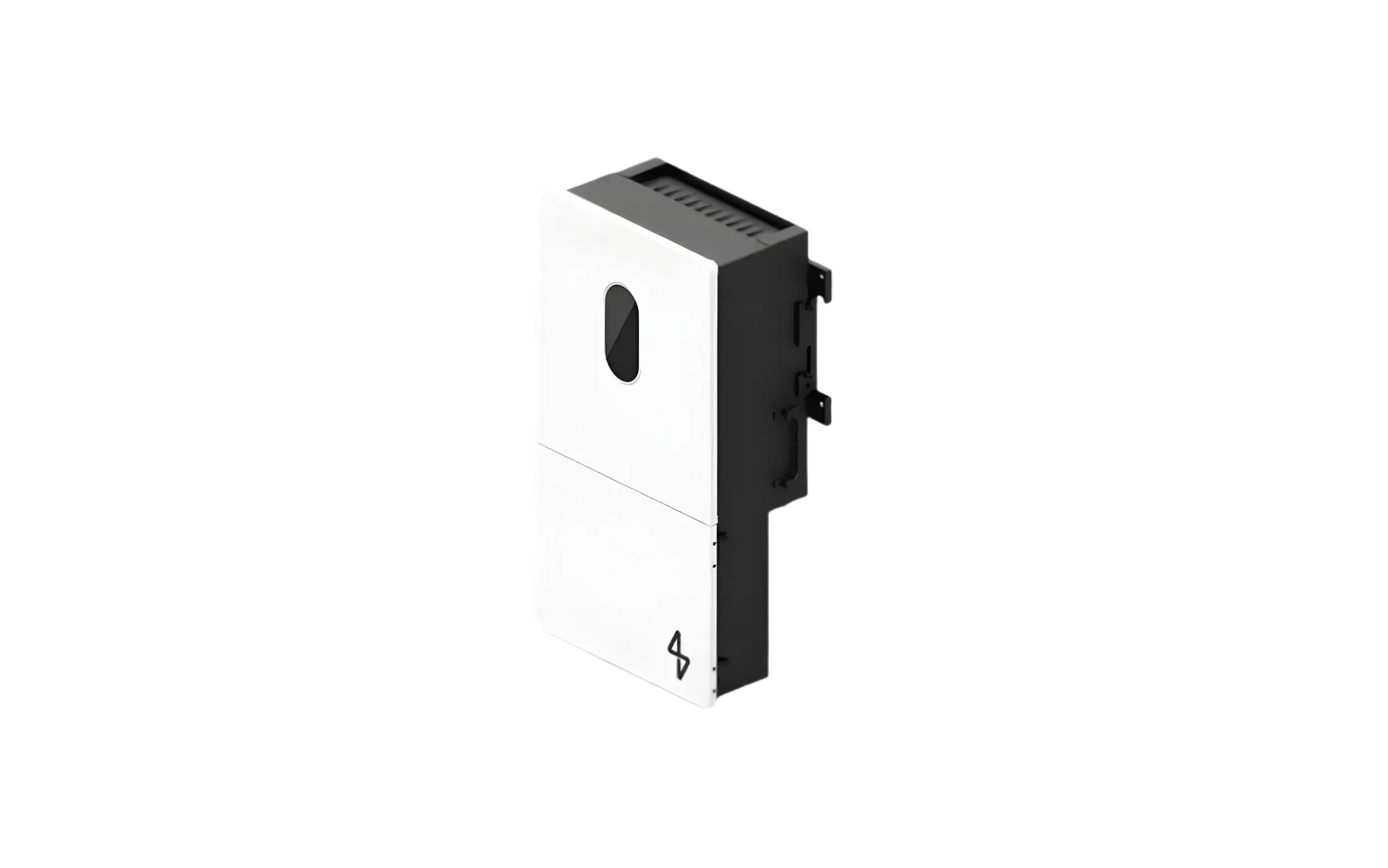

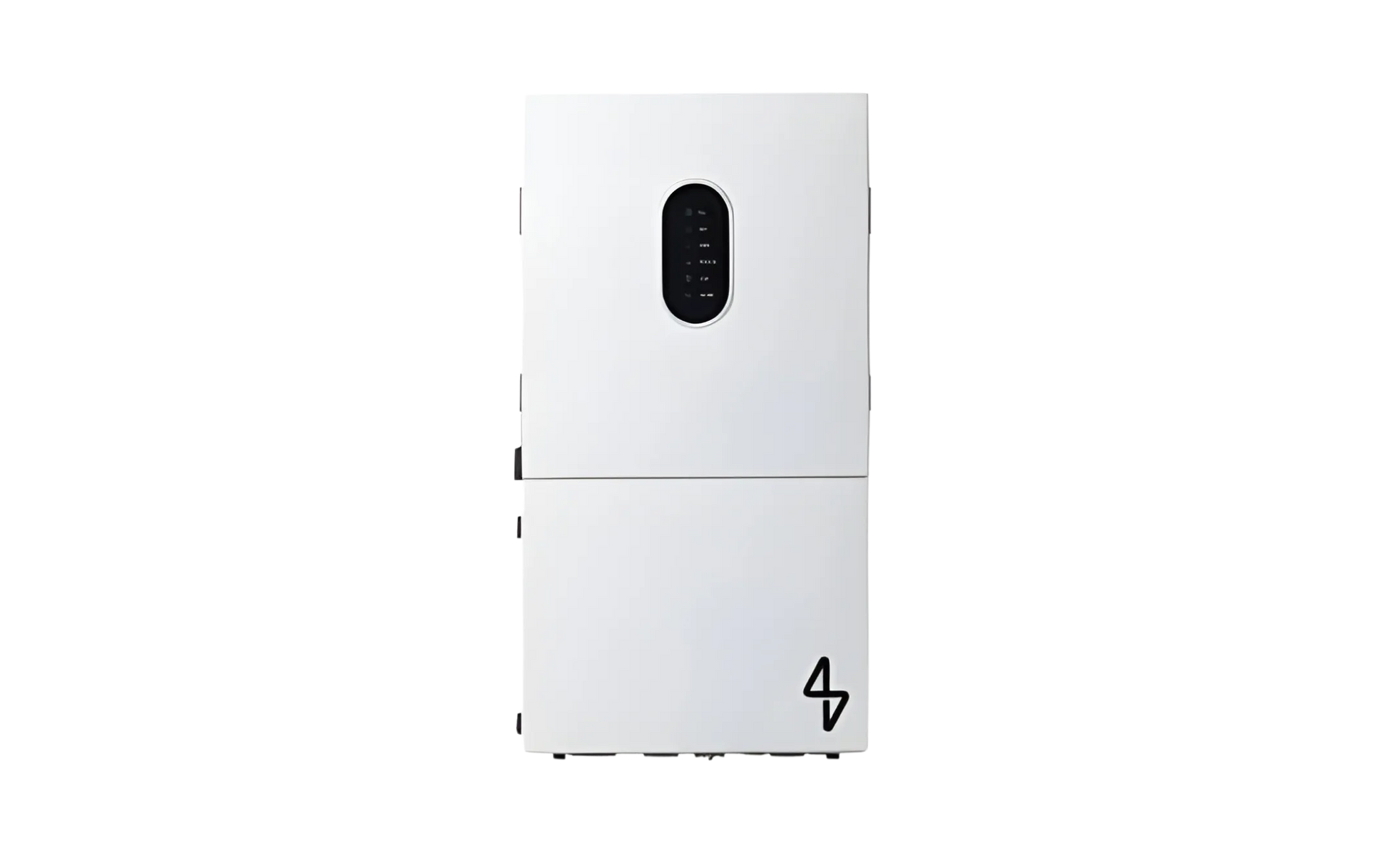

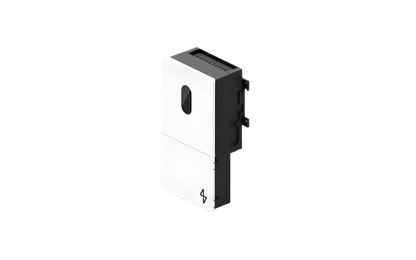

Inverter Specifications
Weight Approximation: 88 lbs. (40 kg)
Dimension (W x D x H): 16.5″ x 9.4″ x 31.5″ (420mm x 240mm x 800mm)
Mounting: Wall bracket
Cooling Method: Fan Cooling
Ingress Protection Degree: NEMA 3R
Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
Maximum Operation Altitude: max 6,562ft (2000m)
Relative Humidity: 0~100%
Nominal AC Output (W): 10,000
Maximum PV Input Power (W): 15,000
Maximum Input Current per MPPT (A): 30/22/22
Nominal Grid Voltage (Vac): 120/240V (Split phase) / 208V (2/3 phase)
Nominal Grid Frequency (Hz): 50/60
Rated PV Input Voltage (Vdc): 600
Start Up DC Voltage (Vdc): 90
MPPT Voltage Range (Vdc): 70-540
Maximum PV Circuit Current (A): 44+44
Number of MPPT: 3
String per MPPT: 2/2/2
PV Connection Way: Terminals
Peak Power (off grid): 2 times of rated power, 10s
Power Factor: 0.8 leading to 0.8 lagging
DC Injection Current (mA): THD <3% (Linear load <1.5%)
Maximum Efficiency (PV to AC): 98.0%
Maximum Efficiency (BAT to AC): 94.5%
CEC. Efficiency: 96.5%
Communication Interface: CAN(for BMS), DRM/RS485 (for meter), RS485
Safety Certification: UL1741, CSA C22.2, UL1699B
Grid Regulation: 2018, HECO SRD 2.0
EMC: FCC Part 15 Class B
Protection Category: Class I
Connects up to: 9 Inverters
Inverter Downloads
SKU#:MHOME-INV010
Spec Sheet:
DOWNLOAD
User Manual:DOWNLOAD
Install Guide:DOWNLOAD
Warranty
10-Year MeterHome Manufacturer Warranty
